This Product Is No Longer Available

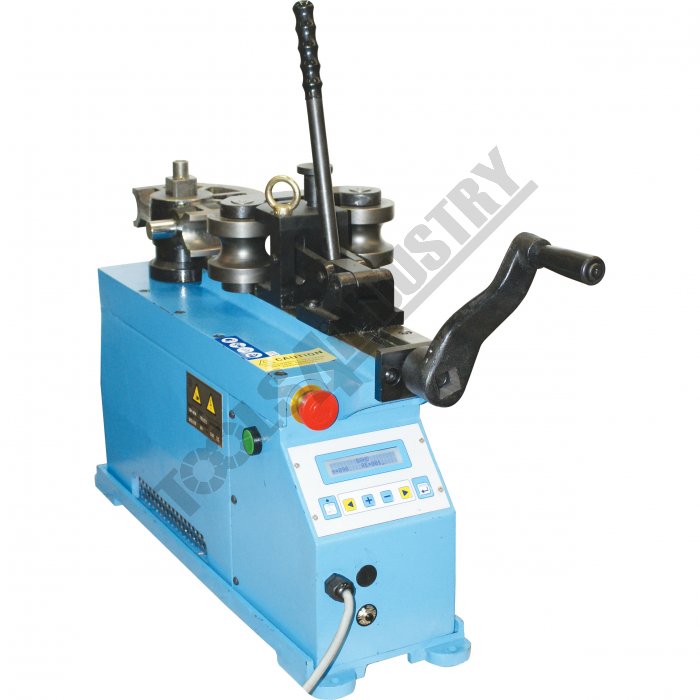

T604

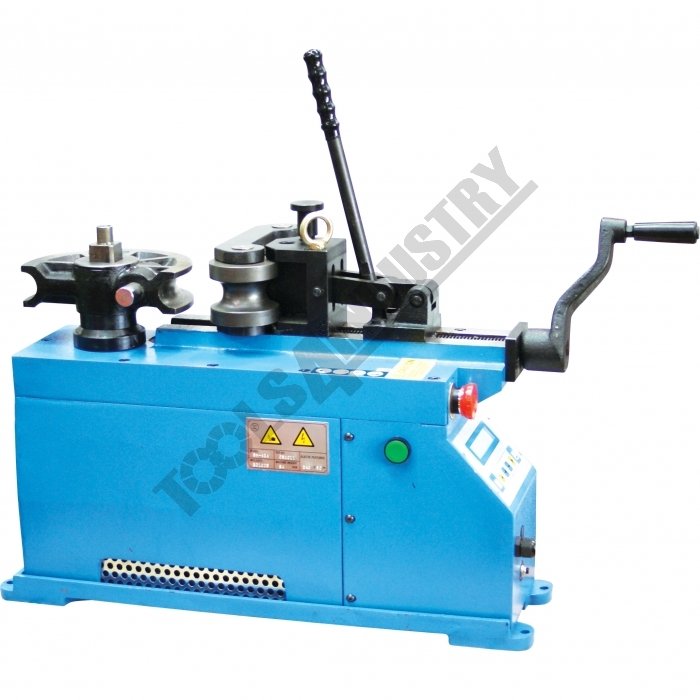

Side View

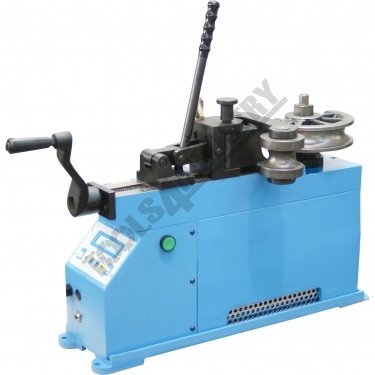

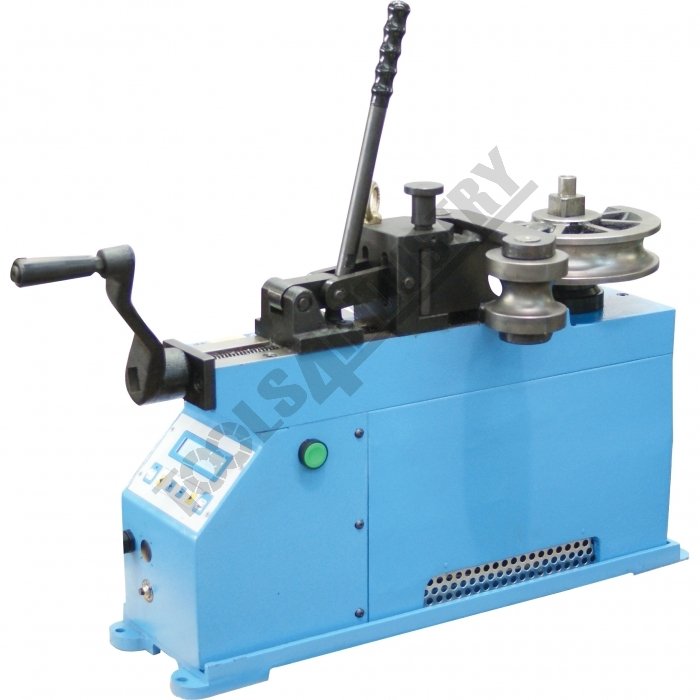

Right Side View

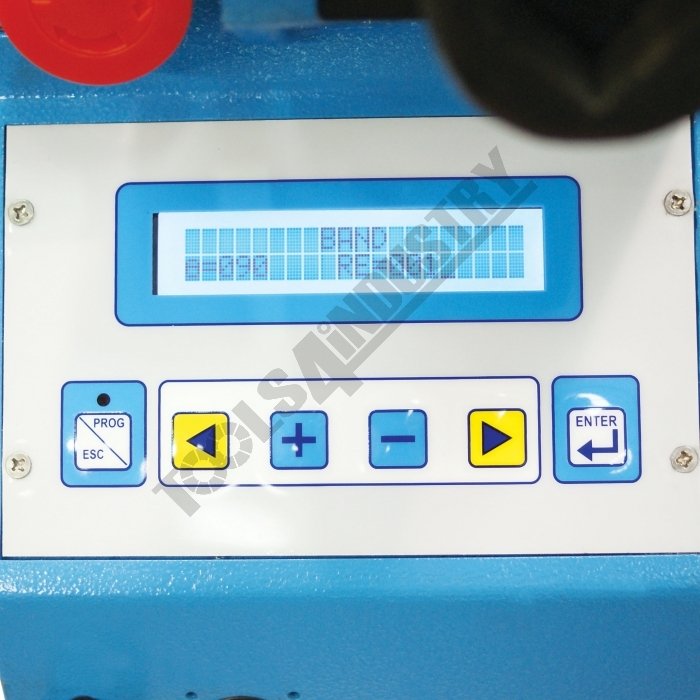

Programmable Control Panel

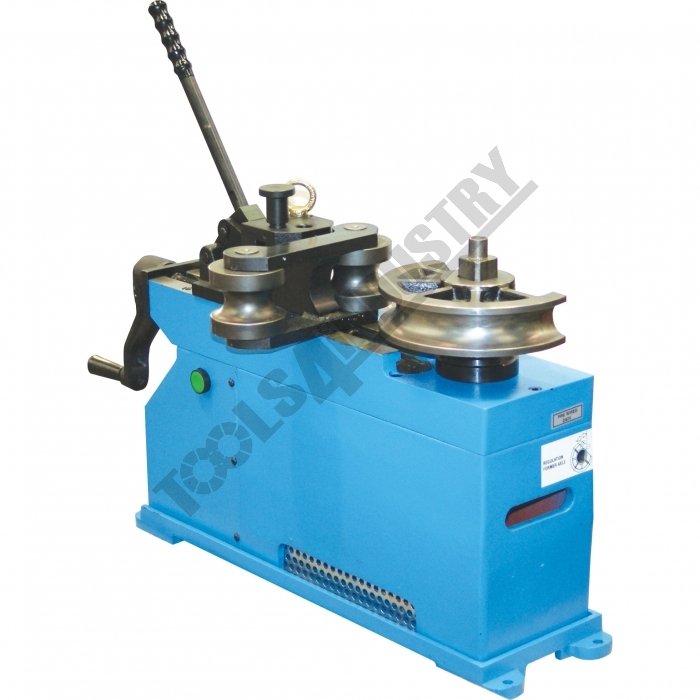

Rear View

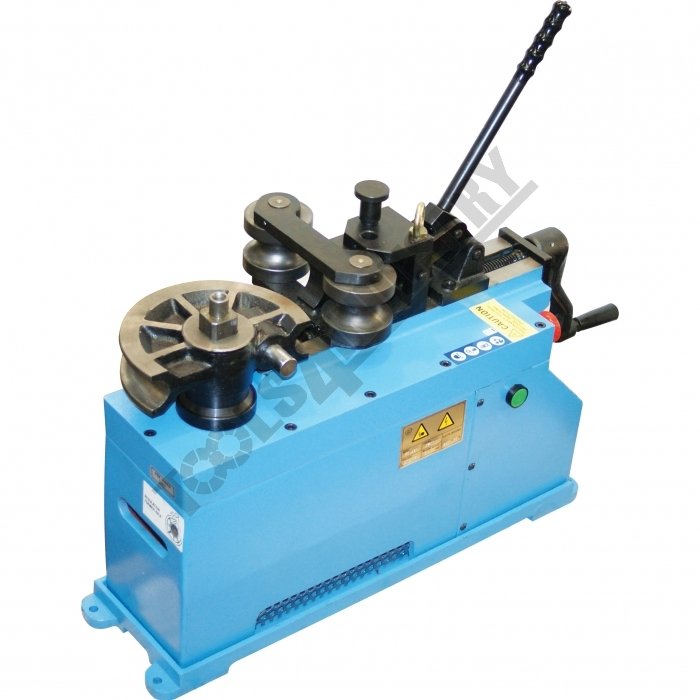

Rear Top View

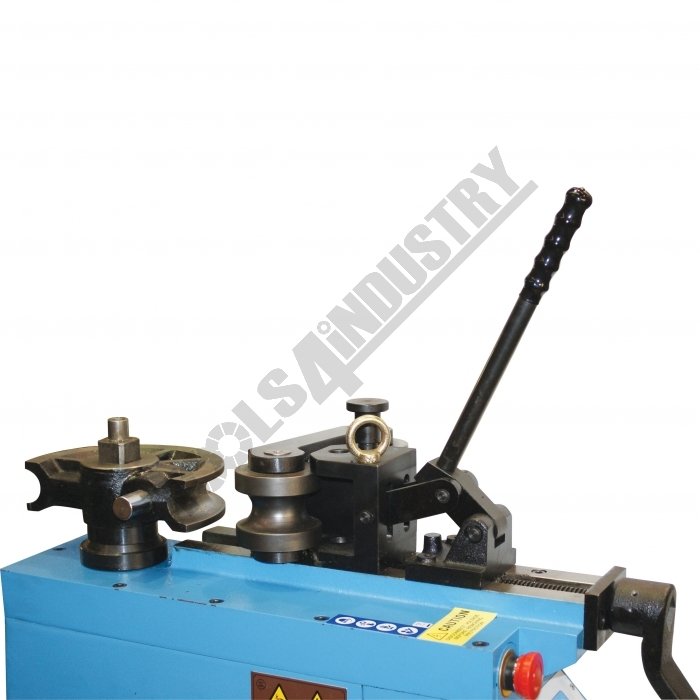

Quick Action Clamp

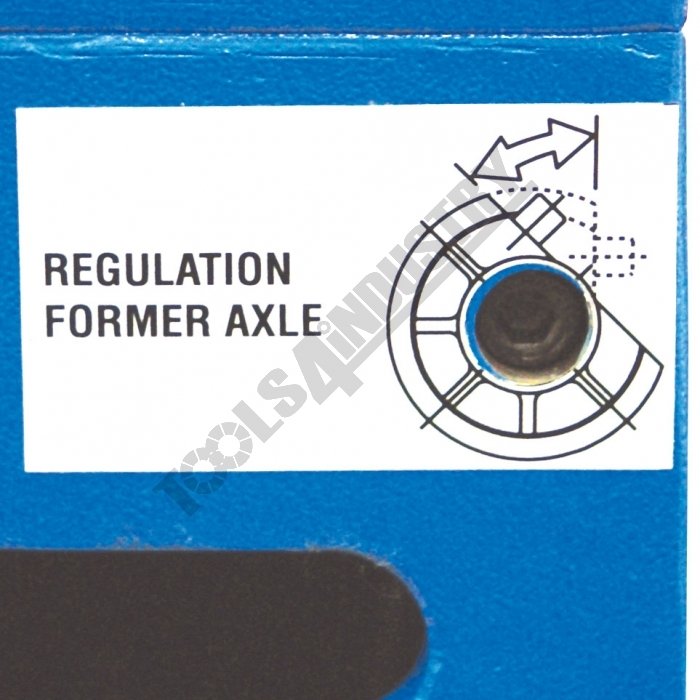

Regulation Former Axle

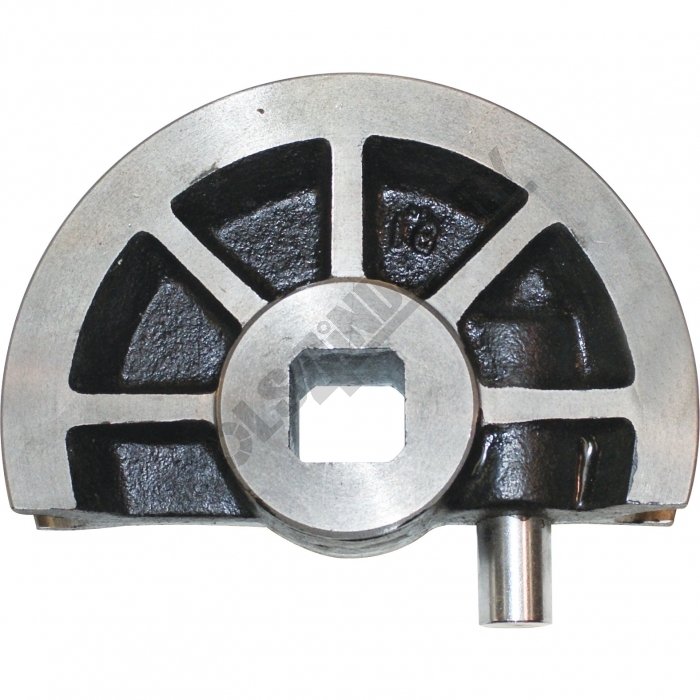

Former Top View

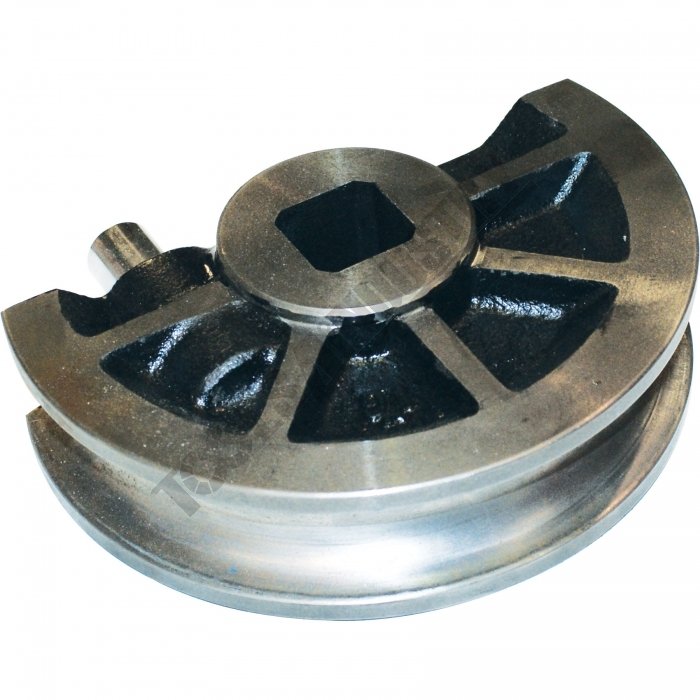

Former Side View

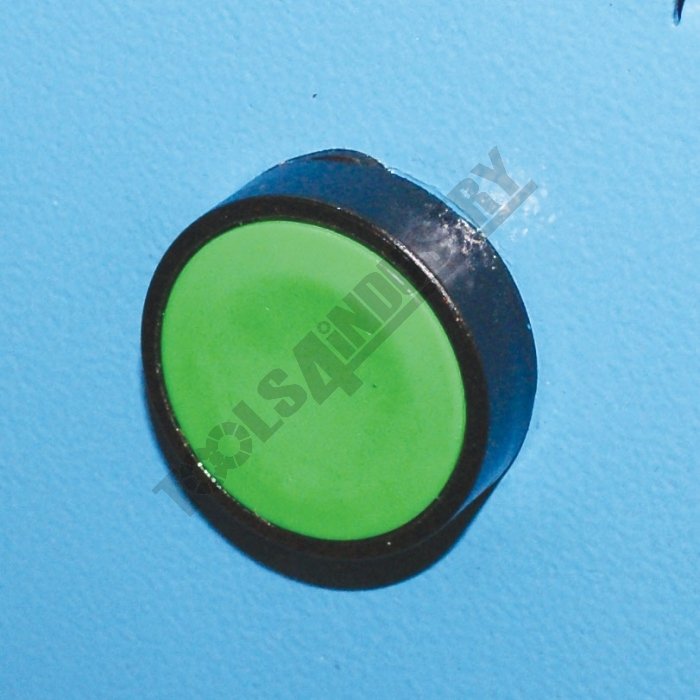

Deadman's Safety Buttons - Left & Right

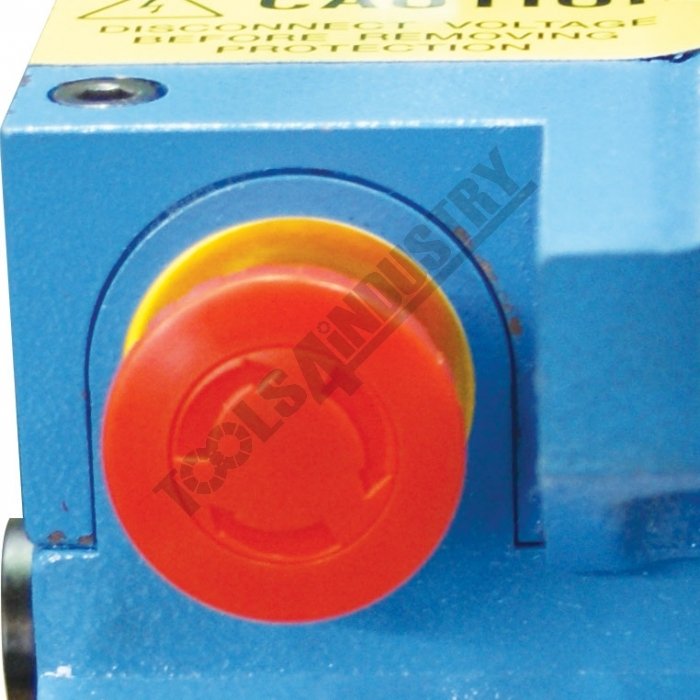

Stop Switch

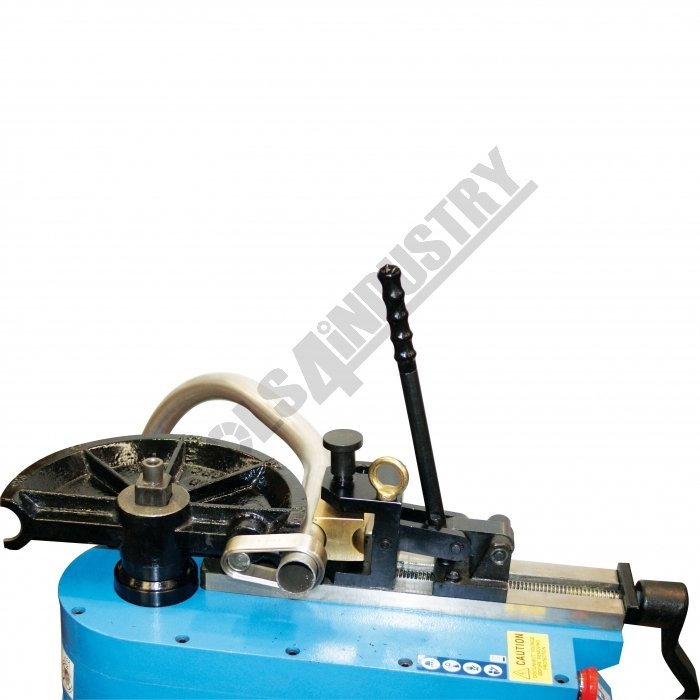

Optional Tube Former with Brass Counter Former

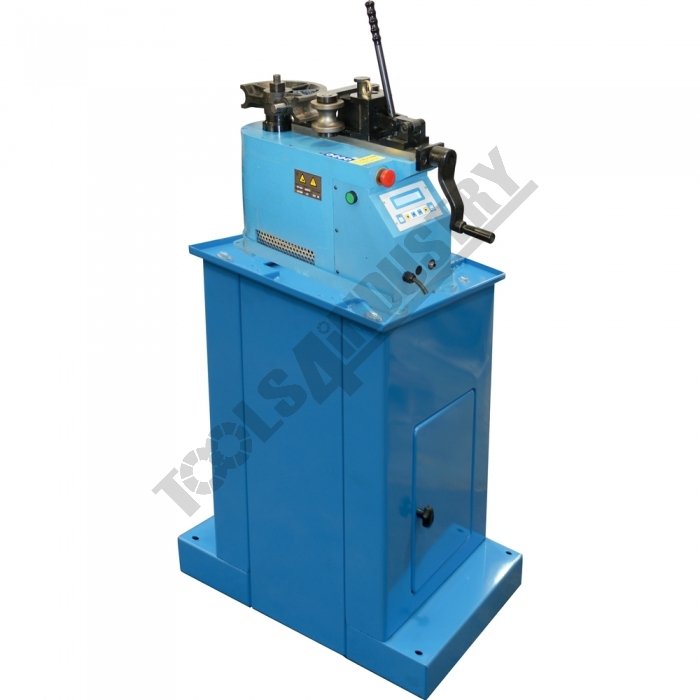

Shown with Optional Stand

Code	T604
Model	TB-42
Capacity	Ø38 x 2mm Steel Tube Capacity
Weight (kg)	127
Weight (m³)	0.211
Weight (Freight)	127
Dimensions (cm)	76 x 47 x 59

Product Brochure Instruction Manual [5 MB] Tube Bender Hafco Instructions [718 KB]Pipe Tube Bender - Electric Risk Assessment

This Product Is No Longer Available

Electric Pipe & Tube Bender TB-42 Ø38 x 2mm Steel Tube Capacity

Description

Manufactured in Taiwan

TB-42 is an accurate and powerful electric bending machine able to bend large diameter pipes & tubes in medium to thin wall with optimum and constant bending radii. This compact & versatile pipe & tube bender incorporates a digital control key pad to accurately bend to your requirements.

This compact & versatile pipe and tube bending unit represents great value for a minimal investment

Features

Cast iron body tube bender
0.65kW 240V motor
User friendly digital control panel with microprocessor, allowing users to set the required bending angles.
Capable of storing 50 programs with 9 bends per program
Electric brake and automatic return to stop
Designed to bend tube and pipe with constant bending radius without deformation
Each pipe former consists of a die former and a follow rollers to suit each size
210º maximum bending angle
Includes formers: (Ø1/2", Ø3/4", Ø1" NB Pipe)

Includes

Pipe Formers:
Ø1/2" NB - 59.2mm radius
Ø3/4" NB - 80mm radius
Ø1" NB - 100.1mm radius

Optional Accessories

Optional stand to suit (T603)
Optional tube formers also available (T610)

Specifications

Compare 9 Products
ORDER CODE
MODEL
MaterialType
Material SectionType
MachineType
Hydraulic Jack SizeTonne
Round Pipe Range (NB) - Mild Steelinch / mm
Round Tube Range (OD) - Mild Steelinch / mm
Square Tube Rangeinch / mm
Tube Wall Thickness - Mild Steelinch / mm
Round Pipe (NB) x Wall Capacity - Mild Steelinch
Round Pipe (NB) x Wall Capacity - Aluminiuminch / mm
Round Pipe (NB) x Wall Capacity - Stainless Steelinch / mm
Round Tube (OD) x Wall Capacity - Mild Steelinch / mm
Round Tube (OD) x Wall Capacity - Aluminiuminch / mm
Round Tube (OD) x Wall Capacity - Copper, Brassinch / mm
Round Tube (OD) x Wall Capacity - Stainless Steelinch / mm
Round Tube (OD) x Wall Capacity - Chromolyinch / mm
Solid Rod - Mild Steelinch / mm
Square Tube x Wall Capacity - Mild Steelinch / mm
Rectangle Tube x Wall Capacity - Mild Steelinch / mm
Bend Speed - MaximumDeg / Sec
Bend Direction
Centre Line Radius - Maximum (CLR)inch / mm
Centre Line Radius - Minimum (CLR)inch / mm
Tube Formers Includedinch / mm
Pipe Formers Includedinch / mm
Spigot Size on Raminch / mm
Angle Capacitydeg
Hydraulic Pressure - Maximumpsi
Motor PowerkW / hp
Voltage / AmperageV / amp
Nett Weightkg

T604
TB-42
Pipe & Tube
Round
Electric
~
Ø12.7 - Ø25.4
Ø25.4 - Ø38.1
~
~
Ø25.4 x 1/8"
~
~
Ø38 x 2
Ø38 x 3
Ø38 x 2
Ø31.8 x 1.6
~
~
~
~
~
~
4 x Former Diameter
3 x Former Diameter
~
~
~
~
~
0.65 / 0.9
240 / 10
94

Z00823
CM-51
Pipe & Tube
Round
Electric
~
Ø51 x 3mm
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
5.5 / 7.5
415
1000

T055
TBRS-25
Tube
Round & Square
Manual
~
~
Ø9.52 - Ø22.22
19.05 & 25.4
1.2
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
9.52, 12.7, 14.29 Round
15.87, 19.05, 22.22 Round
19.05 & 25.4 Square
~
~
0 - 180º
~
~
~
28

T070
DB-32
Tube
Round
Electric
~
~
Ø15.87 - Ø31.75
~
2.0*
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
15.87, 19.05, 22.22,
25.4 & 31.75 OD Round
~
~
0 - 180º
~
1.7 / 2.3
240
32.6

P066
MPB-2
Pipe
Round
Manual Hydraulic
12
Ø1/2" - Ø2"
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
1/2", 3/4", 1", 1-1/4",
1-1/2", 2"
20
~
~
~
~
41

P065
PPB-2
Pipe
Round
Pneumatic & Manual Hyd.
12
Ø1/2" - Ø2"
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
1/2", 3/4", 1", 1-1/4",
1-1/2", 2"
20
~
~
~
~
43

P064
MPB-2SH
Pipe
Round
Manual Hydraulic
12 - 2 Stage Pump
Ø1/2" - Ø2"
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
1/2", 3/4", 1", 1-1/4",
1-1/2", 2"
31.8
~
~
~
~
50

T606
TB-60
Pipe & Tube
Round
Electric
~
Ø1/2" - Ø1-1/4"
Ø25.4 - Ø51
~
~
Ø1-1/4" x 1/8"
~
~
Ø51 x 2
Ø51 x 3
Ø51 x 2
Ø38 x 1.6
~
~
~
~
~
~
4 x Former Diameter
3 x Former Diameter
~
1/2", 3/4", 1" &
1-1/4" NB Pipe
~
0 - 210º
~
1.1 / 1.5
240 / 10
140

T607
TB-70
Pipe & Tube
Round
Electric
~
Ø1/2" - Ø2"
Ø25.4 - Ø51
~
~
Ø2" x 1/8"
~
~
Ø51 x 3
Ø51 x 5
Ø51 x 4
Ø51 x 2
~
~
~
~
~
~
4 x Former Diameter
3 x Former Diameter
~
1/2", 3/4", 1" &
1-1/4" NB Pipe
~
0 - 210º
~
2.2 / 3
415
240

ORDER CODE	TB-42
MODEL	Pipe & Tube
MaterialType	Round
Material SectionType	Electric
MachineType	~
Hydraulic Jack SizeTonne	Ø12.7 - Ø25.4
Round Pipe Range (NB) - Mild Steelinch / mm	Ø25.4 - Ø38.1
Round Tube Range (OD) - Mild Steelinch / mm	~
Square Tube Rangeinch / mm	~
Tube Wall Thickness - Mild Steelinch / mm	Ø25.4 x 1/8"
Round Pipe (NB) x Wall Capacity - Mild Steelinch	~
Round Pipe (NB) x Wall Capacity - Aluminiuminch / mm	~
Round Pipe (NB) x Wall Capacity - Stainless Steelinch / mm	Ø38 x 2
Round Tube (OD) x Wall Capacity - Mild Steelinch / mm	Ø38 x 3
Round Tube (OD) x Wall Capacity - Aluminiuminch / mm	Ø38 x 2
Round Tube (OD) x Wall Capacity - Copper, Brassinch / mm	Ø31.8 x 1.6
Round Tube (OD) x Wall Capacity - Stainless Steelinch / mm	~
Round Tube (OD) x Wall Capacity - Chromolyinch / mm	~
Solid Rod - Mild Steelinch / mm	~
Square Tube x Wall Capacity - Mild Steelinch / mm	~
Rectangle Tube x Wall Capacity - Mild Steelinch / mm	~
Bend Speed - MaximumDeg / Sec	~
Bend Direction	4 x Former Diameter
Centre Line Radius - Maximum (CLR)inch / mm	3 x Former Diameter
Centre Line Radius - Minimum (CLR)inch / mm	~
Tube Formers Includedinch / mm	~
Pipe Formers Includedinch / mm	~
Spigot Size on Raminch / mm	~
Angle Capacitydeg	~
Hydraulic Pressure - Maximumpsi	0.65 / 0.9
Motor PowerkW / hp	240 / 10
Voltage / AmperageV / amp	94
Nett Weightkg
