This Product Is No Longer Available
| Code | T302 |
|---|---|
| Capacity | Ø6-Ø32mm Range |
| Weight (kg) | 5.44 |
| Weight (m3) | 0.002 |
| Weight (Freight) | 5.44 |
| Dimensions (cm) | 21 x 10 x 10 |
Product Brochure
This Product Is No Longer Available

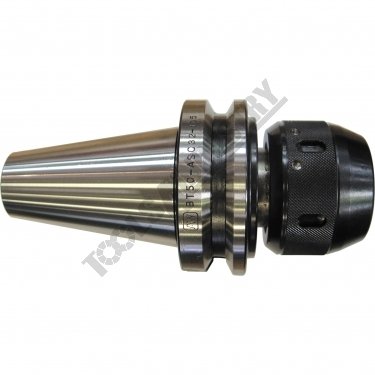

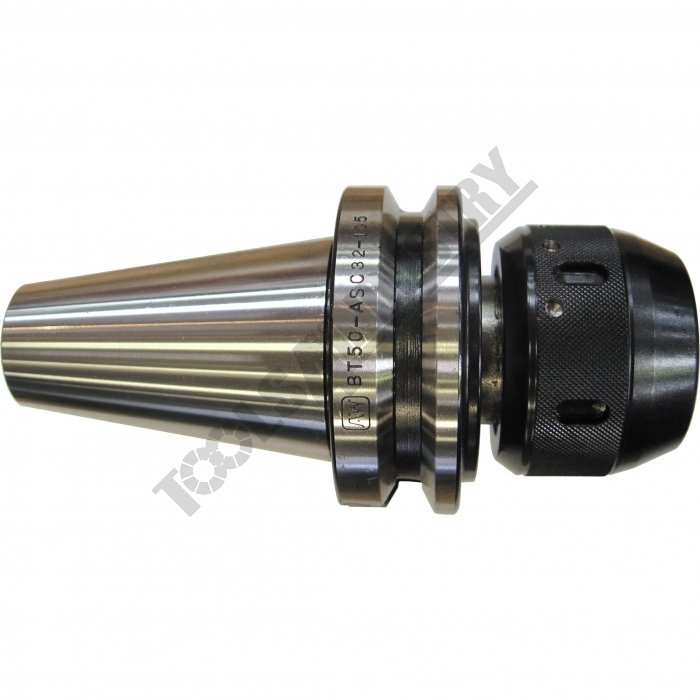

BT50-ASC32-110 Collet Chuck Multilock (C SERIES) Ø6-Ø32mm Range
Description
Collet chuck meet the specifications of machine tool builders (DIN 2080 taper shank grade AT-3 - 85% taper contact)Collet chucks are rated to 10,000 rpm. (balancing up to 15,000 - 25,000 available on request)
Features
- Heavy duty collet chuck designed for ripper cutters and heavy metal removal
- Four layers of roller bearings provide increased gripping force
- Run-out accuracy of 5 microns can be obtained 100mm out from chuck
- The design ensures a powerful clamping force, minimising vibration and distortion
- Spanner not included

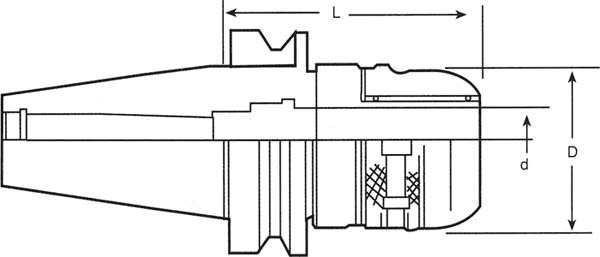

Specifications
- Compare 2 Products
- ORDER CODE
- MODEL
- TaperBT
- Capacitymm
- d (lowercase)mm
- Dmm
- Lmm
- Collet TypeSC
- Nett Weightkg
| ORDER CODE | BT50-ASC32-110 |
|---|---|
| MODEL | BT50 |
| TaperBT | 6 - 32 |
| Capacitymm | 32 |
| d (lowercase)mm | 76 |
| Dmm | 110 |
| Lmm | SC-32 |
| Collet TypeSC | 5.2 |
| Nett Weightkg |
