42 Piece Thread Restorer Tap & Die Kit - Metric, UNC, UNF M6 - M12, 1/4" - 5/8"

Description

Re-threading kit is used for the repair of damaged threads to restore back to their original state.

Features

• Taps: Metric (M6-M12) & Imperial UNC, UNF (1/4"-9/16") fine/coarse threads
• Dies: Metric (M6-M12) & Imperial UNC, UNF (1/4"-5/8") fine/coarse threads
• All re-thread taps and dies are hex shaped for use with a socket or wrench
• Includes 2 x double ended imperial UNC, UNF thread files
• Colour coded for identification between UNF, UNC and Metric

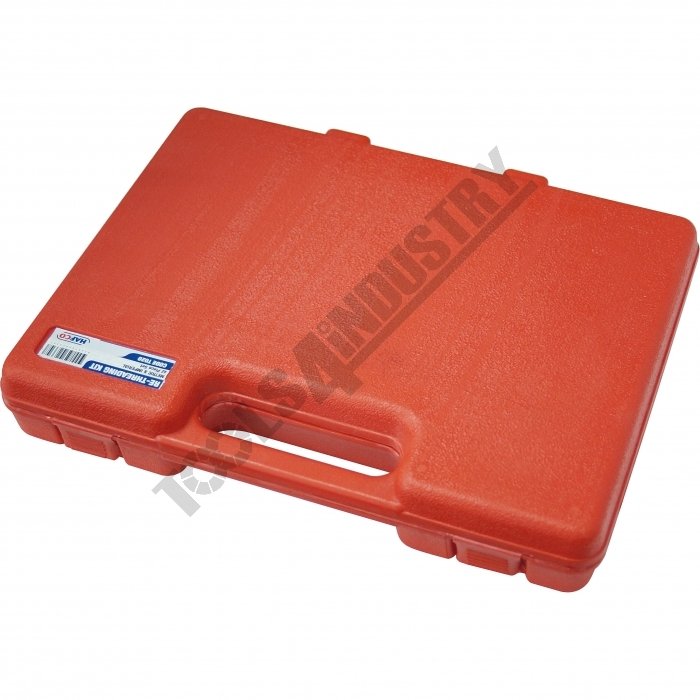

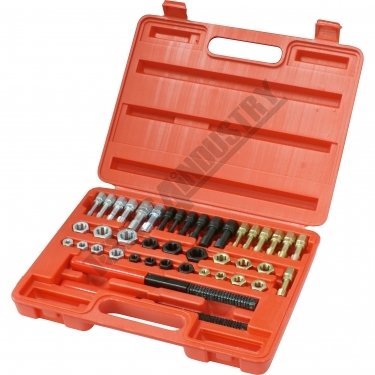

• Stored in plastic blow mould case with identification locations

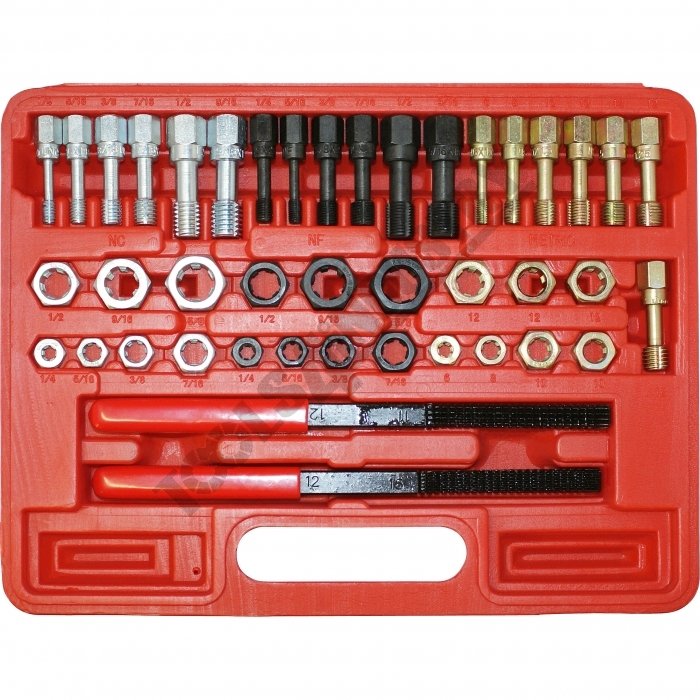

Includes

• UNC Taps & Dies;
• 1/4 x 20
• 5/16 x 18
• 3/8 x 16
• 7/16 x 14
• 1/2 x 13
• 9/16 x 12
• 5/8 x 11 Die Only


• UNF Taps & Dies;
• 1/4 x 28
• 5/16 x 24
• 3/8 x 24
• 7/16 x 20
• 1/2 x 20
• 9/16 x 18
• 5/8 x 18 Die Only


• Metric Taps & Dies;
• M6 x 1.0
• M8 x 1.25
• M10 x 1.25
• M10 x 1.5
• M12 x 1.25
• M12 x 1.5
• M12 x 1.75


• Imperial Thread file sizes;
• File 1. UNF: 9, 10, 12, 16, 20, 27, 28, 32TPI
• File 2. UNC: 11, 12, 13, 14, 16, 18, 20, 24TPI
