This Product Is No Longer Available
| Code | S250 |
|---|---|
| Model | PB-4 |
| Capacity | 1220 x 1.2mm Mild Steel Bending Capacity |
| Weight (kg) | 180 |
| Weight (m3) | 0.635 |
| Weight (Freight) | 211.455 |
| Dimensions (cm) | 161 x 58 x 68 |

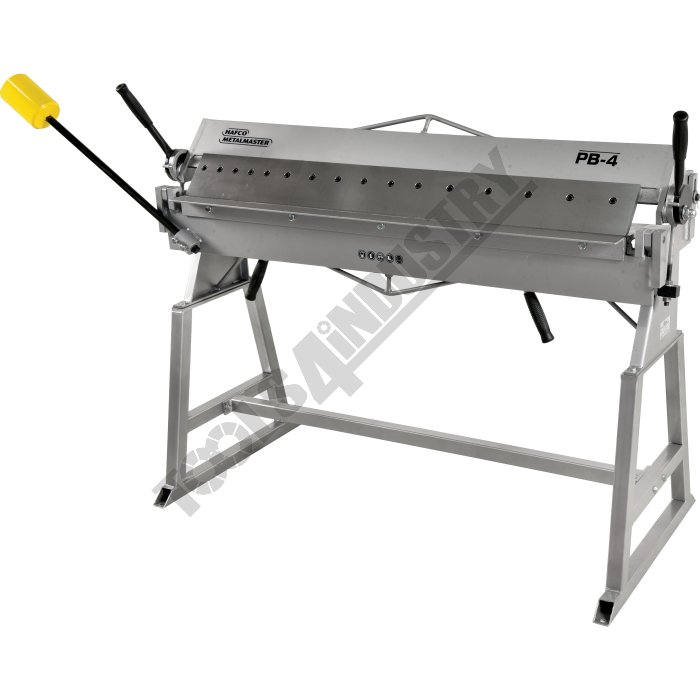

Manual Panbrake PB-4 1220 x 1.2mm Mild Steel Bending Capacity
Features
- "NO BULL CAPACITY" - Australian Tested & Rated To True Working Capacity
- Steel fabricated construction
- Oiling points on bearing areas

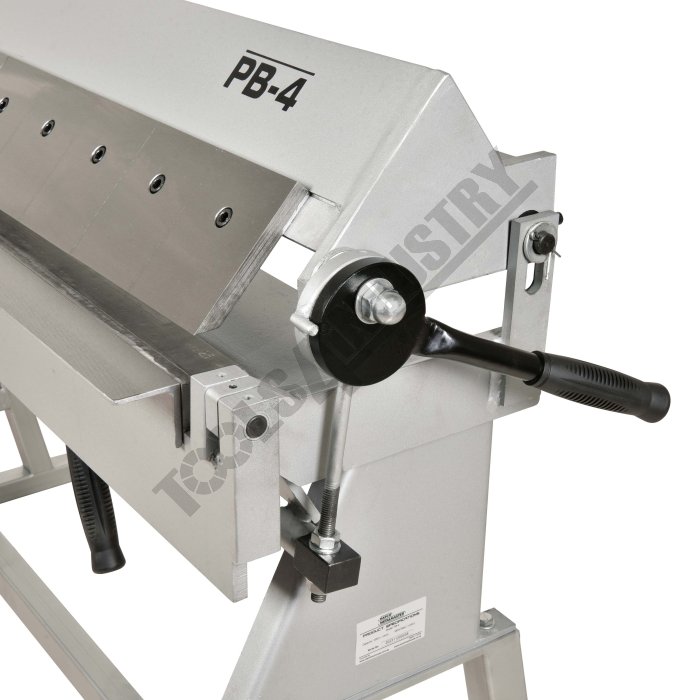

- Clamping blade is adjustable for clamping pressure and materials thickness
- Adjustable clamping pressure beam to prevent distortion during bending

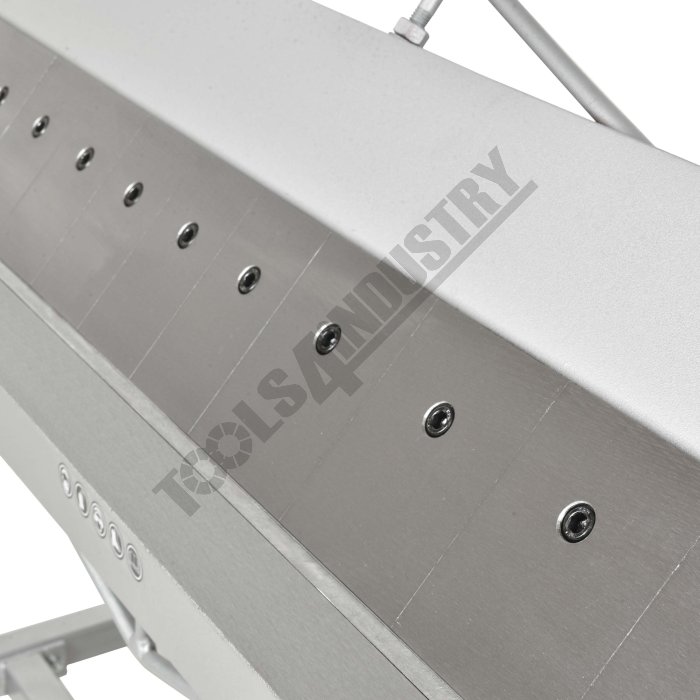

- Removable individual bending fingers for pans or boxes
- Mild steel capacity is rated on hot rolled material with 250MPA
Specifications
- Compare 10 Products
- ORDER CODE
- MODEL
- Bending Capacity - Mild Steelmm
- Material Length Capacitymm
- Floor Space (L x W x H)mm
- Nett Weightkg
| ORDER CODE | PB-4 |
|---|---|
| MODEL | 1.2 |
| Bending Capacity - Mild Steelmm | 1220 |
| Material Length Capacitymm | ~ |
| Floor Space (L x W x H)mm | 175 |
| Nett Weightkg |
