This Product Is No Longer Available

Code	R015A
Model	TS-4
Capacity	260-190mm Centre Height
Weight (kg)	12
Weight (m³)	0.016
Weight (Freight)	12
Dimensions (cm)	33 x 19 x 26

Product Brochure

This Product Is No Longer Available

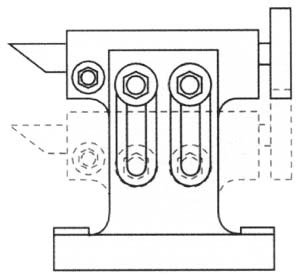

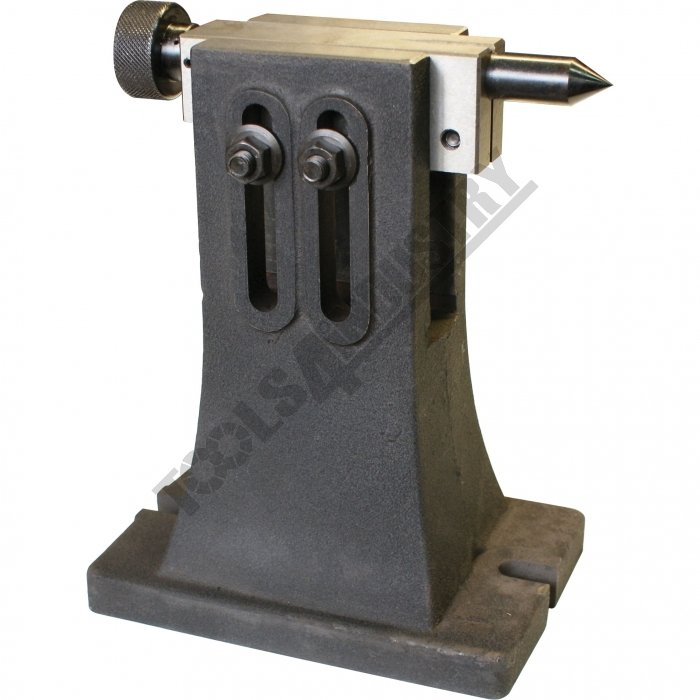

Vertex Tailstock TS-4 260-190mm Centre Height

Description

Features:- When using Super Indexing Spacers and Rotary Tables in the vertical position, these tailstocks can be used to support the workpiece and ensure accurate alignment

Specifications

Compare 4 Products
ORDER CODE
MODEL
Suitable For
Height Adjustmentmm
Lowest Adjustmentmm
Nett Weightkg

R015A
TS-4
HV-14, HV-16
260
190
12

R013
TS-1
HV-4, HV-6
110
80
4.5

R014
TS-2
HV-8, CS-6
145
115
6

R015
TS-3
HV-10, HV-12, CS-8
200
130
9

ORDER CODE	TS-4
MODEL	HV-14, HV-16
Suitable For	260
Height Adjustmentmm	190
Lowest Adjustmentmm	12
Nett Weightkg
