This Product Is No Longer Available

Code	Q241
Model	33-241
Capacity	30-50mm/1.2-2.0"
Weight (kg)	0.9
Weight (m³)	0.002
Weight (Freight)	0.9
Dimensions (cm)	23.5 x 18 x 5.5

MEASUMAX

1 Year Warranty

RS232

Product Brochure Instruction Sheet [1 MB]

This Product Is No Longer Available

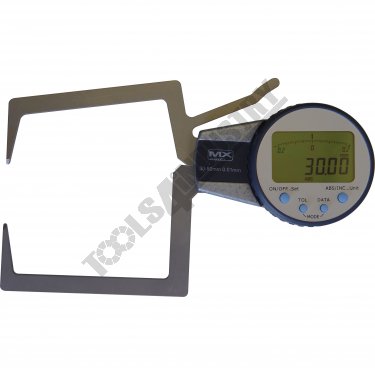

Outside Caliper Gauge 33-241 30-50mm/1.2-2.0"

Description

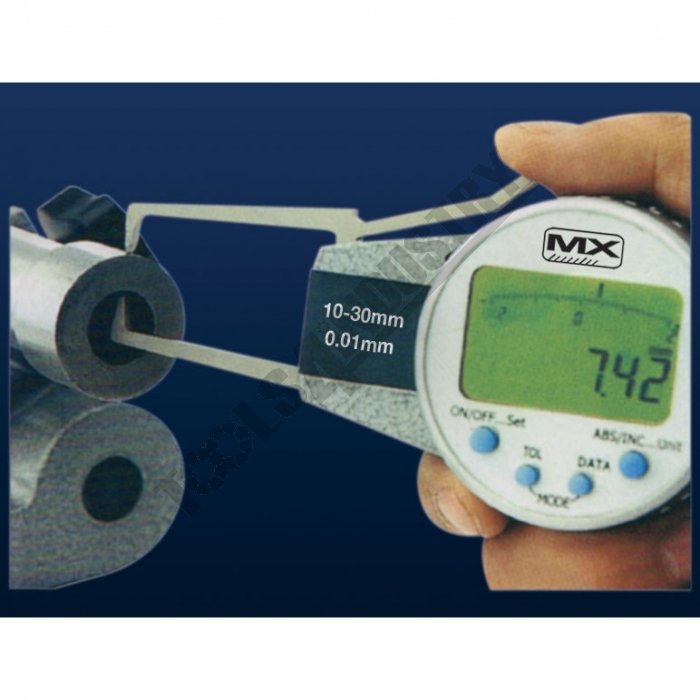

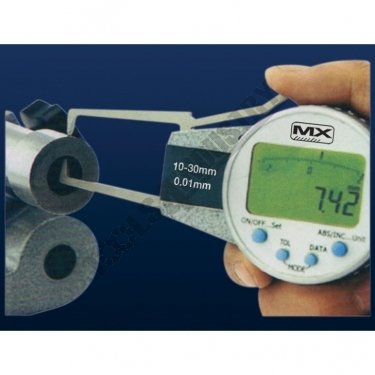

Electronic outside caliper gauges are suitable for the measurement of grooves or dimensions that cannot be reached with a micrometer or vernier caliper

Features

Digital and analogue display on LCD
Function include Power, Absolute & Incremental
Metric/Imperial conversion
Remembers the data of Max. and Min. or hold data
Direct RS232 Output (Uses cable 40-401)
Auto Power off
Accuracy 0.03mm
Tolerance set

Includes

Includes CR2032 battery

Specifications

Compare 3 Products
ORDER CODE
Range
Graduations
Lmm
Smm
Hmm

Q241
30 - 50mm / 1.2 - 2.0"
0.01mm / 0.0005"
80
6.5
25

Q239
0 - 20mm / 0 - 0.8"
0.01mm / 0.0005"
80
6.5
25

Q240
10 - 30mm / 0.4 - 1.2"
0.01mm / 0.0005"
80
6.5
25

ORDER CODE	30 - 50mm / 1.2 - 2.0"
Range	0.01mm / 0.0005"
Graduations	80
Lmm	6.5
Smm	25
Hmm
