Code Q236
Model 33-236
Capacity 300mm
Weight (kg) 0.48
Weight (m3) 0.001
Weight (Freight) 0.48
Dimensions (cm) 21 x 15 x 2
MEASUMAX
1 Year Warranty
Product Brochure

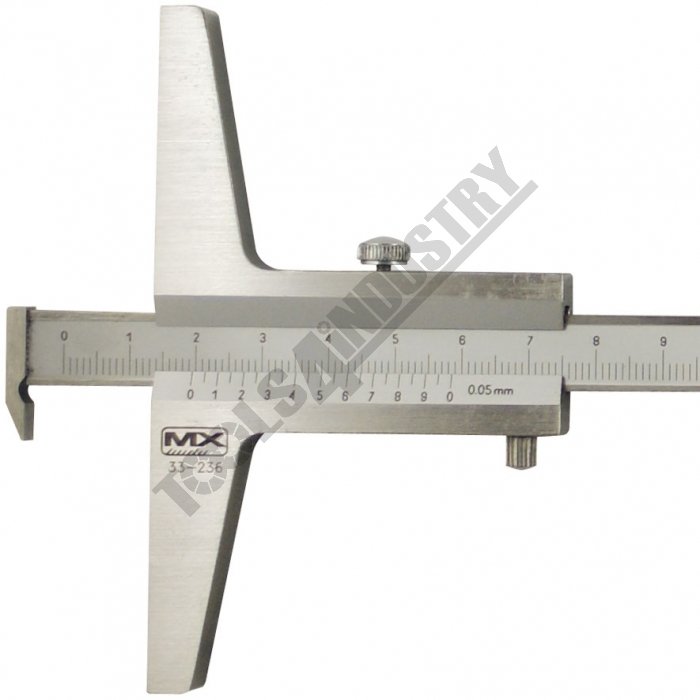

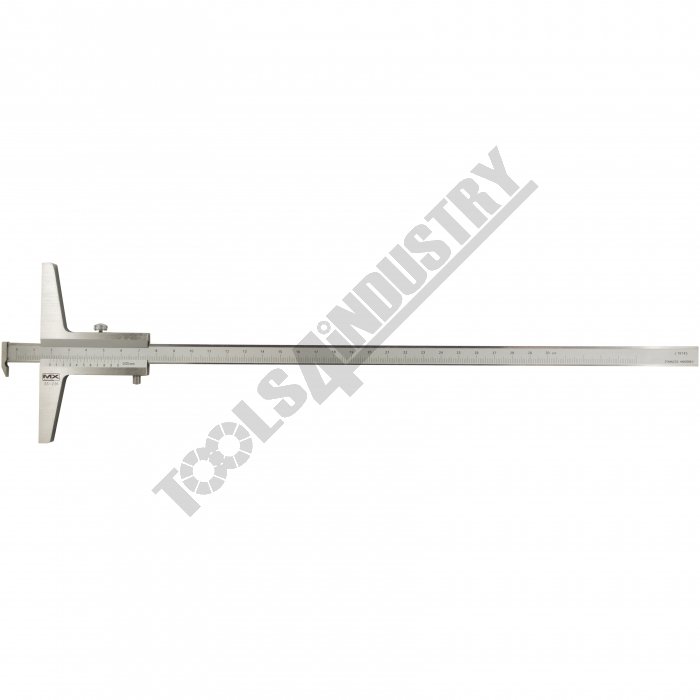

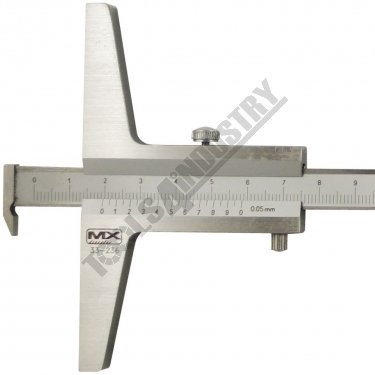

Vernier Depth Gauge with hook 33-236 300mm

Description

The Measumax Vernier Depth Gauge is suitable for depth, step, internal and external groove measurement
Instrument are manufactured to ISO 10012:2003

Features

  • Mono block stainless steel construction
  • With screw at the back of the far end of the caliper bar
  • Clear laser engraved graduations

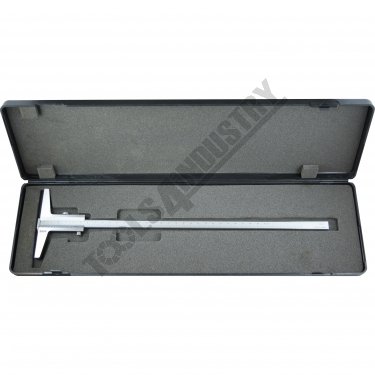

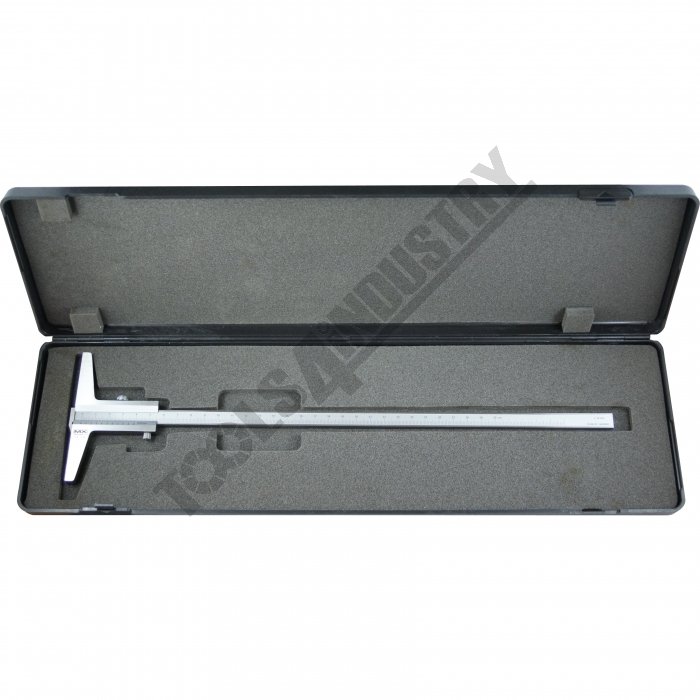

  • Supplied in plastic case

Specifications

ORDER CODE300
Rangemm±0.06
Accuracymm0.05
Graduationsmm102

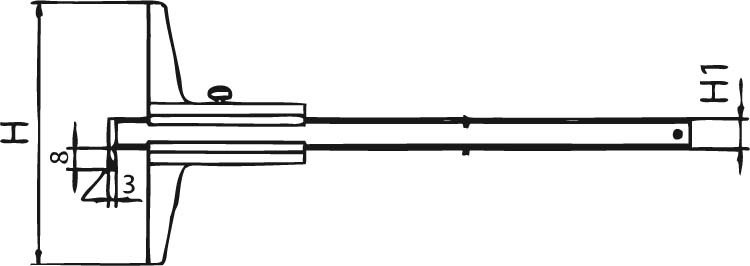

Hmm11.5
H1mm
