This Product Is No Longer Available
| Code | Q166 |
|---|---|
| Model | 25-166 |
| Capacity | 12-20mm/0.5-0.8" |
| Weight (kg) | 2.2 |
| Weight (m3) | 0.007 |
| Weight (Freight) | 2.331 |
| Dimensions (cm) | 34 x 22 x 10 |
Product Brochure
This Product Is No Longer Available

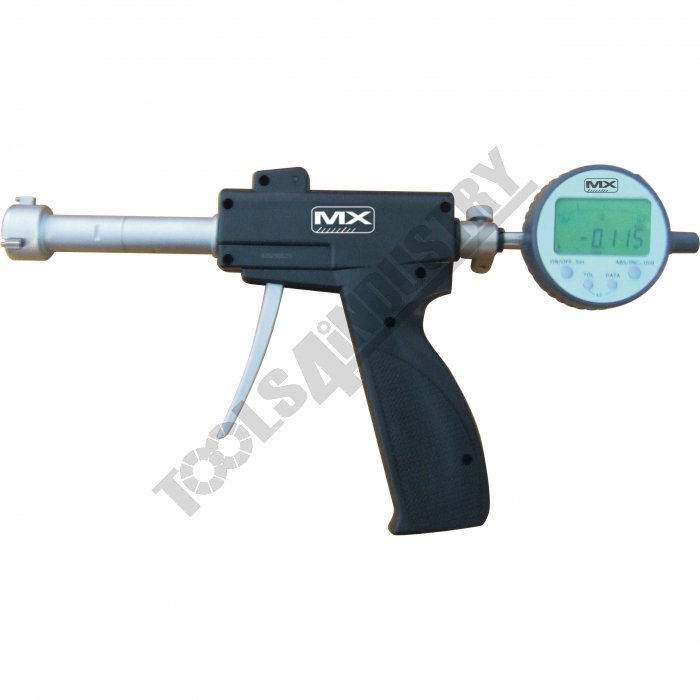

Pistol Grip 3-Point Bore Gauges 25-166 12-20mm/0.5-0.8"
Description

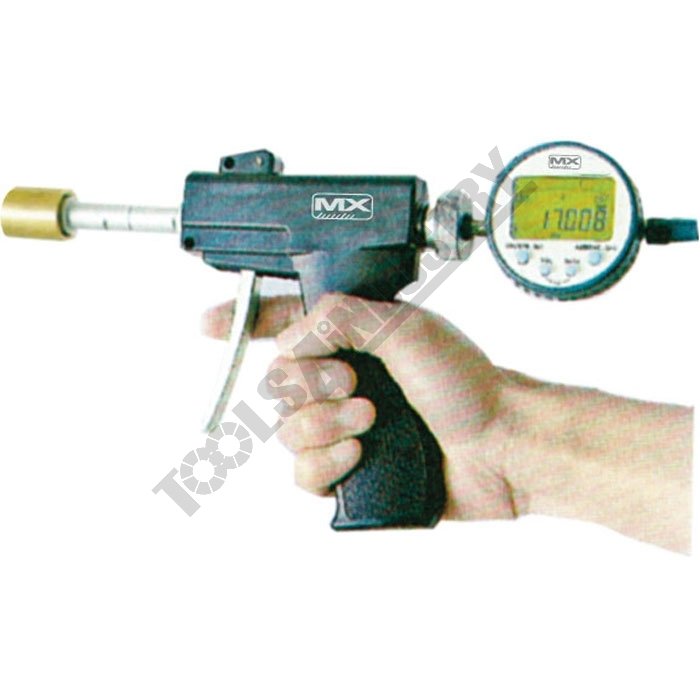

Single hand operation with right hand or left hand viewing capability. Self-centering three points for accurate measurement of internal diametersFeatures
- Carbide-tipped contact points
- Measurements can be taken close to the bottom of blind bores
- RS232 data output (Cable 40-401)
- Metric/Inch conversion
- Sets supplied with setting rings

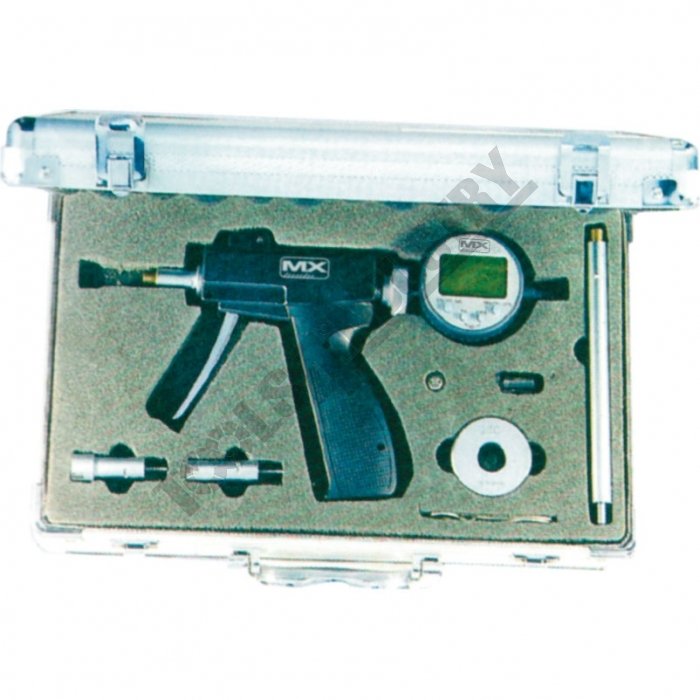

- Supplied in deluxe foam lined aluminium case
Specifications
- Compare 1 Products
- ORDER CODE
- Rangemm / inch
- Accuracymm
- Individual Rangemm
- Setting Ringsmm
- Extension Rodsmm
- Q166
- 12 - 20mm / 0.5 - 0.8"
- 0.004
- 12-16, 16-20
- Ø16
- 150
| ORDER CODE | 12 - 20mm / 0.5 - 0.8" |
|---|---|
| Rangemm / inch | 0.004 |
| Accuracymm | 12-16, 16-20 |
| Individual Rangemm | Ø16 |
| Setting Ringsmm | 150 |
| Extension Rodsmm |
