This Product Is No Longer Available

Code	Q1615
Model	25-1615
Capacity	12-20mm/0.5-0.8"
Weight (kg)	2.1
Weight (m³)	0.007
Weight (Freight)	2.331
Dimensions (cm)	34 x 22 x 10

MEASUMAX

1 Year Warranty

IP54 RS232

Product Brochure

This Product Is No Longer Available

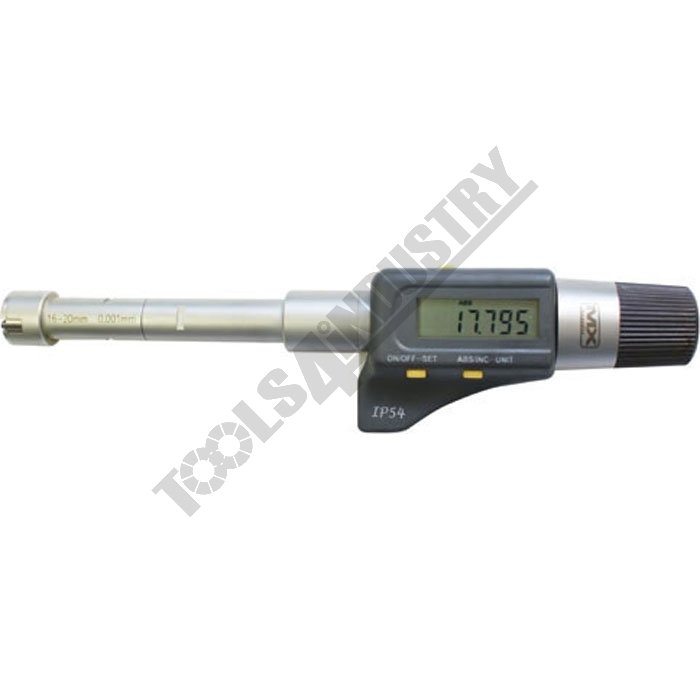

Digital 3-Point Internal Micrometers 25-1615 12-20mm/0.5-0.8"

Description

Measumax Digital 3-Point Internal Micrometers are self-centering for accurate measurement of internal diameters. Measurements can be taken close to the bottom of a blind hole

Features

Carbide tipped contact points
Protection level IP54 Criterion DIN40050/IEC529
RS232 data output (Cable 40-400)
Metric/Inch conversion
Sets supplied with setting rings

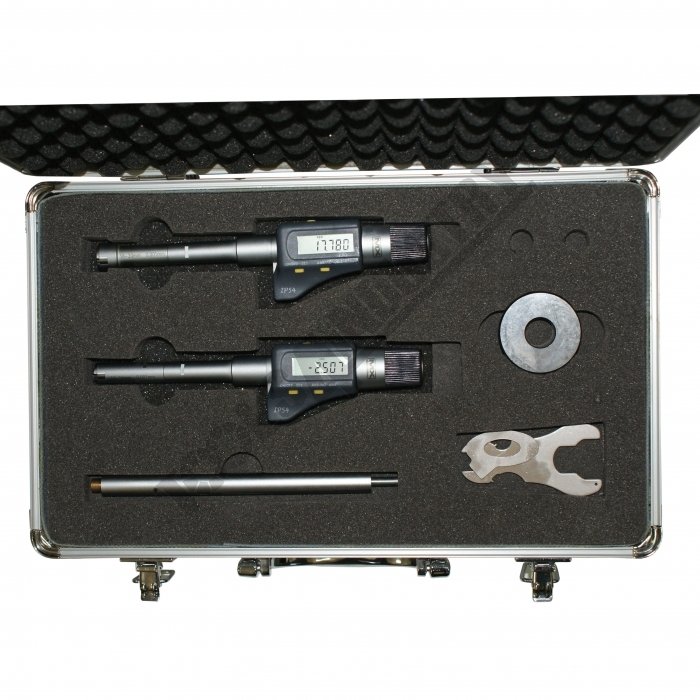

Supplied in deluxe foam lined aluminium case

Specifications

Compare 2 Products
ORDER CODE
Rangemm / inch
Accuracymm
Individual Rangemm
Setting Ringsmm
Extension Rodsmm

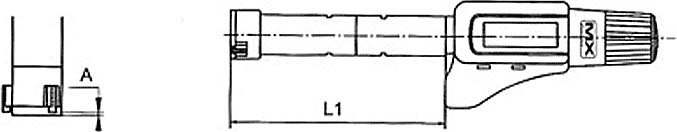

Amm
L1mm

Q1615
12 - 20mm / 0.5 - 0.8"
0.004
12-16mm, 16-20
Ø16
150
0.5
107

Q1625
20 - 50mm / 0.8 - 2"
0.004
20-25,25-30,30-40,40-50
Ø25, 40
150
0.5
107

ORDER CODE	12 - 20mm / 0.5 - 0.8"
Rangemm / inch	0.004
Accuracymm	12-16mm, 16-20
Individual Rangemm	Ø16
Setting Ringsmm	150
Extension Rodsmm	0.5
Amm	107
L1mm
