This Product Is No Longer Available
| Code | Q1372 |
|---|---|
| Model | 10-1372 |
| Capacity | 2-3" |
| Weight (kg) | 0.96 |
| Weight (m3) | 0.002 |
| Weight (Freight) | 0.96 |
| Dimensions (cm) | 25.5 x 13.5 x 4.5 |
Product Brochure
This Product Is No Longer Available

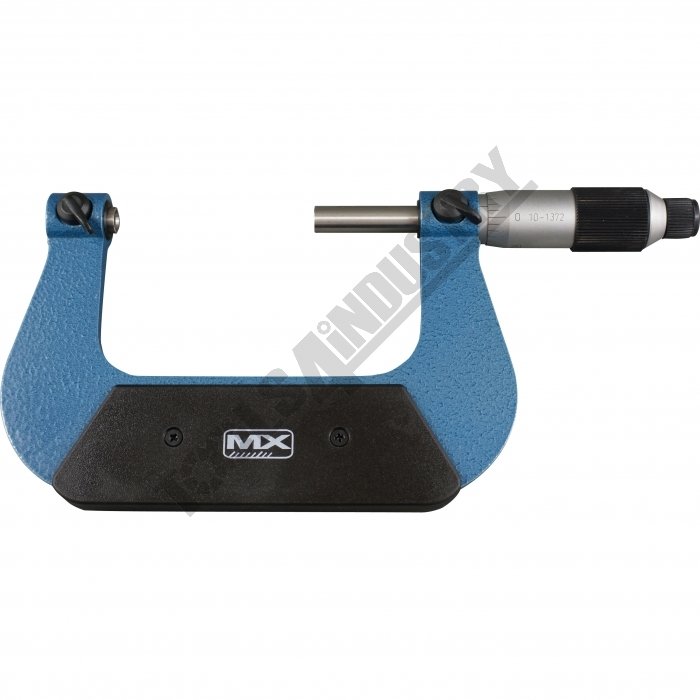

Screw Thread Micrometers 10-1372 2-3"
Description
Measumax Screw Thread micrometers are suitable for measuring pitch diameters of Metric, Whitworth and Unified screw threads.Features

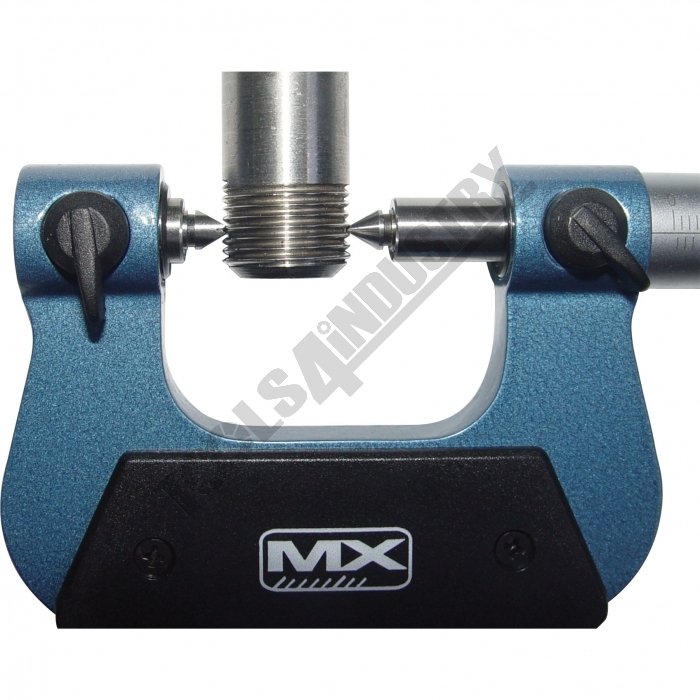

- V-shaped and cone-shaped anvils (interchangeable) are supplied. Dimensions of anvil-tail: Ø5x15mm
- Ratchet friction thimble
- Painted frame, rotating spindle
- Graduation: 0.0001"

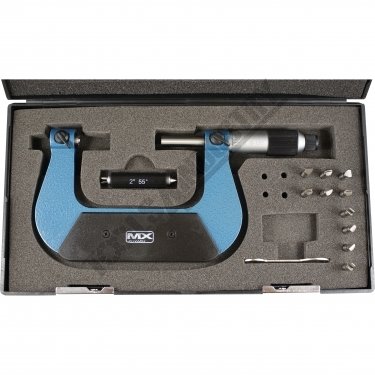

Includes
- Includes 55º Anvils
- F0206 18-14TPI
- F0207 14-10TPI
- F0208 10-7TPI
- F0209 7-4.5TPI
- F0210 4.5-3.5TPI
Specifications
- Compare 8 Products
- ORDER CODE
- Measuring Units
- Rangemm / inch
- Graduationmm
- Accuracymm

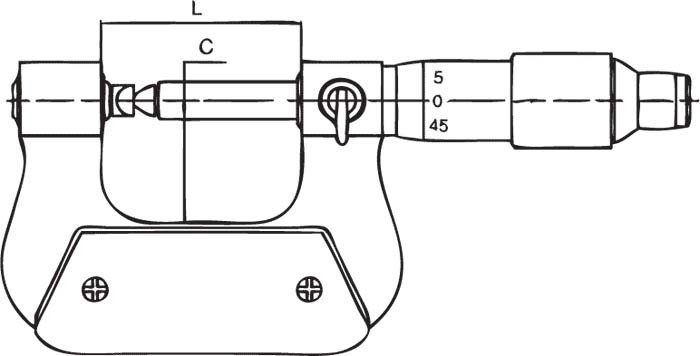

- Cmm
- Lmm
- Anvils Supplied
- Q1372
- Imperial
- 2 - 3"
- 0.001"
- ±0.004
- 50
- 92
- F0206 - F0210 (55º )
- Q1373
- Imperial
- 3 - 4"
- 0.001"
- ±0.005
- 62
- 118
- F0206 - F0210 (55º )
- Q1371
- Imperial
- 1 - 2"
- 0.001"
- ±0.004
- 38
- 67
- F0206 - F0210 (55º )
- Q138
- Metric
- 0 - 25mm
- 0.01mm
- ±0.004mm
- 26
- 42
- F0101 - F0105 (60º )
- Q139
- Metric
- 25 - 50mm
- 0.01mm
- ±0.004mm
- 38
- 67
- F0102 - F0106 (60º )
- Q1391
- Metric
- 50 - 75mm
- 0.01mm
- ±0.004mm
- 50
- 92
- F0102 - F0106 (60º )
- Q1392
- Metric
- 75 - 100mm
- 0.01mm
- ±0.005mm
- 62
- 118
- F0102 - F0106 (60º )
- Q137
- Imperial
- 0 - 1"
- 0.001"
- ±0.004
- 26
- 42
- F0201 - F0206 (55º )
| ORDER CODE | Imperial |
|---|---|
| Measuring Units | 2 - 3" |
| Rangemm / inch | 0.001" |
| Graduationmm | ±0.004 |
| Accuracymm | 50 |
| Cmm | 92 |
| Lmm | F0206 - F0210 (55º ) |
| Anvils Supplied |
