This Product Is No Longer Available
| Code | P095 |
|---|---|
| Model | PN-32 |
| Weight (kg) | 9 |
| Weight (m3) | 0.016 |
| Weight (Freight) | 9 |
| Dimensions (cm) | 50 x 19 x 17 |

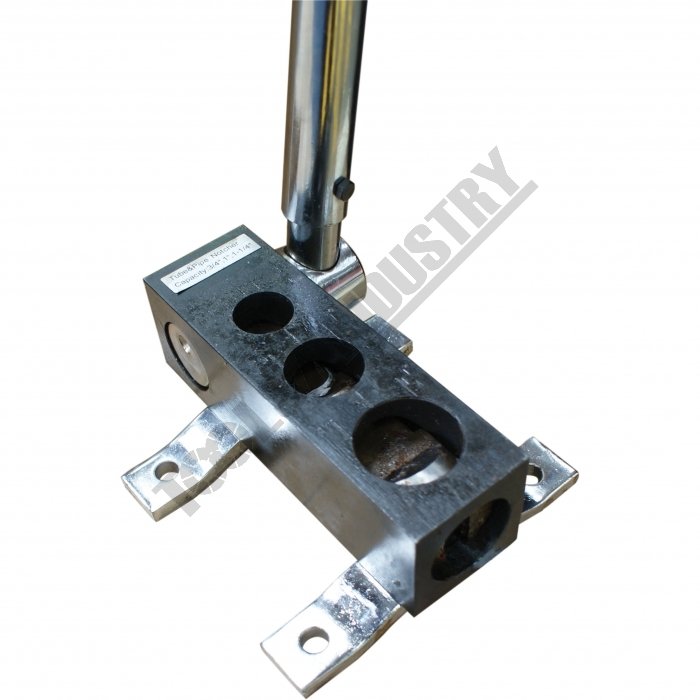

Manual Pipe Notcher PN-32
Description
This manual pipe notcher is perfect for small pipe notches at 90 degrees. Typically this machine would be wall or base mounted and is perfect for fence and gate fabrication shops as well as maintenance shops.Features
- Suitable for 3/4", 1", 1-1/4" NB Pipe for 90° notches
- Suitable for 3mm wall thickness in mild steel
- 4 bolt holes to secure notcher
- Horizontal and vertical operation
- Simple operation just insert the end of pipe into the relevant die hole and finish the cutting by pulling down on the handle
- Comes with extension handle
Specifications
- Compare 10 Products
- ORDER CODE
- MODEL
- MachineType
- Notching CutterType
- Tube Capacity (OD) - Mild Steelmm
- Pipe Capacity (NB) - Mild Steelinch / mm
- Angle AdjustmentDegree
- End Mill Sizeinch / mm
- Belt Sizemm
- Belt Speed
- Cutting Speedrpm
- Motor PowerkW / hp
- VoltageV
- Dimensions(mm)
- Nett Weightkg
- P095
- PN-32
- Manual Pipe Notcher
- Mechanical Die
- ~
- Ø3/4", Ø1", Ø1-1/4"
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- P096
- PN-50
- Manual Pipe Notcher
- Mechanical Die
- ~
- Ø1-1/2", Ø2"
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- P094
- PNM-3
- Pipe & Tube Notcher
Bench Mount - Hole Saw (Optional)
- Ø12.7 - Ø76.2
- Ø1/2" - Ø2-1/2"
- 0 - 60°
- ~
- ~
- ~
- 200
- 0.375 / 0.5
- 240V
- -
- 87
- L850
- PN-76E
- Pipe & Tube Notcher
- Linisher - Linisher
- Ø20 - Ø76
- 1/2" - 2-1/2"
- 30-90º
- ~
- 100 x 2000
- 1400rpm / 2800rpm
- ~
- 3 / 4
- 415
- ~
- 160
- K133
- PN-76E
- Pipe & Tube Notcher - Linisher
+ Rollers - PACKAGE DEAL - Linisher
- Ø20 - Ø76
- 1/2" - 2-1/2"
- 30-90º
- ~
- 100 x 2000
- 1400rpm / 2800rpm
- ~
- 3 / 4
- 415
- ~
- 160
- L849
- PN-2001
- Pipe & Tube
Notcher / Linisher - Linisher Roller (Optional)
- Ø20 - Ø76
- Ø1/2" - Ø2-1/2"
- ~
- ~
- 100 x 2000
- 1400rpm / 2800rpm
- ~
- 2.8 / 3.7
- 415
- ~
- 186
- P090
- PN-50D
- Pipe & Tube Notcher
Attachment - Hole Saw (Optional)
- Ø19.05 - Ø50.8
- Ø1-1/2"
- 0 - 60º
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- K4012
- PNP-3/4-3"
- Pipe & Tube Notcher Attachment
Metric HSS Hole Saw Set - Hole Saw (Optional) Thread 1/2" x 20tpi, 5/8"
- Ø25 - Ø75
- ~
- 0 - 50°
- ~
- ~
- ~
- ~
- ~
- ~
- 280 x 180 x 100
- 10
- P092
- PNP-3/4-3"
- Pipe & Tube
Notcher Attachment - Hole Saw (Optional) Thread 1/2" x 20tpi, 5/8"
- Ø25 - Ø75
- ~
- 0 - 50°
- ~
- ~
- ~
- ~
- ~
- ~
- 280 x 180 x 100
- 10
- W08180
- ATN100M
- Modular Pipe & Tube
Notcher Attachment - Hole Saw (Optional)
- Ø25 - Ø63.5
- Ø2"
- 0 - 90°
- ~
- ~
- ~
- ~
- ~
- ~
- 280 x 280 x 160
- 9.1
| ORDER CODE | PN-32 |
|---|---|
| MODEL | Manual Pipe Notcher |
| MachineType | Mechanical Die |
| Notching CutterType | ~ |
| Tube Capacity (OD) - Mild Steelmm | Ø3/4", Ø1", Ø1-1/4" |
| Pipe Capacity (NB) - Mild Steelinch / mm | ~ |
| Angle AdjustmentDegree | ~ |
| End Mill Sizeinch / mm | ~ |
| Belt Sizemm | ~ |
| Belt Speed | ~ |
| Cutting Speedrpm | ~ |
| Motor PowerkW / hp | ~ |
| VoltageV | ~ |
| Dimensions(mm) | ~ |
| Nett Weightkg |
