This Product Is No Longer Available
| Code | M1833 |
|---|---|
| Model | BC-3 |
| Capacity | Ø75mm Head |
| Weight (kg) | 3.26 |
| Weight (m3) | 0.000 |
| Weight (Freight) | 3.26 |
| Dimensions (cm) | 2.5 x 13.5 x 11 |
Product Brochure
This Product Is No Longer Available

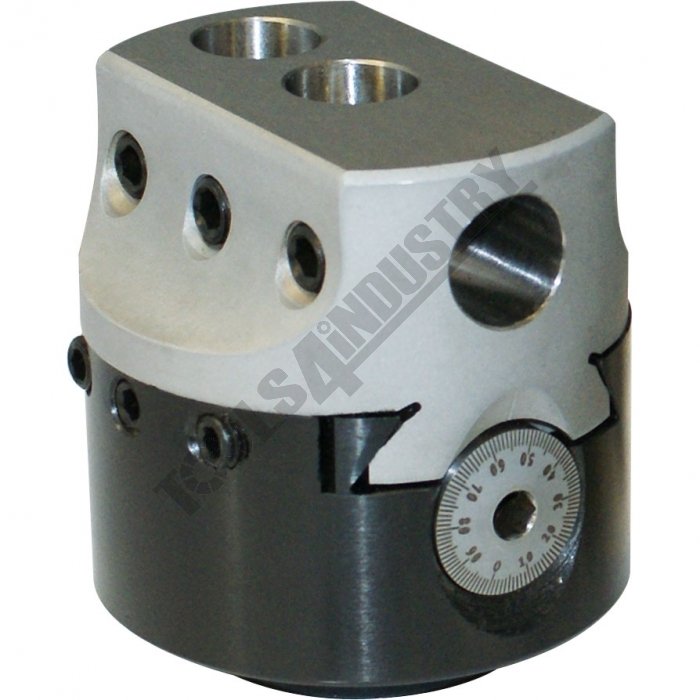

Precision Boring Head BC-3 Ø75mm Head
Description
Sturdy boring head suitable for roughing & finishing work.Fitted with 2 vertical and one cross hole for the boring bars
The boring head allows the boring bar to be adjusted at a right angle to the spindle axis. This feature makes it possible to position the boring cutter accurately to bore holes of varying diameters.
The adjusting screw is hardened & ground and is a non reflecting satin chrome. The reading dial allows for adjustments of 0.01mm on the tool slide and is a direct reading.
Features
- Wide range of boring diameters and depths
- Calibrated micro adjusting screw via a hexagon key.
- 1-1/2" x 18TPI threaded body to mount optional arbors
- Accepts 18mm diameter boring bars
- Includes storage case for protection

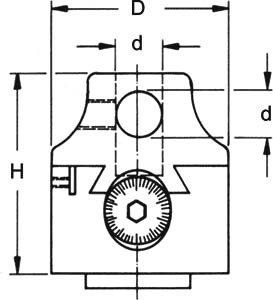

Specifications
- Compare 8 Products
- ORDER CODE
- MODEL
- Type
- Dmm
- Hmm
- d (lowercase)mm
- Wmm
- h (lowercase)mm
- Cross Hole Diametermm
- Centre Distance Between Holesmm
- Micro Adjustment Travelmm
- Nett Weightkg
| ORDER CODE | BC-3 |
|---|---|
| MODEL | Boring |
| Type | 75 |
| Dmm | 80 |
| Hmm | 18 |
| d (lowercase)mm | ~ |
| Wmm | ~ |
| h (lowercase)mm | ~ |
| Cross Hole Diametermm | 23 |
| Centre Distance Between Holesmm | 25 |
| Micro Adjustment Travelmm | 3.2 |
| Nett Weightkg |
