This Product Is No Longer Available
| Code | L1352 |
|---|---|
| Model | DS-15S |
| Capacity | Ø380mm (15") Sanding Disc |
| Weight (kg) | 96 |
| Weight (m3) | 0.435 |
| Weight (Freight) | 144.855 |
| Dimensions (cm) | 61 x 57 x 125 |

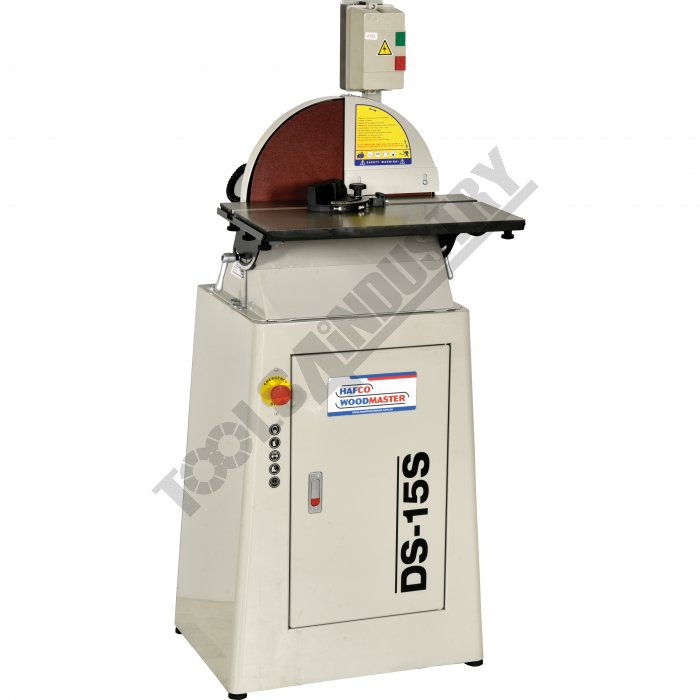

Pedestal Disc Sander DS-15S Ø380mm (15") Sanding Disc
Description
Manufactured in TaiwanFeatures
- Large Ø380mm sanding disc
- Powerful 2hp brake motor drive and cast iron motor housing for efficient heat dissipation
- Brake motor allowing disc to stop with-in 3 seconds

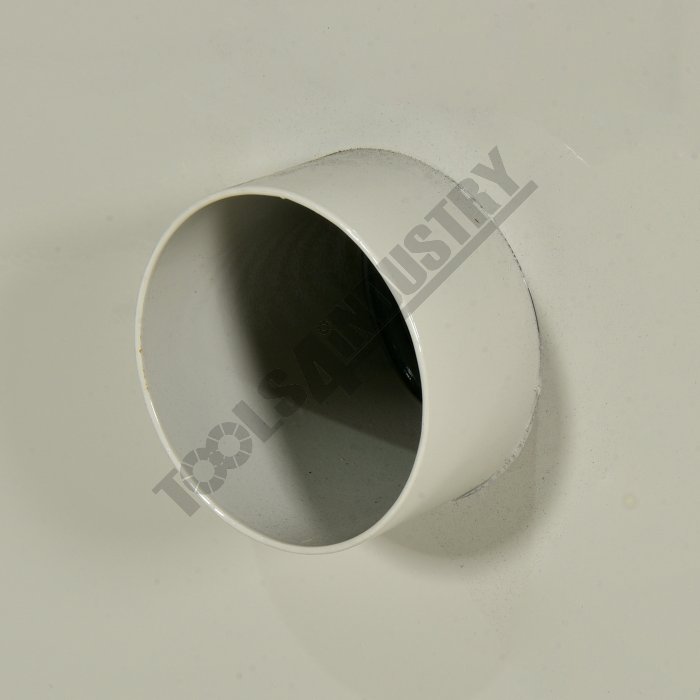

- The Ø63mm (2 1/2") dust port from disc sander has been ducted through cabinet to a single Ø100mm (4") outlet at rear of cabinet
- 508 x 305mm heavy duty cast iron slot table

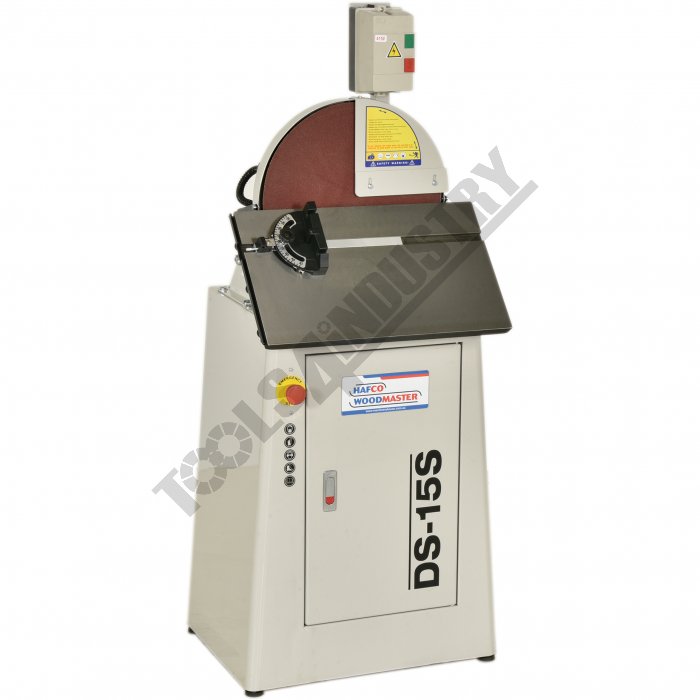

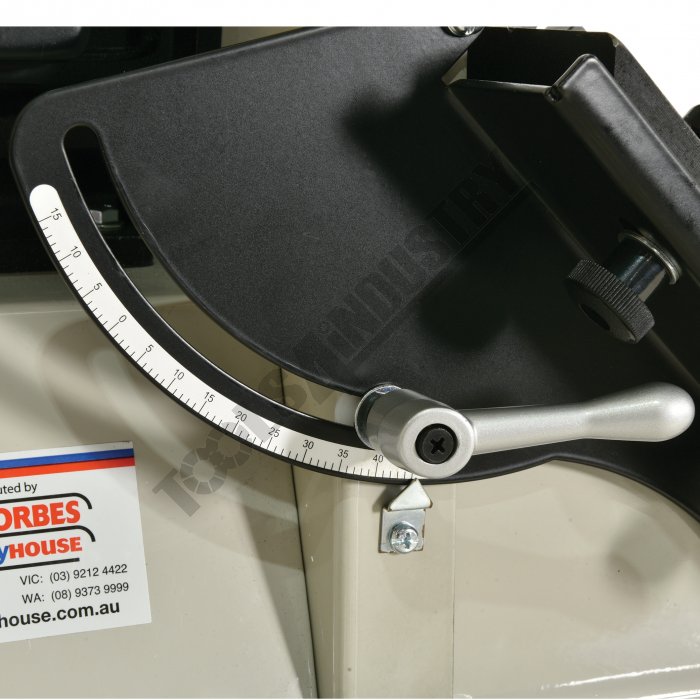

- Tilting table up 0-15º / down 0-45º

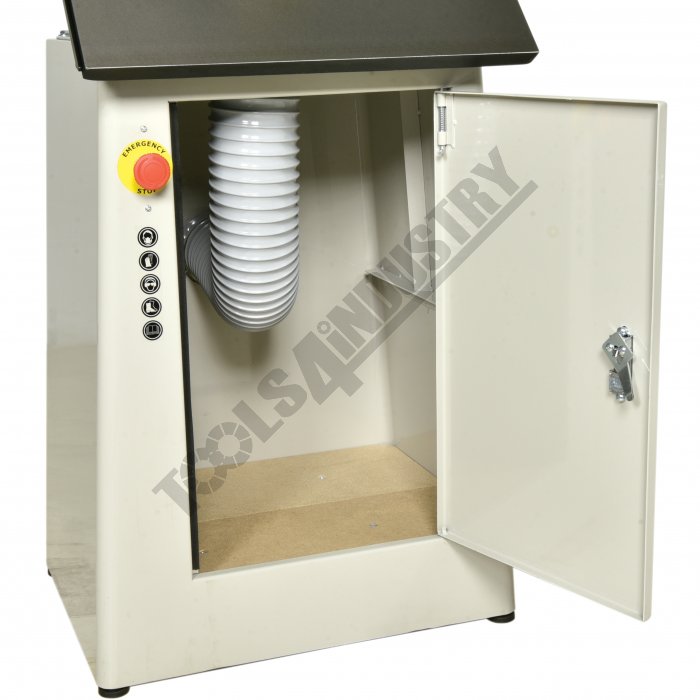

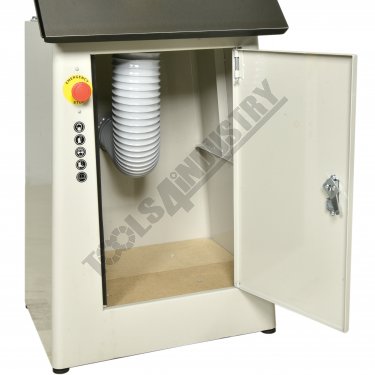

- Enclosed cabinet stand
- 1462rpm disc speed
Includes

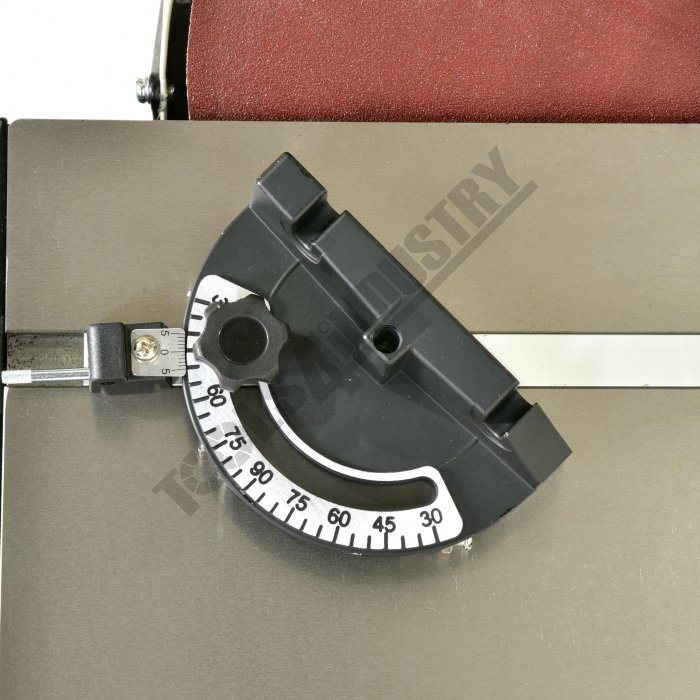

- Mitre guide
- 1 x Sanding Disc
- Cabinet Stand
Specifications
- Compare 7 Products
- ORDER CODE
- MODEL
- Type
- Disc Diametermm
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Floor Space (W x D x H)mm
- Nett Weightkg
- L1352
- DS-15S
- Pedestal
- Ø380
- 1.5 / 2
- 240 / 15
- 550 x 650 x 1340
- 96
- L1354
- DS-15S
- Pedestal
- Ø380
- 1.5 / 2
- 415
- 550 x 650 x 1340
- 96
- R904
- DS300
- Bench
- Ø305
- 0.75 / 1
- 240 / 10
- ~
- 33
- L133
- DS-12D
- Bench
- Ø305
- 0.75 / 1
- 240 / 10
- ~
- 32
- L1336
- DS305
- Bench
- Ø305
- 0.75 / 1
- 240 / 10
- 510 x 500 x 385
- 36
- L1335
- DS300
- Bench
- Ø305
- 0.75 / 1
- 240 / 10
- 510 x 500 x 385
- 36
- L135
- DS-12S
- Pedestal
- Ø305
- 0.75 / 1
- 240 / 10
- 430 x 710 x 1310
- 76
| ORDER CODE | DS-15S |
|---|---|
| MODEL | Pedestal |
| Type | Ø380 |
| Disc Diametermm | 1.5 / 2 |
| Motor PowerkW / hp | 240 / 15 |
| Voltage / AmperageV / amp | 550 x 650 x 1340 |
| Floor Space (W x D x H)mm | 96 |
| Nett Weightkg |
