This Product Is No Longer Available
| Code | L129 |
|---|---|
| Model | DS-25 |
| Capacity | Variable Conveyor Feed Speeds |
| Weight (kg) | 225 |
| Weight (m3) | 1.276 |
| Weight (Freight) | 424.908 |
| Dimensions (cm) | 116.5 x 83 x 132 |

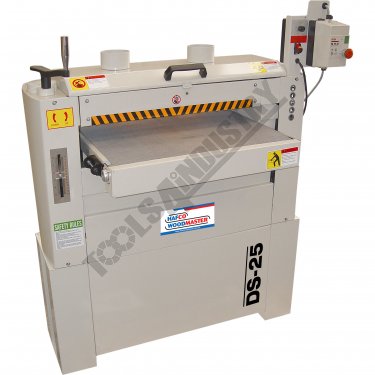

Twin Drum Sander DS-25 Variable Conveyor Feed Speeds
Description
Manufactured in TaiwanFeatures
- 635mm (25") sanding width capacity

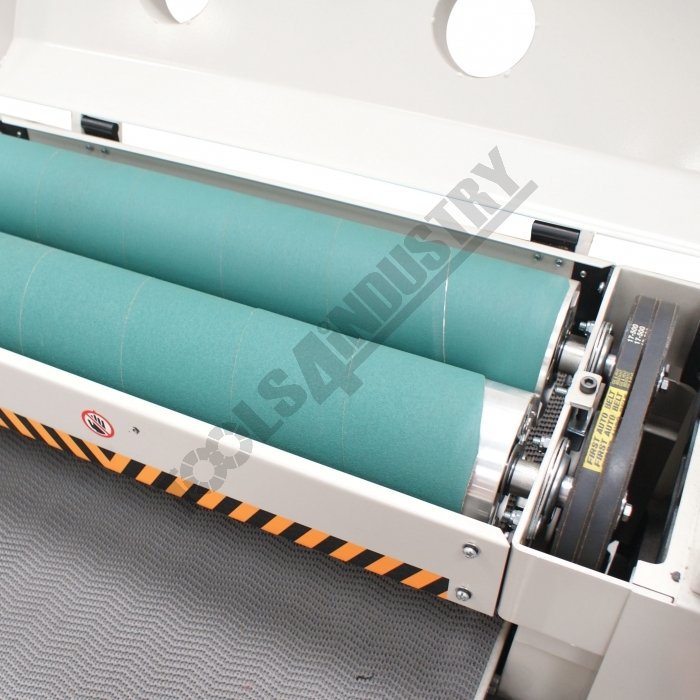

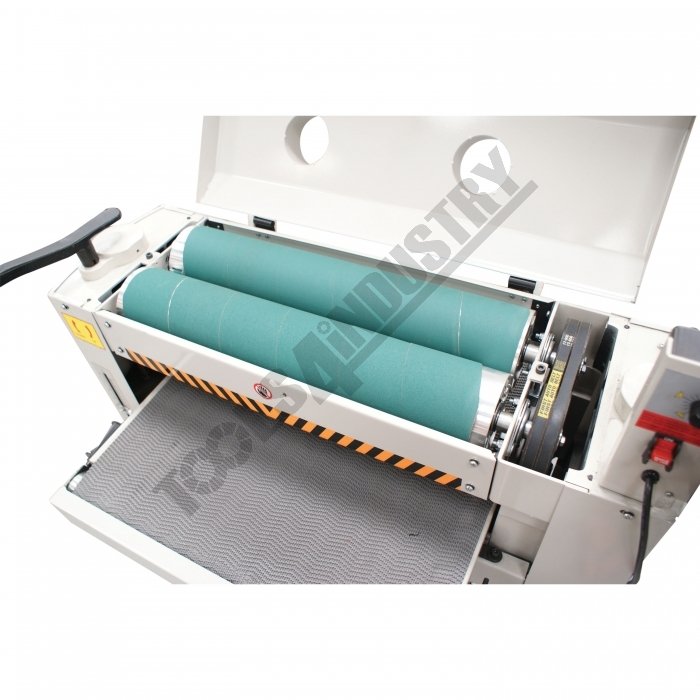

- Twin, dynamically balanced 127mm drums ensure smooth sanding (1 coarse & 1 fine)

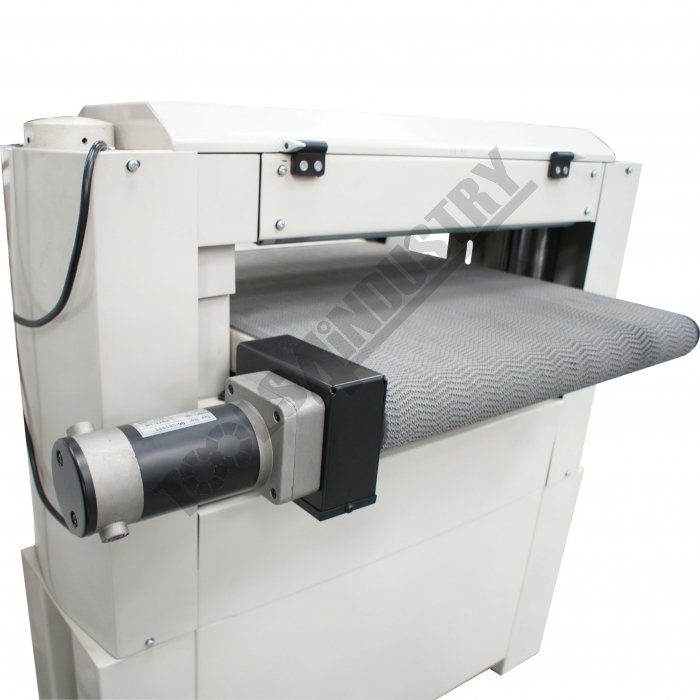

- High quality conveyor belt, easy to track for smooth feeding

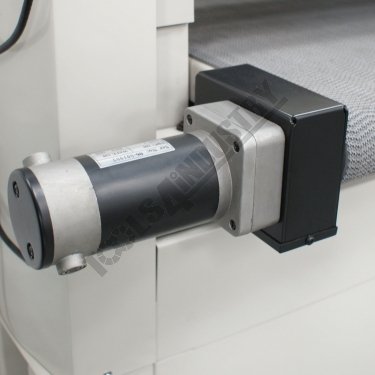

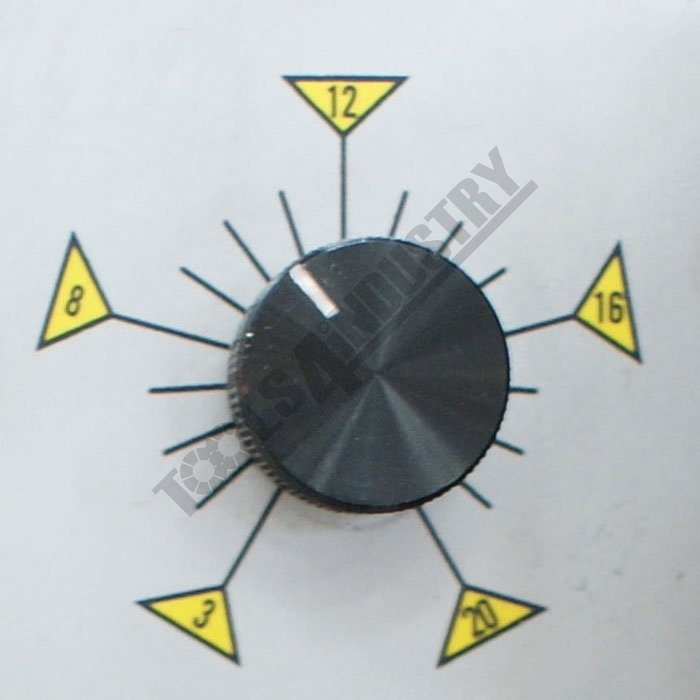

- Variable speed conveyor drive giving 1.1 m/min to 5.7 m/min

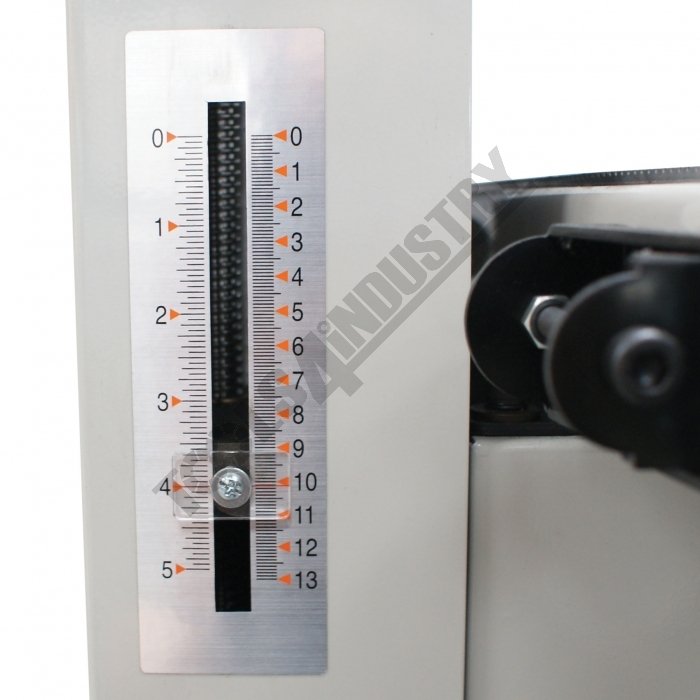

- Sanding workpiece thickness, Min/Max (6 - 127mm)
- 2.2kW / 3hp Induction 240V motor
- Twin Ø100mm (4") dust ports for efficient dust extraction

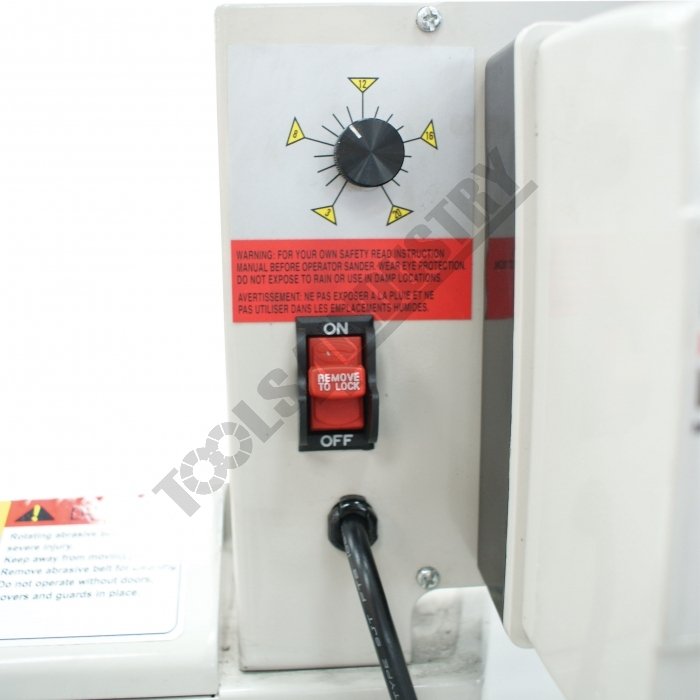

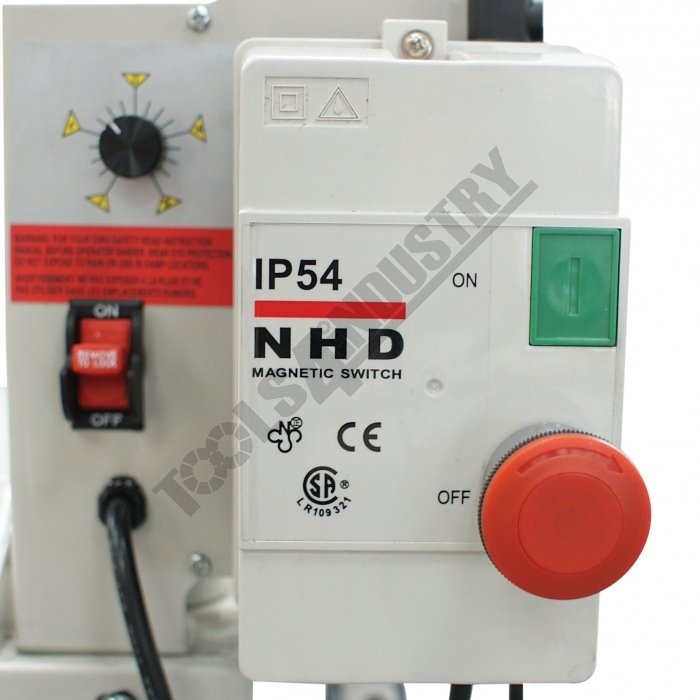

- DOL starter switch with overload protection and raised red stop
Includes
- Two abrasive belts (80 grit and 120 grit)
Specifications
- Compare 4 Products
- ORDER CODE
- MODEL
- Variable Table Feed Speedm/min
- Sanding Drum Speedrpm
- Belt Sizemm
- Drum Diametermm
- Maximum Material Widthmm
- Maximum Material Thicknessmm
- Minimum Material Thicknessmm
- Dust Collector Port DiameterQty x mm
- Feed Motor Powerhp
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Floor Space (W x D x H)mm
- Nett Weightkg
- L129
- DS-25
- 0.9 - 6
- 1600
- 2790 x 100
- 127
- 635
- 127
- 6
- 2 x Ø100
- 1/8
- 2.2 / 3
- 240 / 15
- 1130 x 780 x 1360
- 225
- L1105
- DS-13
- 1 - 6.6
- 860
- 1935 x 85
- 127
- 330
- 100
- 6
- 1 x Ø100
- 1/15
- 1.12 / 1.5
- 240 / 10
- ~
- 114.5
- L110
- DS-1632
- 0.6 - 3
- 1720
- 2330 x 78
- 127
- 400
- 127
- 3.2
- 1 x Ø63.5
- 1/8
- 0.75 / 1
- 240 / 10
- 1050 x 700 x 1545
- 70
- L1296
- DS-660
- 0.93 - 6.2
- 1280
- ~
- 125
- 660
- 127
- 6
- 2 x Ø100
- 1/6
- 2.2 / 3
- 240
- 787 x 1168 x 1346
- 223
| ORDER CODE | DS-25 |
|---|---|
| MODEL | 0.9 - 6 |
| Variable Table Feed Speedm/min | 1600 |
| Sanding Drum Speedrpm | 2790 x 100 |
| Belt Sizemm | 127 |
| Drum Diametermm | 635 |
| Maximum Material Widthmm | 127 |
| Maximum Material Thicknessmm | 6 |
| Minimum Material Thicknessmm | 2 x Ø100 |
| Dust Collector Port DiameterQty x mm | 1/8 |
| Feed Motor Powerhp | 2.2 / 3 |
| Motor PowerkW / hp | 240 / 15 |
| Voltage / AmperageV / amp | 1130 x 780 x 1360 |
| Floor Space (W x D x H)mm | 225 |
| Nett Weightkg |
