This Product Is No Longer Available
| Code | L108 |
|---|---|
| Model | L-612 |
| Capacity | Vertical or Horizontal Linishing Position |
| Weight (kg) | 72 |
| Weight (m3) | 0.228 |
| Weight (Freight) | 75.924 |
| Dimensions (cm) | 78 x 68 x 43 |

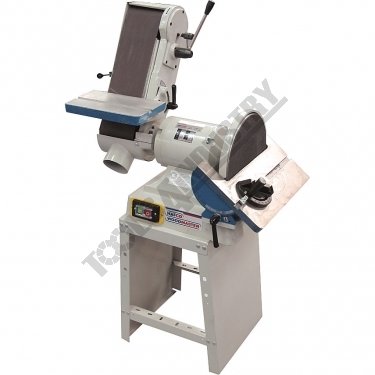

Belt & Disc Linisher Sander L-612 Vertical or Horizontal Linishing Position
Description
Manufactured in TaiwanFeatures
- Takes 150mm x 1220mm belt
- Ø305mm sanding disc
- Graphite belt pad to reduce friction

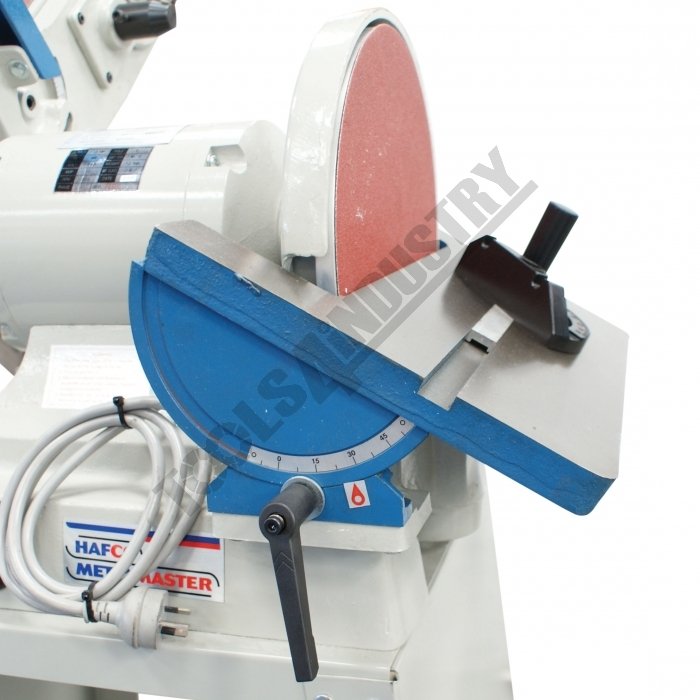

- Cast iron tilting disc table

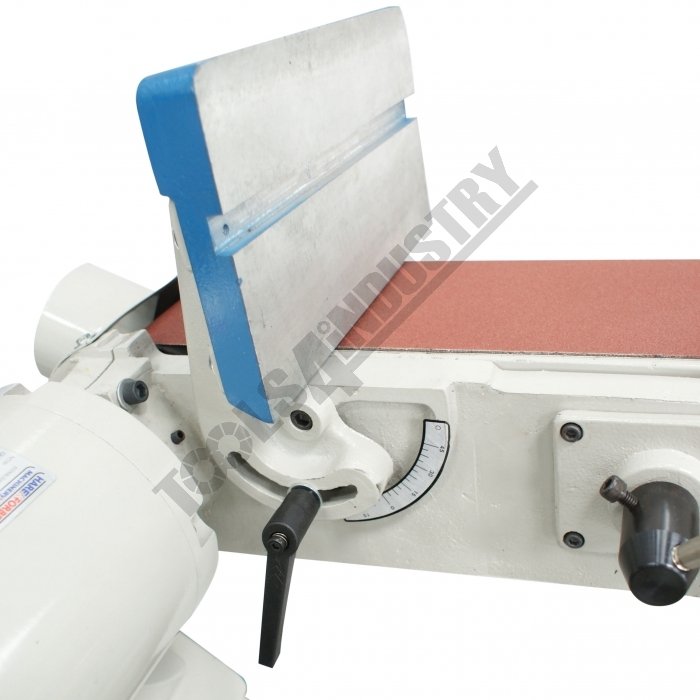

- Aluminium tilting belt table

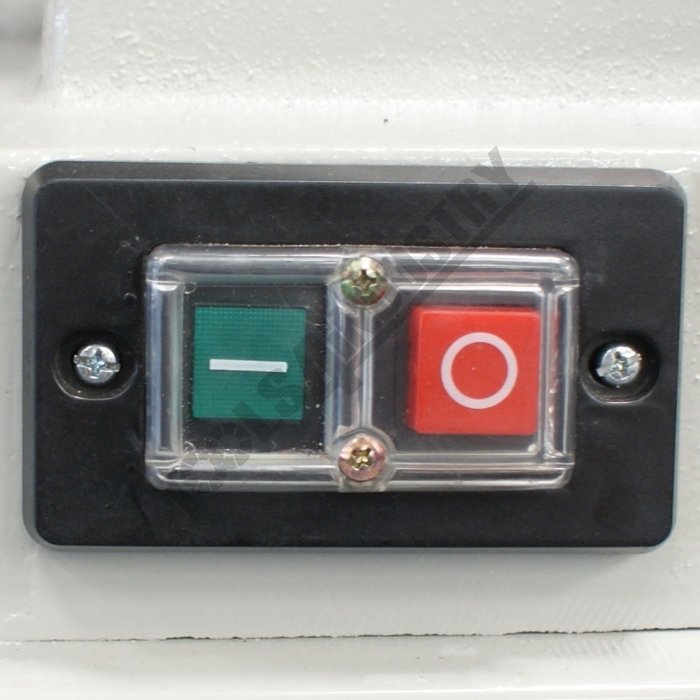

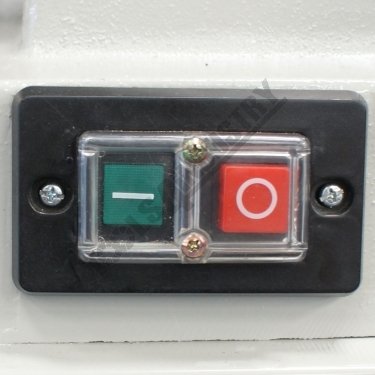

- Safety magnetic type switch
- Heavy duty 1.5kW / 2hp 240V cast iron frame motor

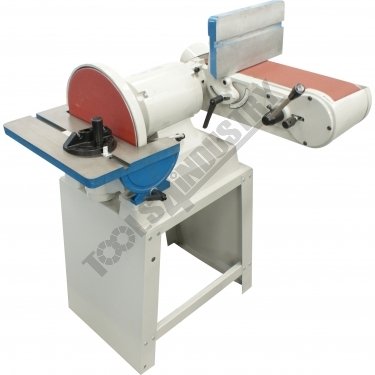

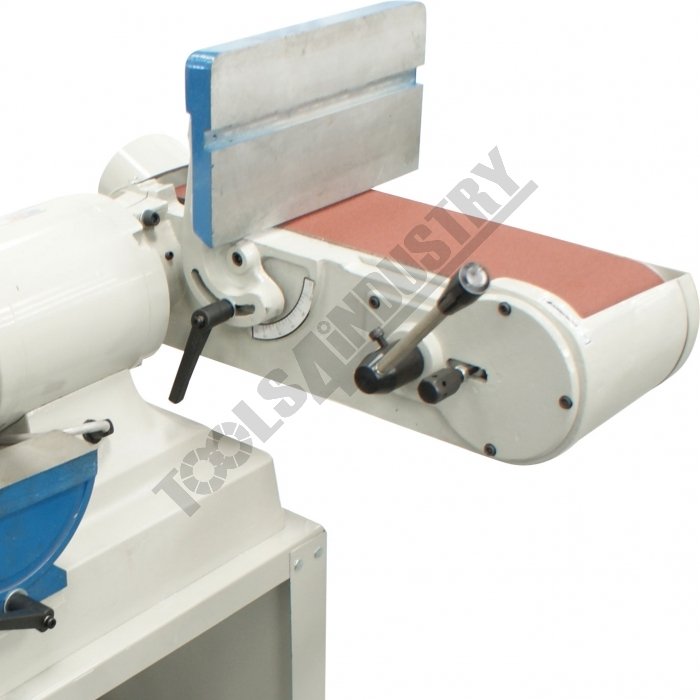

- Can use linisher in vertical or horizontal position
- Heavy duty quick action belt release

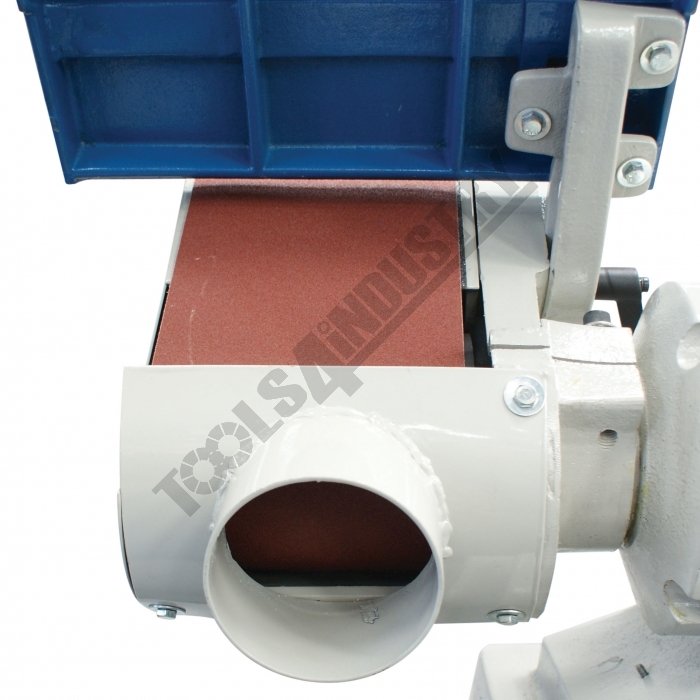

- Ø100mm dust collector port , Ø80mm port for disc
- Made in Taiwan
Includes
- Tilting table and mitre guide
- Sanding belt & disc
- Stand
Specifications
- Compare 6 Products
- ORDER CODE
- MODEL
- Belt Sizemm
- Disc Diametermm
- Table Sizemm
- Disc Table Sizemm
- Belt Speedmpm
- Motor Speedrpm
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Floor Space (W x D x H)mm
- Nett Weightkg
- L108
- L-612
- 150 x 1220
- Ø305
- ~
- ~
- ~
- 2850
- 1.5 / 2
- 240 / 15
- 880 x 830 x 1080
- 72
- R900
- BDS150
- 100 x 910
- Ø152
- ~
- ~
- ~
- 2850
- 0.25 / 0.33
- 240 / 10
- ~
- 19
- R901
- BDS250
- 152 x 1220
- Ø254
- ~
- ~
- ~
- 1400
- 0.75 / 1
- 240 / 10
- ~
- 47
- L105
- bts 900x
- 100 x 915
- Ø150
- 280 x 100
- 210 x 146
- 450
- 2850
- 0.37 / 0.5
- 240 / 10
- 530 x 380 x 320
- 25
- L107
- L-69A
- 150 x 1220
- Ø230
- 160 x 440
- 155 x 310
- ~
- 1400
- 0.75 / 1
- 240 / 10
- 750 x 550 x 1030
- 50
- L109
- L-612A
- 150 x 1220
- Ø305
- ~
- ~
- 753
- 1450
- 1.1 / 1.5
- 240 / 10
- 920 x 840 x 1020
- 62
| ORDER CODE | L-612 |
|---|---|
| MODEL | 150 x 1220 |
| Belt Sizemm | Ø305 |
| Disc Diametermm | ~ |
| Table Sizemm | ~ |
| Disc Table Sizemm | ~ |
| Belt Speedmpm | 2850 |
| Motor Speedrpm | 1.5 / 2 |
| Motor PowerkW / hp | 240 / 15 |
| Voltage / AmperageV / amp | 880 x 830 x 1080 |
| Floor Space (W x D x H)mm | 72 |
| Nett Weightkg |
