This Product Is No Longer Available
| Code | L075R |
|---|---|
| Capacity | 16 x 19mm |
| Weight (kg) | 0.8 |
| Weight (m3) | 0.001 |
| Weight (Freight) | 0.8 |
| Dimensions (cm) | 22 x 6 x 4 |
Product Brochure
This Product Is No Longer Available

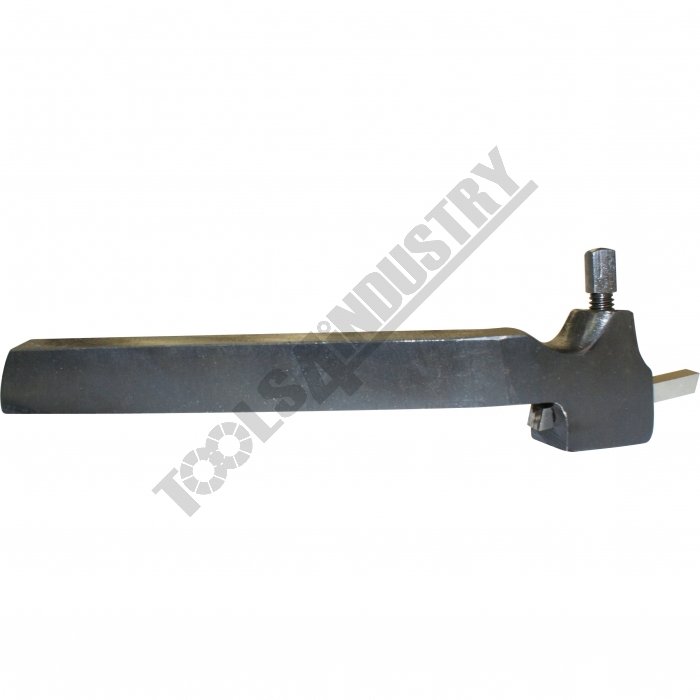

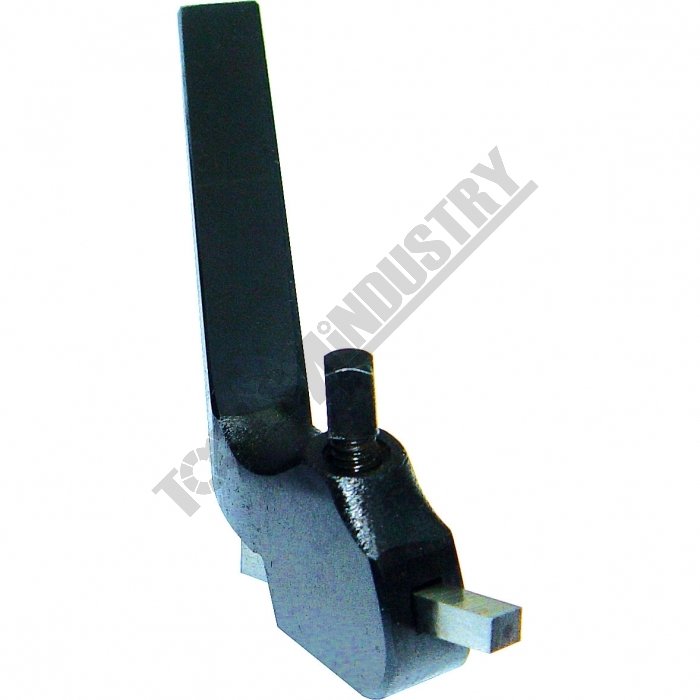

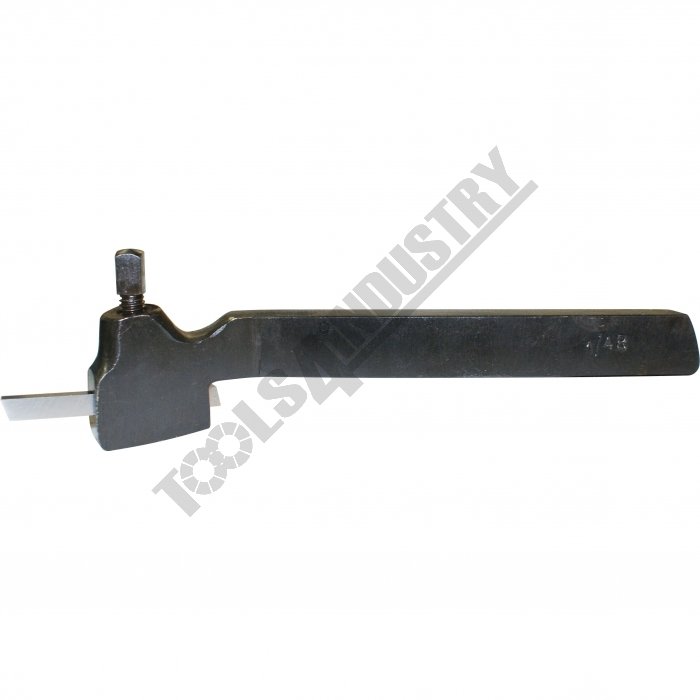

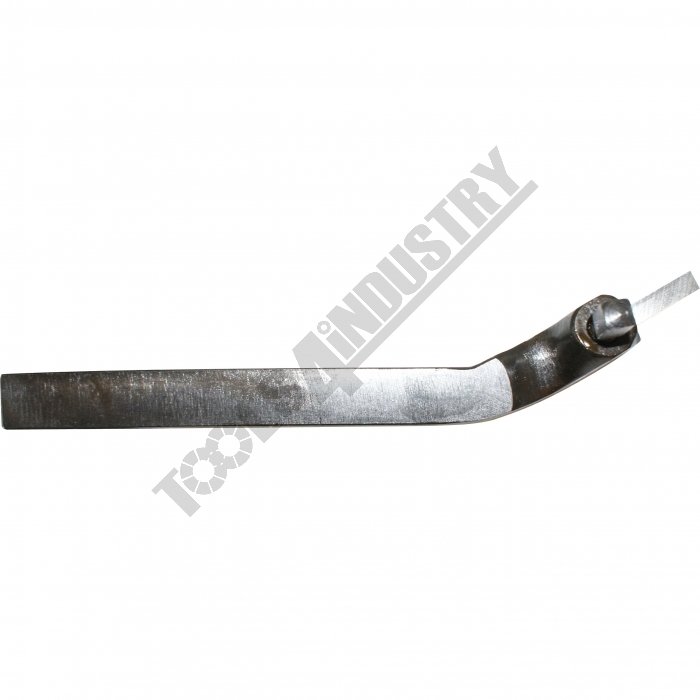

Right Hand Lathe Turning Tool Holder - English Style 16 x 19mm
Description
Right Hand TURNING TOOL HOLDERFor HSS Tool Bits
English Style - to suit 1/4" Tool Steel (Drop Head)
NOTE: HSS Tool bits not supplied
Uses Tool Bit L0003
Features
- Manufactured from high grade steel
- Case-hardened and ground

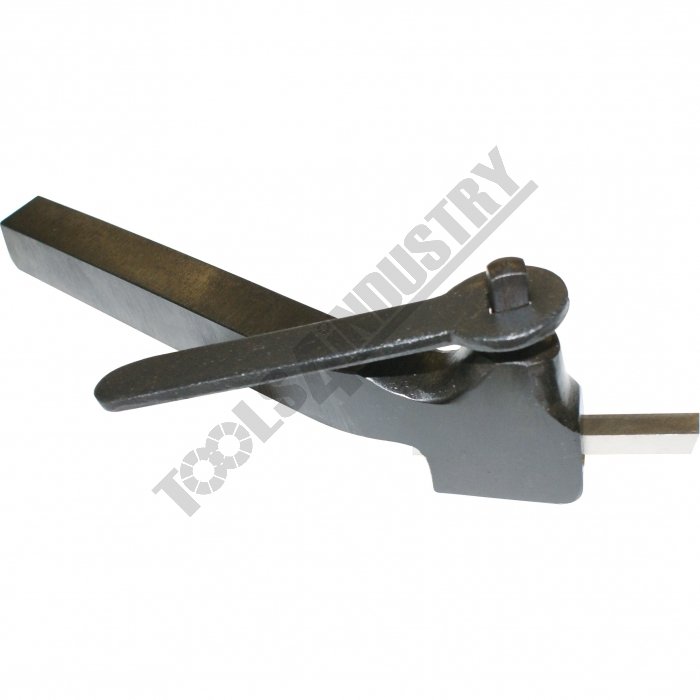

- Supplied with wrench, but without tool bit
- Available in straight (S), right (R) and left (L) hand shanks

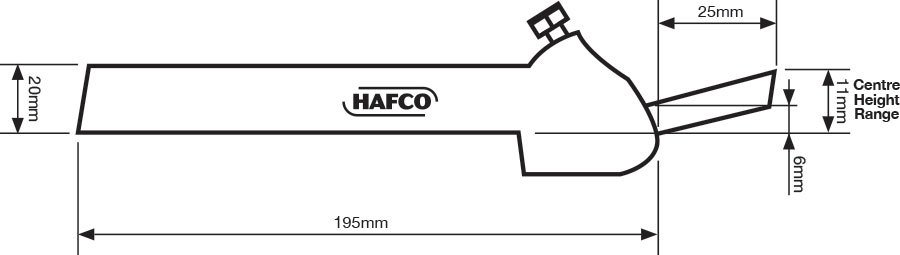

Specifications
- Compare 6 Products
- ORDER CODE
- Hand Type
- Style
- Centre Height Min. - Max.mm
- Shank Size (W x H)inch / mm
- Overall Lengthinch / mm
- Tool Bit Capacity inch / mm
- Nett Weightkg
- L075R
- Right
- English (Drop Head)
- 6 - 11
- 5/8 x 3/4" / 16 x 19
- 7 1/2" / 190
- 1/4" / 6.3
- 0.72
- L075S
- Straight
- English (Drop Head)
- 6 - 11
- 5/8 x 3/4" / 16 x 19
- 7 1/2" / 190
- 1/4" / 6.3
- 0.80
- L070L
- Left
- American
- 10 - 23
- - / 9.5 x 22
- - / 127
- 1/4" / 6.3
- 0.34
- L070R
- Right
- American
- 10 - 23
- - / 9.5 x 22
- - / 127
- 1/4" / 6.3
- 0.34
- L070S
- Straight
- American
- 10 - 23
- - / 9.5 x 22
- - / 127
- 1/4" / 6.3
- 0.36
- L075L
- Left
- English (Drop Head)
- 6 - 11
- 5/8 x 3/4" / 16 x 19
- 7 1/2" / 190
- 1/4" / 6.3
- 0.72
| ORDER CODE | Right |
|---|---|
| Hand Type | English (Drop Head) |
| Style | 6 - 11 |
| Centre Height Min. - Max.mm | 5/8 x 3/4" / 16 x 19 |
| Shank Size (W x H)inch / mm | 7 1/2" / 190 |
| Overall Lengthinch / mm | 1/4" / 6.3 |
| Tool Bit Capacity inch / mm | 0.72 |
| Nett Weightkg |
