This Product Is No Longer Available
| Code | W3325 |
|---|---|
| Model | DC-25 |
| Capacity | 1HP |
| Weight (kg) | 24 |
| Weight (m3) | 0.219 |
| Weight (Freight) | 72.927 |
| Dimensions (cm) | 88.5 x 55 x 45 |

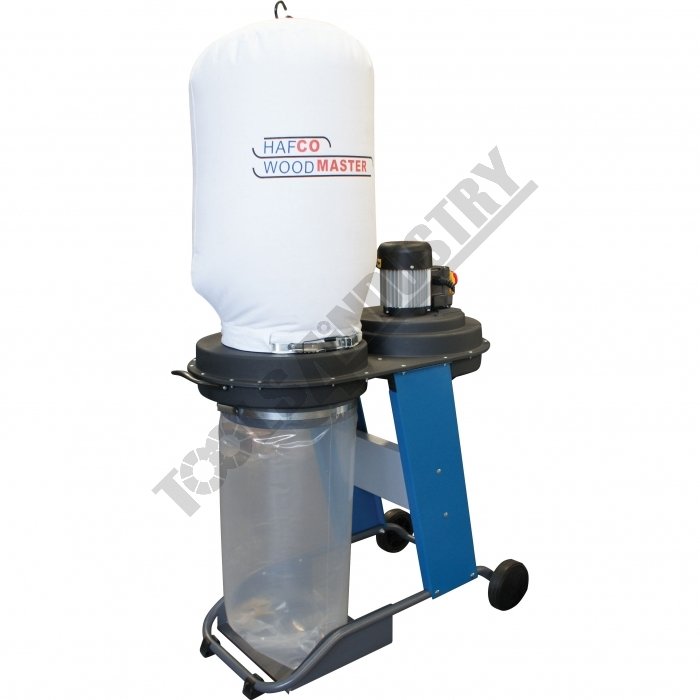

Dust Collector DC-25 1HP
Description
LPHV = Low Pressure High Volume SystemThe dust and shavings of LPHV extractors are sucked through the impeller fan blade and then the waste falls into the lower bag, the air being exhausted through the top filter bag, collecting some of the fine dust on the way. This type of extraction shifts huge volumes of air at low pressure and they are very efficient at removing bulk waste such from Planers, Thicknessers & Wood Lathes etc, hence some people call them chip collectors. The down fall with all LPHV dust collector systems is when you reduce the intake hose from 100mm to 32mm the air flow volume is affected dramatically.
Features

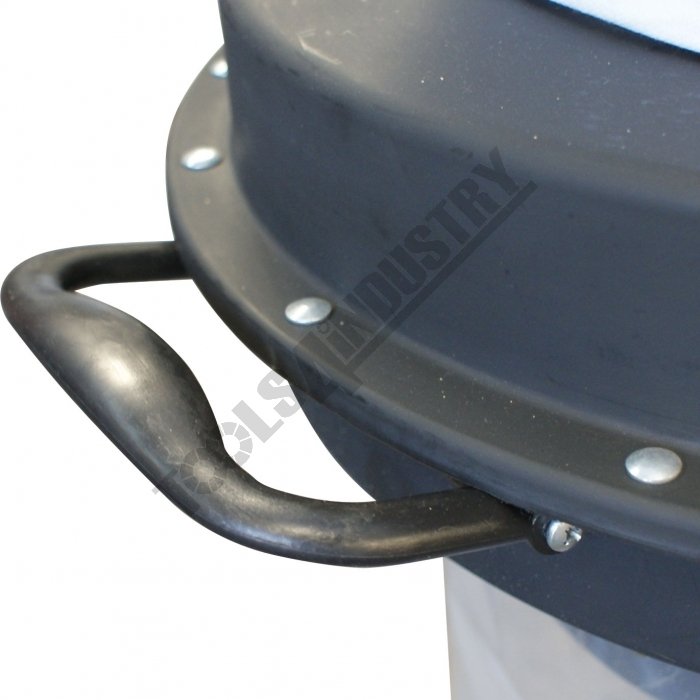

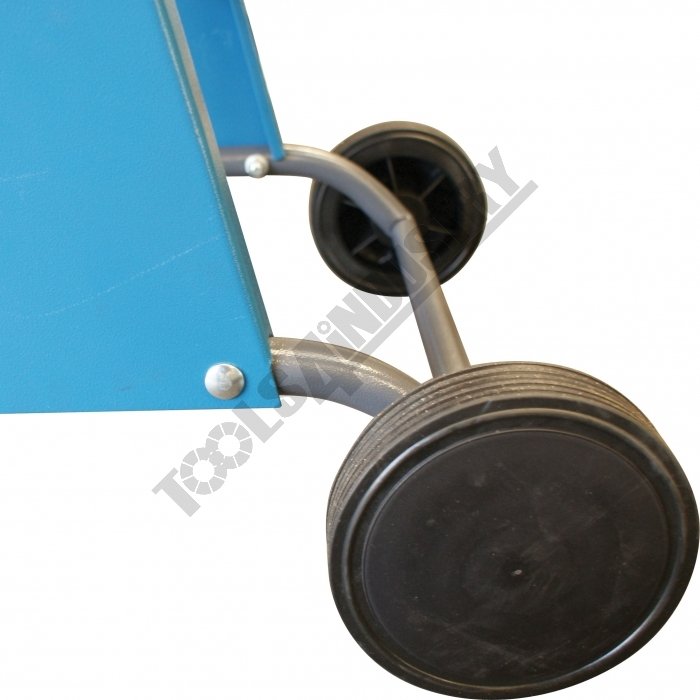

- Portable on wheels, with conveniently placed handle for easy manoeuvrability
- 680cfm air flow suction
- 100mm(4") x single inlet

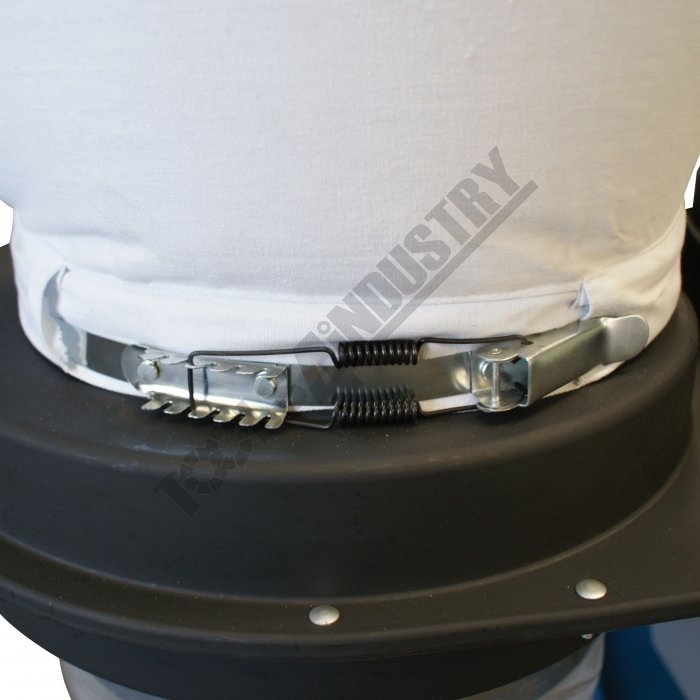

- Quick-action clamp

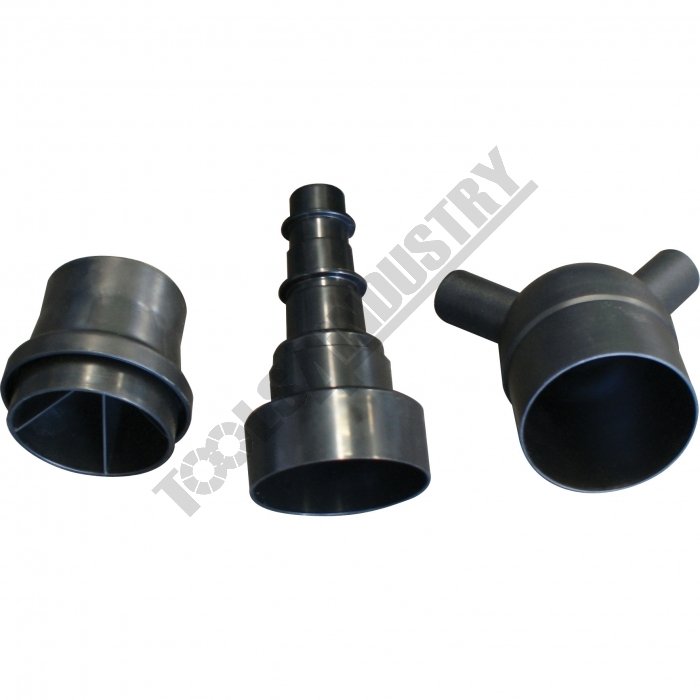

- Includes , 3 x reducer attachments

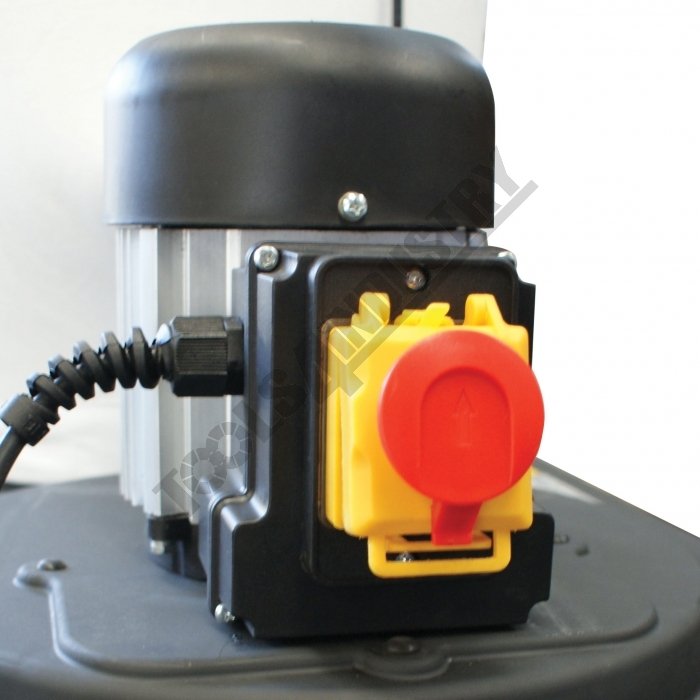

- 0.75kW (1HP) 240V motor
Specifications
- Compare 20 Products
- ORDER CODE
- MODEL
- Type
- AirflowCFM
- LPHV - Low Pressure High VolumeYes / No
- HPLV - High Pressure Low VolumeYes / No
- Inlets / DiameterNo. / mm
- Outlets / DiameterNo. / mm
- Motor PowerkW / hp
- VoltageV / amp
- Floor Space (W x D x H)mm
- Nett Weightkg
- W3325
- DC-25
- Dust Collector
- 680
- Yes
- No
- 1 x Ø100
- ~
- 0.75 / 1
- 240 / 10
- ~
- 28
- W396
- DC-60
- Dust Collector
- 1200
- Yes
- No
- 2 x Ø100
- ~
- 1.5 / 2
- 240 / 10
- ~
- 50
- W407
- DC-40
- Dust Collector
- 700
- Yes
- No
- 1 x Ø100
- ~
- 0.75 / 1
- 240 / 10
- ~
- 40
- W885
- HA-1000
- Dust Collector
- 109
- No
- Yes
- 1 x Ø100
- ~
- 1.1 / 1.5
- 240 / 10
- 350 x 350 x 650
- 14
- W332
- DC-2
- Dust Collector
- 500
- Yes
- No
- 1 x Ø100
- ~
- 0.75 / 1
- 240 / 10
- 750 x 400 x 1550
- 30
- W886
- HD12
- Dust Collector
- 680
- Yes
- No
- 1 x Ø100
- ~
- 0. 56 / 0.75
- 240 / 10
- 900 x 520 x 1570
- 24
- W316
- CDS-2/3
- Cyclone Dust Separator
- ~
- No
- No
- 2 x Ø100
- Ø152 ~ 25mm
- ~
- ~
- 650 x 560 x 1700
- 19
- W316
- CDS-2/3
- Cyclone Dust Separator
- ~
- No
- No
- 2 x Ø100
- Ø152 ~ 25mm
- ~
- ~
- 650 x 560 x 1700
- 19
- W394
- DC-3
- Dust Collector
- 1200
- Yes
- No
- 2 x Ø100
- ~
- 1.5 / 2
- 240 / 10
- 1000 x 700 x 1950
- 42
- W329
- DC-7
- Dust Collector
- 2300
- Yes
- No
- 3 x Ø100
- ~
- 2.25 / 3
- 240 / 10
- 1550 x 740 x 1930
- 51
- W397
- DC-80
- Dust Collector
- 2800
- Yes
- No
- 3 x Ø100
- ~
- 2.25 / 3
- 415
- 1600 x 800 x 2840
- 87
- W331
- DC-90
- Dust Collector
- 3200
- Yes
- No
- 3 x Ø100
- ~
- 3.75 / 5
- 415
- 1600 x 800 x 2840
- 109
- W318
- CD-2A
- Dust Collector &
Cyclone Separator - 1200
- Yes
- No
- 2 x Ø100
- ~
- 1.5 / 2
- 240 / 15
- 1200 x 800 x 1790
- 77
- W319
- CD-20
- Dust Collector &
Cyclone Separator - 910
- Yes
- No
- 3 x Ø100
- ~
- 1.5 / 2
- 240 / 10
- ~
- 130
- W320
- CD-30
- Dust Collector &
Cyclone Separator - 2204
- Yes
- No
- 3 x Ø100
- ~
- 2.2 / 3
- 240 / 15
- ~
- 152
- W3315
- DC-100
- Dust Collector
- 3860
- Yes
- No
- 4 x Ø100
- ~
- 3.75 / 5
- 415
- 2100 x 850 x 3500
- 148
- R875
- DX4000
- Dust Collector
- 224
- No
- Yes
- 1 x Ø100
- ~
- 1 / 1.3 (x 2)
- 240 / 15
- 580 x 580 x 640
- 20
- R872
- RSDE2
- Dust Collector
- 112
- No
- Yes
- 1 x Ø100
- ~
- 1 / 1.3
- 240 / 10
- 460 x 460 x 760
- 11
- R871
- RSDE1
- Dust Collector
- 112
- No
- Yes
- 1 x Ø100
- ~
- 1 / 1.3
- 240 / 10
- 460 x 460 x 620
- 11
- W317
- CD-2
- Dust Collector &
Cyclone Separator - 1050
- Yes
- No
- 2 x Ø100
- ~
- 1.5 / 2
- 240 / 15
- ~
- 77
| ORDER CODE | DC-25 |
|---|---|
| MODEL | Dust Collector |
| Type | 680 |
| AirflowCFM | Yes |
| LPHV - Low Pressure High VolumeYes / No | No |
| HPLV - High Pressure Low VolumeYes / No | 1 x Ø100 |
| Inlets / DiameterNo. / mm | ~ |
| Outlets / DiameterNo. / mm | 0.75 / 1 |
| Motor PowerkW / hp | 240 / 10 |
| VoltageV / amp | ~ |
| Floor Space (W x D x H)mm | 28 |
| Nett Weightkg |
