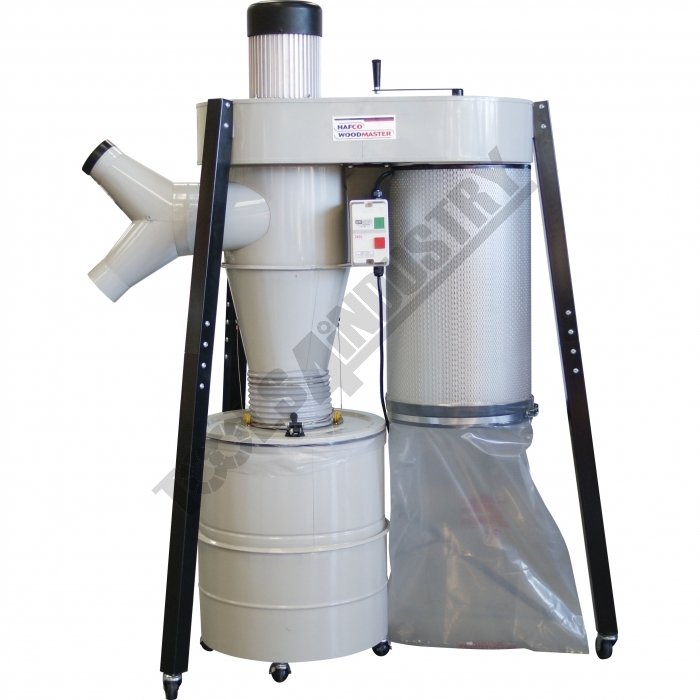

Dust Collector - Canister Cyclone CD-2

Description

LPHV = Low Pressure High Volume System

The dust and shavings of LPHV extractors are sucked through the impeller fan blade and then the waste falls into the lower bag, the air being exhausted through the top filter bag, collecting some of the fine dust on the way. This type of extraction shifts huge volumes of air at low pressure and they are very efficient at removing bulk waste such from Planers, Thicknessers & Wood Lathes etc, hence some people call them chip collectors. The down fall with all LPHV dust collector systems is when you reduce the intake hose from 100mm to 32mm the air flow volume is affected dramatically.

Features

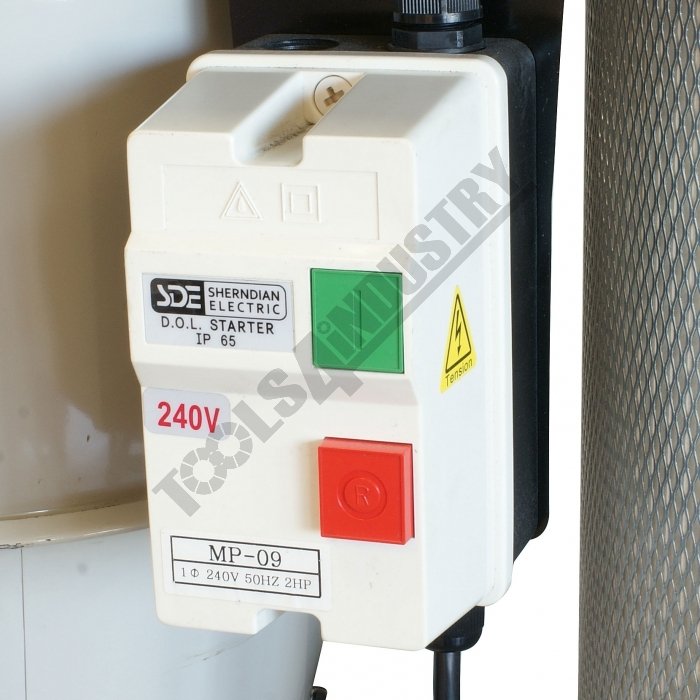

• 1.5kW (2HP) 240V motor
• 1050cfm air flow suction

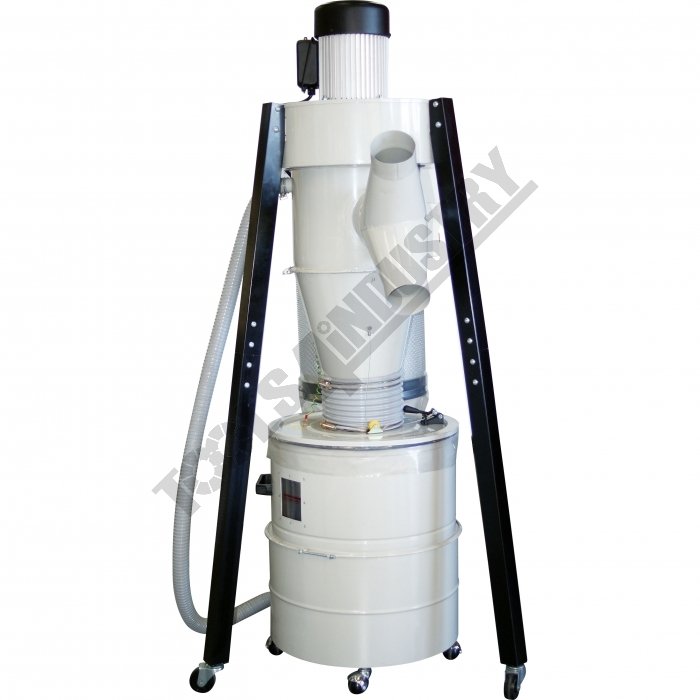

• Portable 2 stage cyclone dust collector on wheels
• Separates 99.91% dust from air before the cartridge filter preventing the canister filter from clogging
• 0.2 micron pleated canister filter

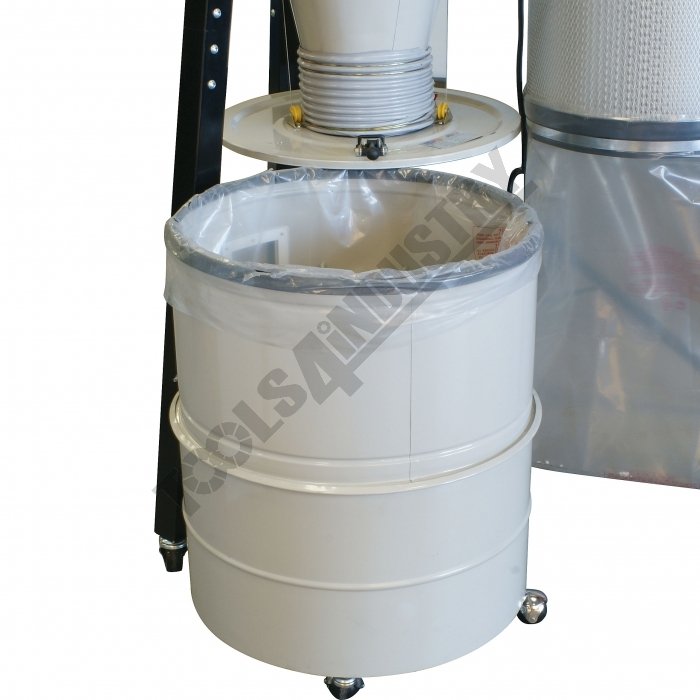

• Steel drum with caster wheels for easy dust disposal
• Built-in plastic bag holding system makes PE bag fit well in steel drum

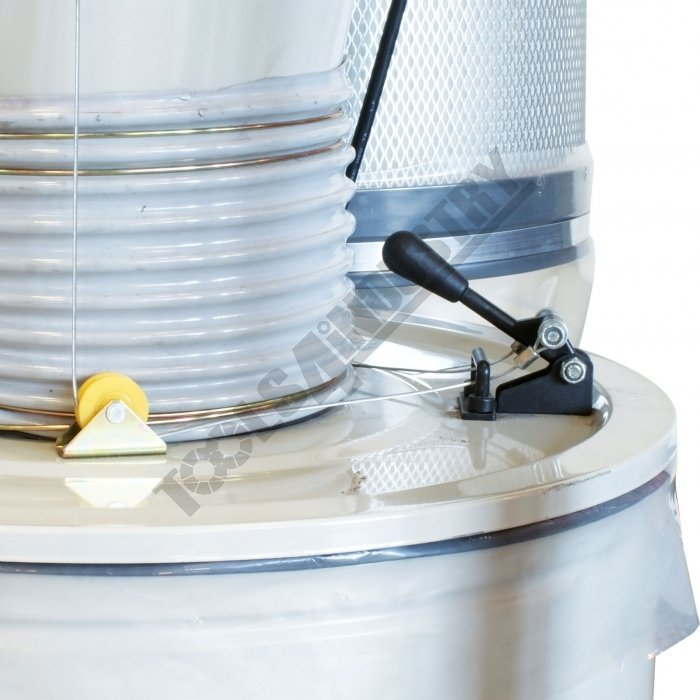

• Quick drum release lever for easy drum removal

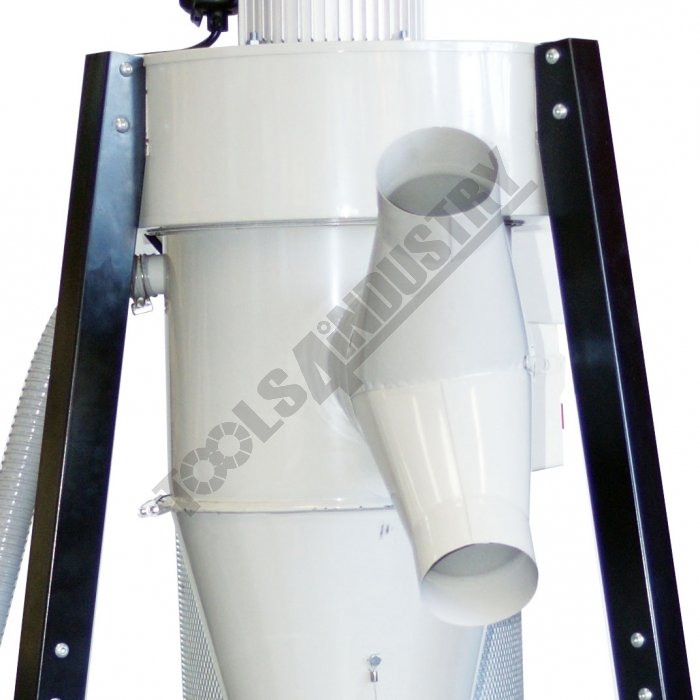

• 100mm(4") x twin inlets
• Quick-action release clamp on dust collection bag
• Filter surface area: 3.8 M2
• 113.5 litre steel drum capacity
• Machine Dimensions (LxWxH): 1300 x 830 x 1720mm
• MADE IN TAIWAN
