T64410 BuildPro Ecentric Pad 0-43mm Adjust. Range

Description

Using the "CAM" design principle, the Eccentric Pad provide a quick way to position the edge of the workpiece to a locating stop. The 360° rotation allows infinite adjustments.

Ideal for locating odd shape parts where conventional edge stops cannot reach.

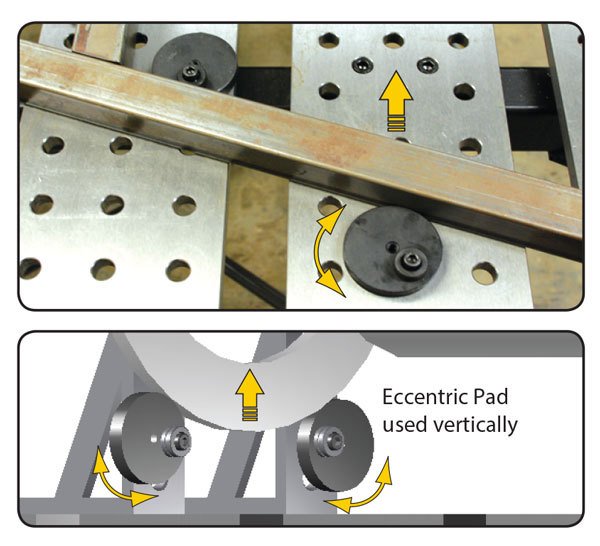

- Eccentric Pads can be mounted vertically or horizontally, at any height.
- Eccentric Pads can rotate 360° to position, locate, or stop a workpiece, at the edge, at a specific location.
- Eccentric Pads can locate or stop stock of varying shapes, and is especially useful for stopping round stock.


The very practical, modular design of the BuildPro® Table makes it easy to set-up and tear down for job at hand, big or small. Save time and money by holding, positioning and locating quickly and easily with a wide variety of BuildPro® clamps and accessories.

All BuildPro® Tables have 16mm thick steel plate with Ø16mm holes in a 50mm grid pattern. All tables, except BuildPro® MAX, have 40mm slots between plates.

Features

  • Ø38mm overall Diameter
  • * Eccentric Pads are 12.7 mm thick. Hole Diameter: Ø16 mm

Videos

Specifications

ORDER CODET64410
MODELBuildPro
Ecentric Pad

Type~
Table Height with Standmm~
Suits Table Size~
Material Finish~
Clamping Capacity~
Locking Handle - Pivot Movement~
Clamp Bar - Pivot Movement~
Plunger Travelmm~
Throat Depthmm~
Openingmm0 - 43mm Adjust. Range

Size~
Quantity Per PackNo.~
Thread~
Number of HolesNo.~
Slot Lengthmm~
Magnet Clamp Angledeg~
Pull Forcekg~
Clamping Forcekg~


Suits~
Over all Length0.09
Nett Weightkg
