T64205 BuildPro Inserta Stop

Description

This 50mm Stop can be used wherever parts need to be positively located for clamping. Press fit shank can be inserted in any Ø16mm holes on the tabletop.

- Handy, and quick to set-up, these Stops can be used to locate, stop, or position workpieces.
- Place multiple Stops on the BuildPro® Table for quick, effective locating, and positioning of stock.
- Use the holes in the BuildPro® Individual Plate to mount Stops in a straight line for precise stock location.
- The Stops provide low-profile locating, and make workpiece removal easy.


The very practical, modular design of the BuildPro® Table makes it easy to set-up and tear down for job at hand, big or small. Save time and money by holding, positioning and locating quickly and easily with a wide variety of BuildPro® clamps and accessories.

All BuildPro® Tables have 16mm thick steel plate with Ø16mm holes in a 50mm grid pattern. All tables, except BuildPro® MAX, have 40mm slots between plates.

Features

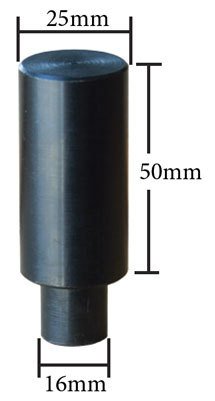

  • Ø25mm Top Diameter
  • Ø16mm Bottom Diameter
  • 50mm Top Height

Videos

Specifications

ORDER CODET64205
MODELBuildPro
Stop

Type~
Table Height with Standmm~
Suits Table Size~
Material Finish~
Clamping Capacity~
Locking Handle - Pivot Movement~
Clamp Bar - Pivot Movement~
Plunger Travelmm~
Throat Depthmm~
OpeningmmØ25 x Ø16 x 50mm

Size~
Quantity Per PackNo.~
Thread~
Number of HolesNo.~
Slot Lengthmm~
Magnet Clamp Angledeg~
Pull Forcekg~
Clamping Forcekg~


Suits~
Over all Length0.22
Nett Weightkg
