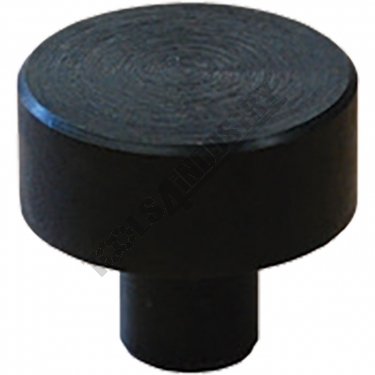

T64200 BuildPro Rest Button

Description

For convenient positioning. It serves as part rest to elevate parts above tabletop.

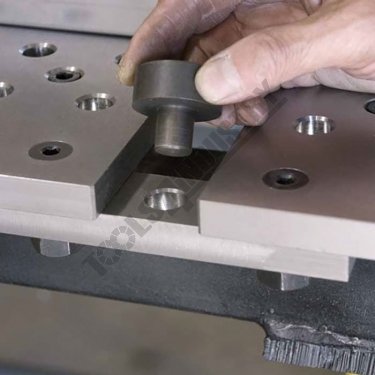

- Use the Channel Block and Rest Button when a flat, continuous support surface is required directly over the 40mm table slots.

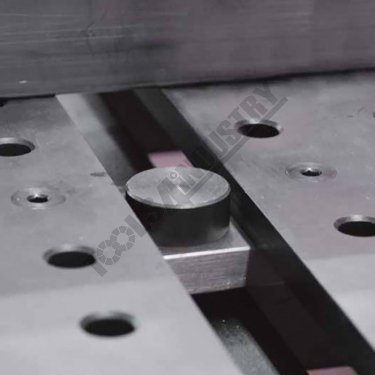

- After mounting the Channel Block, insert the Rest Button into the centre hole of the Channel Block to create a continuous work surface.

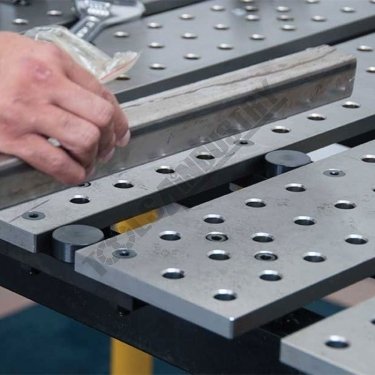

- "Fill" any of the 40mm slots in the tabletop whenever stock, or a clamp, needs to be placed directly over a slot.
- Can be used in combination with the Channel Block to "fill" any of the 40mm slots in the tabletop, creating a solid surface that is perfectly level with the tabletop.


The very practical, modular design of the BuildPro® Table makes it easy to set-up and tear down for job at hand, big or small. Save time and money by holding, positioning and locating quickly and easily with a wide variety of BuildPro® clamps and accessories.

All BuildPro® Tables have 16mm thick steel plate with Ø16mm holes in a 50mm grid pattern. All tables, except BuildPro® MAX, have 40mm slots between plates.

Features

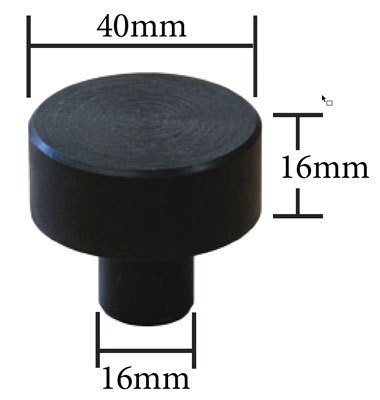

  • Ø40mm Top Diameter
  • Ø16mmBottom Diameter
  • 16mm Top Height

Videos

Specifications

ORDER CODET64200
MODELBuildPro
Rest Button

Type~
Table Height with Standmm~
Suits Table Size~
Material Finish~
Clamping Capacity~
Locking Handle - Pivot Movement~
Clamp Bar - Pivot Movement~
Plunger Travelmm~
Throat Depthmm~
OpeningmmØ40 x Ø16 x 16mm

Size~
Quantity Per PackNo.~
Thread~
Number of HolesNo.~
Slot Lengthmm~
Magnet Clamp Angledeg~
Pull Forcekg~
Clamping Forcekg~


Suits~
Over all Length0.18
Nett Weightkg
