PT14K BuildPro Inserta Pliers Clamp 155mm Throat Capacity

Description

Insert the Table Mount C-Clamp into any hole on the tabletop
for fast push-down clamping. The Clamp instantly locks into
place, ready for use.

Mount on the Right Angle Bracket, Riser Block, or Clamping Squares for push down clamping at an elevated height for taller workpieces. The patented rear crank handle allows clamp pressure adjustment while the clamp is in position. Use the crank handle to pre-set the clamp opening in repetitious clamping applications.



The very practical, modular design of the BuildPro® Table makes it easy to set-up and tear down for job at hand, big or small. Save time and money by holding, positioning and locating quickly and easily with a wide variety of BuildPro® clamps and accessories.

All BuildPro® Tables have 16mm thick steel plate with Ø16mm holes in a 50mm grid pattern. All tables, except BuildPro® MAX, have 40mm slots between plates.

Videos

Specifications

ORDER CODEPT14K
MODELBuildPro
Table Mount C-Clamp

Type~
Table Height with Standmm~
Suits Table Size~
Material Finish~
Clamping Capacity~
Locking Handle - Pivot Movement~
Clamp Bar - Pivot Movement~

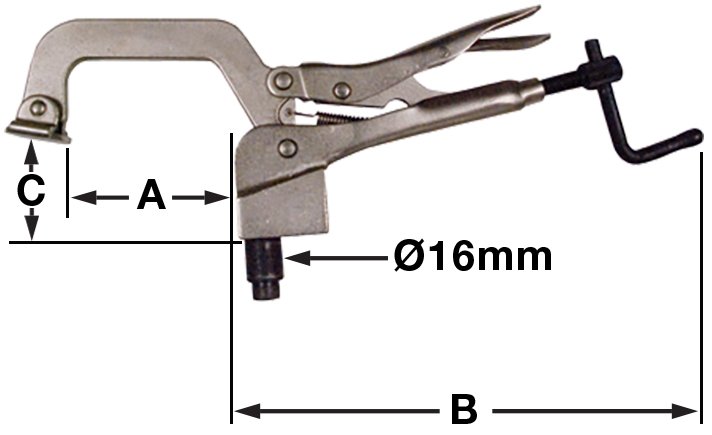

Plunger Travelmm155mm (A)
Throat Depthmm120mm (C)
Openingmm265mm (B)

Size~
Quantity Per PackNo.~
Thread~
Number of HolesNo.~
Slot Lengthmm~
Magnet Clamp Angledeg~
Pull Forcekg~
Clamping Forcekg~


Suits~
Over all Length0.90
Nett Weightkg
