T60930 BuildPro Channel Block Kit

Description

Use the Channel Block and Rest Button when a flat, continuous support surface is required directly over the 40mm table slots.

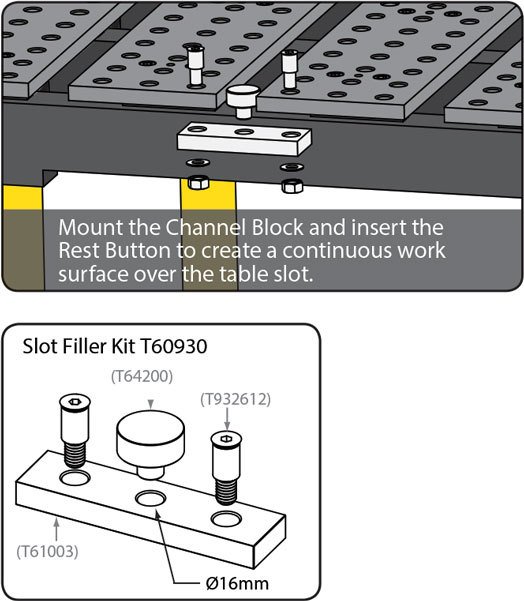

Place the 3-hole Channel Block beneath BuildPro® plates, aligning with plate holes, and mount with Socket Head Shoulder Screws. Place the Rest Button in the centre hole of the Channel Block to provide a rigid work surface level with the tabletop.

The 16mm shank on the Rest Button slip fits into the Channel Block holes. To elevate a workpiece above the tabletop surface, place multiple Rest Buttons directly into the 16mm holes on the Buildpro™ plate.

- The Slot Filler Kit provides a solid work surface directly over the 40mm slots in the BuildPro® Table.
- After mounting the Rest Button and Channel Block, the "filled" channel is level with the BuildPro® Table.

* Not applicable to BuildPro™ MAX table.


The very practical, modular design of the BuildPro® Table makes it easy to set-up and tear down for job at hand, big or small. Save time and money by holding, positioning and locating quickly and easily with a wide variety of BuildPro® clamps and accessories.

All BuildPro® Tables have 16mm thick steel plate with Ø16mm holes in a 50mm grid pattern. All tables, except BuildPro® MAX, have 40mm slots between plates.

Features

  • T60930 Slot Filler Kit for TM Tables. * Not applicable to BuildPro™ MAX table

Includes

  • 1 x Channel Block (T61003) 160 x 40 x 16mm
  • 1 x Rest Button (T64200)
  • 2 x Flush-mounted Screws (T932612)

Videos

Specifications

ORDER CODET60930
MODELBuildPro
Channel Block Kit

Type~
Table Height with Standmm~
Suits Table Size~
Material Finish~
Clamping Capacity~
Locking Handle - Pivot Movement~
Clamp Bar - Pivot Movement~
Plunger Travelmm~
Throat Depthmm~
Openingmm160 x 40 x 16mm

Size~
Quantity Per PackNo.~
Thread~
Number of HolesNo.~
Slot Lengthmm~
Magnet Clamp Angledeg~
Pull Forcekg~
Clamping Forcekg~


Suits~
Over all Length1.1
Nett Weightkg
