Code Q1871
Model 31-1871
Capacity 300mm / 12"
Weight (kg) 0.5
Weight (m3) 0.000
Weight (Freight) 0.5
Dimensions (cm) 4.5 x 14.5 x 3.5
MEASUMAX
1 Year
IP67

31-1871 Digital Caliper - Coolant Proof 300mm / 12"

Description

Coolant Proof IP-67 (CEI60529). Precision digital calipers with stainless steel body and slides. Ideal application where dust and coolant is prevalent

The international ratings organisation explain the following conditions for IP-67
The "6" denotes: "Protected against dust - limited ingress (no harmful deposit)"
The "7" denotes: "Protected against immersion between a depth of 15cm to 1 meter in fluids"

Features

  • New ABSOLUTE measuring system with memory hold and ABS/INC
  • Fully protected against the penetration of liquids
  • IP-67 prevents dust, water or oil from entering the caliper through effective encapsulation of the main parts
  • Large clear screen display - Metric/Imperial conversions at any position, Zero switches at any position. The memory hold function allows for the readinf to be kept even after the unit is switched off.
  • Manual switch off
  • Supplied in fitted blow mould case

Includes

  • Includes CR2032 battery

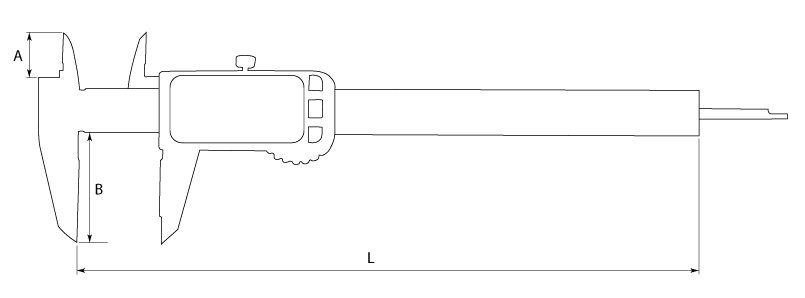

Specifications

ORDER CODE300mm / 12"
Sizemm / inch0.01mm / 0.0005"
Resolutionmm / inchIP67
Coolant ProofRatingYes
4 WayYes / No21
Amm60
Bmm375
Lmm
