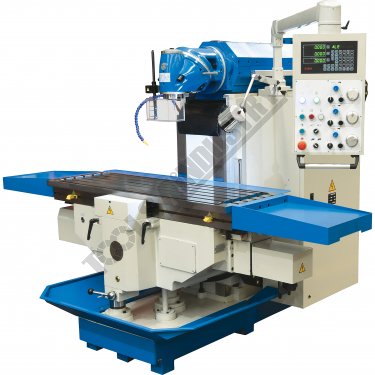

M639D

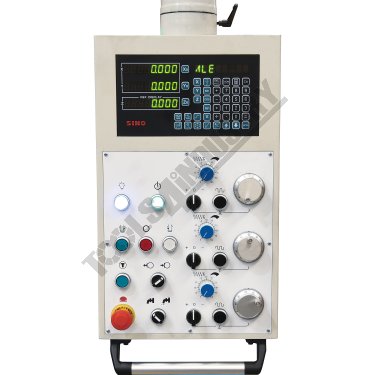

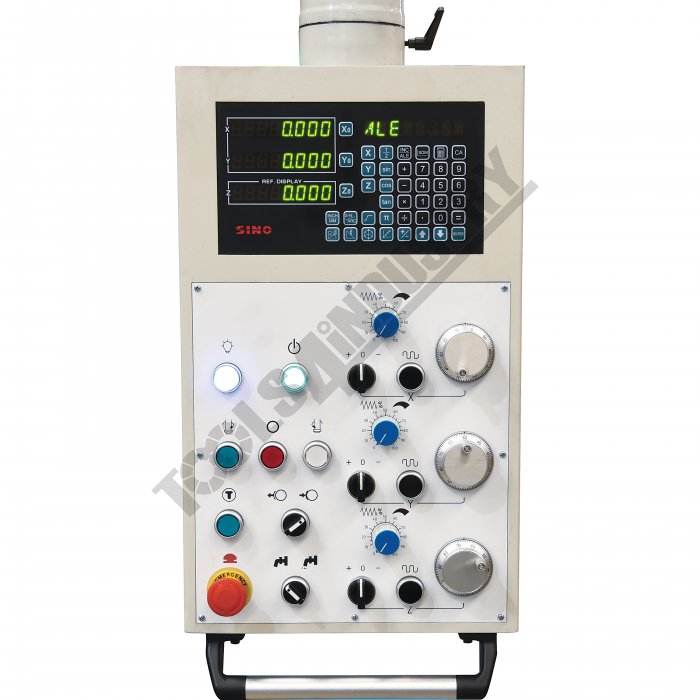

Control Panel

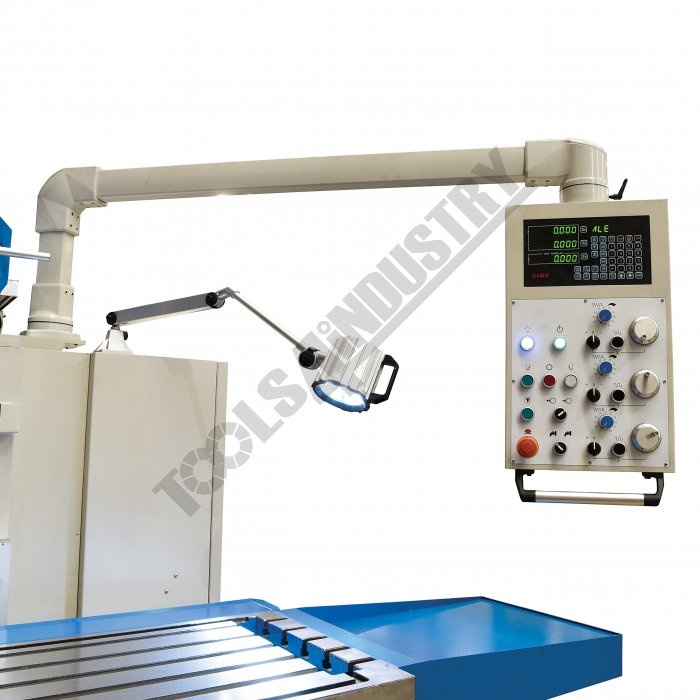

Adjustable Control Arm

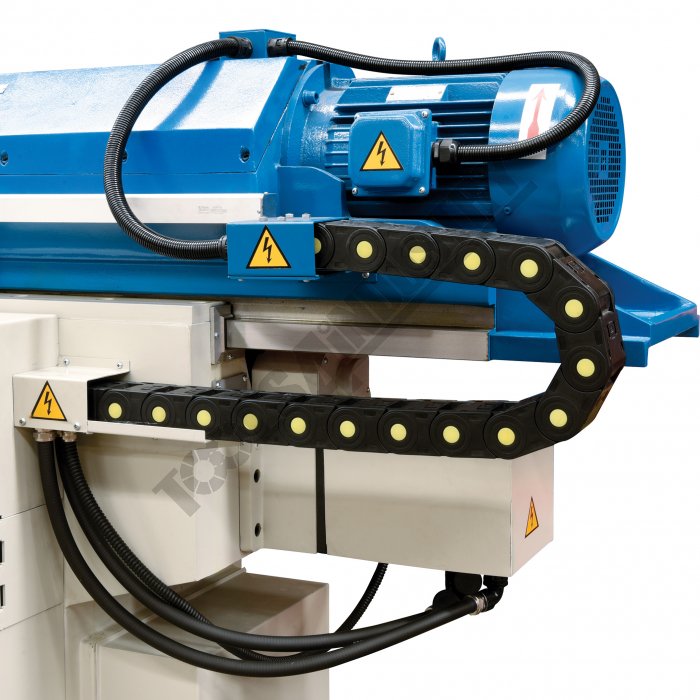

7.5kW / 10hp Spindle Motor

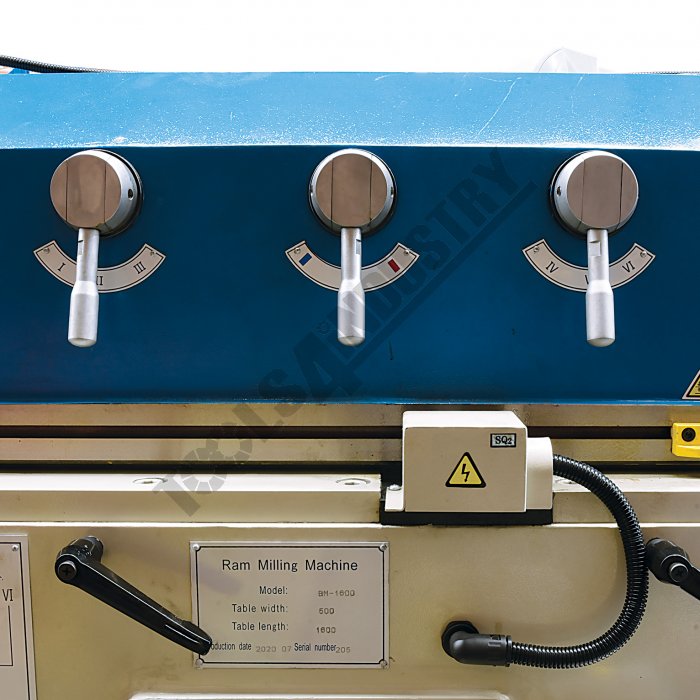

27 Geared Spindle Speeds

NT50 Spindle Taper

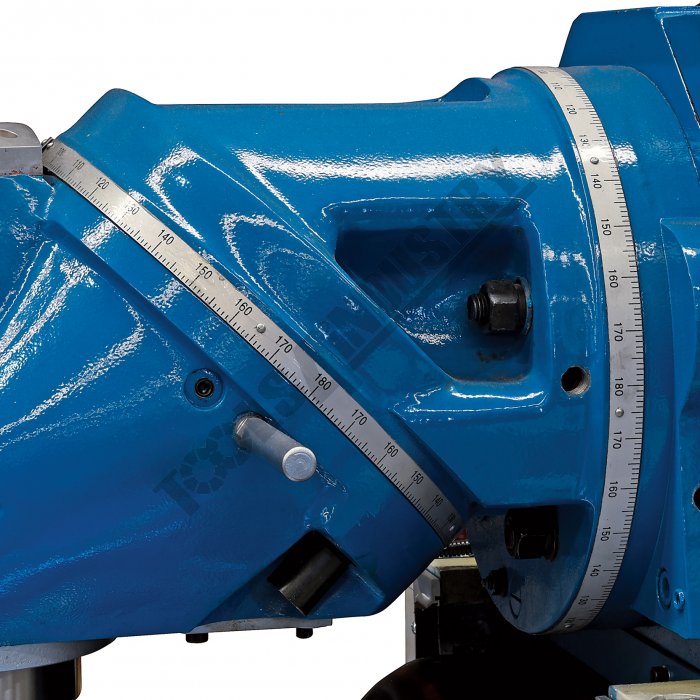

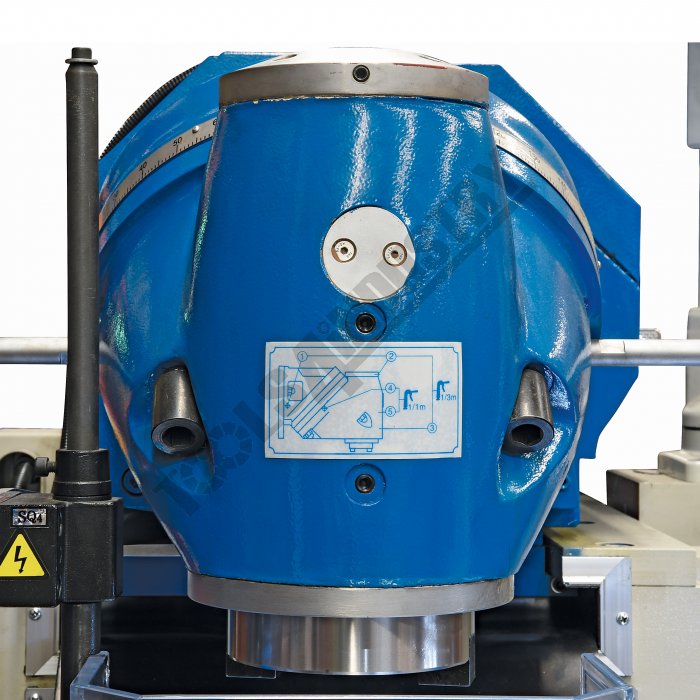

Universal Head - Tilts Vertical To Horizontal

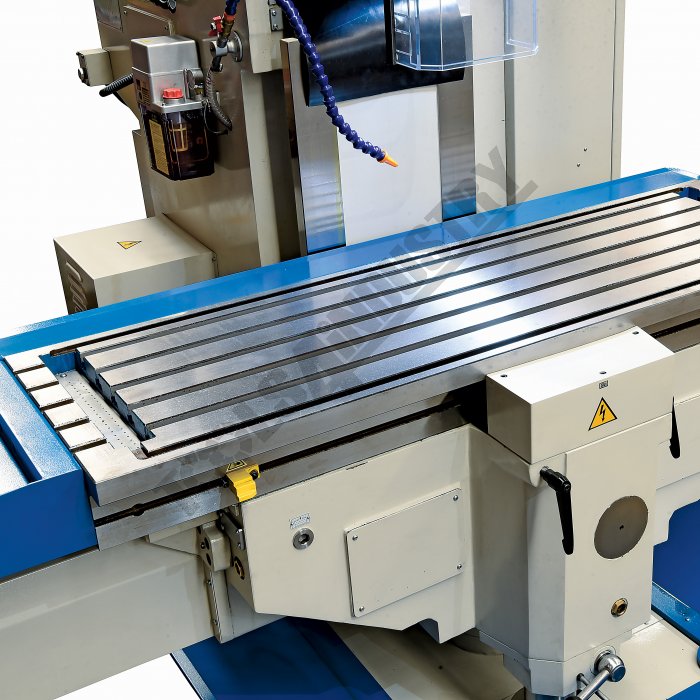

1600 x 500mm Slotted Work Table

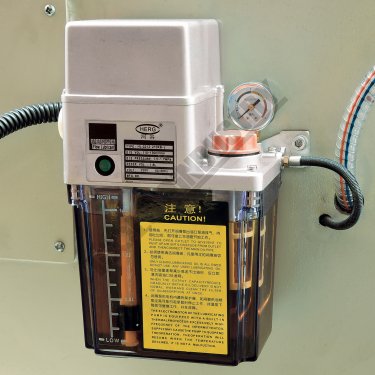

Automatic Slideway Lubrication System

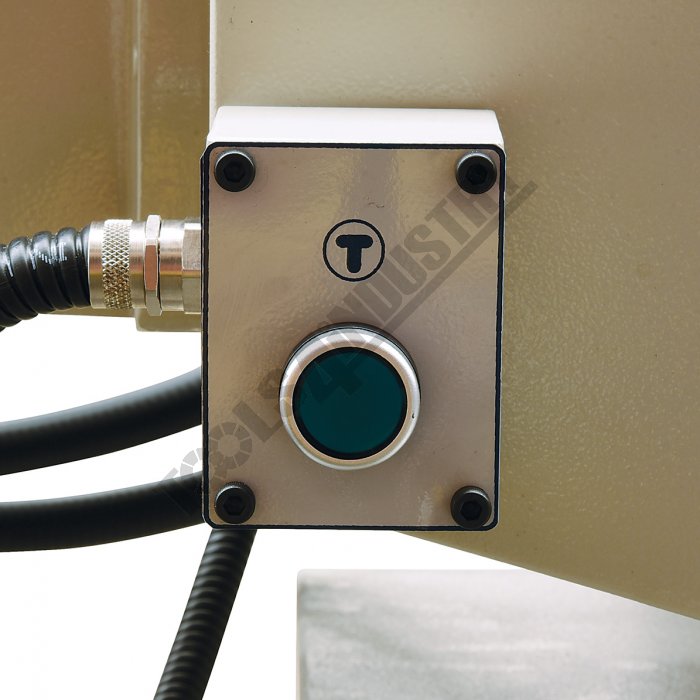

Motor Power Toggle Switch

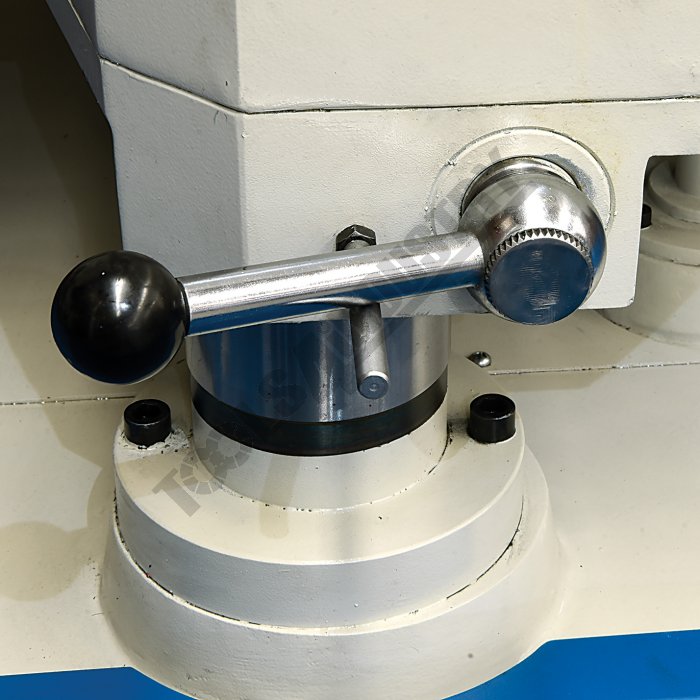

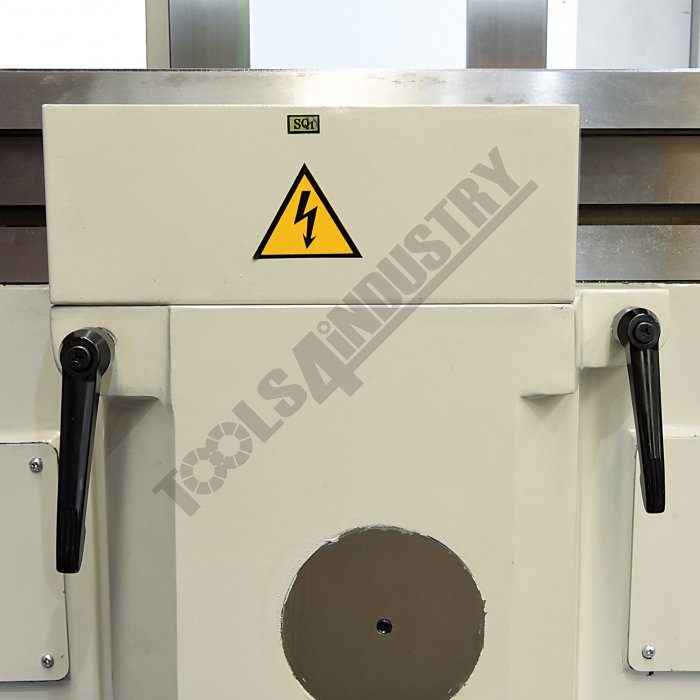

Horizontal Table Locks

Vertical Table Lock

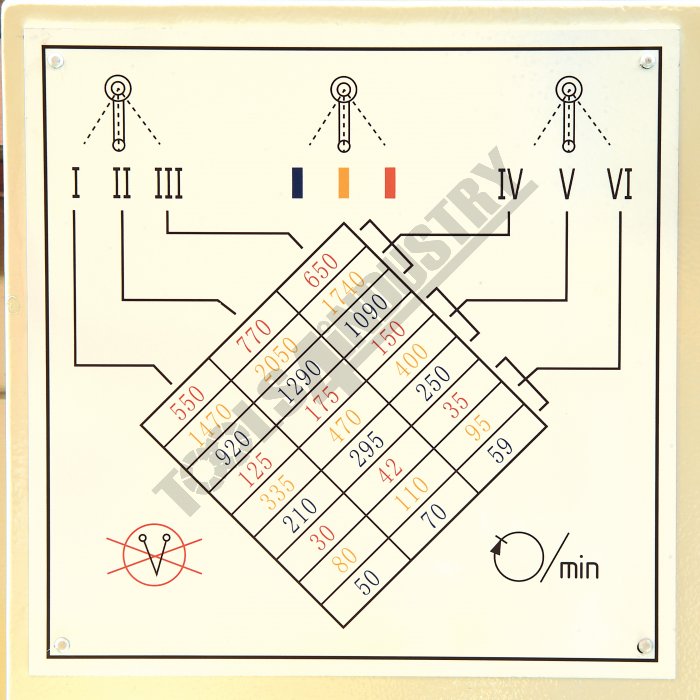

27 Spindle Speed Chart

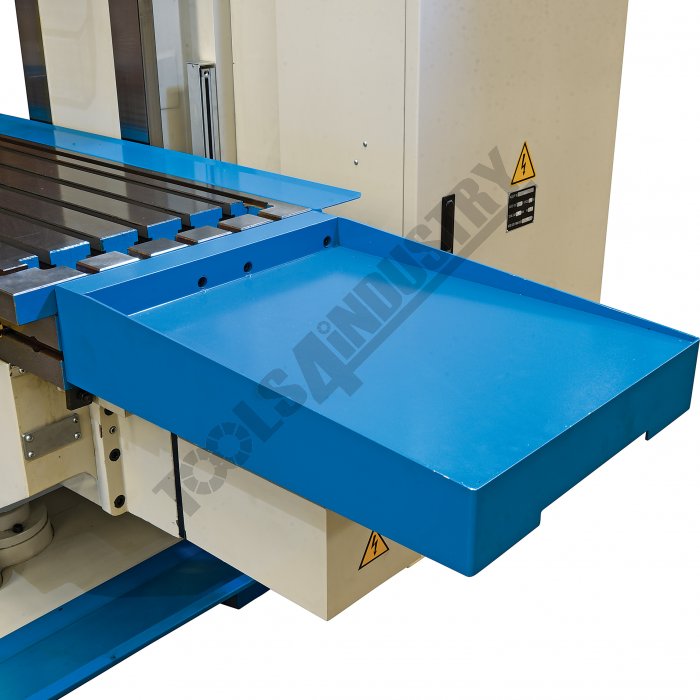

Side Table Tool Rest

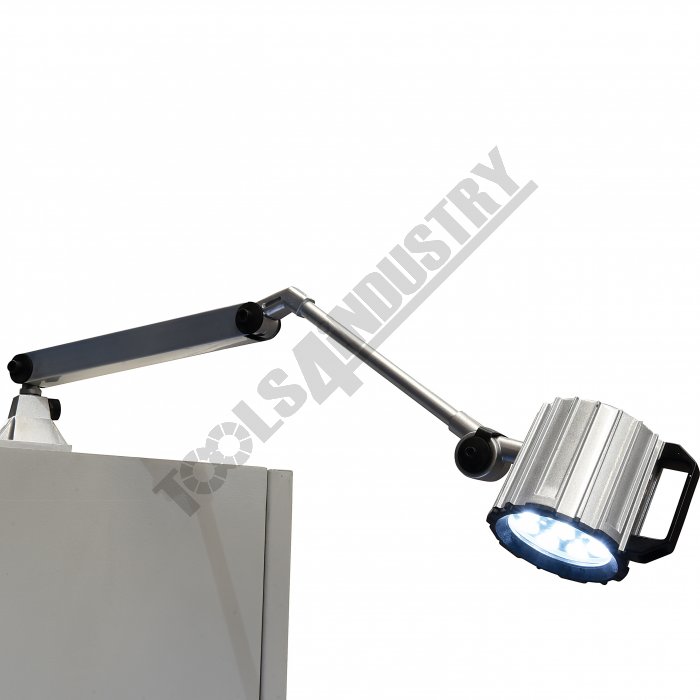

LED Work Light

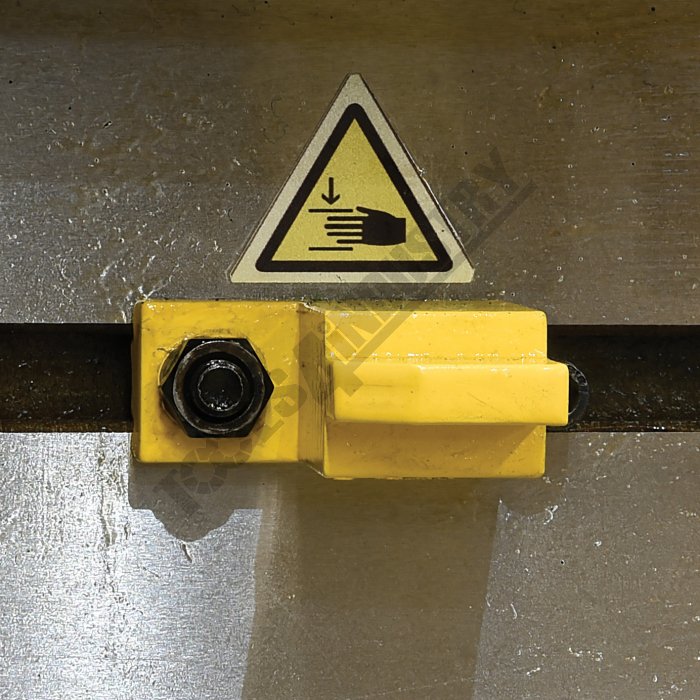

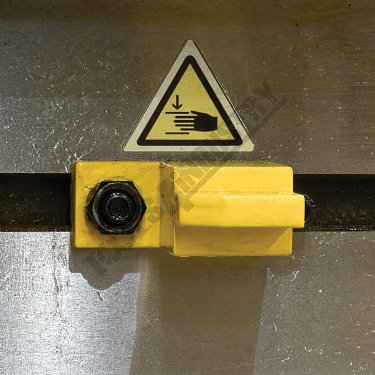

Adjustable Table Travel Limit Stops

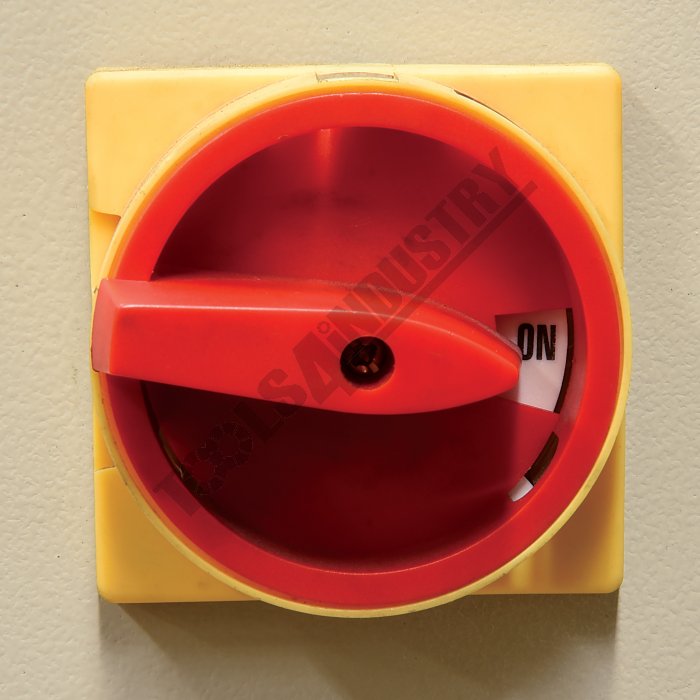

ON-OFF Isolation Switch

Code	M639D
Model	BM-1600
Capacity	Table Travel: (X) - 1200mm (Y) - 700mm (Z) - 500mm
Weight (kg)	4500
Weight (m³)	11.550
Weight (Freight)	4500
Dimensions (cm)	220 x 250 x 210

Product Brochure Milling Machine Risk Assessment

This Product Is No Longer Available

Heavy Duty Universal Milling Machine BM-1600 Table Travel: (X) - 1200mm (Y) - 700mm (Z) - 500mm

Description

The BM-1600 universal milling machine features a solid, heavy cast iron construction, making this model ideal for heavy machining of oversize workpieces.
The servo-controlled feed system ensures constant torque when removing metal under extreme load. All this is combining with and extra-large hardened & ground working table with long travels to match.

Features

3-Axis digital readout fitted
Large 1600 x 500mm slotted work table
NT50 universal head swivels 360º & tilts vertical to horizontal position
Electric brake & rapid feed on X, Y & Z-Axis
Servo controlled feed motors on X, Y & Z-Axis ensures constant torque
Hardened ballscrew X, Y & Z-Axis preloaded for easy and precise feeds
Rigid, torsion-proof construction, dovetail guide X-Axis & wide square guides Y & Z-Axis
Robust transmission with hardened and ground gears & slide-ways
Hardened & ground work table & all X, Y & Z-Axis slideways
All slideways are automatically lubricated
High grade casting for additional strength & minimal deformation
Quality electrics & overload protection in an easy access enclosure
Table trays each end of work table
Steel slide-way cover Y-Axis

Includes

Safety cutter guard
Coolant system
Automatic oil lubrication system
Cast iron table extensions
LED light
Base swarf tray
M24 drawbar
