This Product Is No Longer Available

M604D

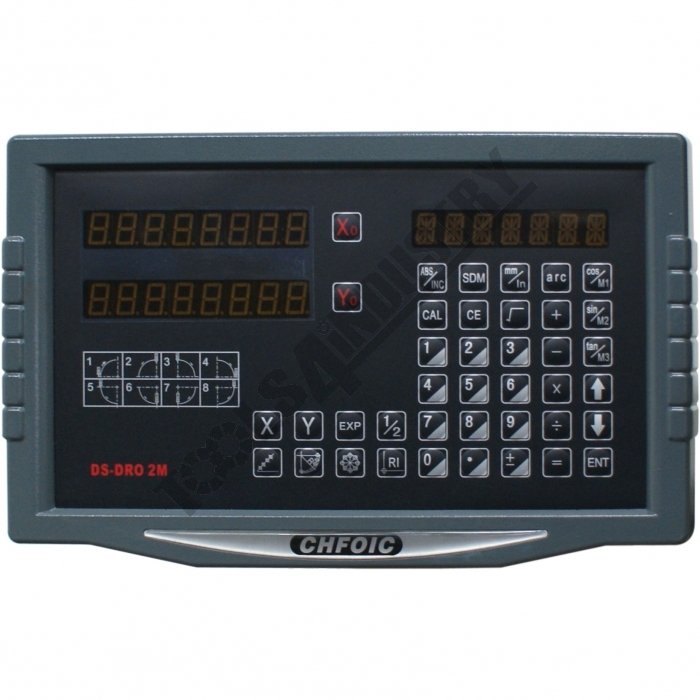

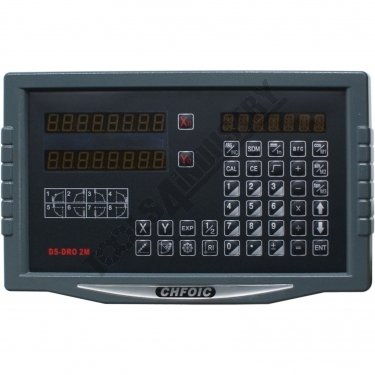

2 Axis Digital Readout System

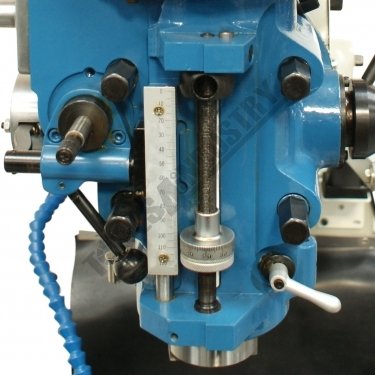

Quill Feed Depth Stop

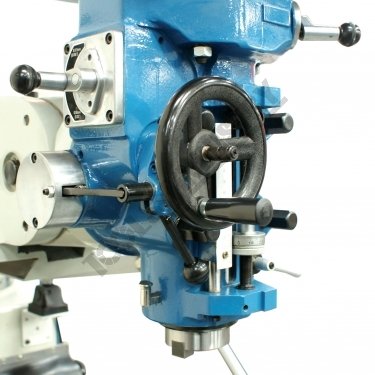

Quill Feed Engagement Lever

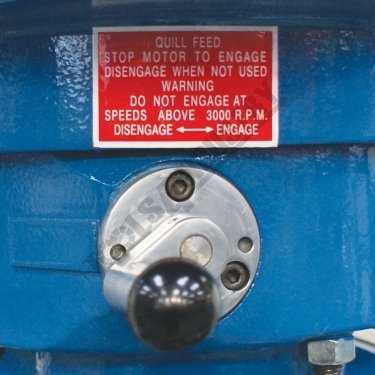

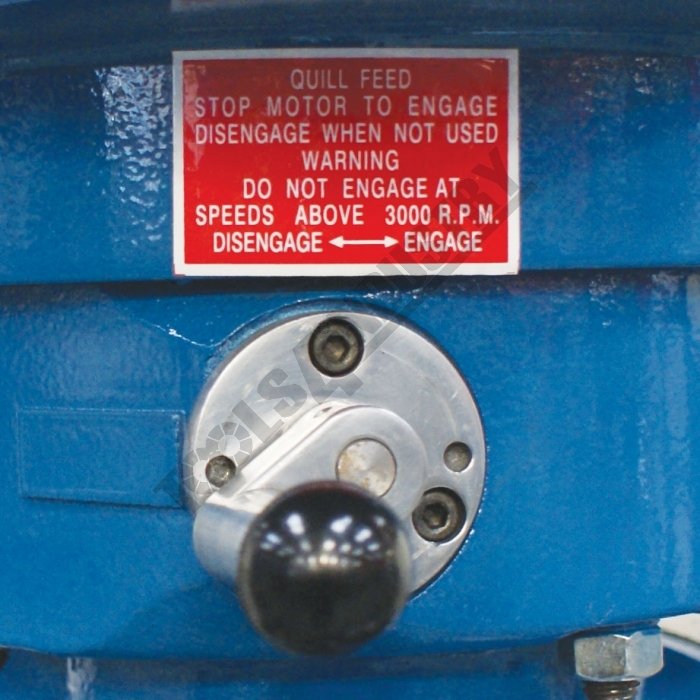

Feed Engage Disengage Drive

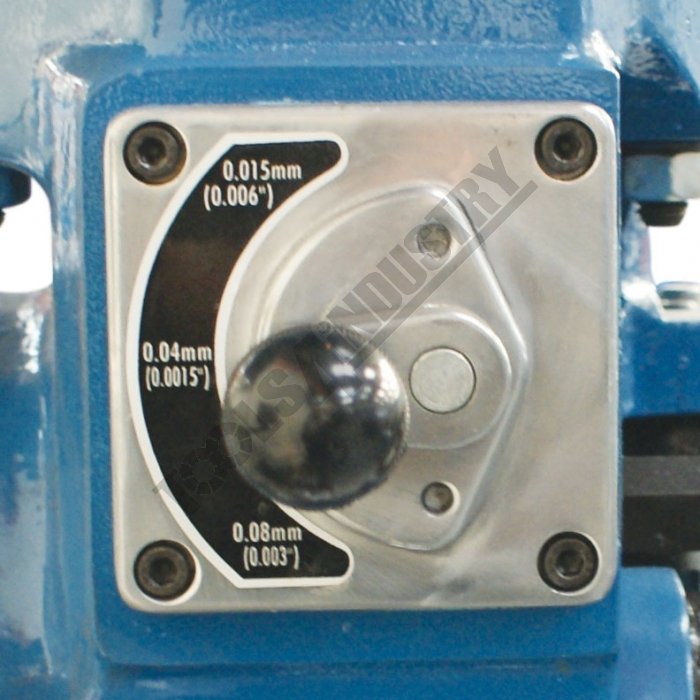

Feed Range Selector

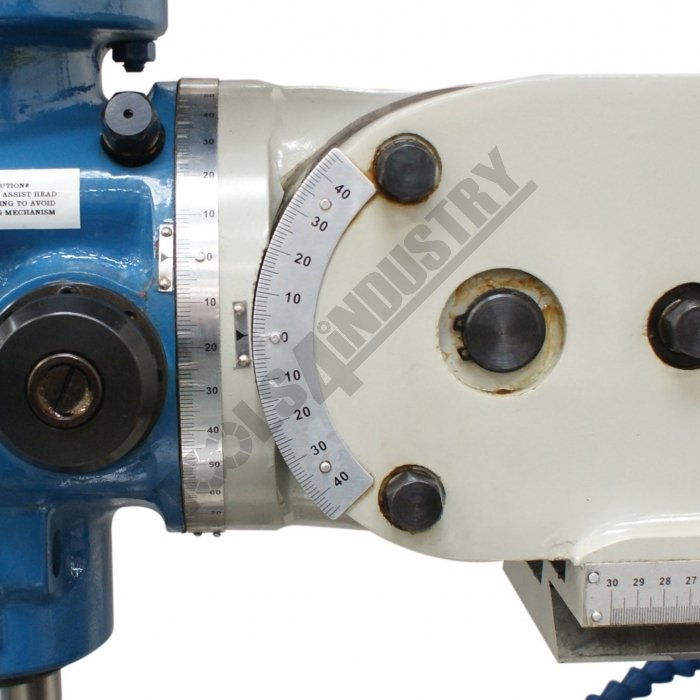

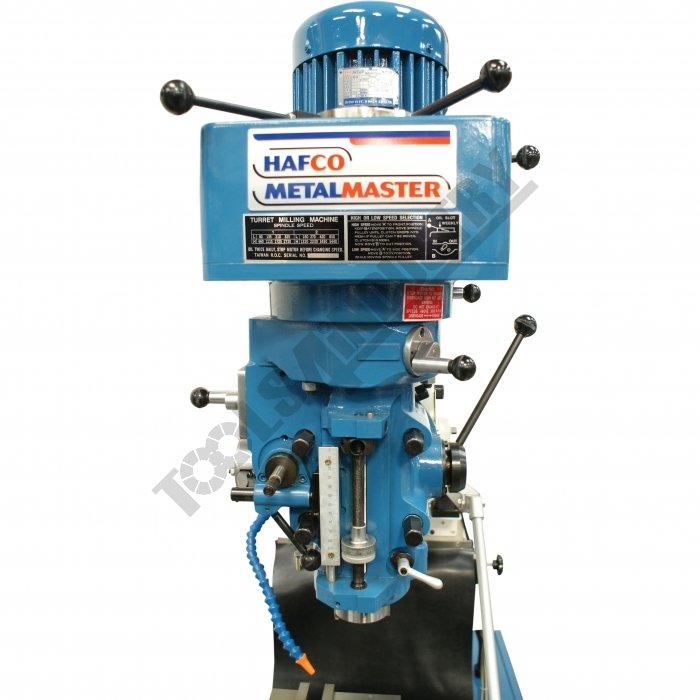

Universal Tilting and Rotating Head

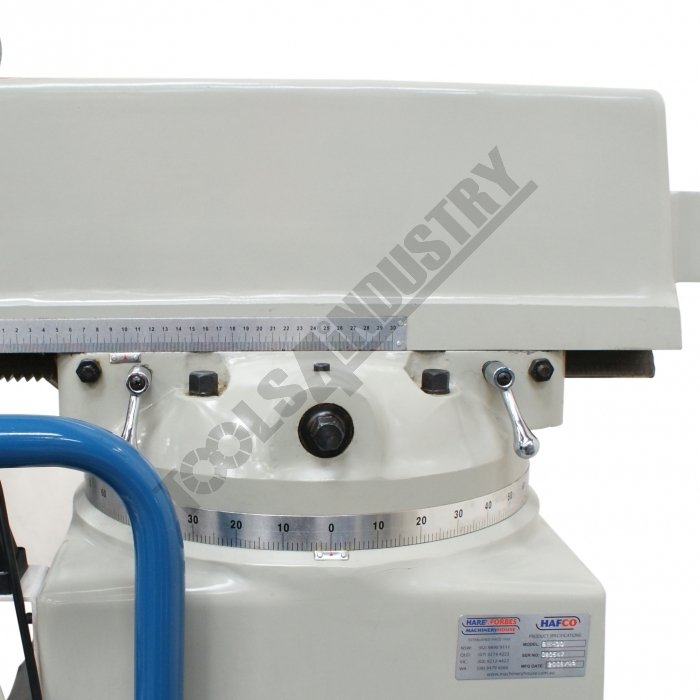

Adjustable Swivel and Sliding Ram

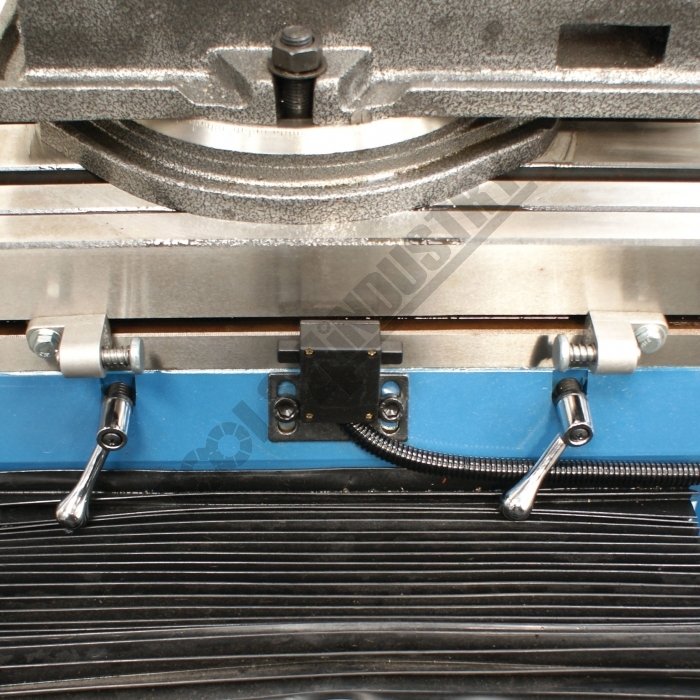

Table Feed Limit Switches

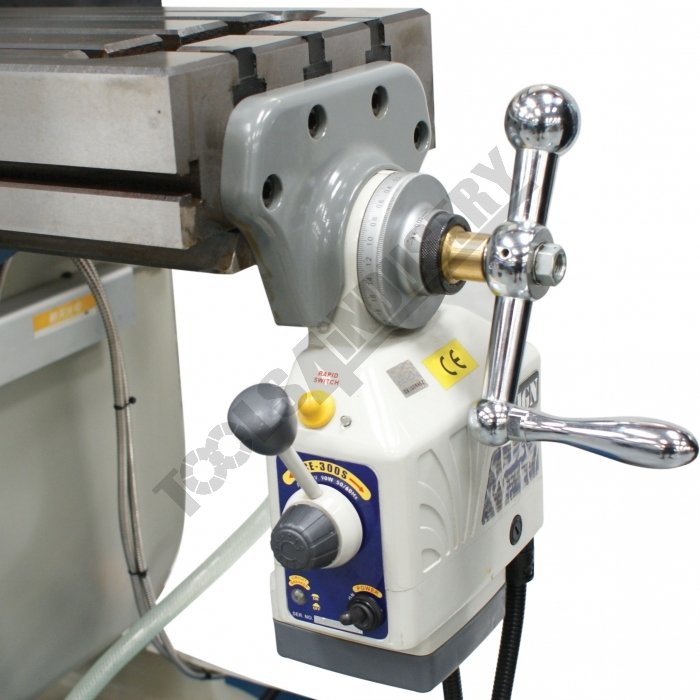

X Axis Power Feed with Rapid

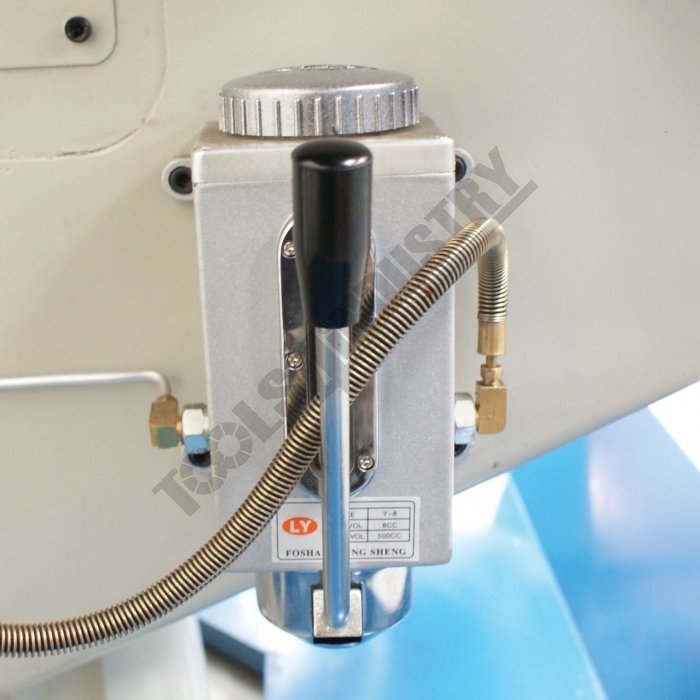

Lubrication Pump

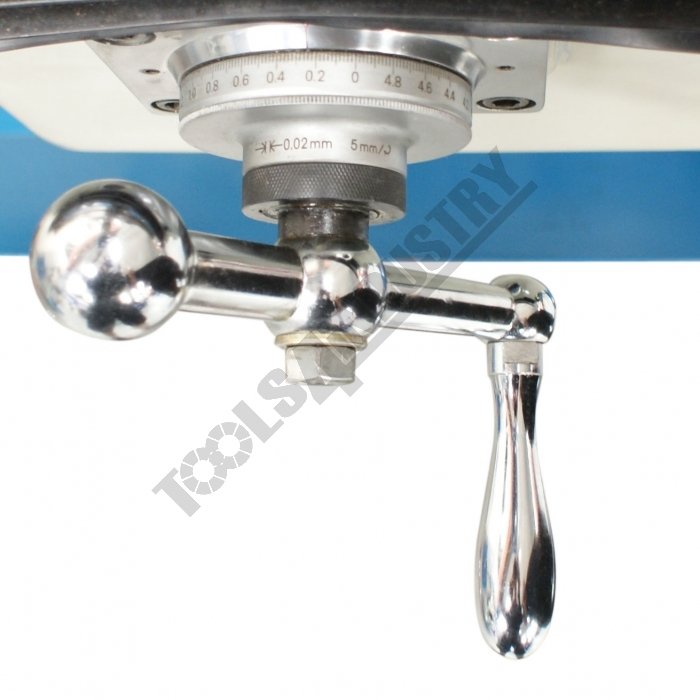

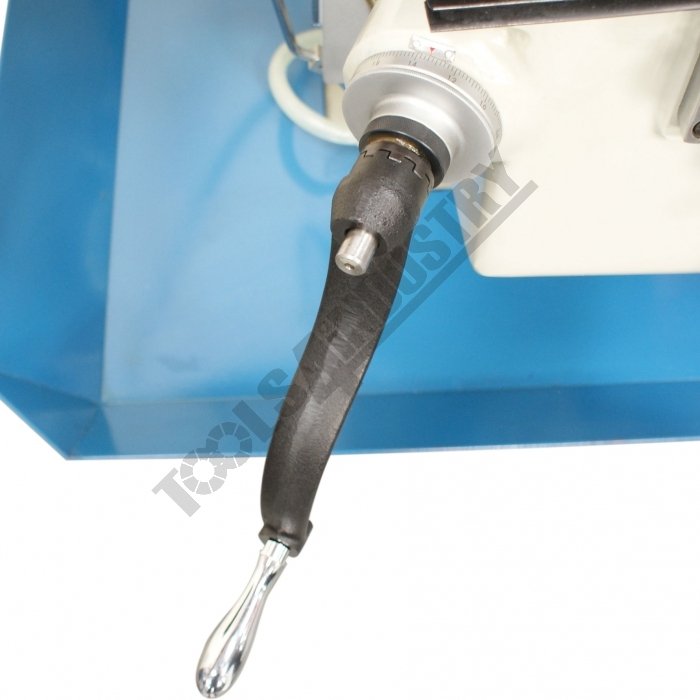

Table Handle

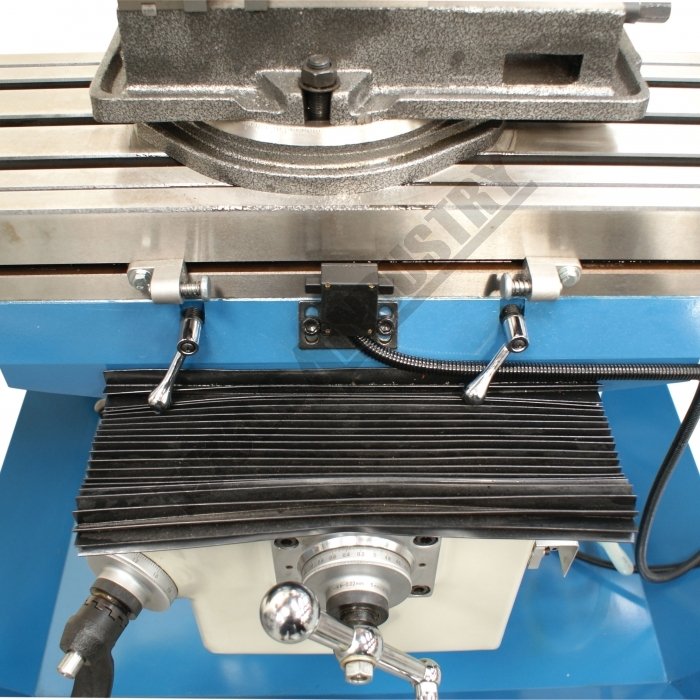

Concertina Slide Way Cover

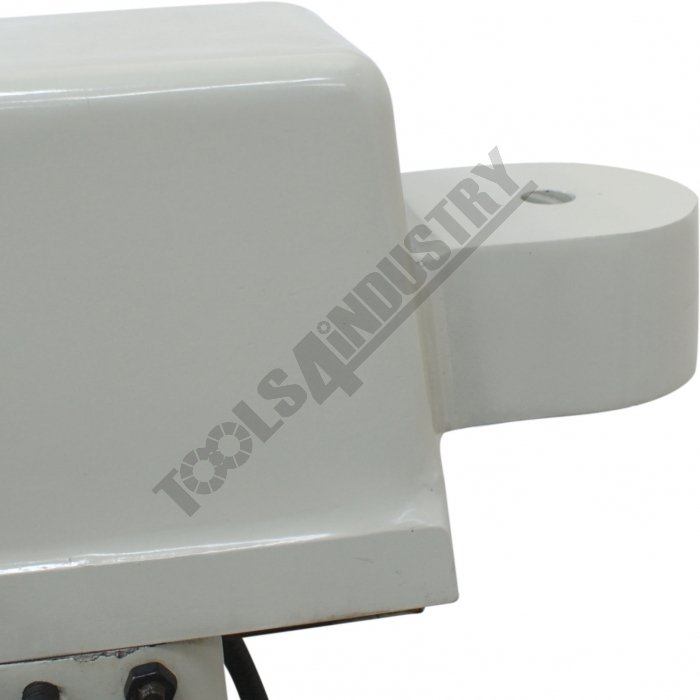

Tail Lug Spigot Supports Slotting Head

Code	M604D
Model	BM-30
Capacity	Table Travel: (X) - 760mm (Y) - 360mm (Z) - 430mm
Weight (kg)	1100
Weight (m³)	5.280
Weight (Freight)	1,758.240
Dimensions (cm)	160 x 150 x 220

Product Brochure Instruction Manual [5 MB] Parts List [3 MB]Milling Machine Risk Assessment

This Product Is No Longer Available

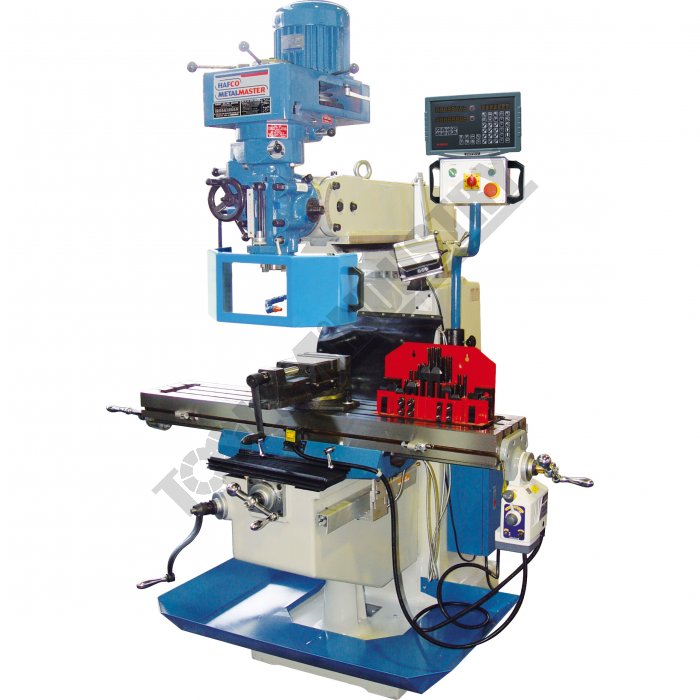

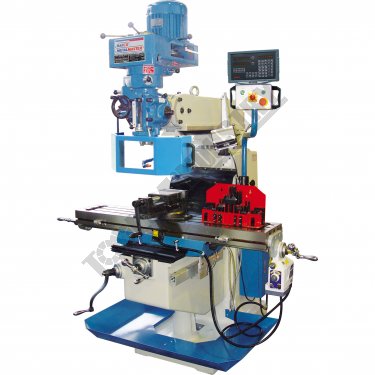

Industrial Turret Milling Machine BM-30 Table Travel: (X) - 760mm (Y) - 360mm (Z) - 430mm

Description

Manufactured in Taiwan

Features

2 Axis digital readout fitted

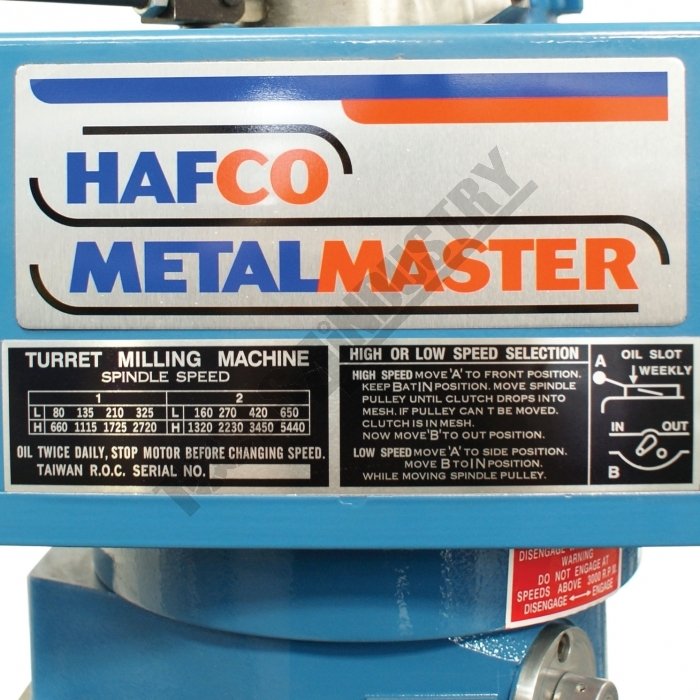

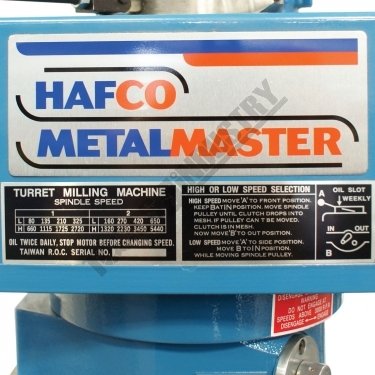

3HP 415V motor, 16-speeds
NT30 Spindle taper with a chrome & ground quill
Hardened & ground work table & slide-ways
Turcite B coated X & Y Axis slide-ways reduces friction for smooth operation
All slides utilise dovetail construction for maximum rigidity
Meehanite casting for high strength & minimal deformation

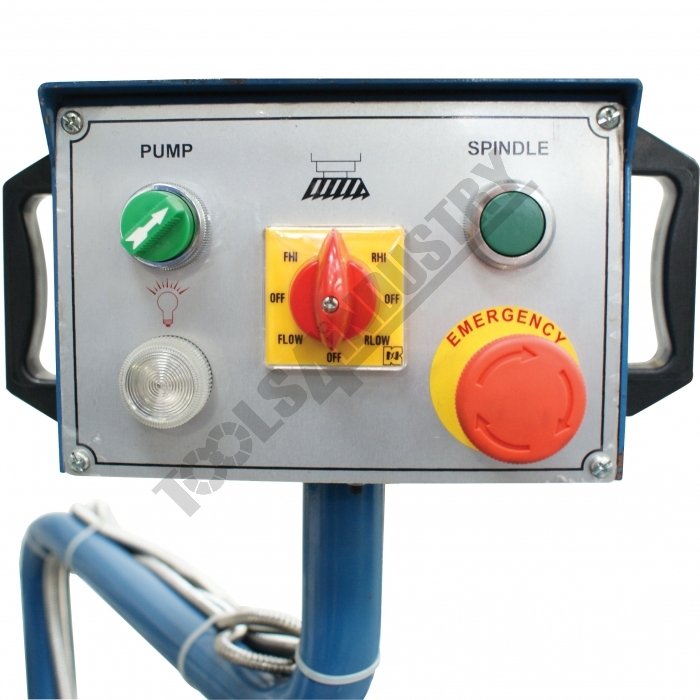

Quality electrics & overload protection in an easy access enclosure
Horizontal travelling ram mounted on a rotating base allowing repositioning of spindle
The ram incorporates a tail lug (spigot) to accept a slotting attachment etc.

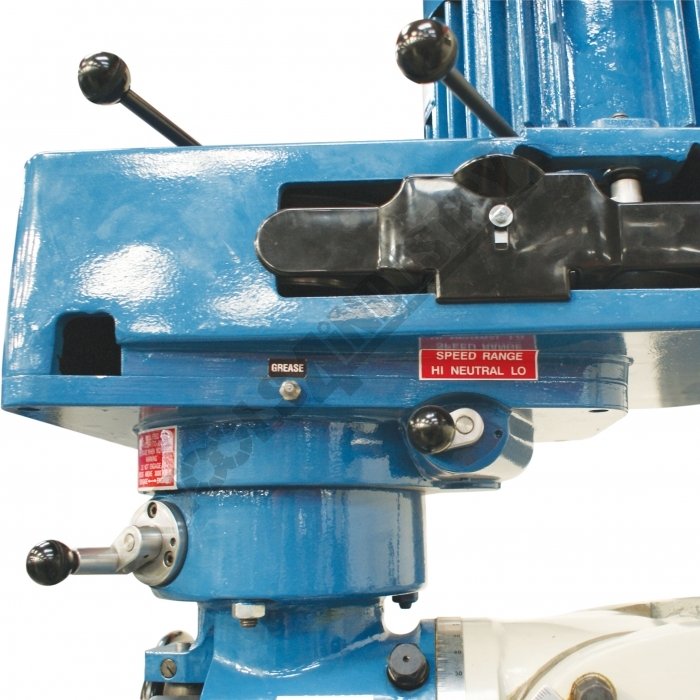

High / neutral and low gear selection lever to maximise torque
Align CE-300S X-Axis power-feed with adjustable micro switch feed stops

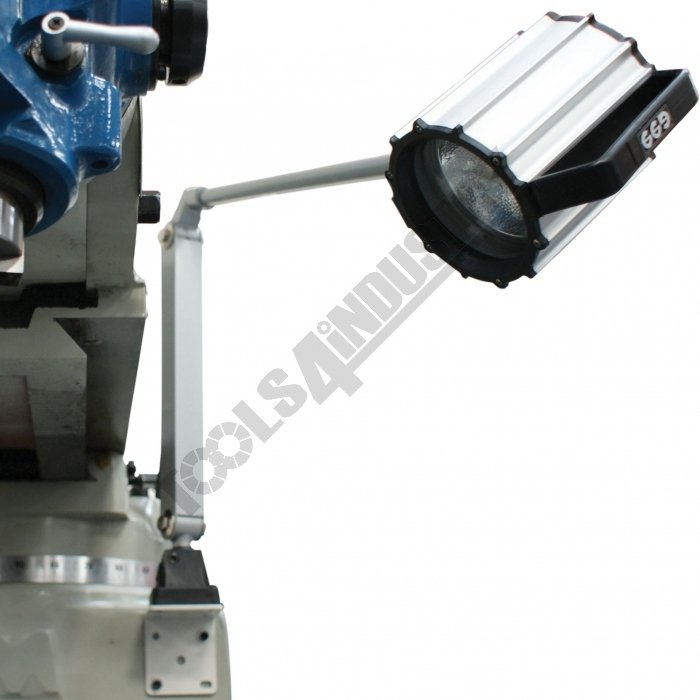

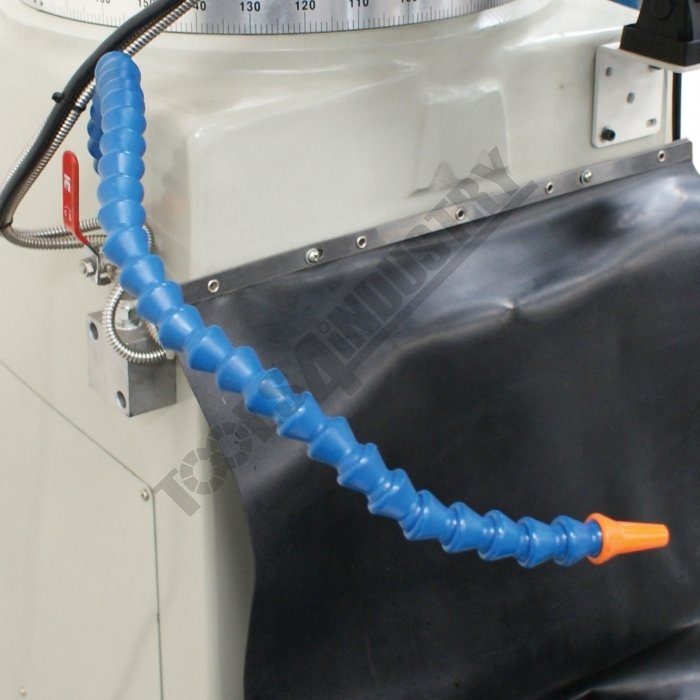

Coolant system, halogen light, 150mm machine vice & swarf tray
Metric dial graduations @ 0.02mm for X , Y & Z-Axis

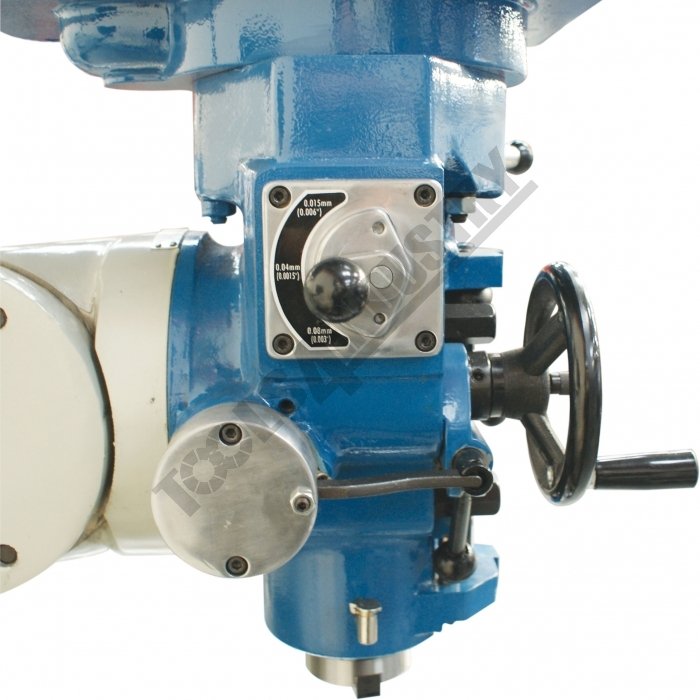

Automatic quill feed 0.015, 0.04, 0.08mm/rev
Automatic cut off depth stop on quill
Oil lubrication pump and reservoir

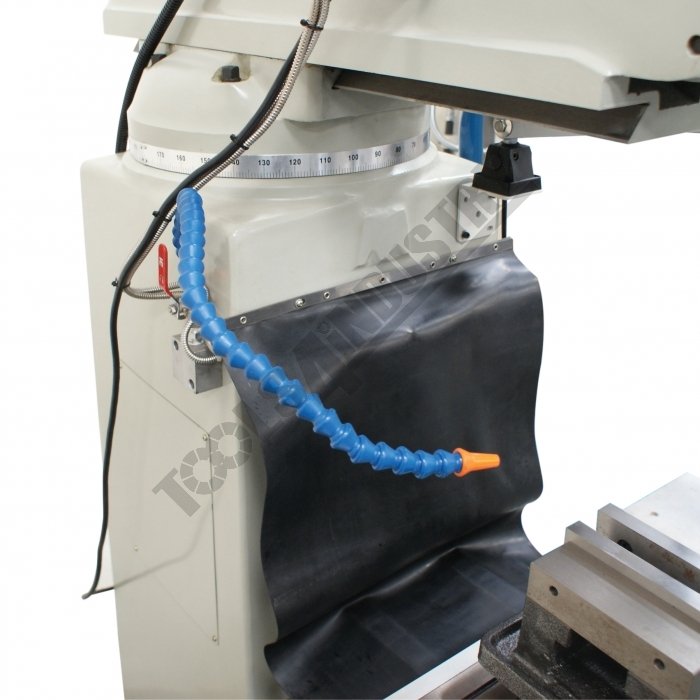

Slideway covers Y & Z-Axis
Mill head tilts to ±45º forward and back
Mill head tilts to ±90º left and right
Manual quick action quill lever

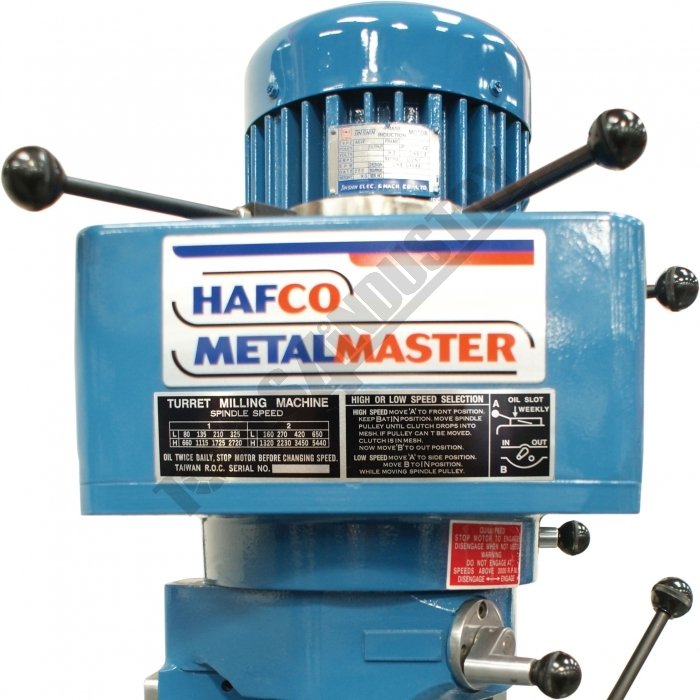

Mechanical spindle brake
Tool box and manual

Includes

2 Axis digital readout fitted
One-shot oil lubrication pump and reservoir
Drawbar M12 thread
Coolant system
Slideway covers
X-Axis power-feed
Halogen light
Machine vice (150mm)
Clamp kit
Safety cutter guard
Swarf tray

Specifications

Compare 51 Products
ORDER CODE
MODEL
Digital Readout
Type
Table Sizemm
Column Type
Spindle Taper - Vertical
Spindle Taper - Horizontal
Longitudinal Travel (X-Axis)mm
Cross Travel (Y-Axis)mm
Vertical Travel (Z-Axis)mm
Type of Slides
Ram Travelmm
Spindle to Tablemm
Spindle to Base
Spindle Travel / Diametermm
Throat Depth (max.)mm
Tilting Head (Left ~ Right)
Tilting Head (Forward ~ Back)
Drilling Capacitymm
End Milling Capacitymm
Face Milling Capacitymm
Power Feed - Quillmm/rev
Power Feed - Longitudinal (X-Axis)mm/min
Power Feed - Cross (Y-Axis)mm/min
Power Feed - Vertical (Z-Axis)mm/min
Table T-Slot Sizeinch / mm
Work Table Load Capacitykg
Spindle Speeds VerticalNo./ rpm
Spindle Speeds HorizontalNo./ rpm
Spindle Speeds - Universal Head
Motor Power - Vertical SpindlekW / hp
Motor Power - Horizontal SpindlekW / hp
Motor Power - Universal Head
Voltage / AmperageV / amp
Nett Weightkg

M604D
BM-30
2-Axis Digital Readout
Vertical
1270 x 254
~
NT30
~
760
360
430
Dovetail
520
505
~
127 / 86
740
±90º
±45º
~
~
~
0.015 / 0.04 / 0.08
20 - 2000
Optional
Optional
5/8
250
16 (80 - 5440)
~
~
2.2 / 3
~
~
415
1100
