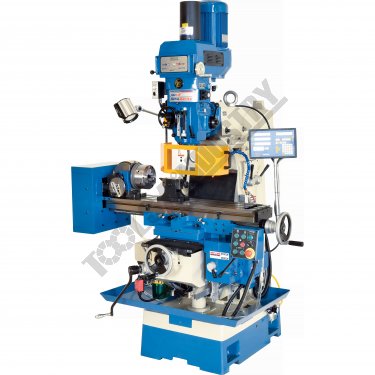

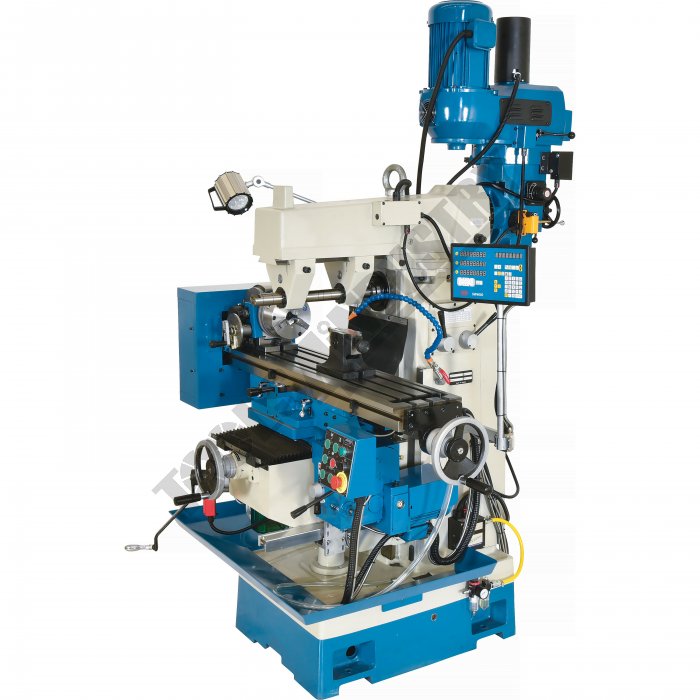

Industrial Turret Milling Machine - Horizontal & Vertical PBM-GSV250 Table Travel: (X) - 700mm (Y) - 250mm (Z) - 440mm

Description

The PBM-GSV250 Industrial turret milling machine is manufactured in Taiwan to a strict precision engineering ultra-high tolerance & superior excellence to cope with many jobs set out by the professional machinist, and importantly to deliver many years of valuable & reliable service.

This medium robust milling machine package has all the similarities of the BM-40V model and is also complete with a few more bonus upgrades for example, 5hp motor driving the NT40 spindle taper, Z-axis powered elevating motor, pneumatic operated draw bar to easily & quickly change tool holders with a push of a button, automatic operated oil pump to keep slides in perfect working order and a universal dividing head with chuck coupled to the X-axis of the machine designed to be used for cutting helical gears and more.

The PBM-GSV250 machine also includes the most desirable features like, easy to use variable spindle speed dial, turcite B coated X & Y slide-ways that reduces friction to provide smooth table movement even when loaded up with a heavy job, hardened & ground work table & slide-ways, heavy duty X-axis auto power-feed with adjustable feed stops and also a 3-axis digital readout system fitted.

Another reliable feature in this range of precision milling machines is the manufacturing process of the main body & supports, it is made up form the highest quality Meehanite® cast iron. The key to the undisputed success of Meehanite® metals is the rigid application of its patented manufacturing process to provide ultimate strength & durability performance.

To conclude this PBM-GSV250 turret milling machine is the most common size machine that’s found in approximately 70% of engineering workshops and when its put to the test it certainly performs its duties with no hesitation.

Features

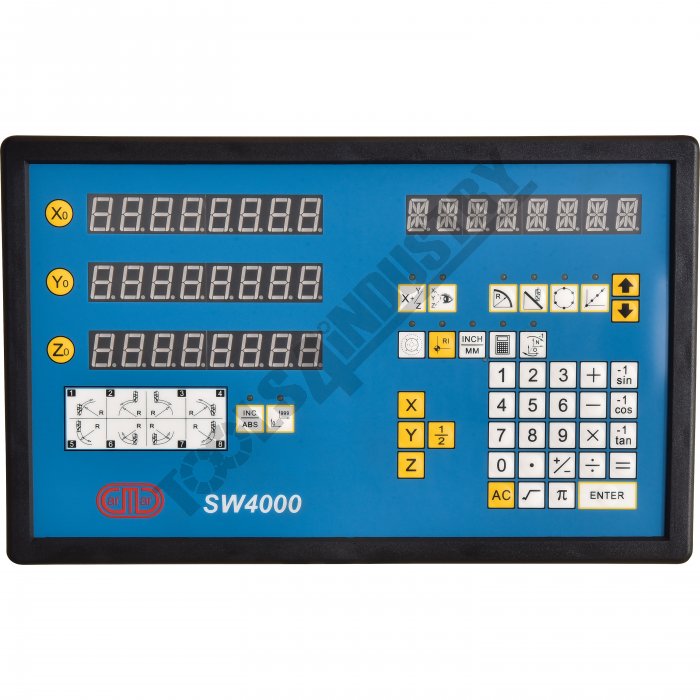

• 3 Axis digital readout fitted

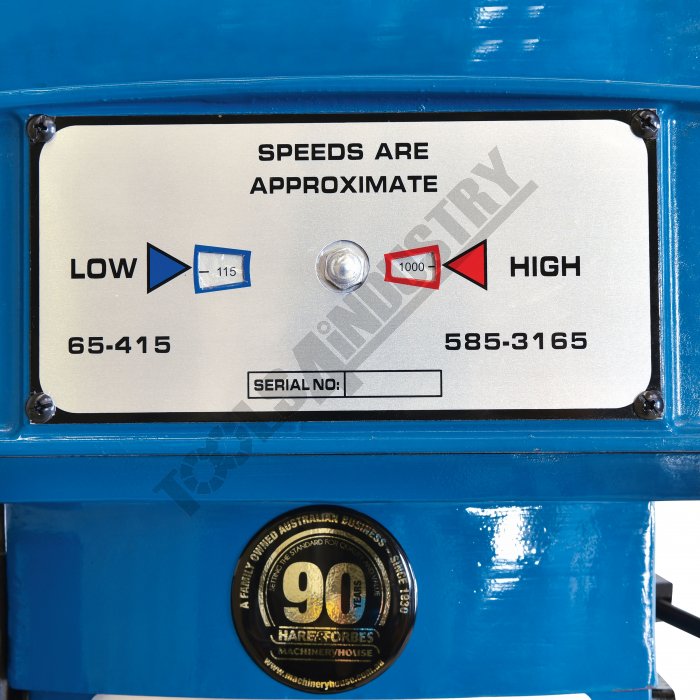

• 5HP 415V motor, dial variable speed system
• NT40 Spindle taper with a chrome & ground quill

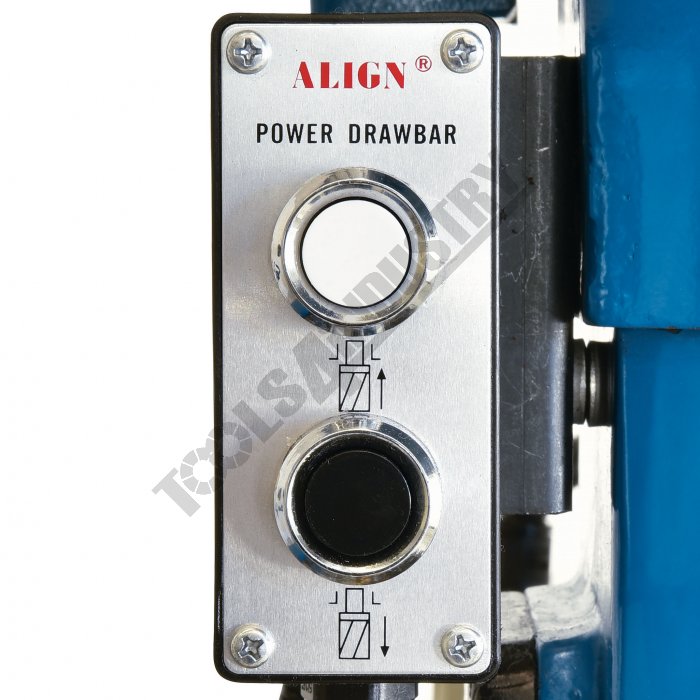

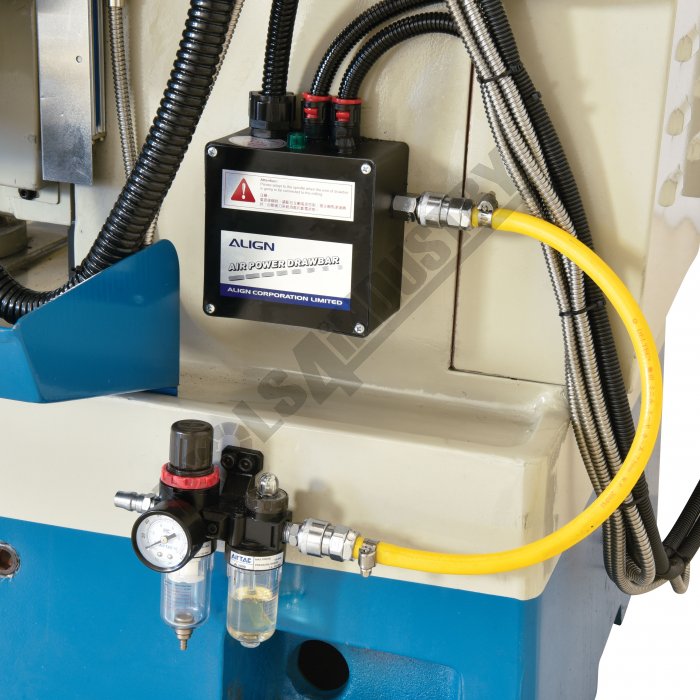

• Pneumatic drawbar system fitted

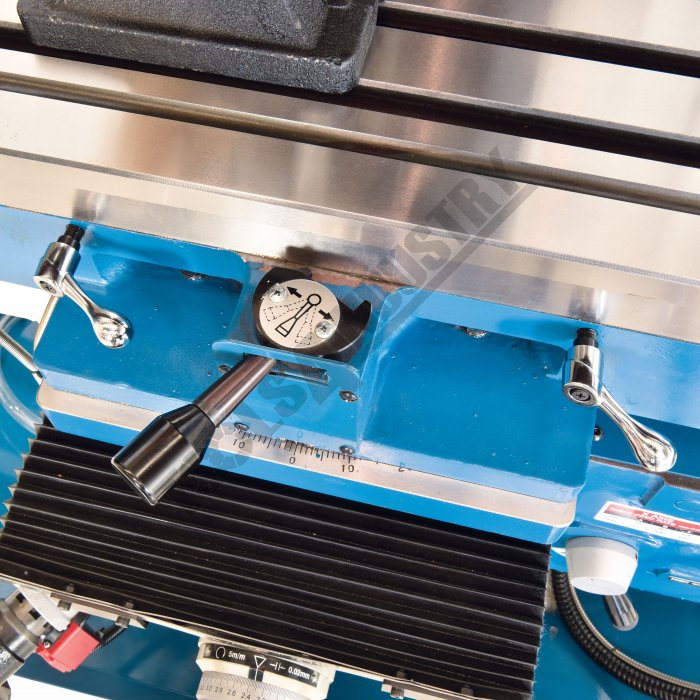

• Swivel table ±45º left and right

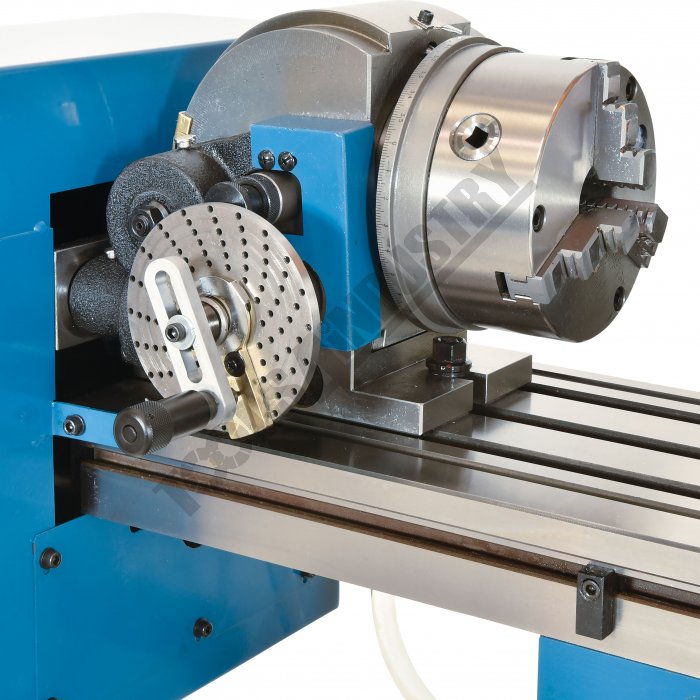

• Universal BS-2 dividing head with chuck

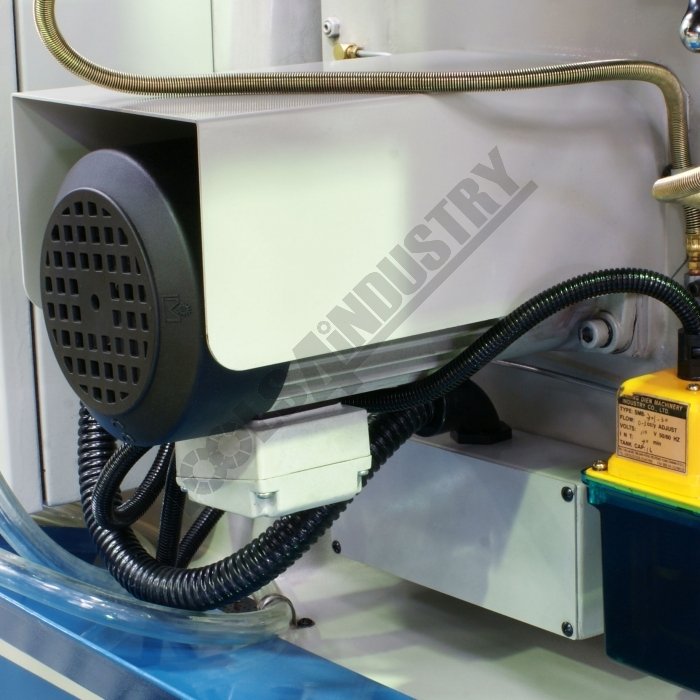

• Z-Axis powered elevating motor
• Hardened & ground work table & slide-ways
• Turcite "B" coated X & Y Axis slide-ways reduces friction for smooth operation
• All slides utilise dovetail construction for maximum rigidity
• Meehanite casting for high strength & minimal deformation
• Quality electrics & overload protection in an easy access enclosure

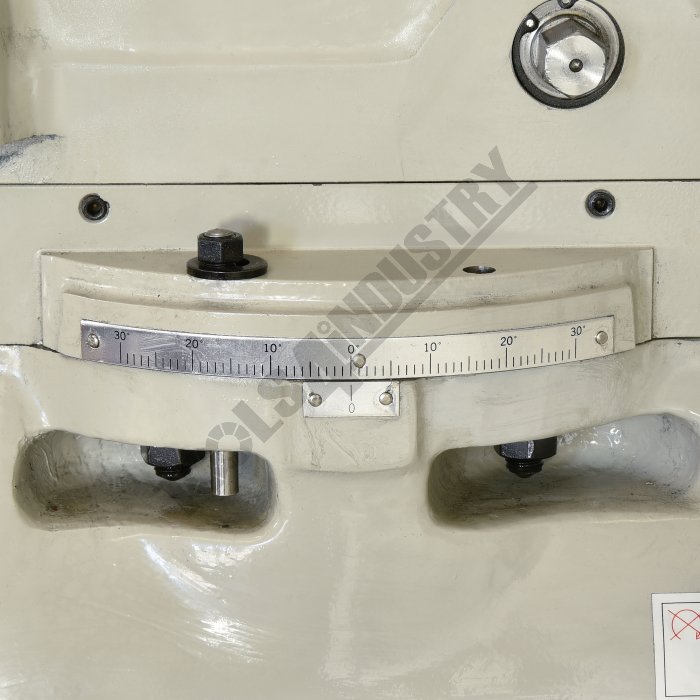

• Horizontal travelling ram mounted on a rotating base allowing repositioning of spindle

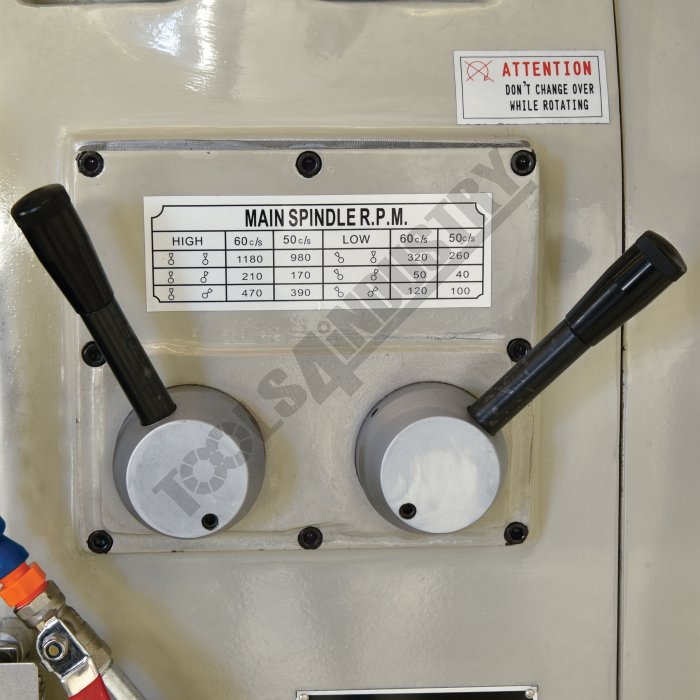

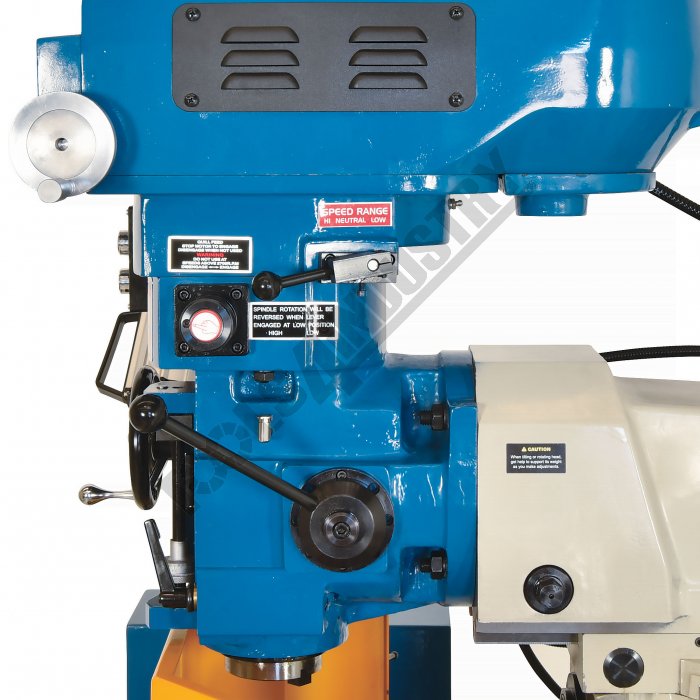

• High / neutral and low gear selection lever to maximise torque

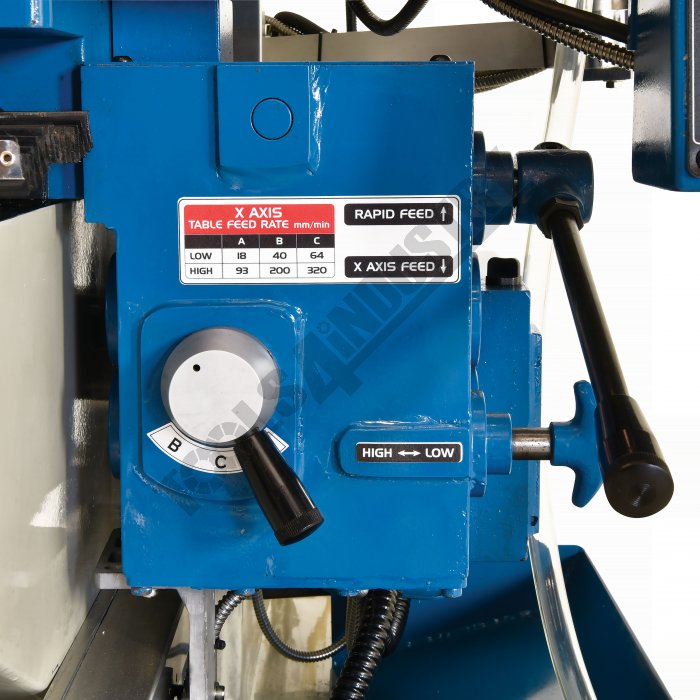

• Gear driven power-feed with adjustable micro switch feed stops

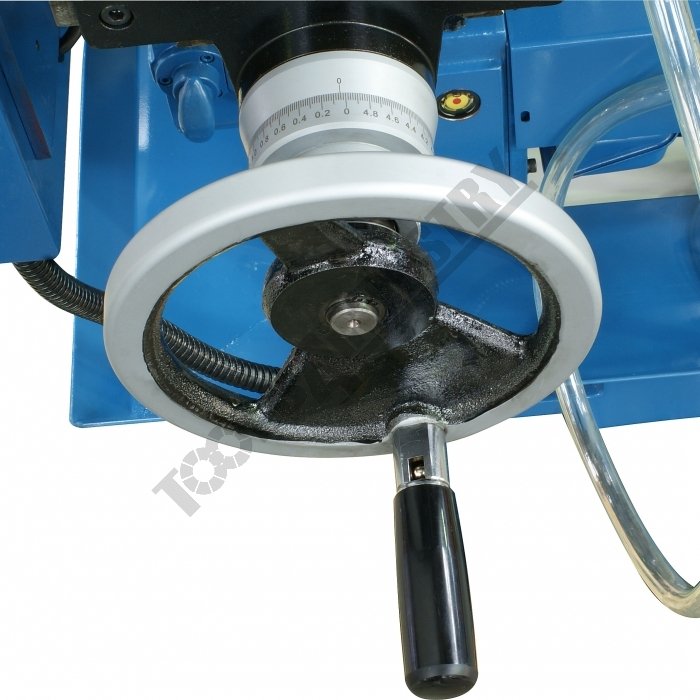

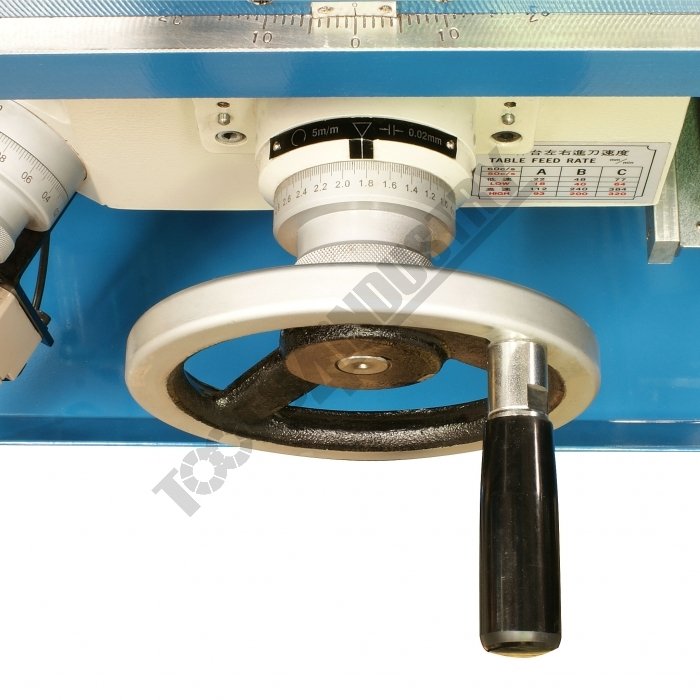

• Metric dial graduations @ 0.02mm for X , Y & Z-Axis

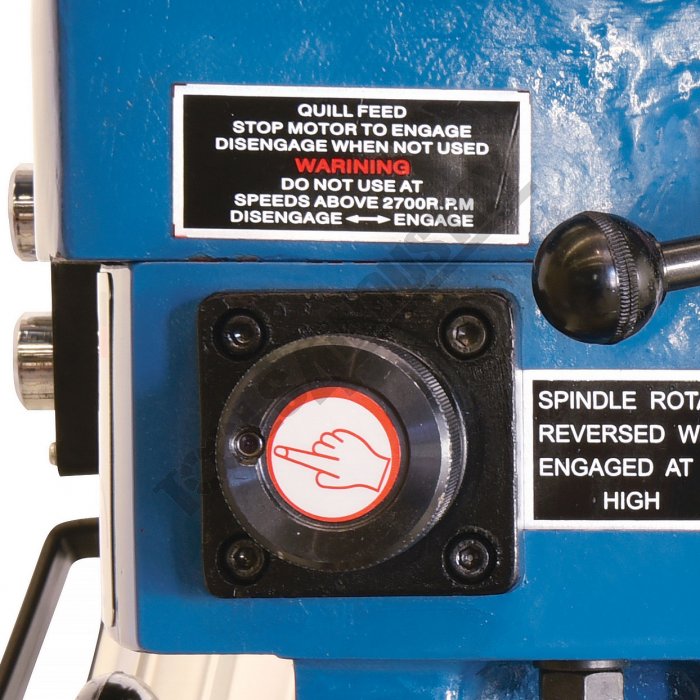

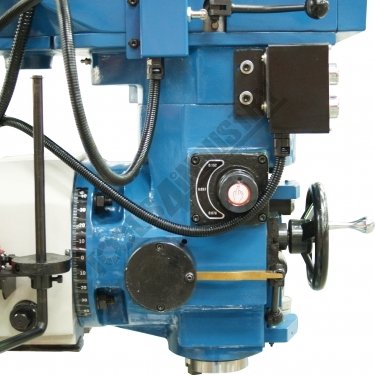

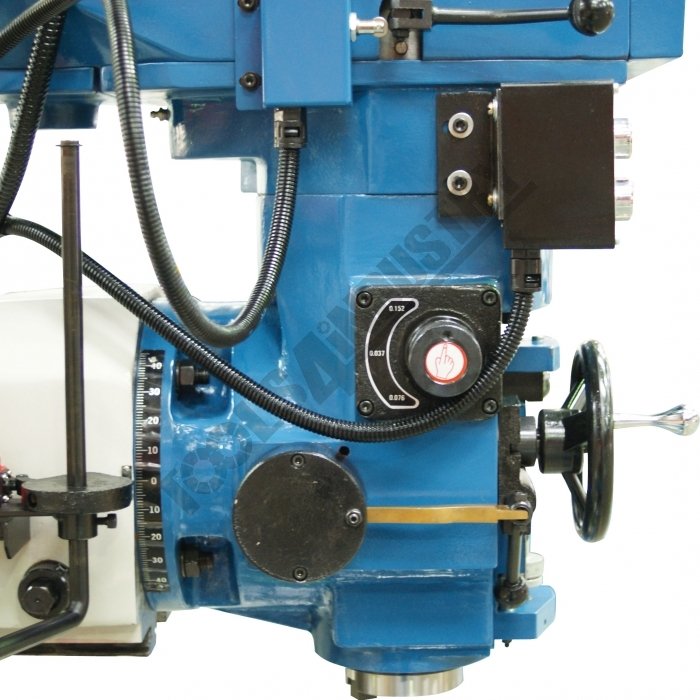

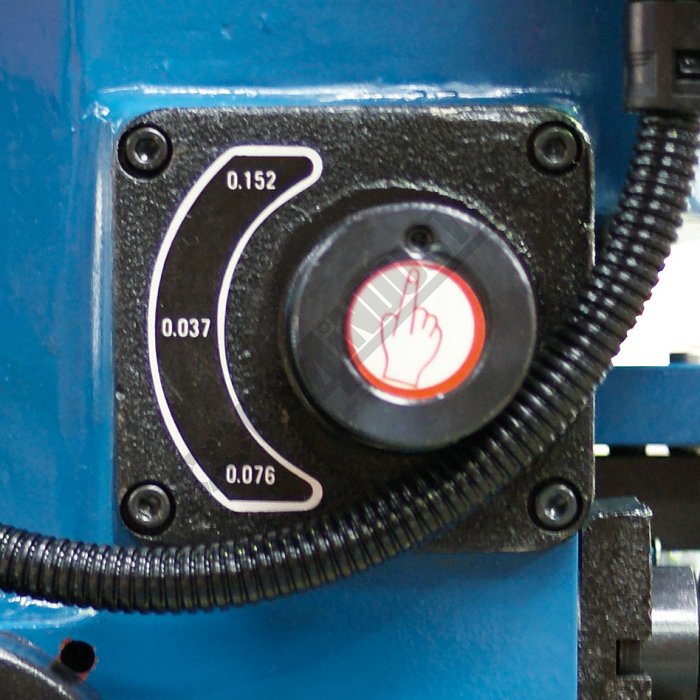

• Automatic quill feed 0.037, 0.076, 0.152mm/rev

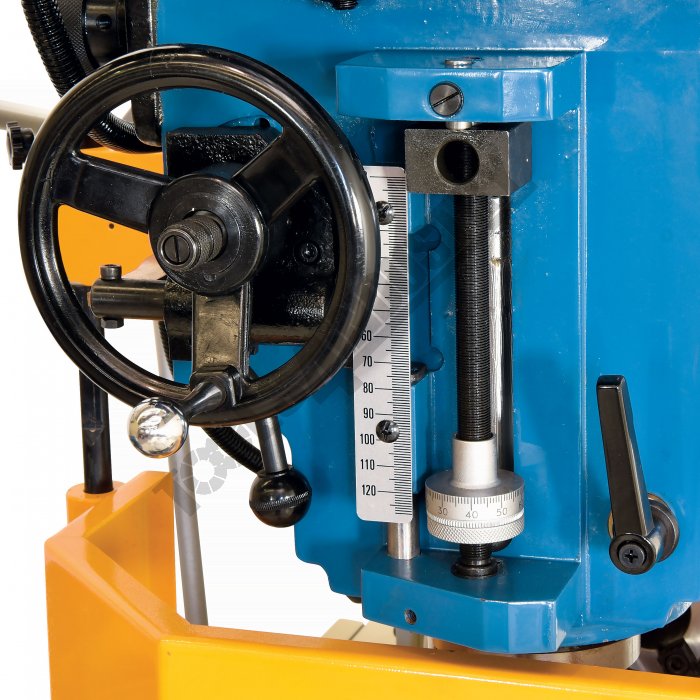

• Automatic cut off depth stop on quill

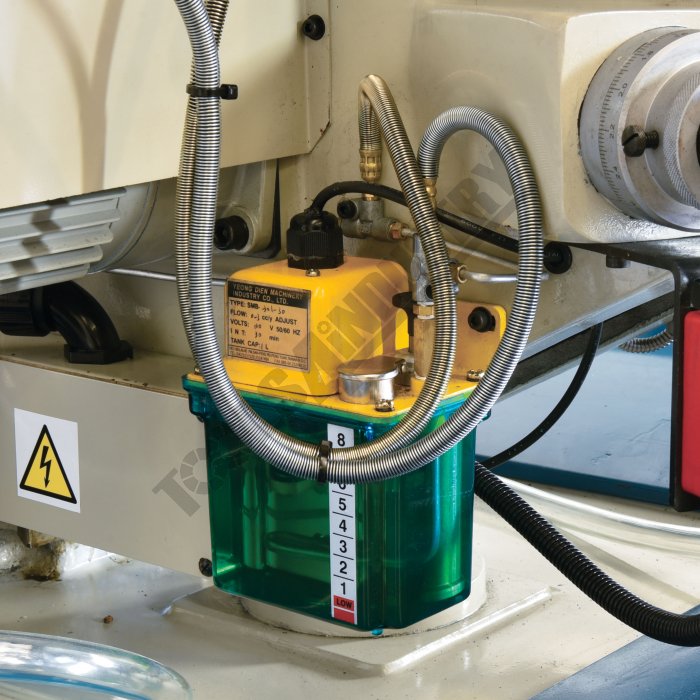

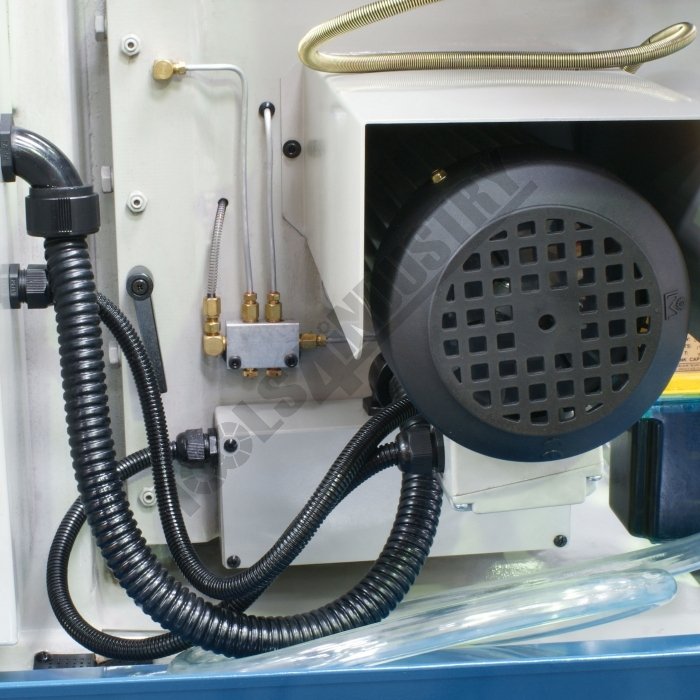

• Automatic oil lubrication pump and reservoir
• Slide-way covers Y & Z-Axis

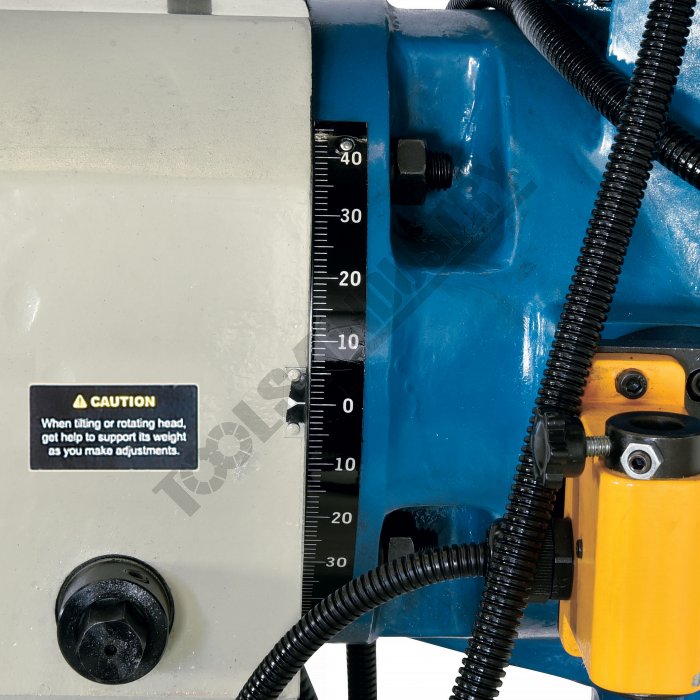

• Head swivels ±90º left and right
• Manual quick action quill lever
• Mechanical spindle brake
• Tool box and manual

Includes

• 3-Axis digital readout fitted
• Automatic oil lubrication pump and reservoir
• Universal BS-2 dividing head with chuck
• Swivel table ±45º left and right
• Pneumatic drawbar system with M16 thread

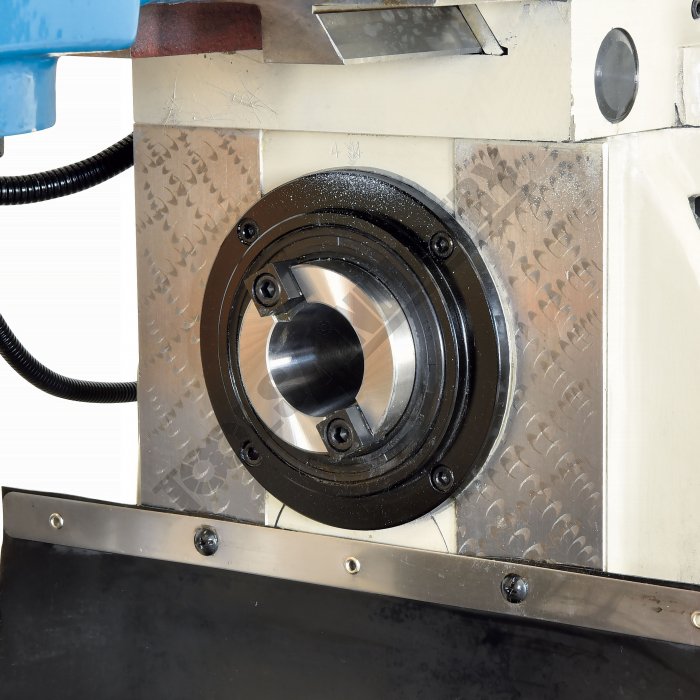

• 1" horizontal arbor
• Z-Axis powered elevating motor
• Coolant system
• Slide-way covers
• Geared X-Axis power-feed
• Halogen light

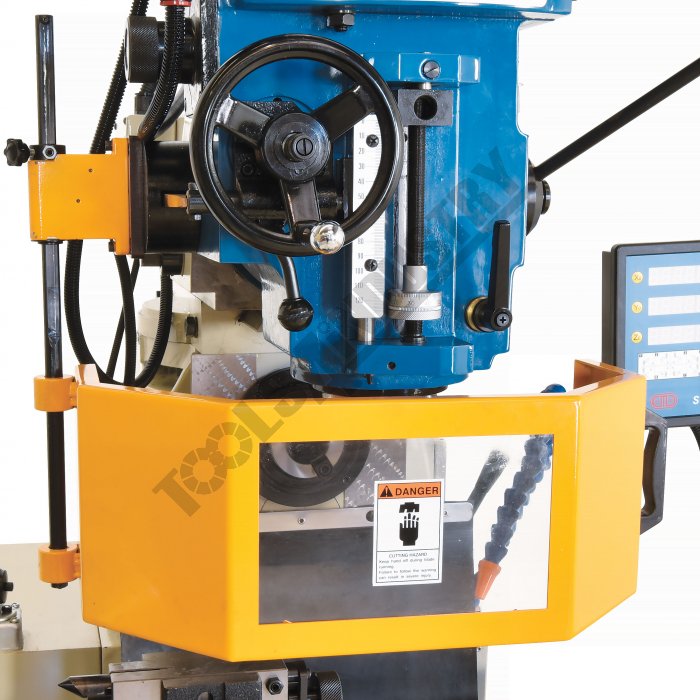

• Safety cutter guard
• Swarf tray
• Drawbar M16 thread
