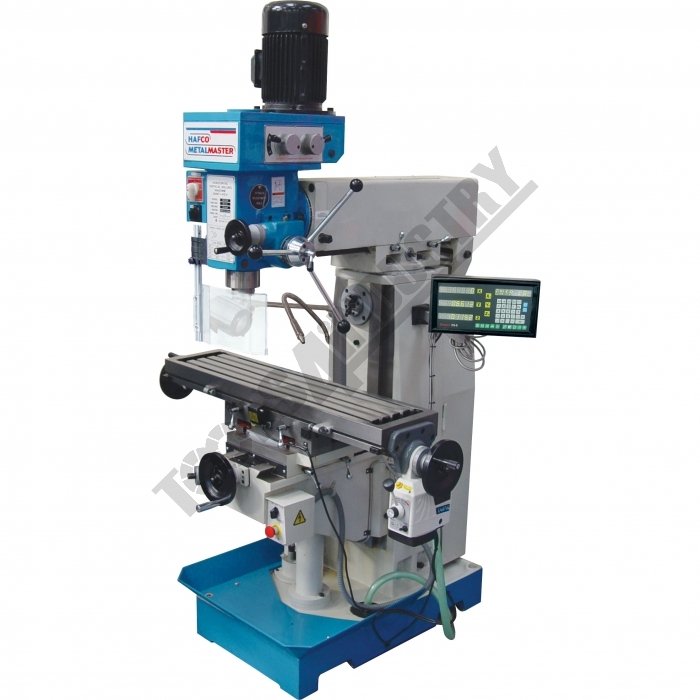

Workshop Turret Milling Machine Geared Head Horizontal - Vertical HM-52GB Table Travel: (X) - 600mm (Y) - 200mm (Z) - 340mm

Description

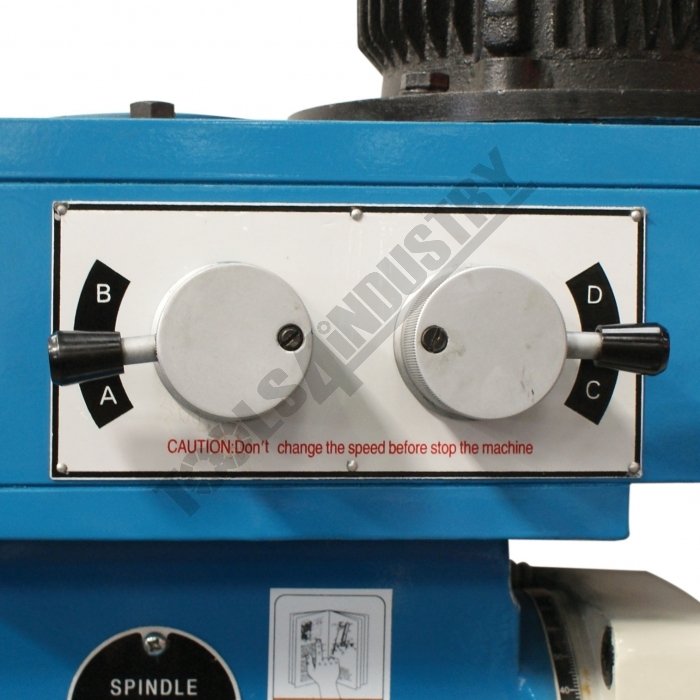

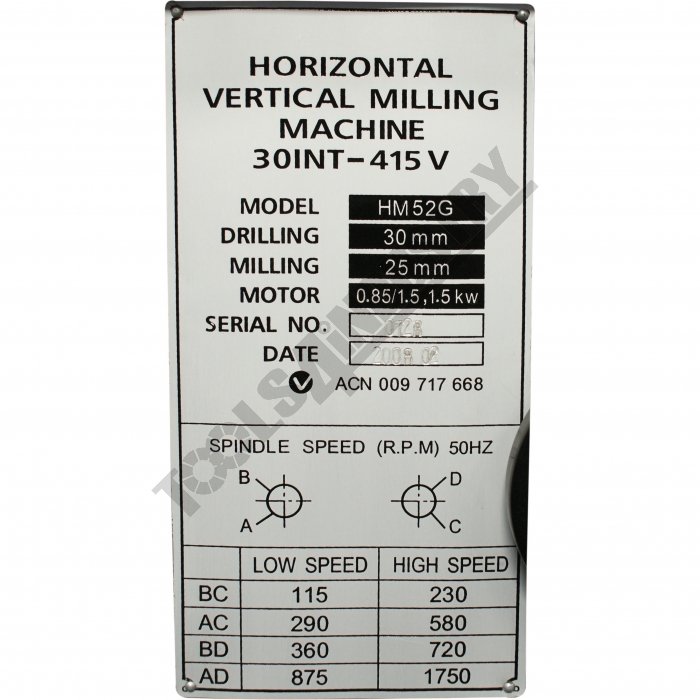

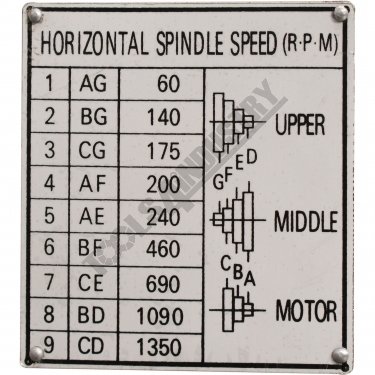

A well-built entry level geared head, turret milling, vertical and horizontal, drilling machine with a powerful continuous-load 1.5kW / 2hp motor, intended for trade use. The work table is precision made with adjustable dovetail guides and is recognised for its 600mm X axis by 200mm Y axis travel. There is a three armed handle on the side for drilling also incorporating a fine feed control hand wheel on the front for milling. Two levers mounted on right side of milling head enables quick change off the geared spindle speeds.

Other features include 3 axis digital readout system, taper roller bearing support for the spindle, easy-to-read drilling depth stop, low voltage work light, 8 piece metric collet chuck set, coolant system, X axis power feed unit, drill chuck, 2 & 3 morse taper adaptors. The combination of generous sized vertical support and rugged cast iron construction throughout reduces vibration and guarantees accurate and chatter-free operation.

Extra Features:

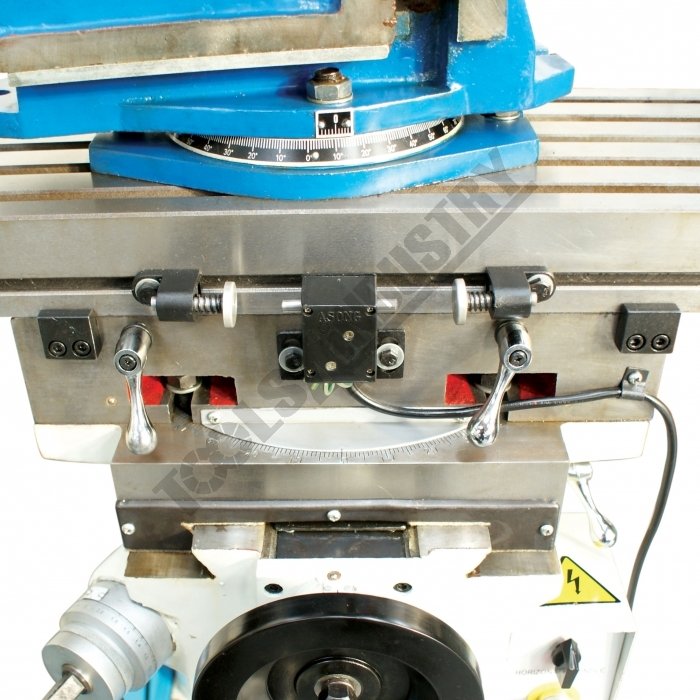

Swivel table

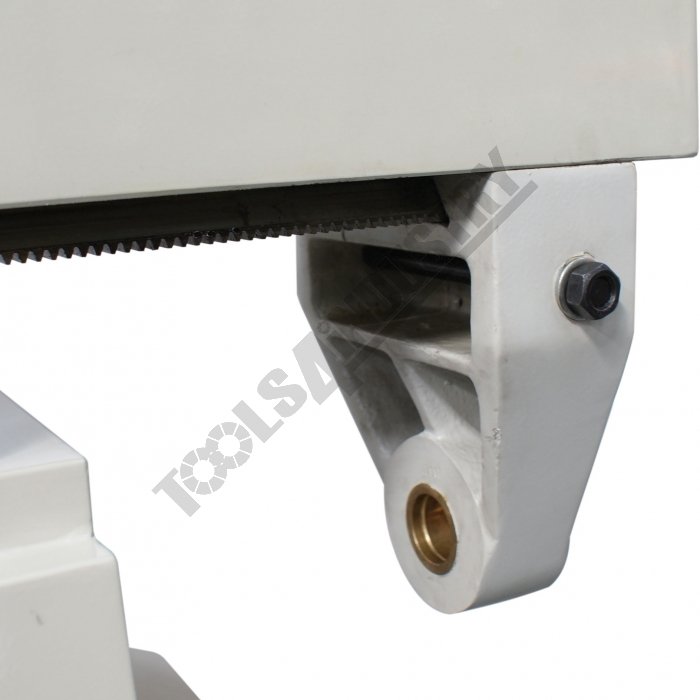

2 Arbors for the horizontal spindle

Features

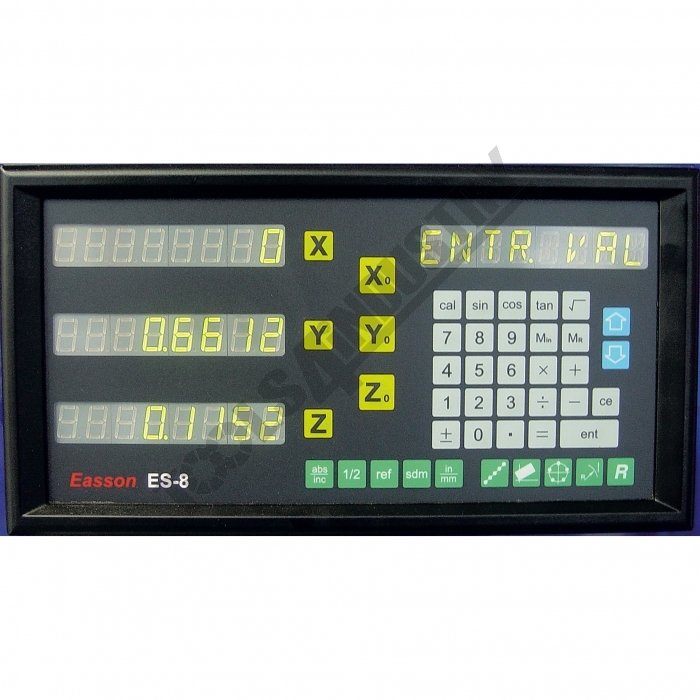

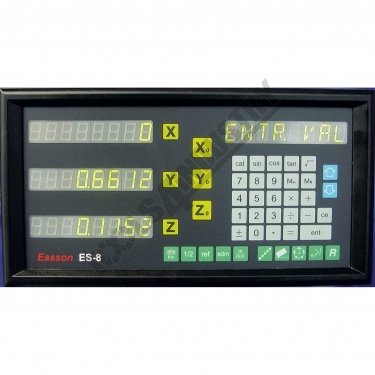

• 3 Axis digital readout system
• Swivel table & two arbors for the horizontal spindle

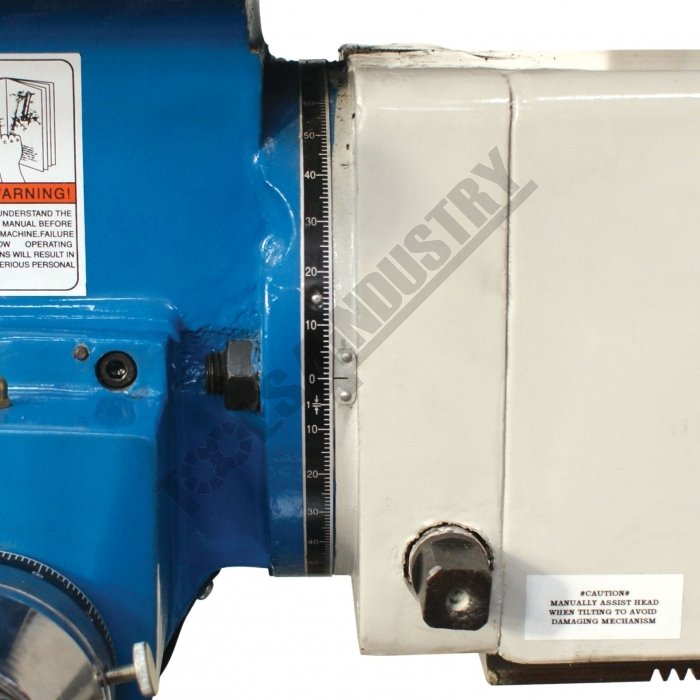

• Mill head tilts to ±90º left to right

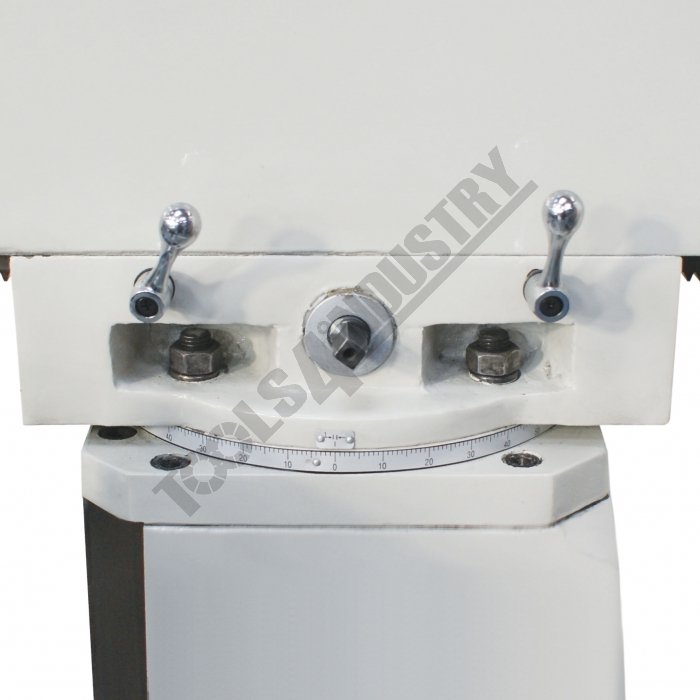

• 500mm horizontally sliding and rotating ram

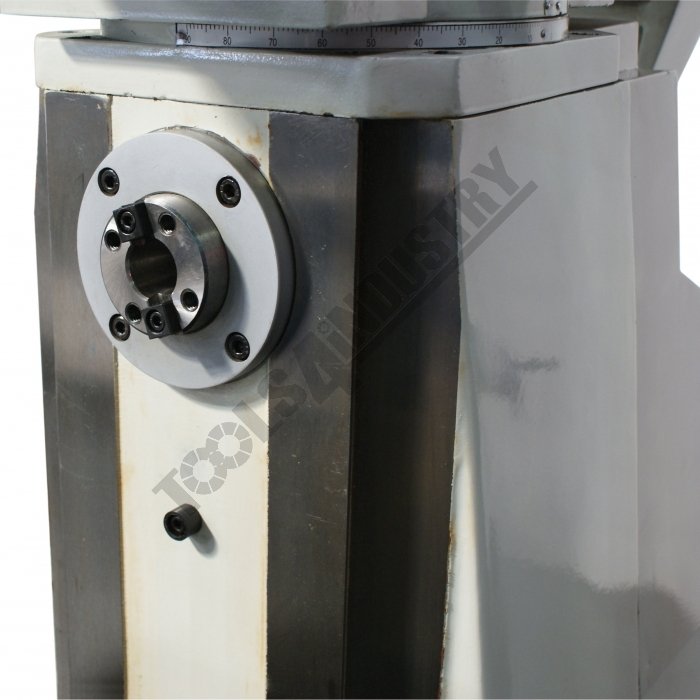

• NT30 Horizontal and vertical spindles that are hardened and ground
• Precision-ground dovetail slide-ways and table
• Precision milling table incorporating machined T slots

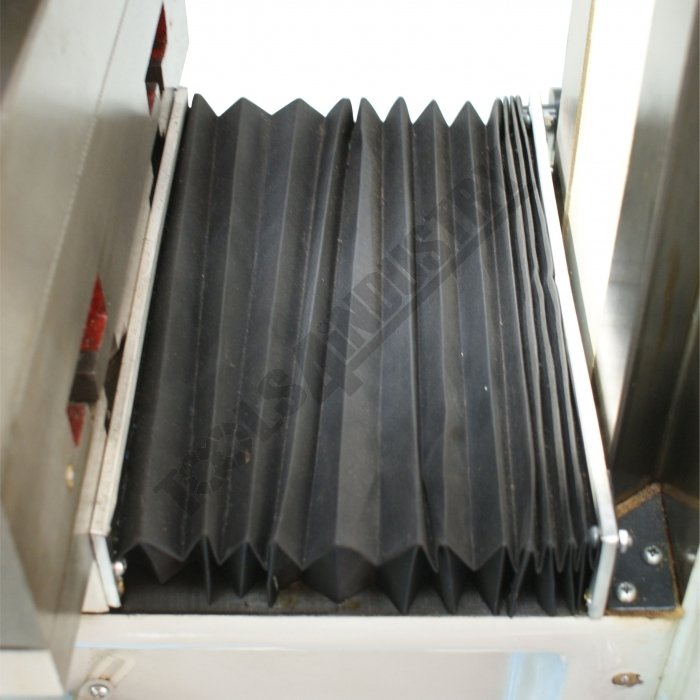

• Rear concertina slide-way cover

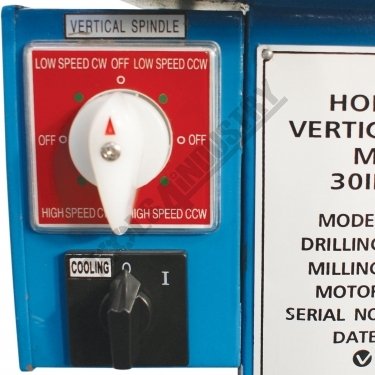

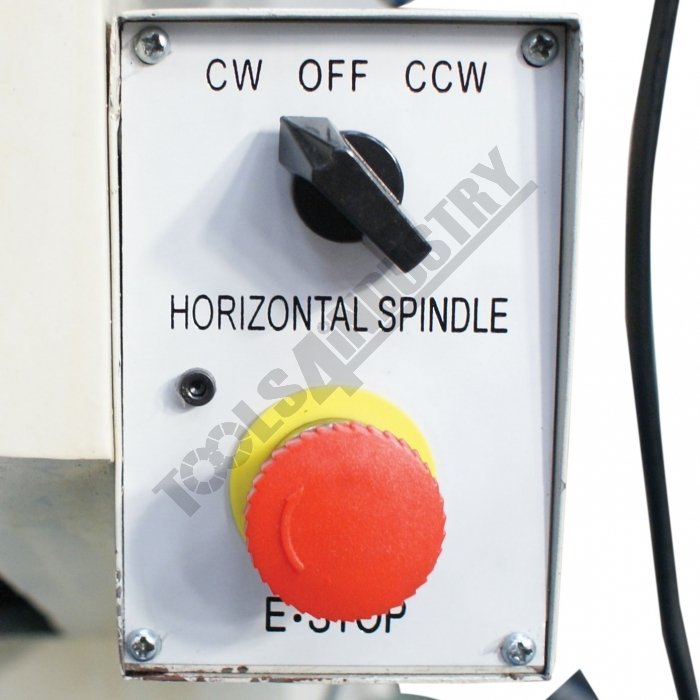

• Forward and reverse on/off switch
• Fine hand wheel operated quill feed
• Swarf & splash tray
• Spindle lock for quill
• Metric dial graduations @ 0.02mm for X , Y & Z-Axis

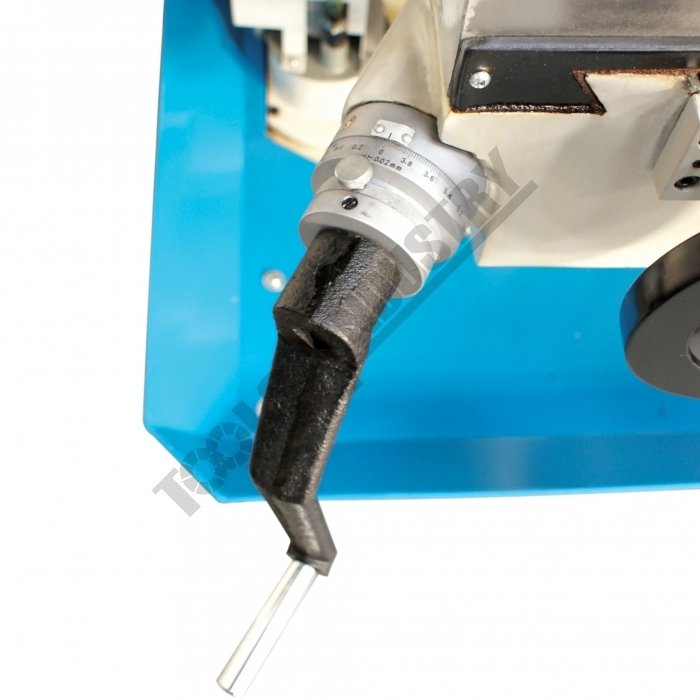

• Vertical dial graduations on hand wheel @ 0.05mm
• All slides utilise dovetail construction for maximum rigidity


• * Note: X & Y travels maybe reduced due to digital readout scales and safety stops
• * Note: Optional Y & Z power feeds require additional parts & fitting (not included)

Includes

• 3 Axis digital readout system

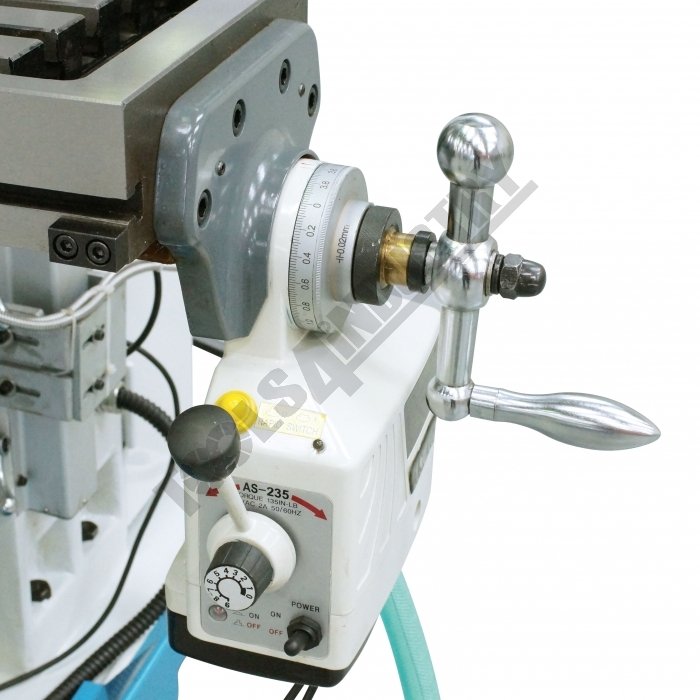

• X-Axis power-feed
• Safety cutter guard
• Swarf tray

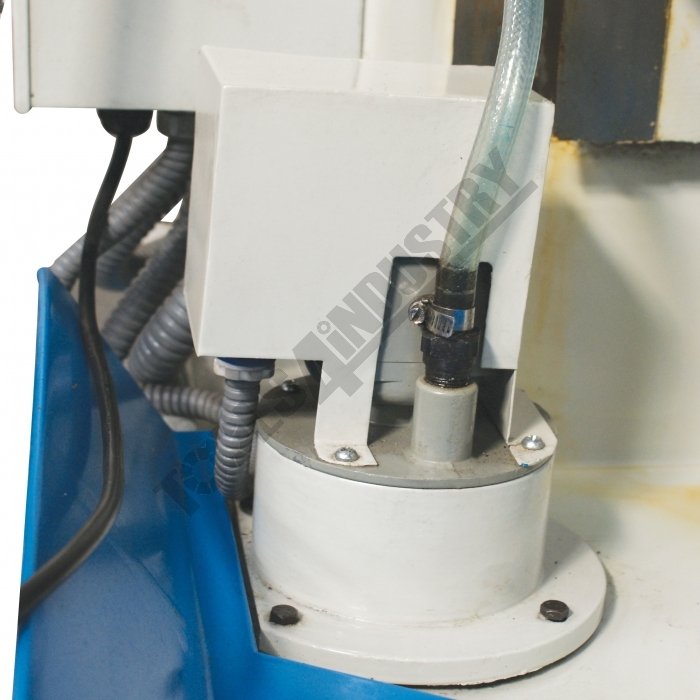

• Coolant system

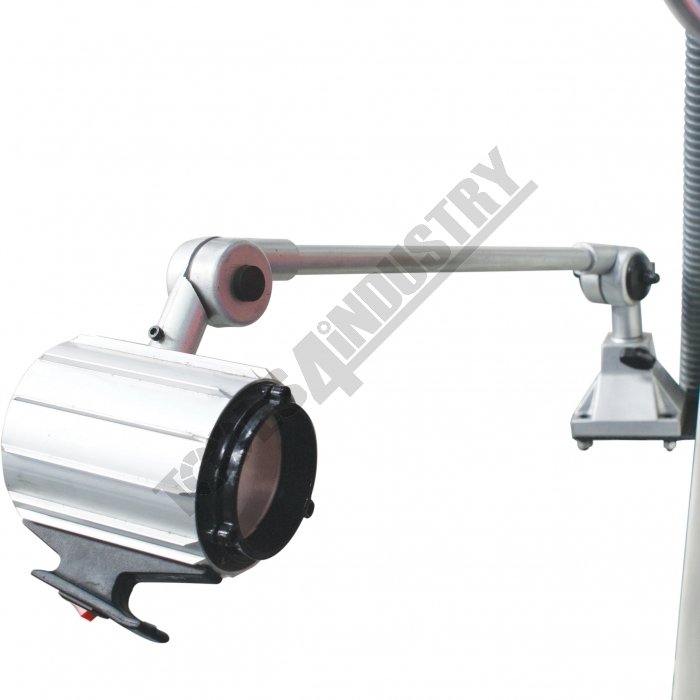

• Halogen lamp
• Drill chuck & arbor
• 2 & 3MT adaptors

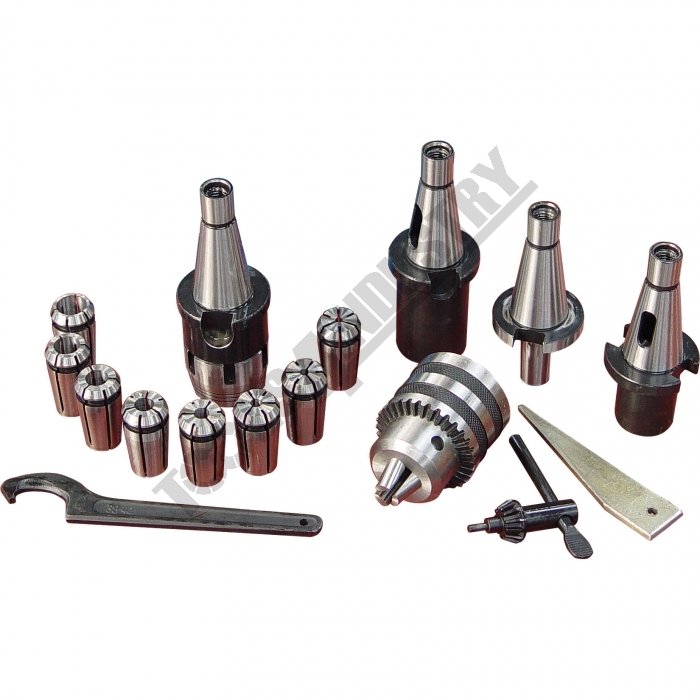

• 8-piece metric collet chuck set (4-16mm)
