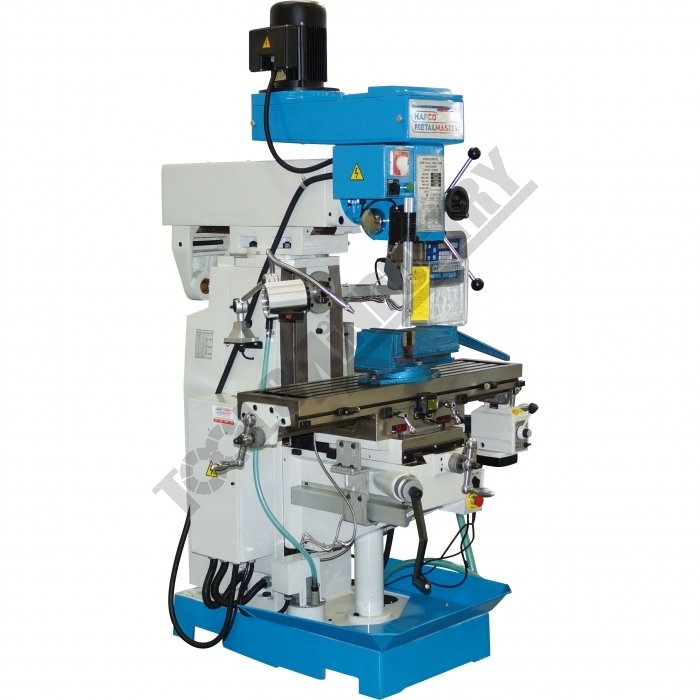

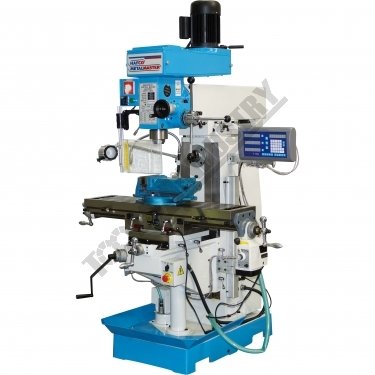

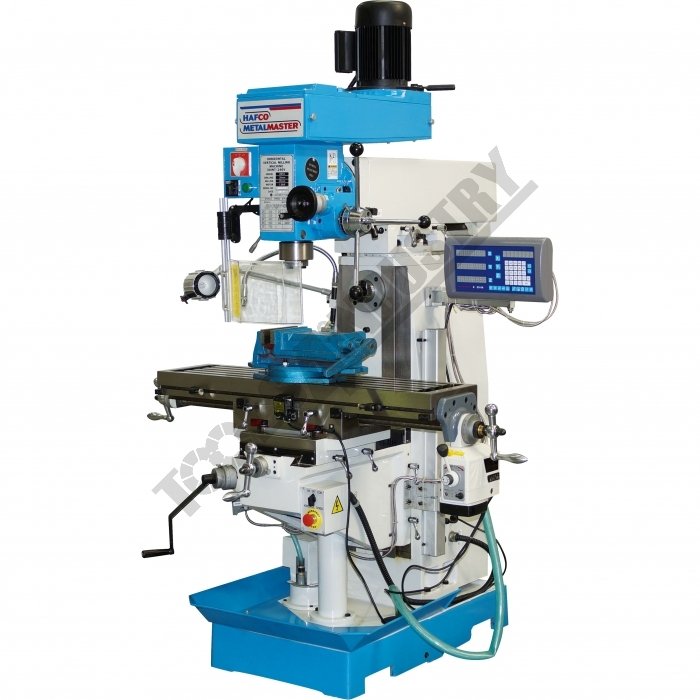

Workshop Turret Milling Machine - Horizontal - Vertical HM-52 Table Travel: (X) - 600mm (Y) - 200mm (Z) - 340mm

Description

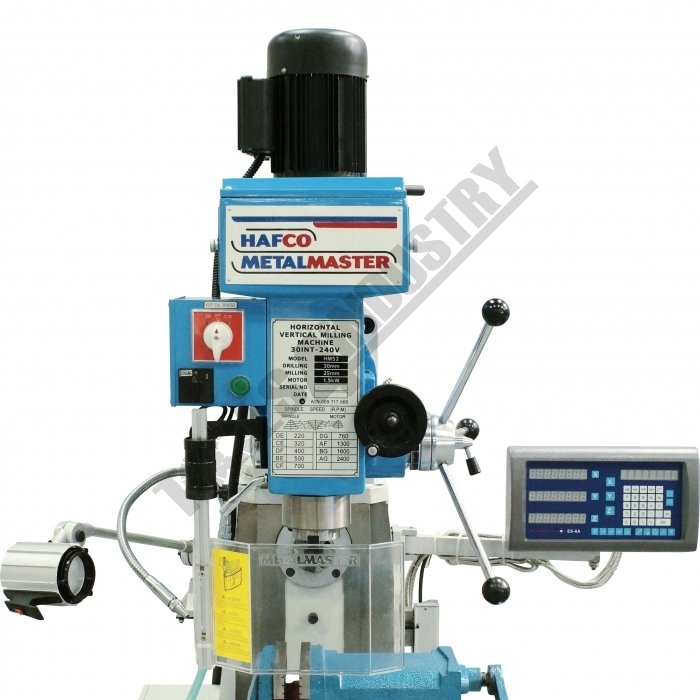

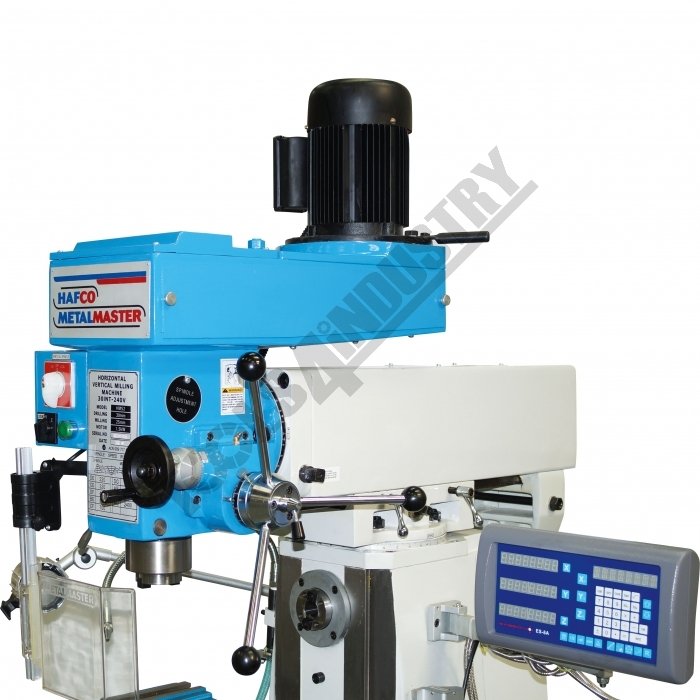

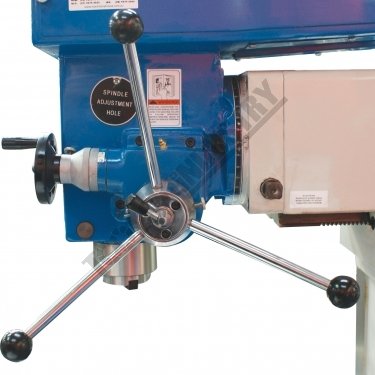

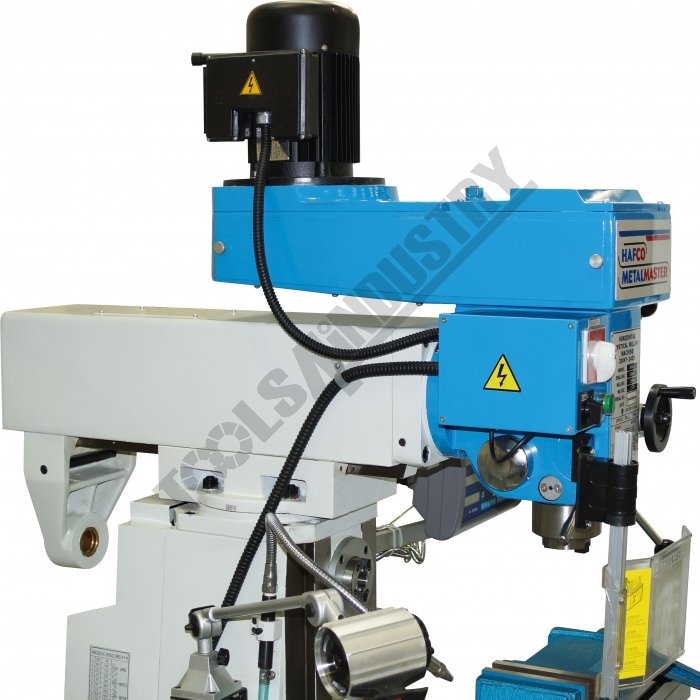

A well-built entry level turret milling vertical and horizontal, drilling machine with a powerful continuous-load 1.5kW / 2hp motor, intended for trade use. The work table is precision made with adjustable dovetail guides and is recognised for its 600mm X axis by 200mm Y axis travel. There is a three armed handle on the side for drilling also incorporating a fine feed control hand wheel on the front for milling. The screwed belt guard covers on each side of the head offer secure safety whilst providing easy access to the belts and pulleys for speed changing.

Other features include 3-Axis digital readout system, taper roller bearing support for the spindle, easy-to-read drilling depth stop, low voltage work light, 150mm machine vice, 8 piece metric collet chuck set, coolant system, X axis power feed unit, drill chuck, 1" & 1-1/4" horizontal arbors, 2 & 3 morse taper adaptors. The combination of generous sized vertical support and rugged cast iron construction throughout reduces vibration and guarantees accurate and chatter-free operation.

Extra Features:
Swivel table
1" & 1-1/4" horizontal arbors

Features

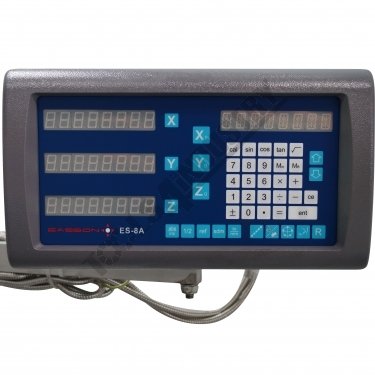

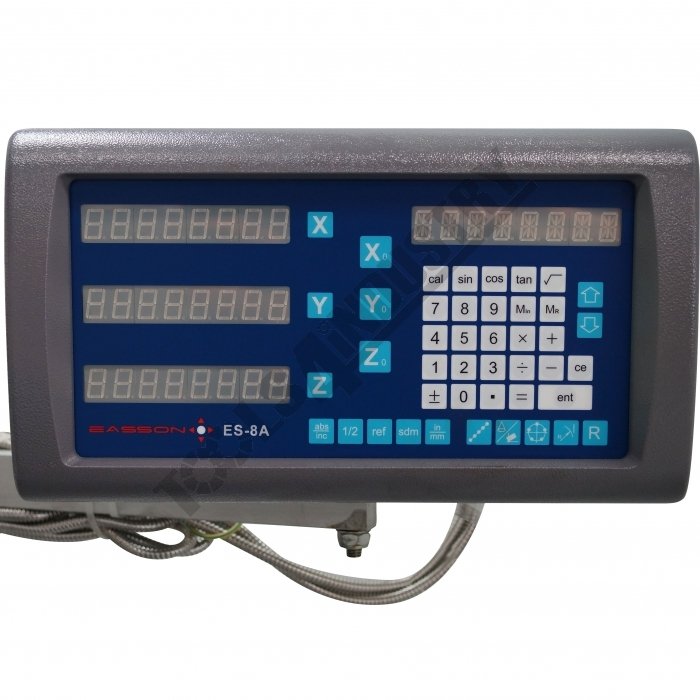

• 3 Axis digital readout system

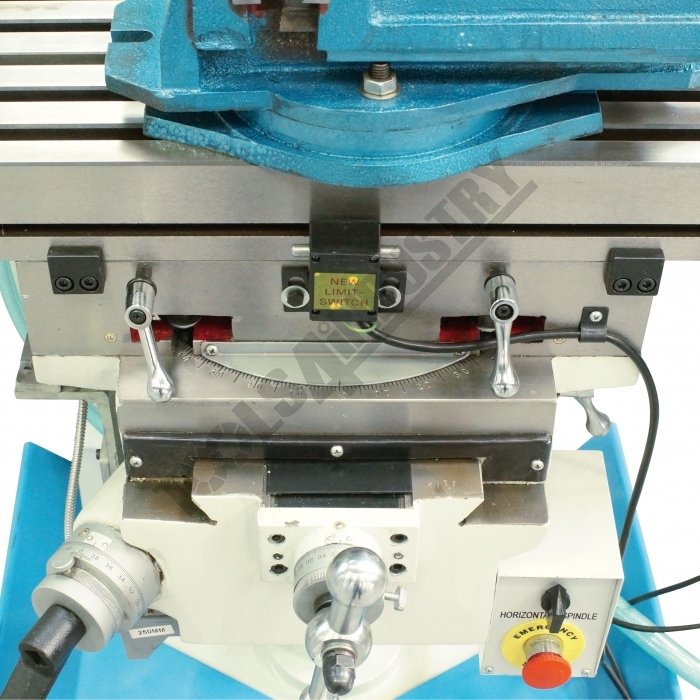

• Swivel table left & right with graduated scale

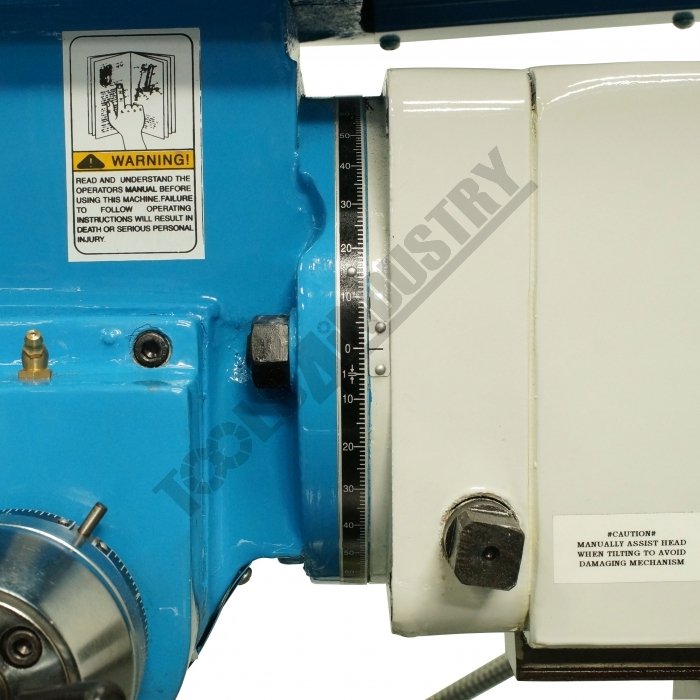

• Mill head tilts to ±90º left to right

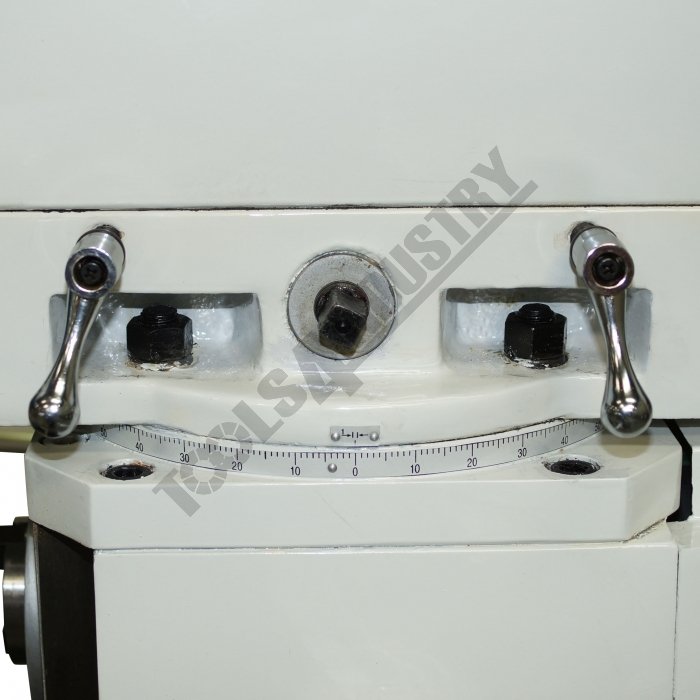

• 500mm Horizontally sliding and rotating ram

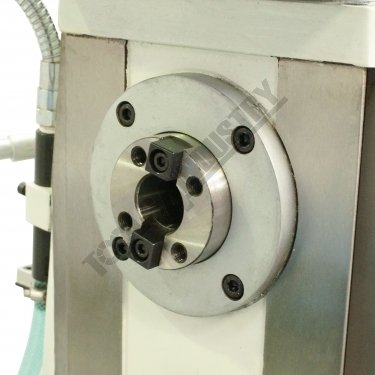

• NT30 Horizontal and vertical spindles that are hardened and ground
• Precision-ground dovetail slide-ways and table
• Precision milling table incorporating machined T-slots

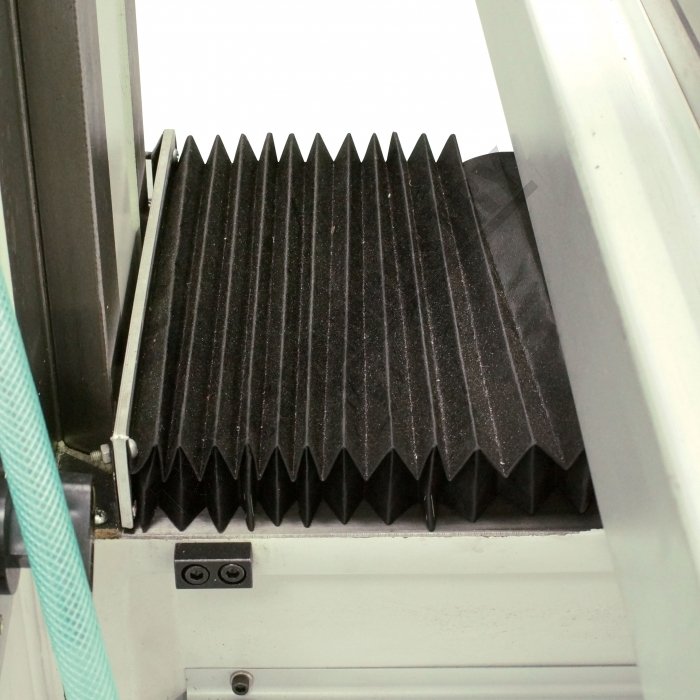

• Rear concertina slide-way cover

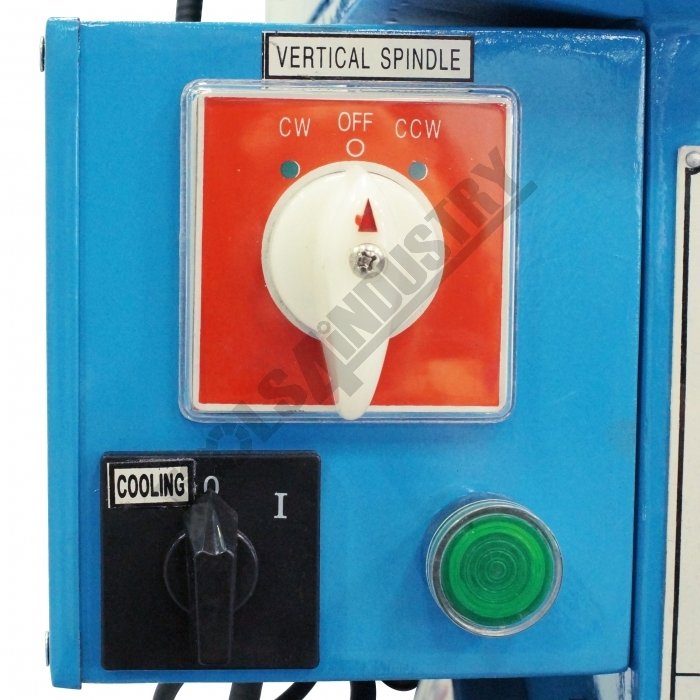

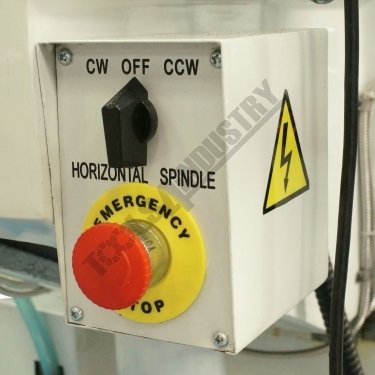

• Forward and reverse on/off switch

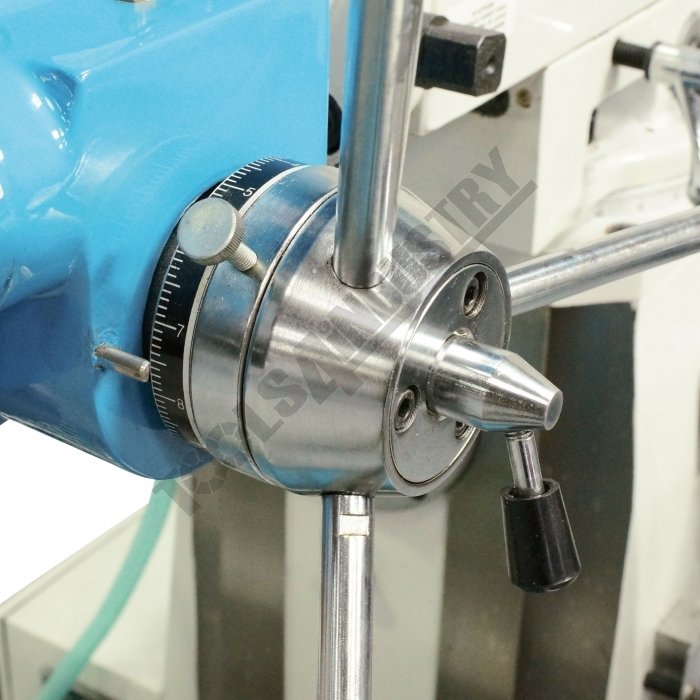

• Fine hand wheel operated quill feed
• Swarf & splash tray

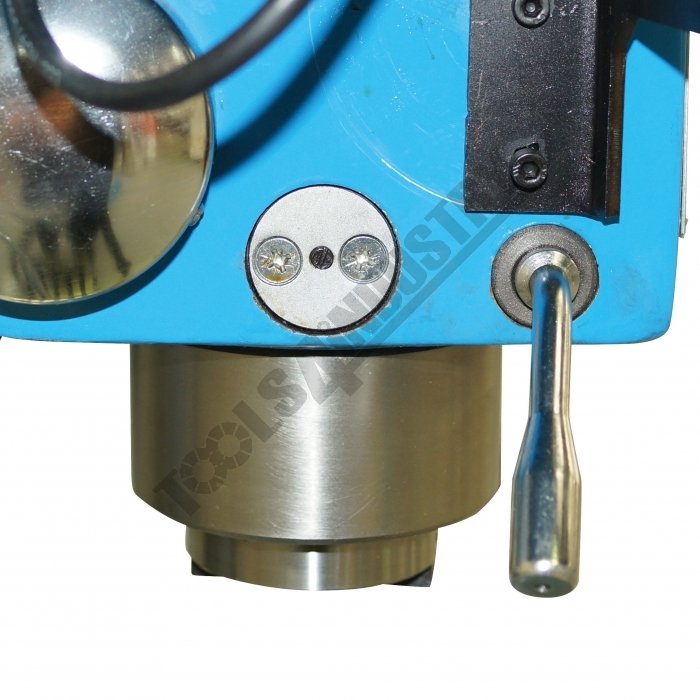

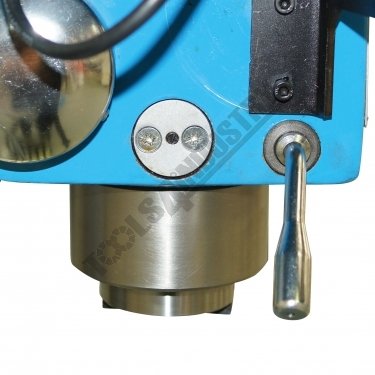

• Spindle lock for quill

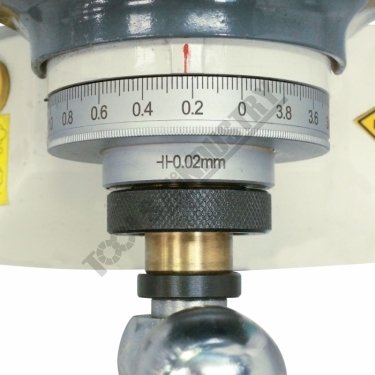

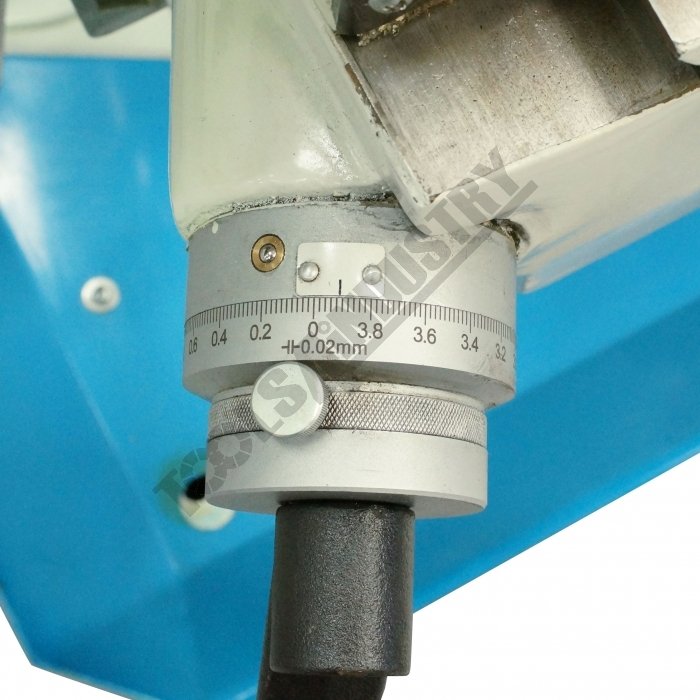

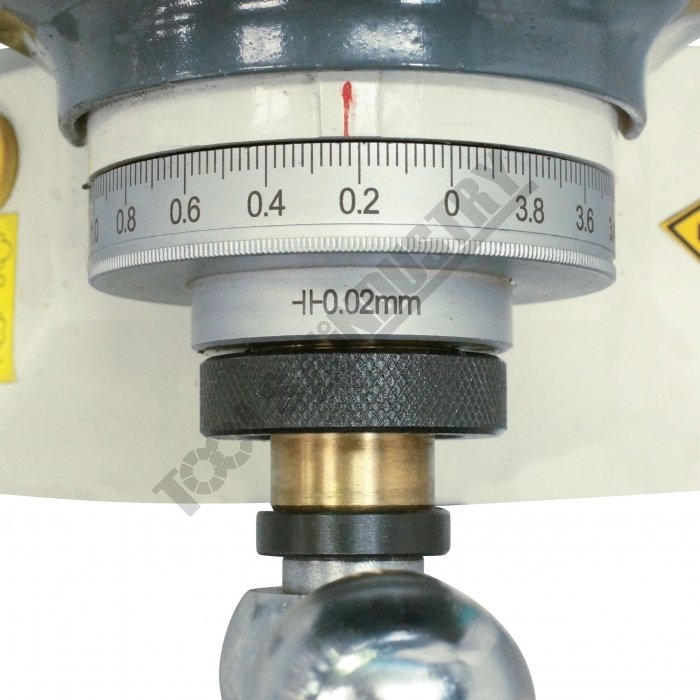

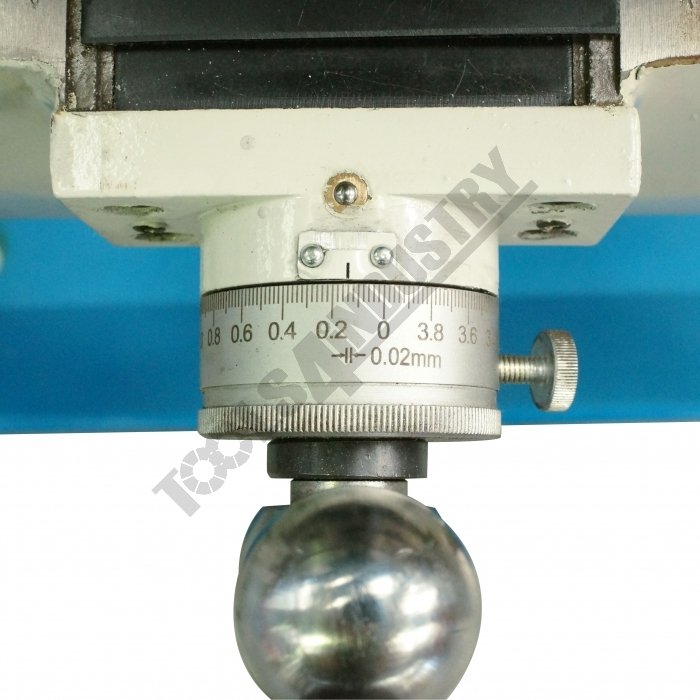

• Metric dial graduations @ 0.02mm for X , Y & Z-Axis

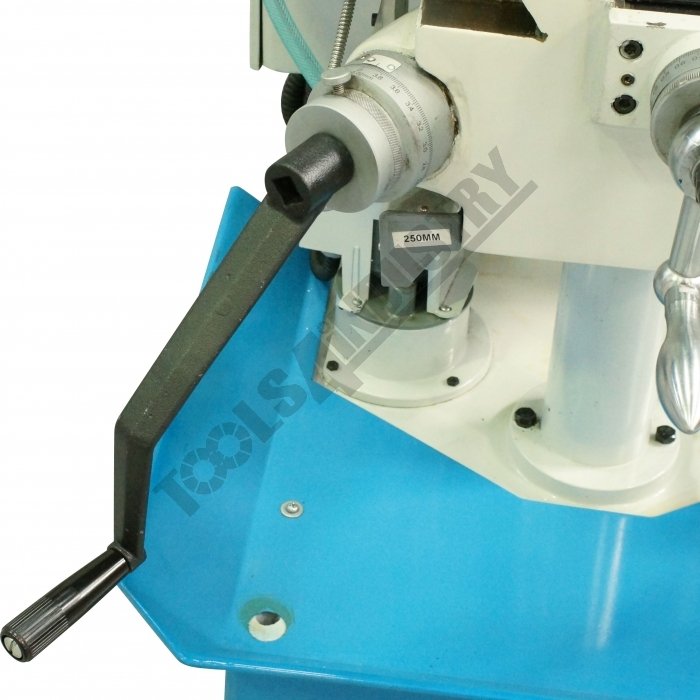

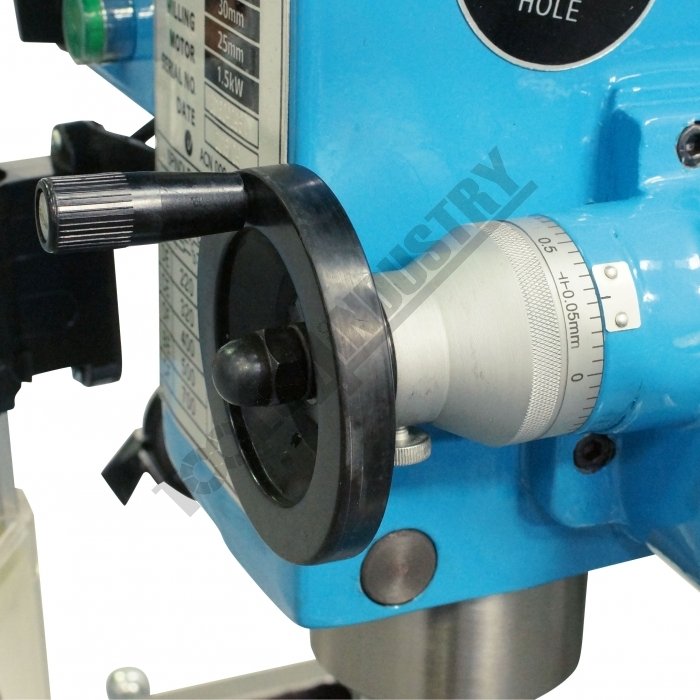

• Vertical dial graduations on hand wheel @ 0.05mm
• All slides utilise dovetail construction for maximum rigidity

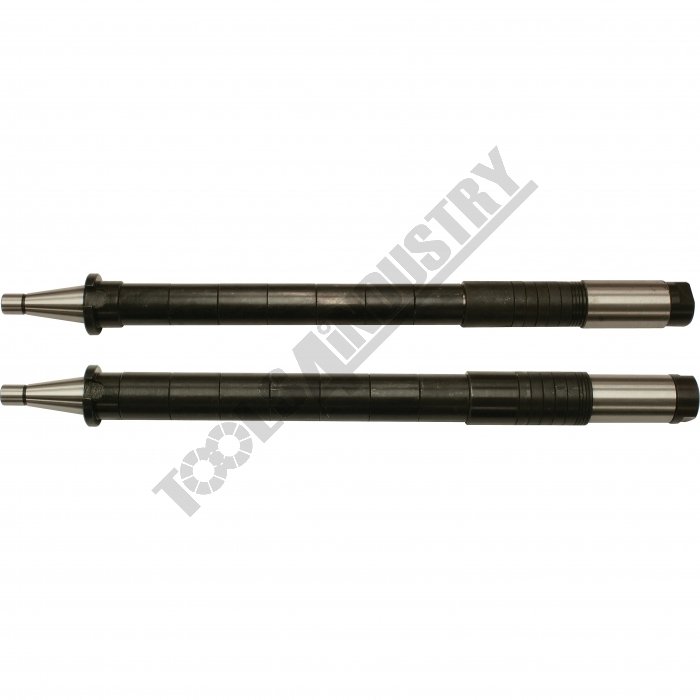

• Includes 1" & 1-1/4" arbors for the horizontal spindle




• * Note: X & Y travels maybe reduced due to digital readout scales and safety stops
• * Note: Optional Y & Z power feeds require additional parts & fitting (not included)

Includes

• 3 Axis digital readout system

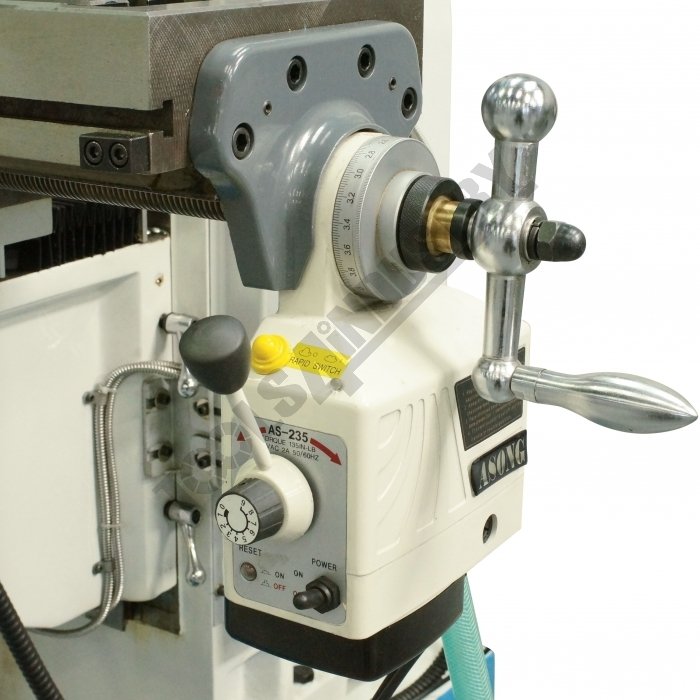

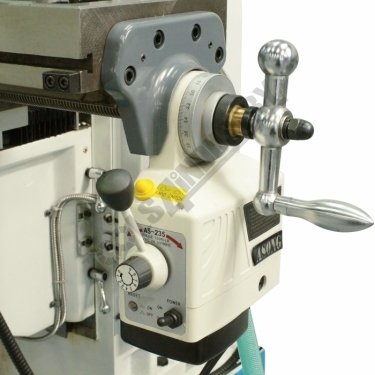

• X-Axis power feed

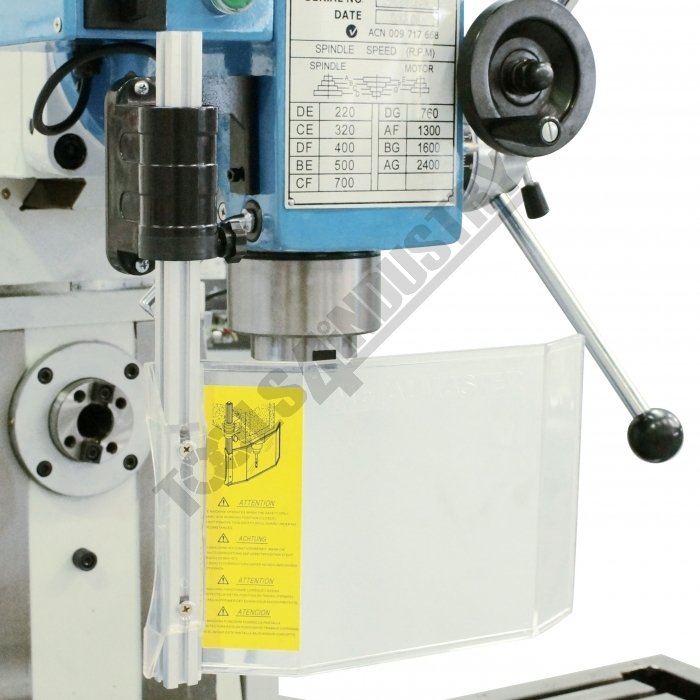

• Safety cutter guard
• Swarf tray

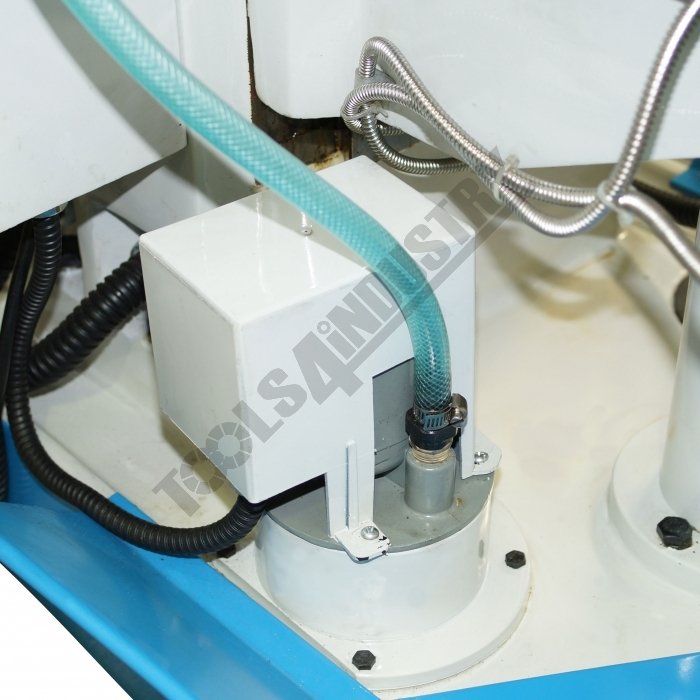

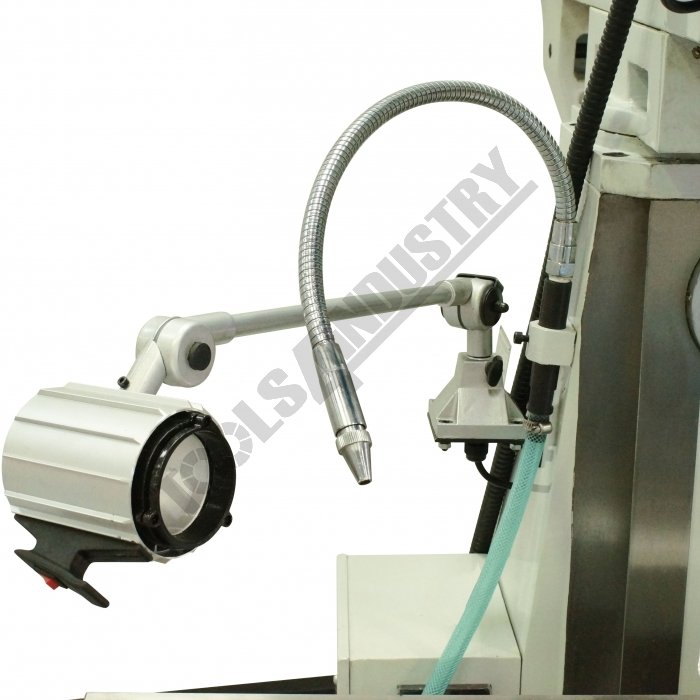

• Coolant system
• Halogen lamp

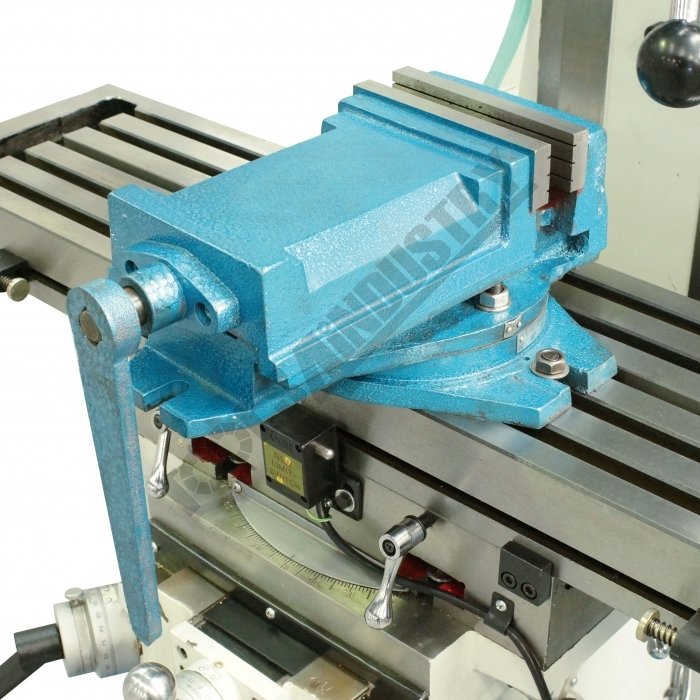

• 150mm machine vice
• Drill chuck & arbor
• 2 & 3MT adaptors
• 8-piece metric collet chuck set (4-16mm)
