M155

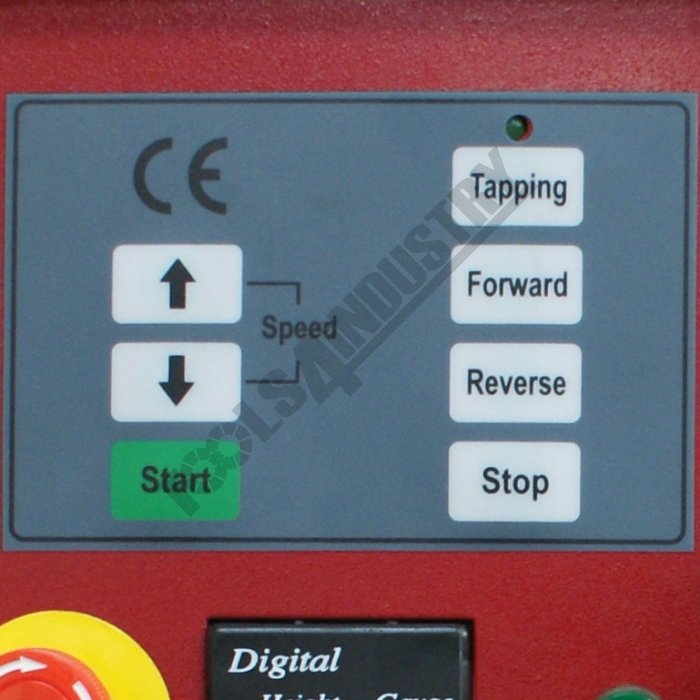

Spindle Control Panel

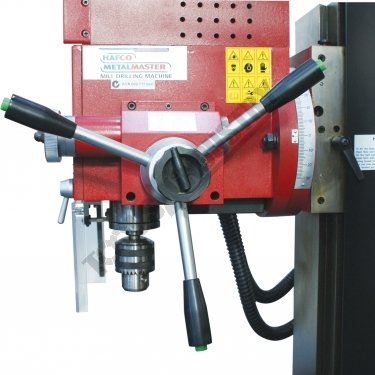

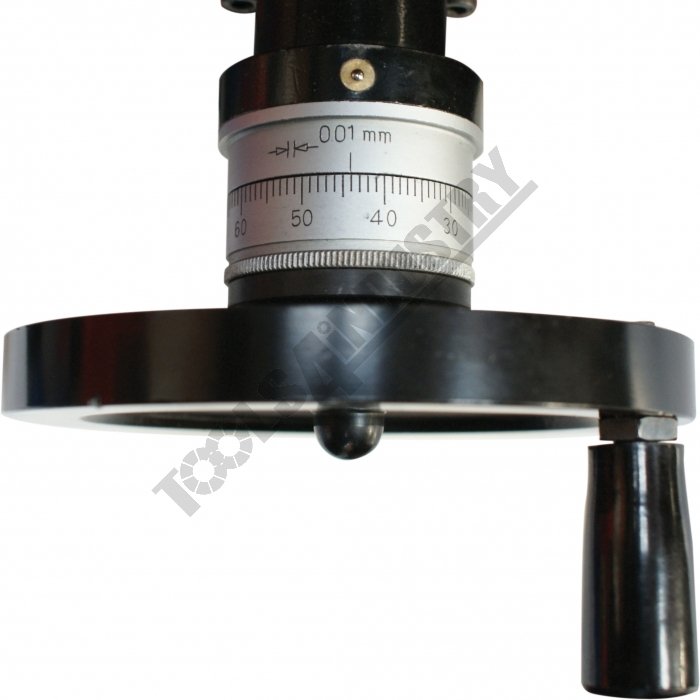

Quill Feed Handle with Fine Adjustment Dial

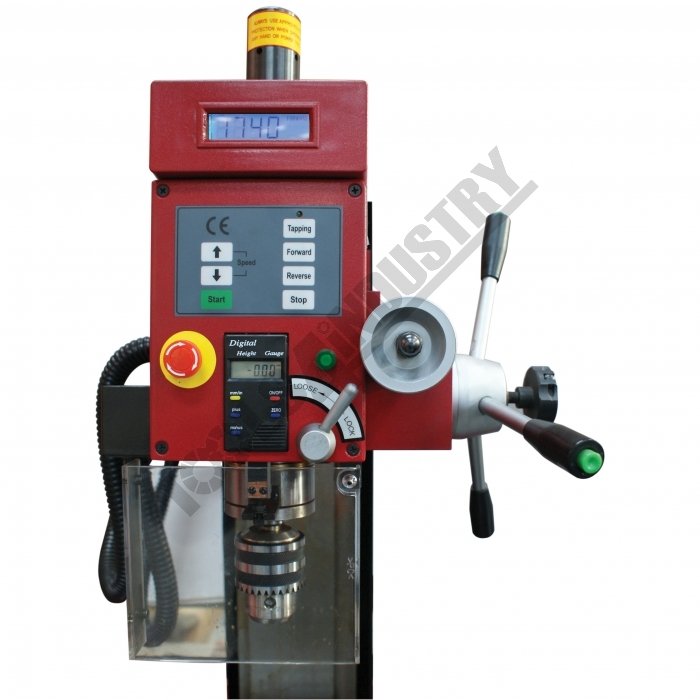

Head Controls

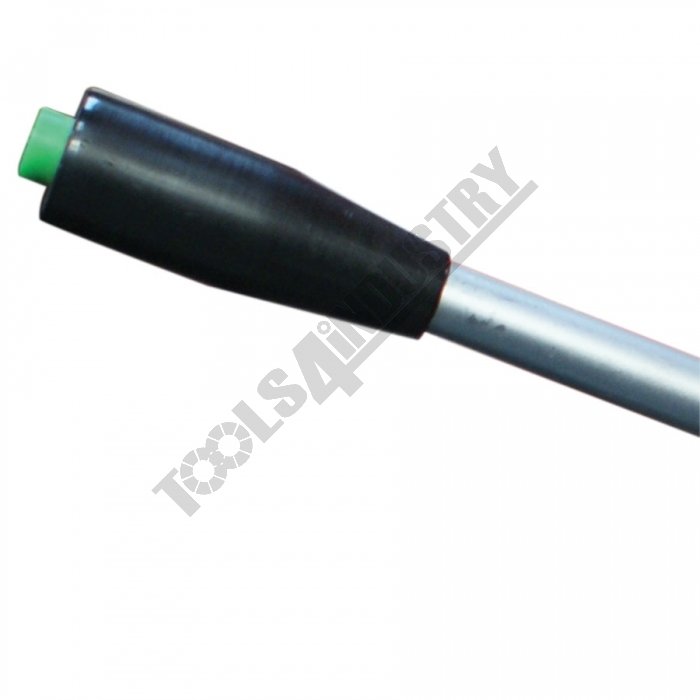

Tapping Spindle Reverse Button

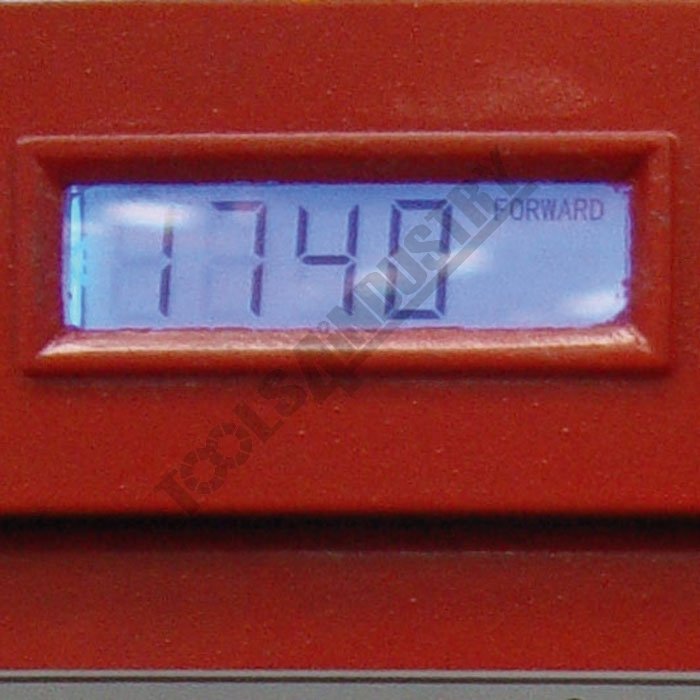

Digital spindle speed readout display

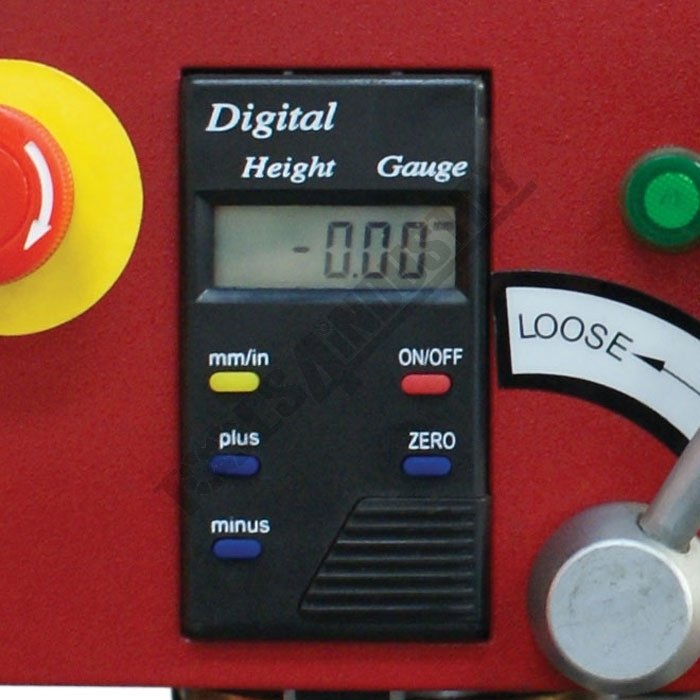

Digital Readout for Height Reading

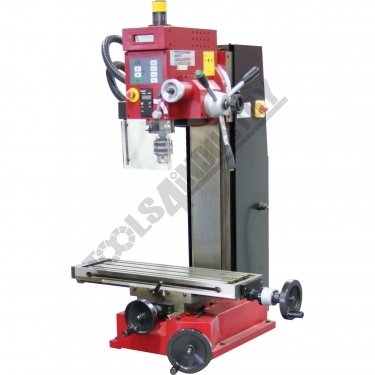

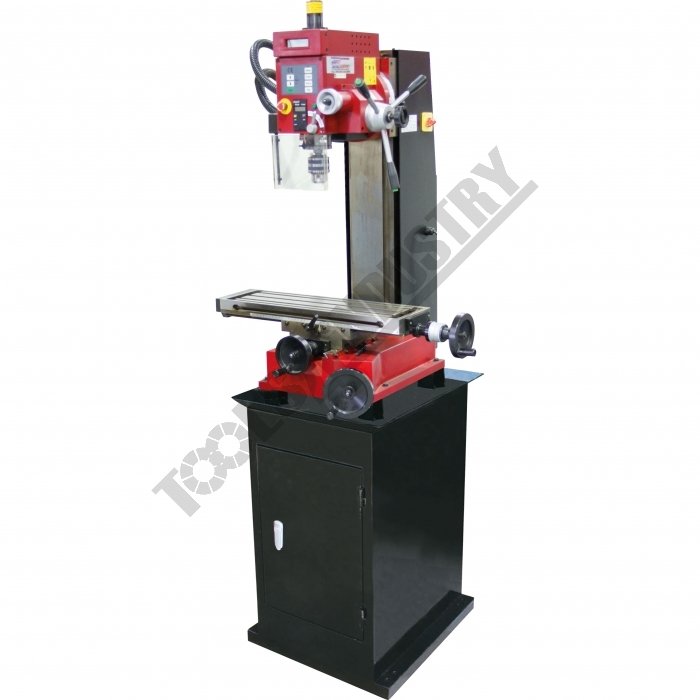

Shown mounted to Optional Stand

Code	M155
Model	SIEG SUPER X3
Capacity	Table Travel: (X) - 400mm (Y) - 150mm (Z) - 350mm
Weight (kg)	195
Weight (m³)	0.678
Weight (Freight)	225.774
Dimensions (cm)	80 x 80 x 106

Product Brochure Instruction Manual [1012 KB] Parts List [913 KB]Milling Machine Risk Assessment

This Product Is No Longer Available

Mill Drill - Geared Head + Variable Speed SIEG SUPER X3 Table Travel: (X) - 400mm (Y) - 150mm (Z) - 350mm

Description

Excellent quality mill drill machine designed for the model engineer.

The Super X3 mill drill is powered by a 1000W (1.3hp) electronic variable speed motor adjusted by a keypad located on the front control panel.

Heavy duty cast iron body and base for better stability.

Precision machined work table.

Features

Electronic variable spindle speed
Digital spindle speed readout display

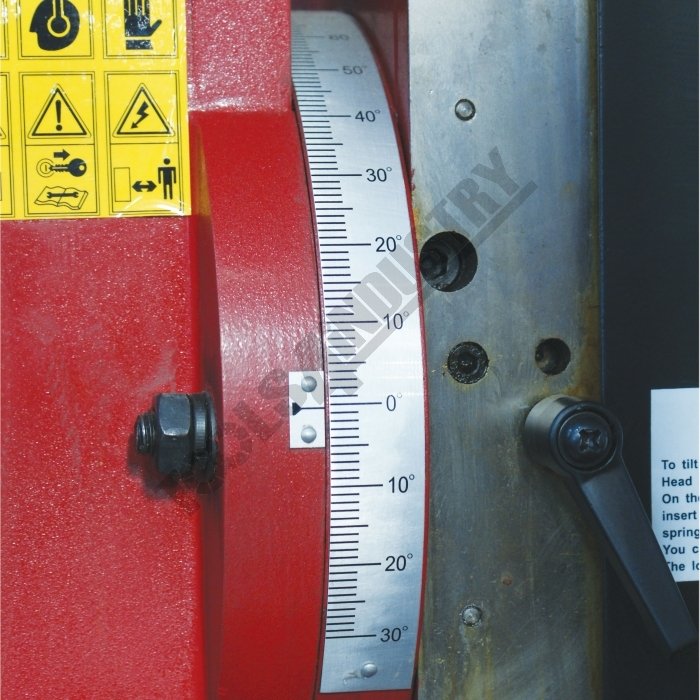

Mill head tilts to tilts 30º left & 90º to the right
Thread tapping function incorporated with forward/reverse buttons on quill handle @ M12 capacity
Digital readout display for quill depth (Includes LR44 battery)
Fine feed hand wheel operating quill feed
Spindle lock for quill
Table lock on both axis
Brush-less DC 1000W variable speed motor (100-1750rpm)
Precision dovetail vertical slide

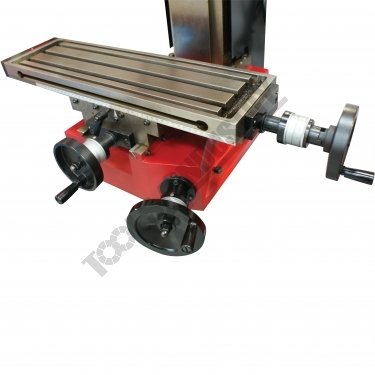

Ground work table with T-slots

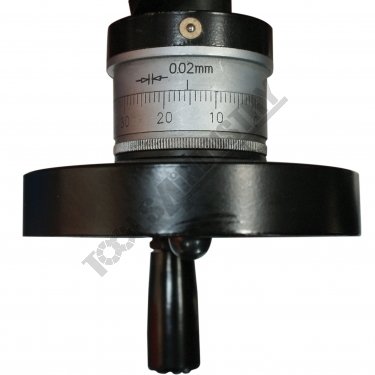

Metric dial graduations @ 0.02mm for X & Y axis
Vertical dial graduations @ 0.01mm

Includes

Drill chuck
3MT arbor
Safety cutter guard

Specifications

Compare 51 Products
