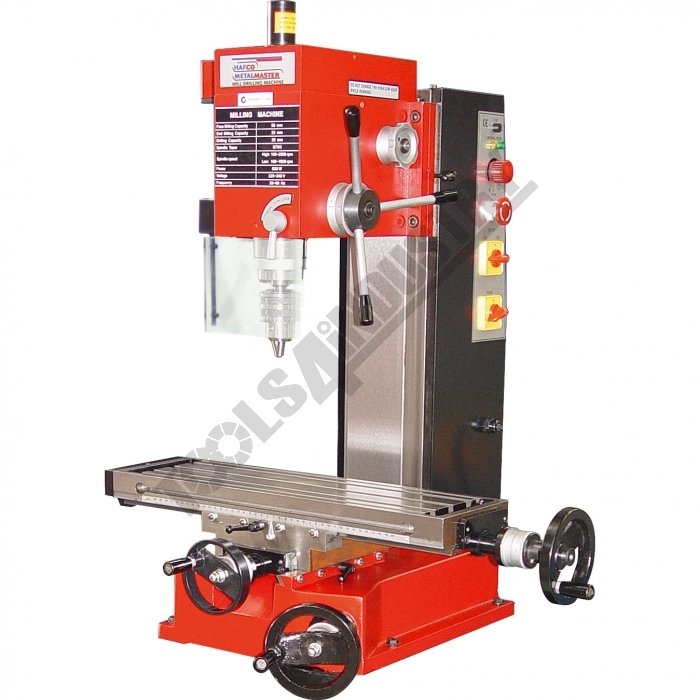

M153

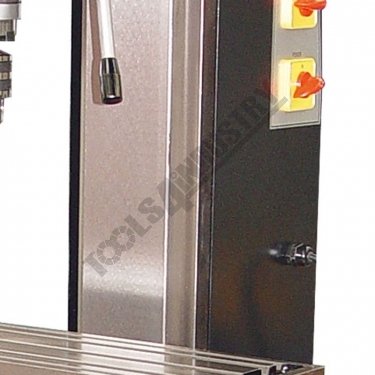

Dovetail Column

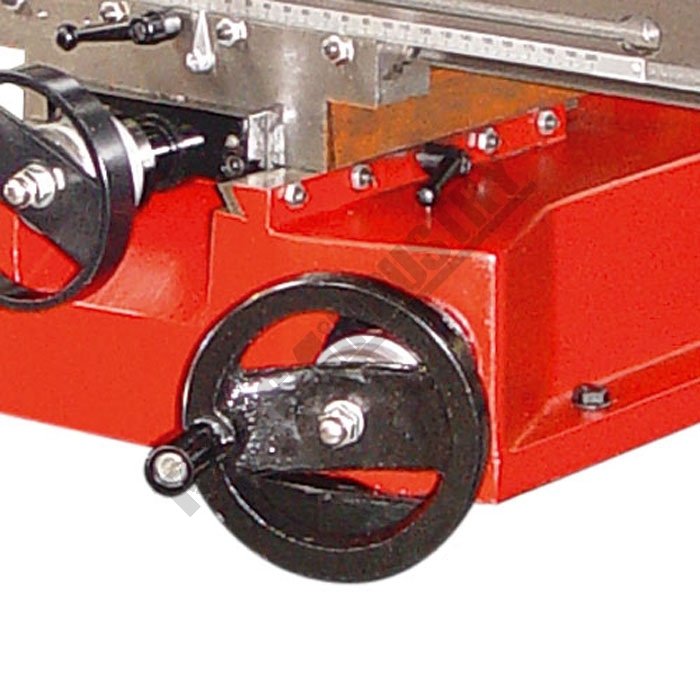

Vertical Head Adjustment

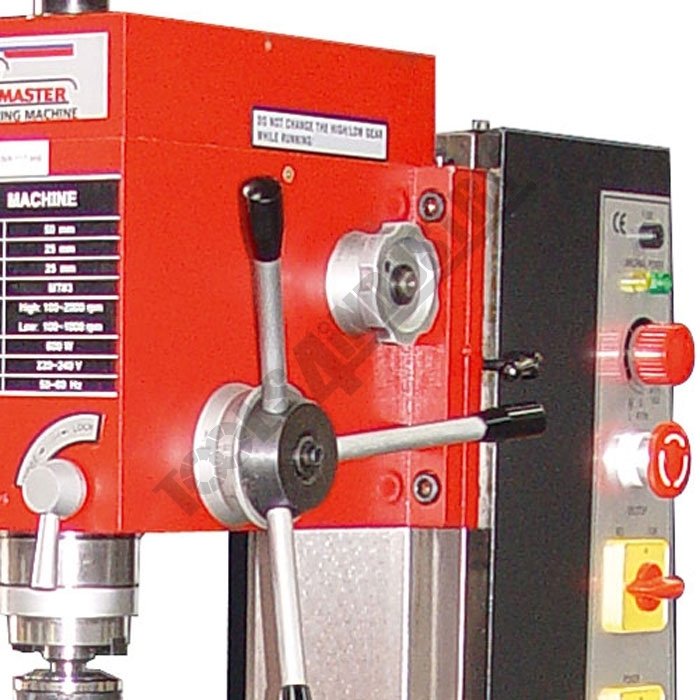

Hi Low Gearbox

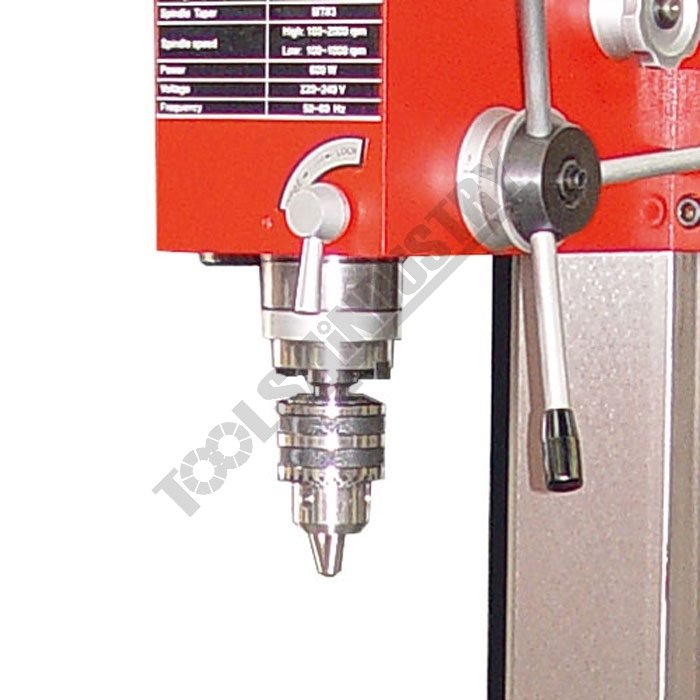

3MT Drill Chuck

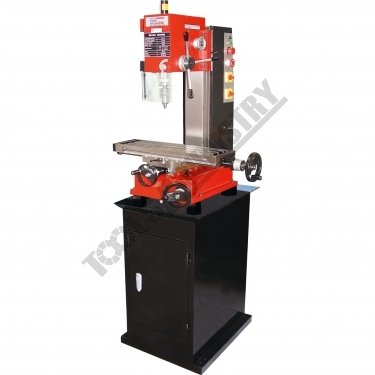

Shown mounted to Optional Stand

Code	M153
Model	SIEG X3
Capacity	Table Travel: (X) - 400mm (Y) - 150mm (Z) - 350mm
Weight (kg)	178
Weight (m³)	0.678
Weight (Freight)	225.774
Dimensions (cm)	80 x 80 x 106

Product Brochure Instruction Manual [2 MB] Parts List [906 KB]Milling Machine Risk Assessment

This Product Is No Longer Available

Mill Drill - Geared Head + Variable Speed SIEG X3 Table Travel: (X) - 400mm (Y) - 150mm (Z) - 350mm

Description

Excellent quality mill drill machine designed for the model engineer.

This X3 mill drill machine has a (High / Low) 2-speed gearbox drive system to maximise torque: 0-1000rpm and 100-2000rpm ideal for different types of material.

The X3 mill drill is powered by a 600W (0.75hp) electronic variable speed motor adjusted by a dial located on the side control panel.

Heavy duty cast iron body and base for better stability.

Precision machined work table.

Features

Electronic variable speed system
2-speed gearbox (high/low) drive system to maximise torque
All slides utilise dovetail construction for maximum rigidity
Milling head is fixed at 90º
Spindle lock for quill
Metal gears in gearbox
Ground work table with T-slots
Metric dial graduations @ 0.02mm for X & Y axis
Vertical dial graduations @ 0.01mm

Includes

Drill chuck
3MT arbor

Specifications
