M150A

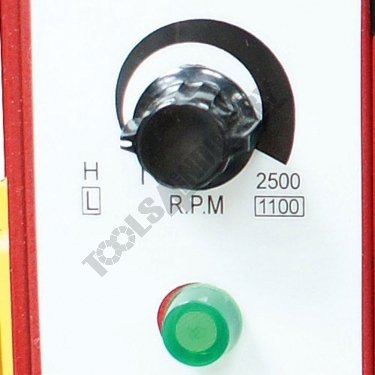

Electronic variable speed system

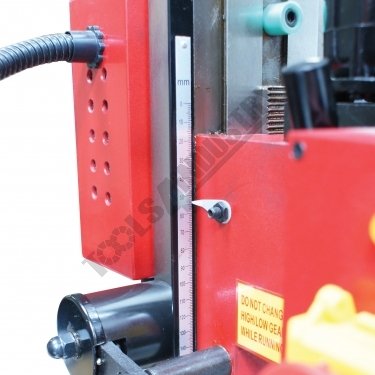

Vertical Height reading

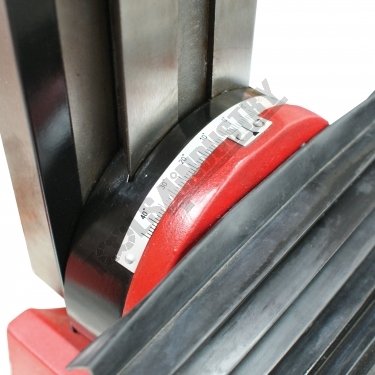

Milling head Tilts 45 Degrees both directions

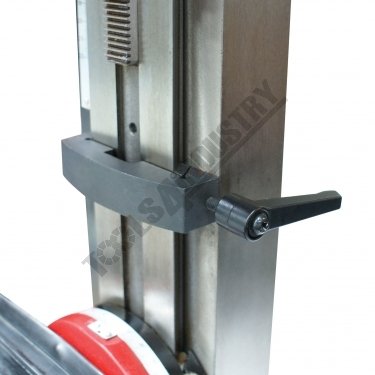

Sliding Lock

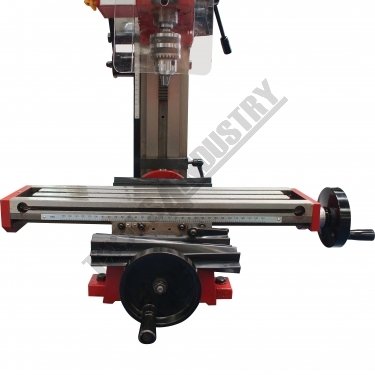

Milling table

Code	M150A
Model	HM-10L (SIEG X2L)
Capacity	Table Travel: (X) - 300mm (Y) - 130mm (Z) - 180mm
Weight (kg)	78
Weight (m³)	0.280
Weight (Freight)	93.240
Dimensions (cm)	64 x 60 x 73

Product Brochure Instruction Manual [7 MB]Milling Machine Risk Assessment

This Product Is No Longer Available

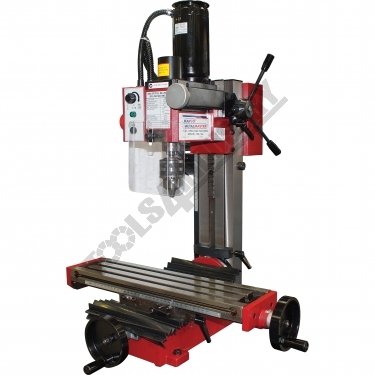

Mini Mill Drill - Tilting Head HM-10L (SIEG X2L) Table Travel: (X) - 300mm (Y) - 130mm (Z) - 180mm

Description

Excellent quality mini mill drill machine designed for the model engineer

Features

The HM-10L mini mill drill is powered by a 350W (1/2hp) electronic variable speed motor
Mill head tilts to ±45º both directions
Heavy duty cast iron body and base for better stability
All slides utilise dovetail construction for maximum rigidity
Precision machined work table

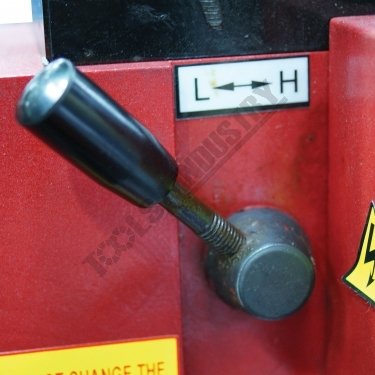

2-speed gearbox (high/low) drive system to maximise torque
Ground work table with T-slots
Concertina slide-way covers

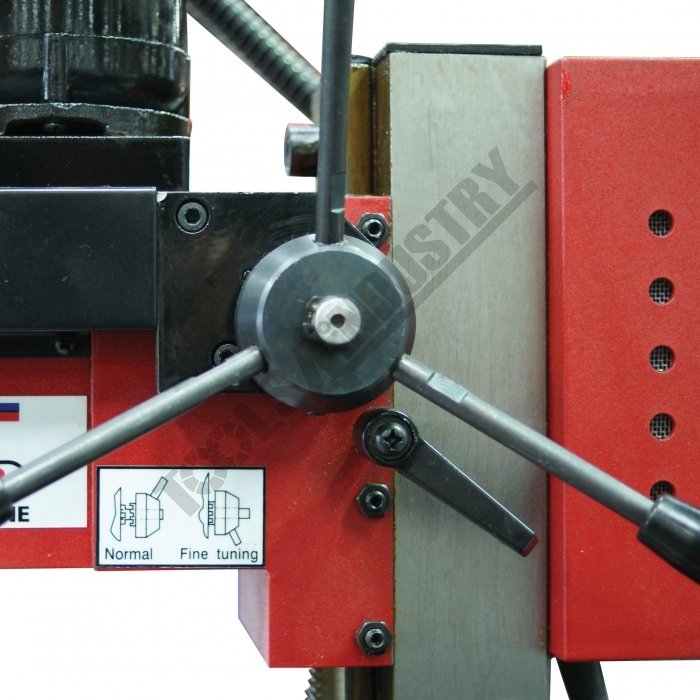

Spring assisting milling head return

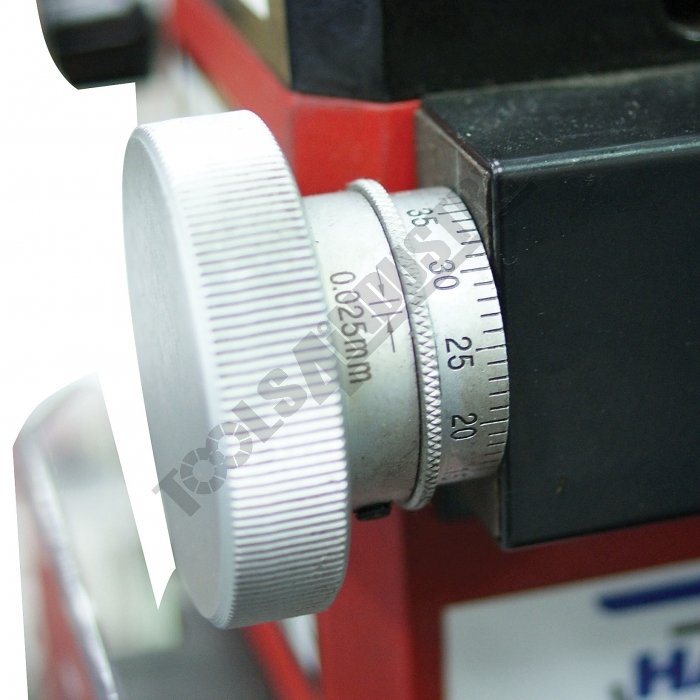

Vertical micro feed dial 0.025mm
Metric dial graduations 0.02mm

Includes

13mm keyed drill chuck
3MT Arbor
Set of spanners to suit

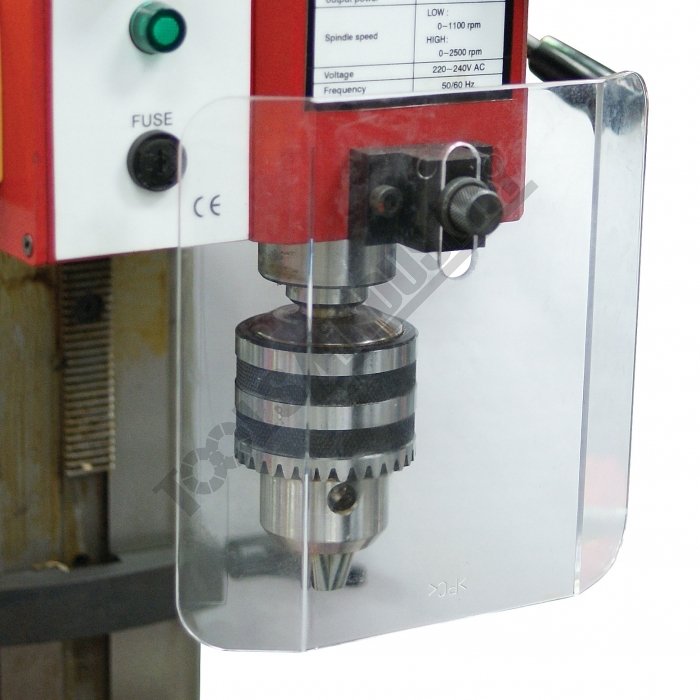

Safety cutter guard

Specifications
