M150

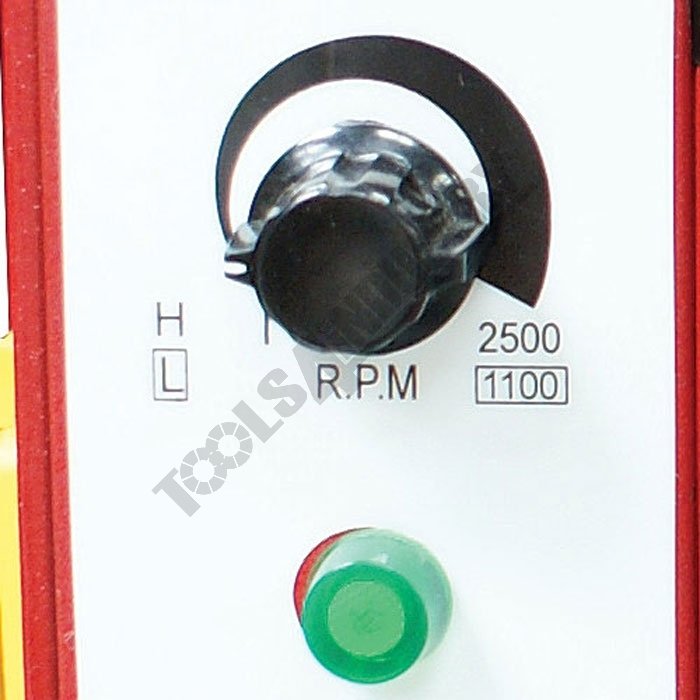

Electronic variable speed system

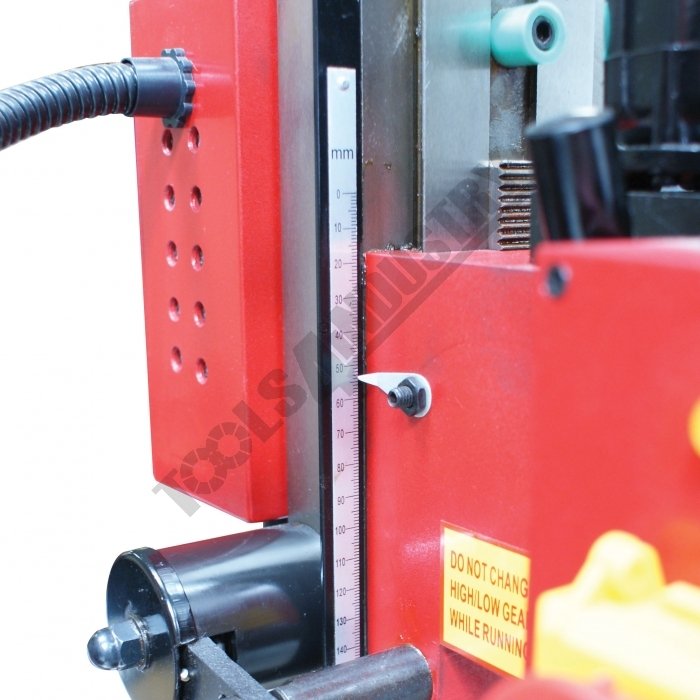

Vertical Height reading

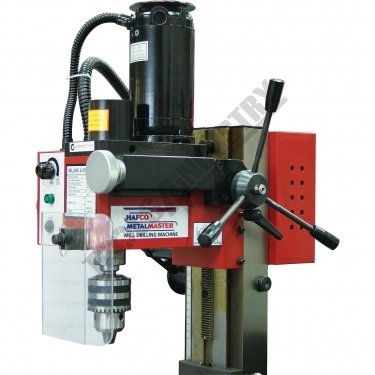

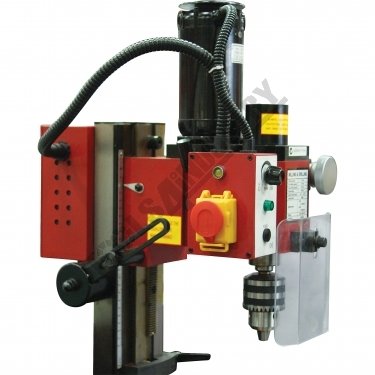

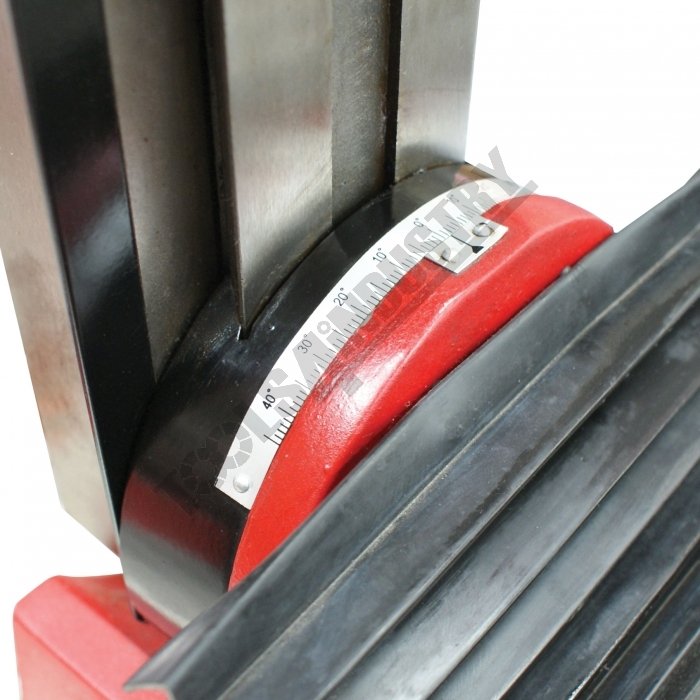

Milling head Tilts 45 Degrees both directions

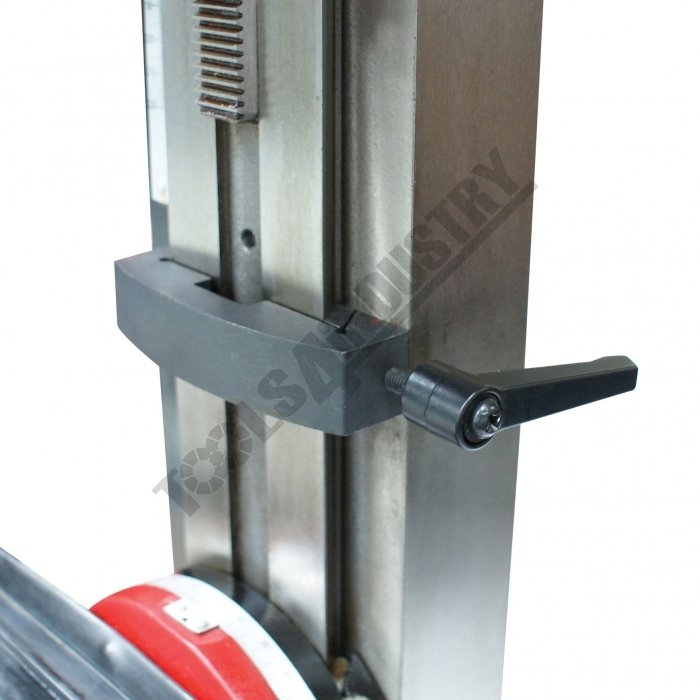

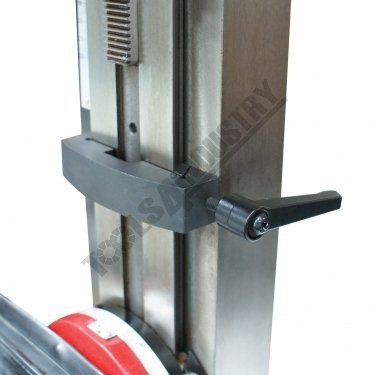

Sliding Lock

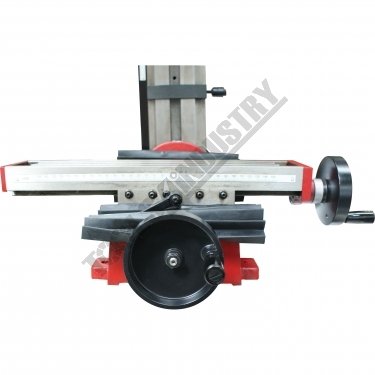

Milling table

Code	M150
Model	HM-10 (SIEG X2)
Capacity	Table Travel: (X) - 225mm (Y) - 100mm (Z) - 185mm
Weight (kg)	60
Weight (m³)	0.213
Weight (Freight)	70.929
Dimensions (cm)	54 x 54 x 73

Product Brochure Instruction Manual & Parts List [6 MB]Milling Machine Risk Assessment

This Product Is No Longer Available

Mini Mill Drill - Tilting Head HM-10 (SIEG X2) Table Travel: (X) - 225mm (Y) - 100mm (Z) - 185mm

Description

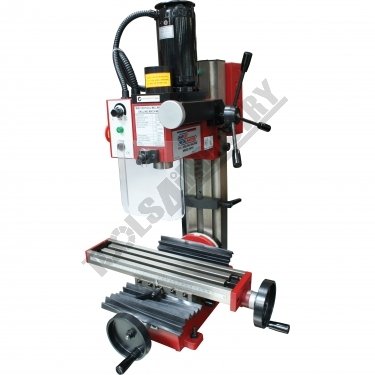

Excellent quality mini mill drill machine designed for the model engineer

Features

The HM-10 mini mill drill is powered by a 350W (1/2hp) electronic variable speed motor
Mill head tilts to ±45º both directions
Heavy duty cast iron body and base for better stability
All slides utilise dovetail construction for maximum rigidity
Precision machined work table

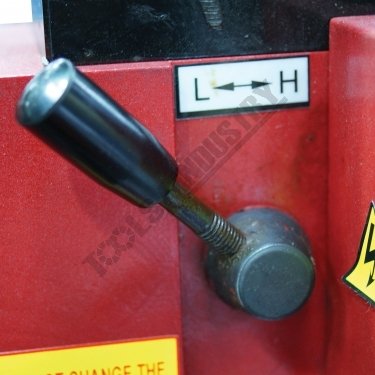

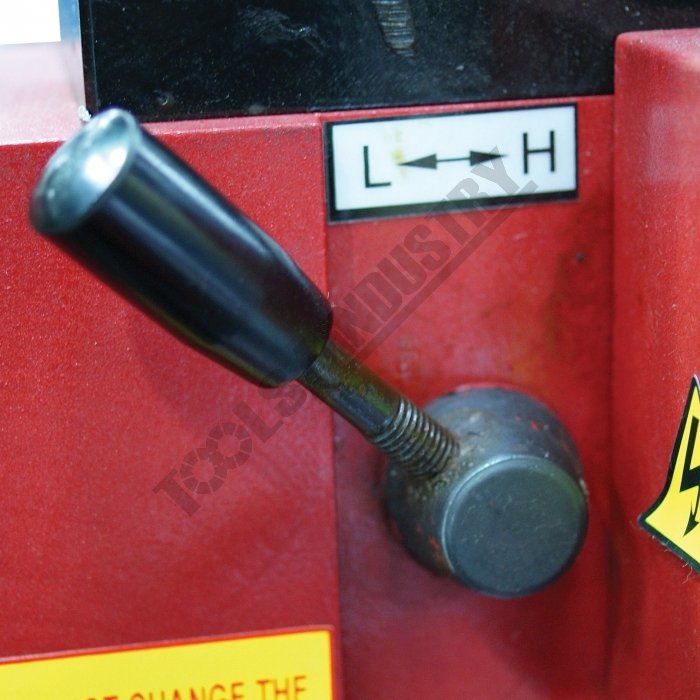

2-speed gearbox (high/low) drive system to maximise torque
Ground work table with T-slots
Concertina slide-way covers

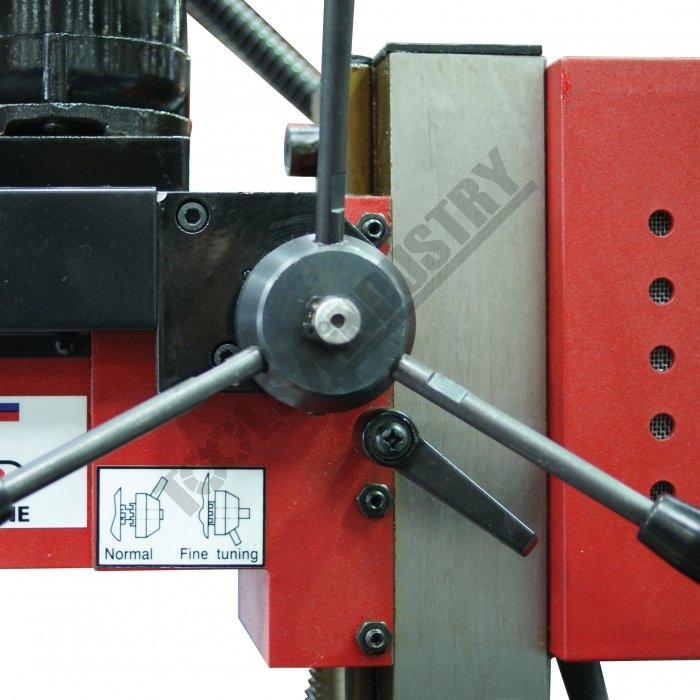

Spring assisting milling head return

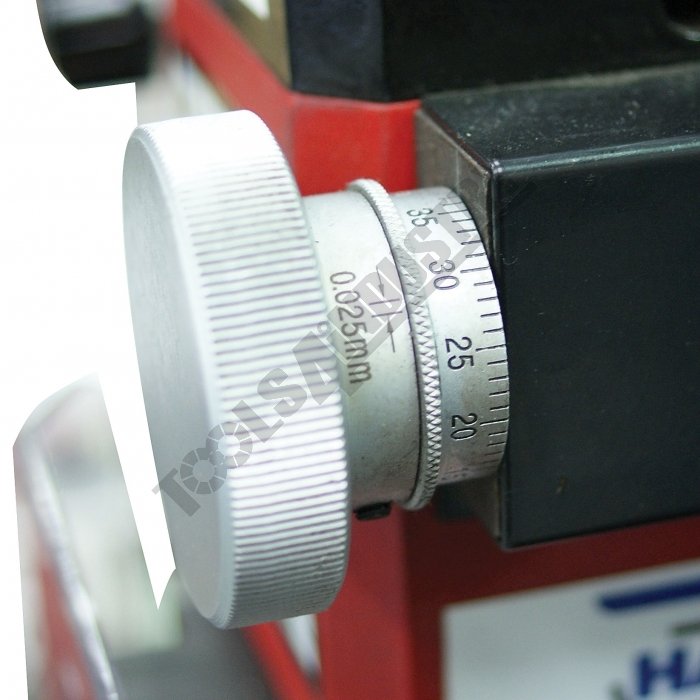

Vertical micro feed dial 0.025mm
Metric dial graduations 0.02mm

Includes

13mm keyed drill chuck
3MT Arbor
Set of spanners to suit

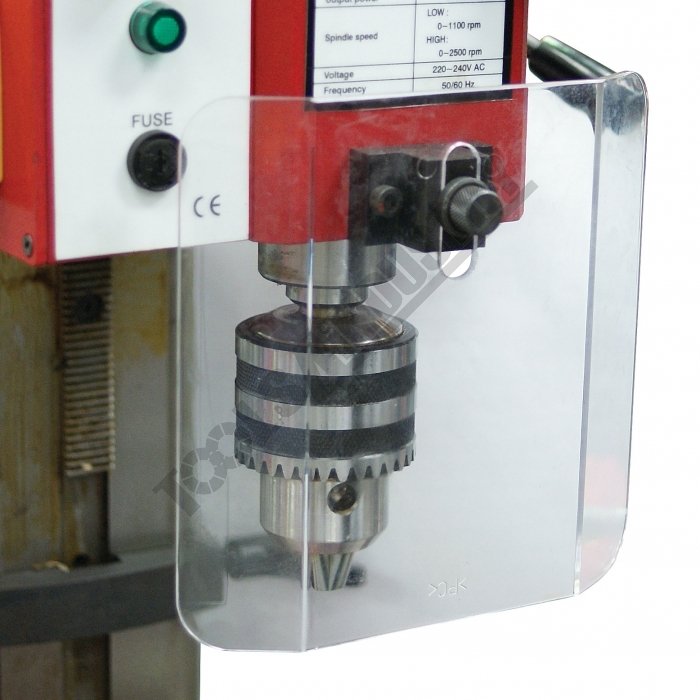

Safety cutter guard

Specifications
