| Code | M125D |
|---|---|
| Model | HM-47 |
| Capacity | Table Travel: (X) - 540mm (Y) - 185mm (Z) - 410mm |
| Weight (kg) | 407 |
| Weight (m3) | 1.202 |
| Weight (Freight) | 407 |
| Dimensions (cm) | 110 x 95 x 115 |

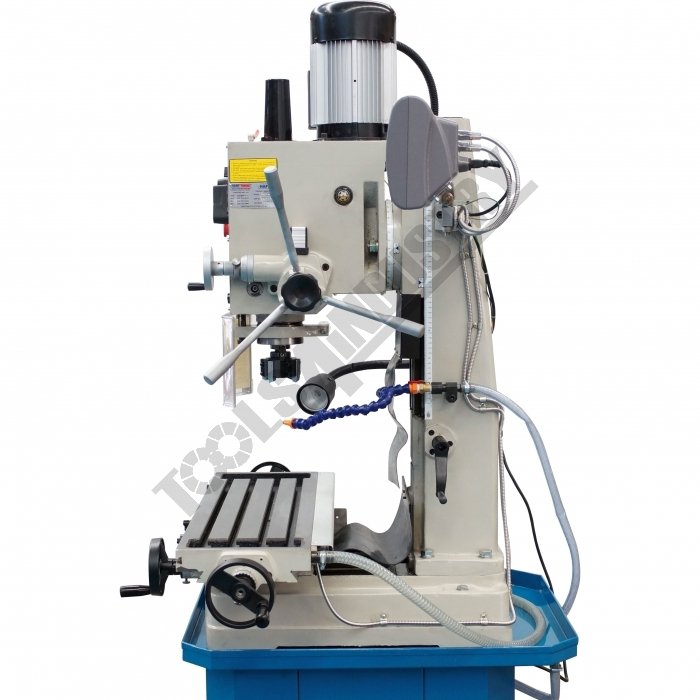

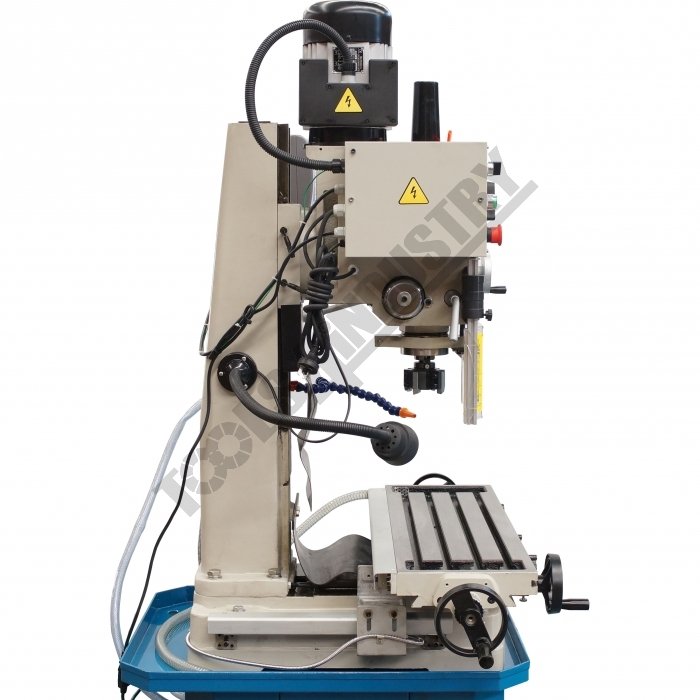

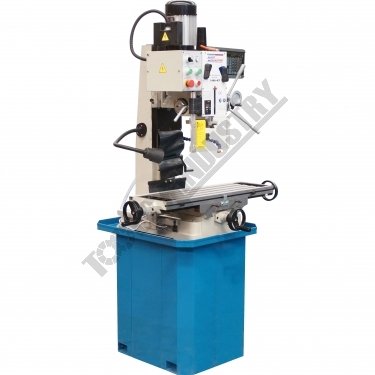

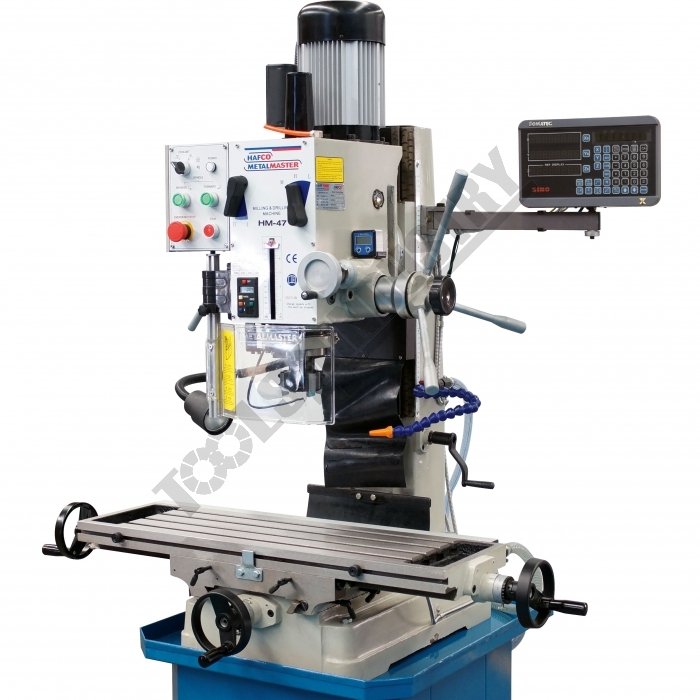

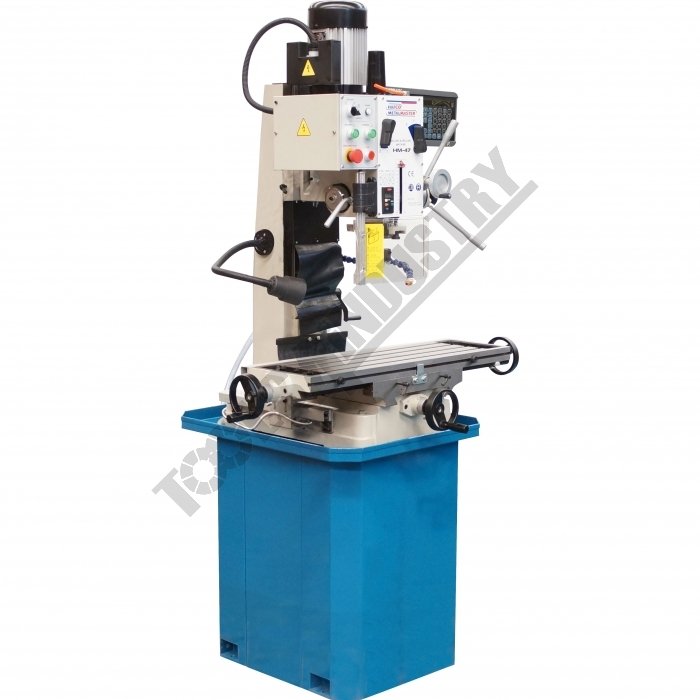

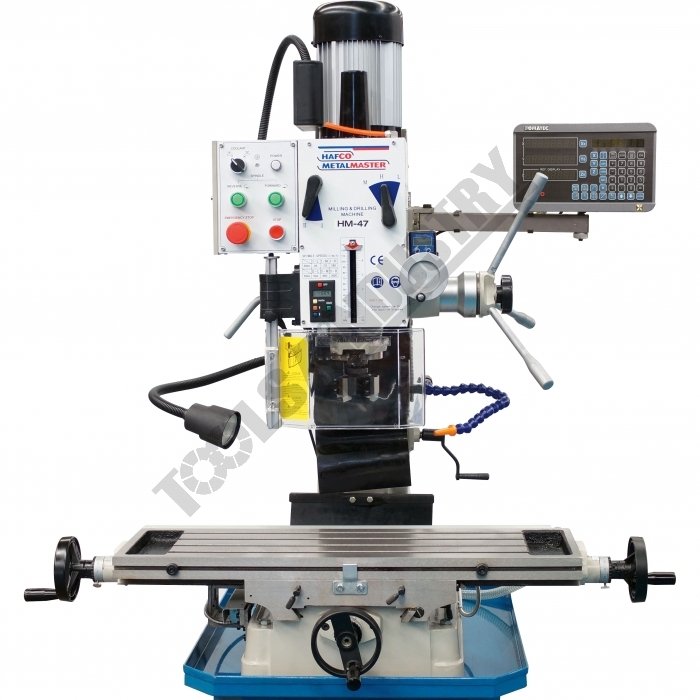

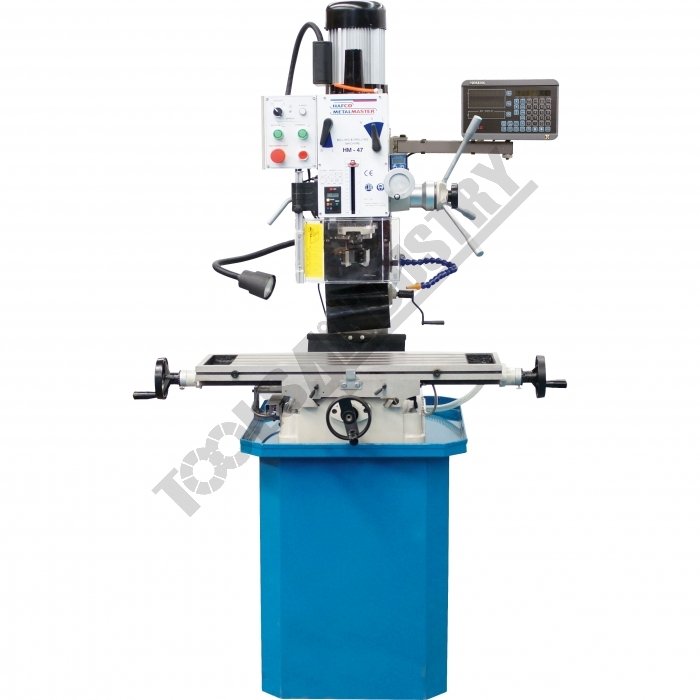

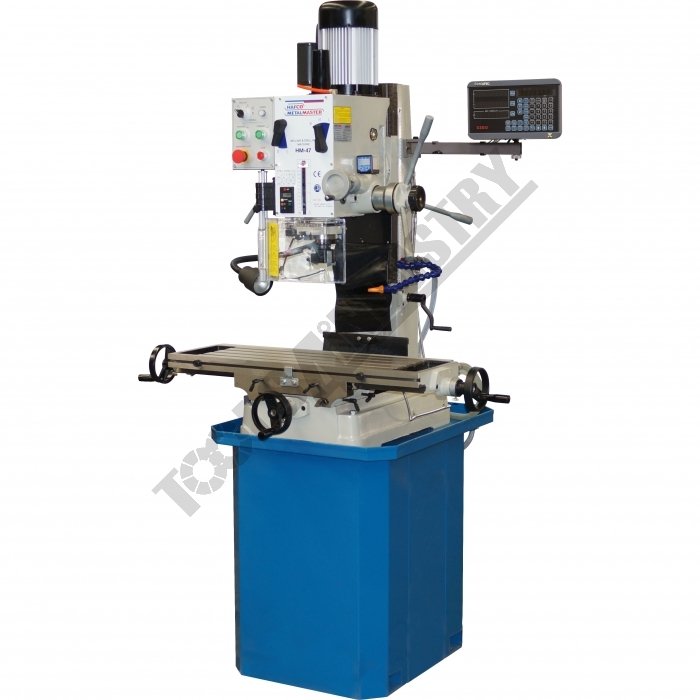

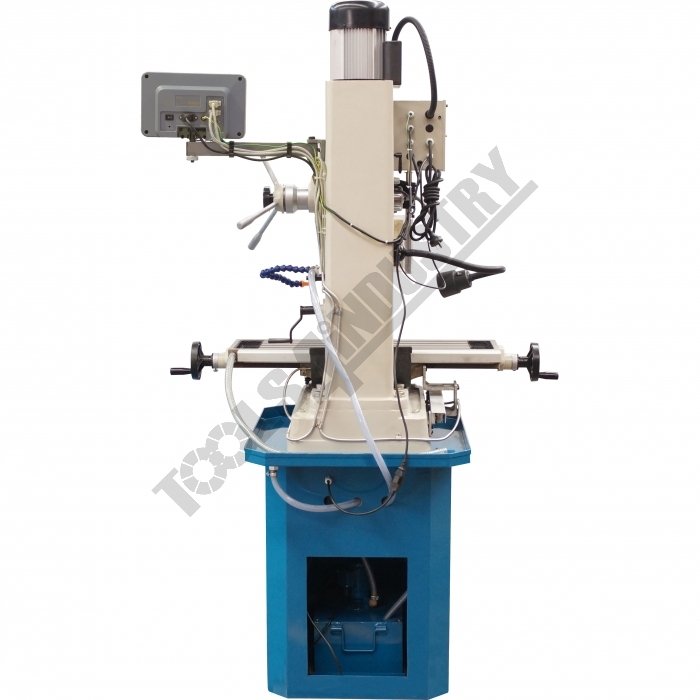

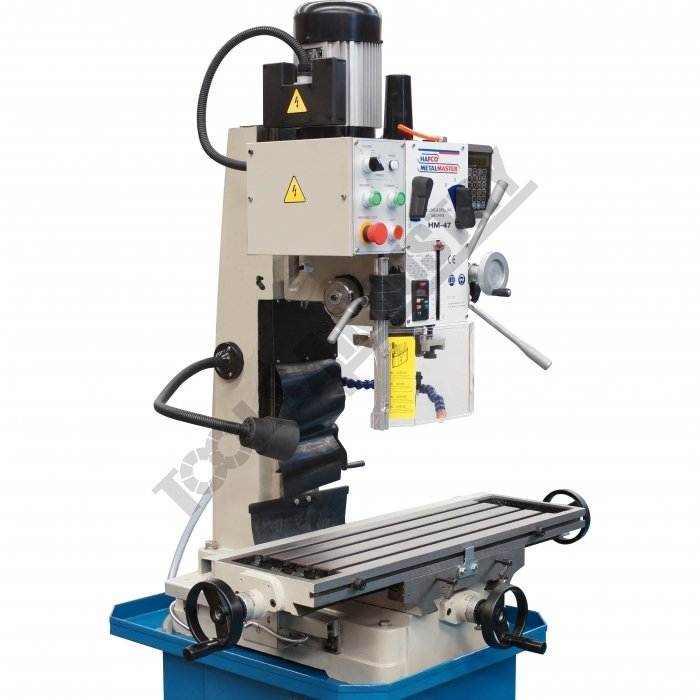

Mill Drill - Geared & Tilting Head with Digital Readout System HM-47 Table Travel: (X) - 540mm (Y) - 185mm (Z) - 410mm
Features

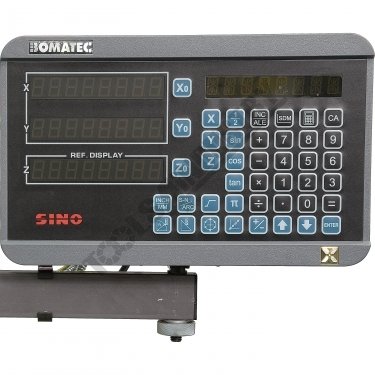

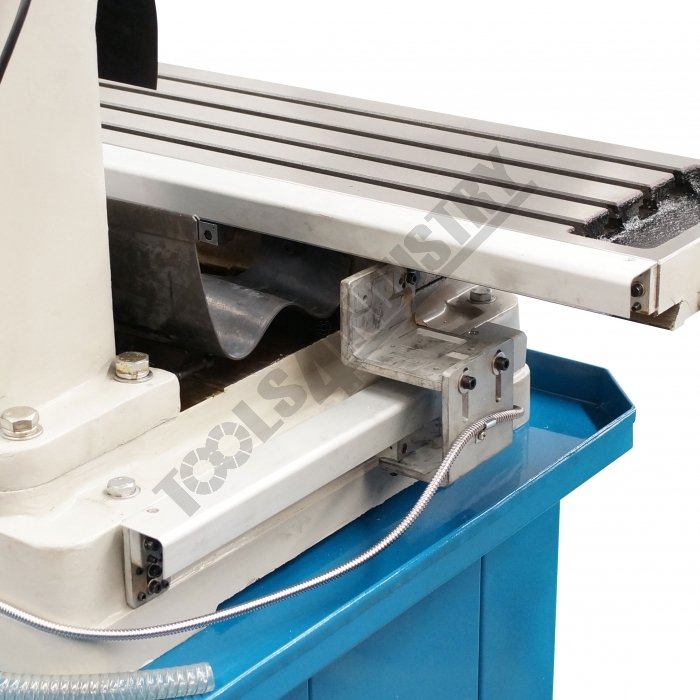

- 3-Axis digital readout counter fitted with 2-Axis X & Y scales only

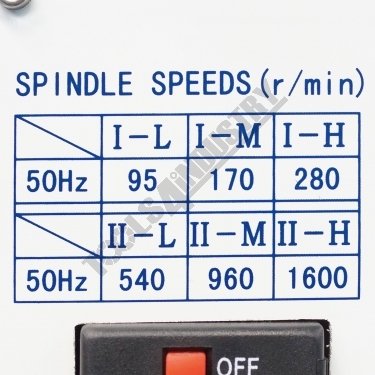

- Gear driven head with 6 speeds

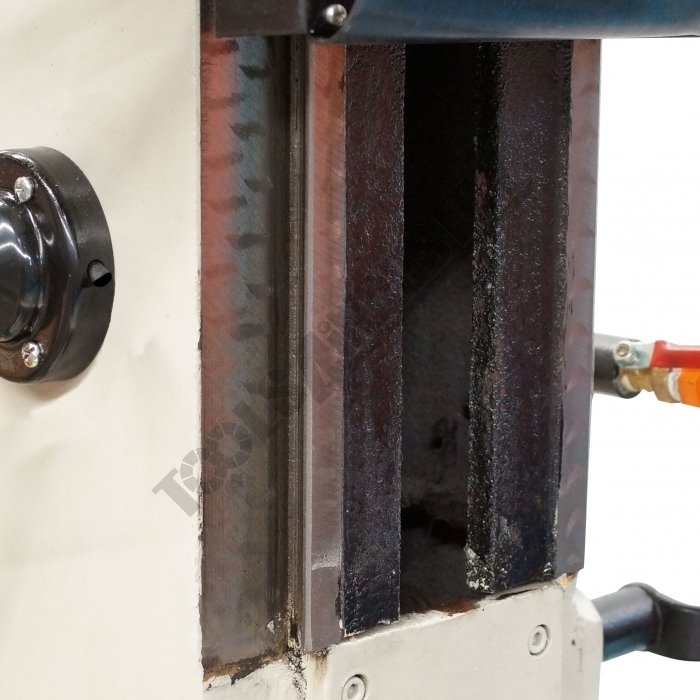

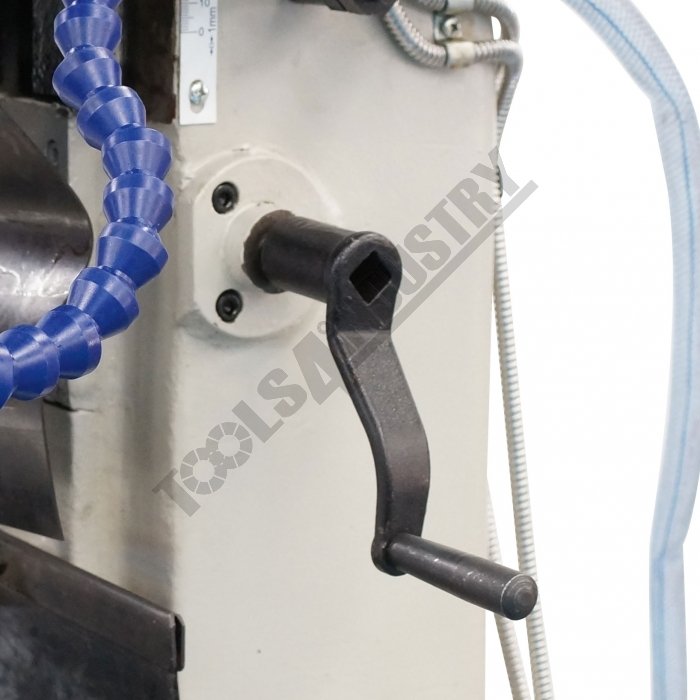

- Dovetail vertical Z-Axis

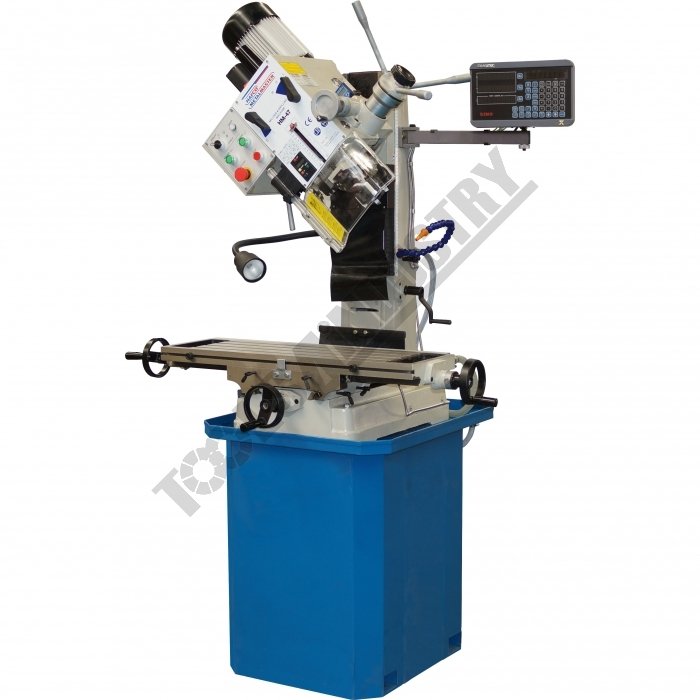

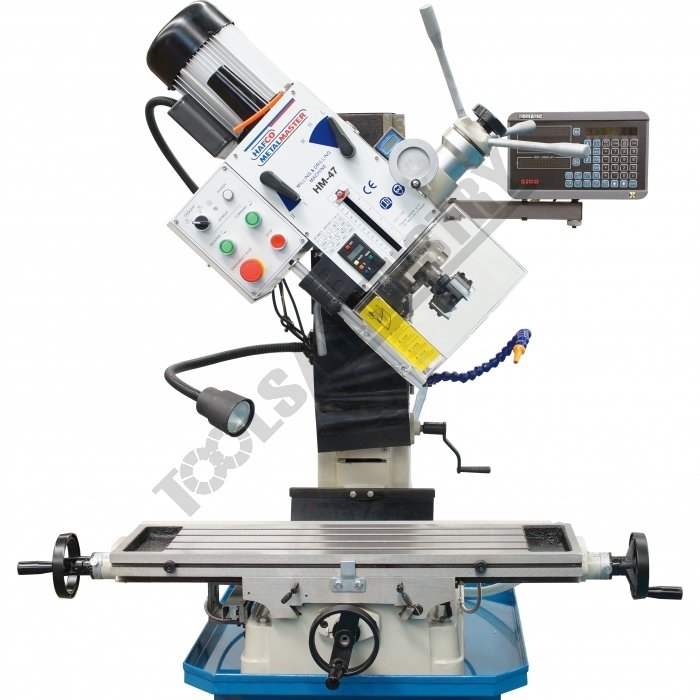

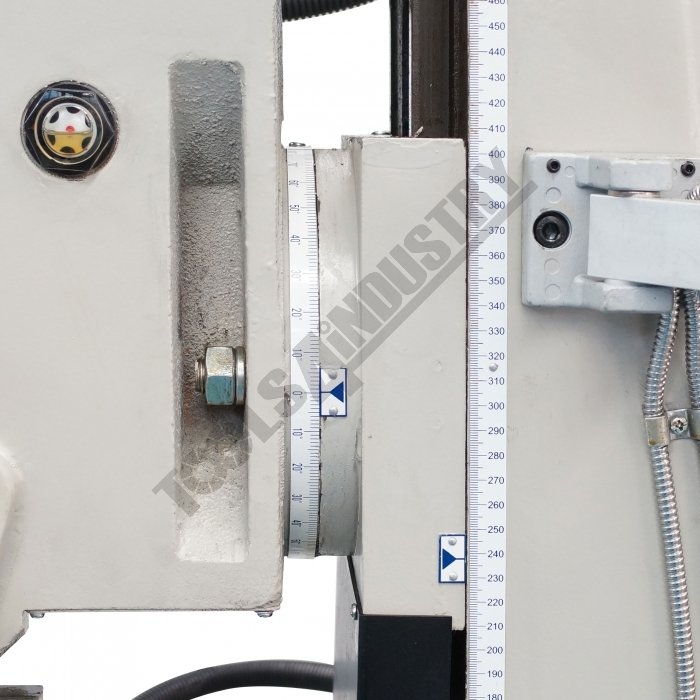

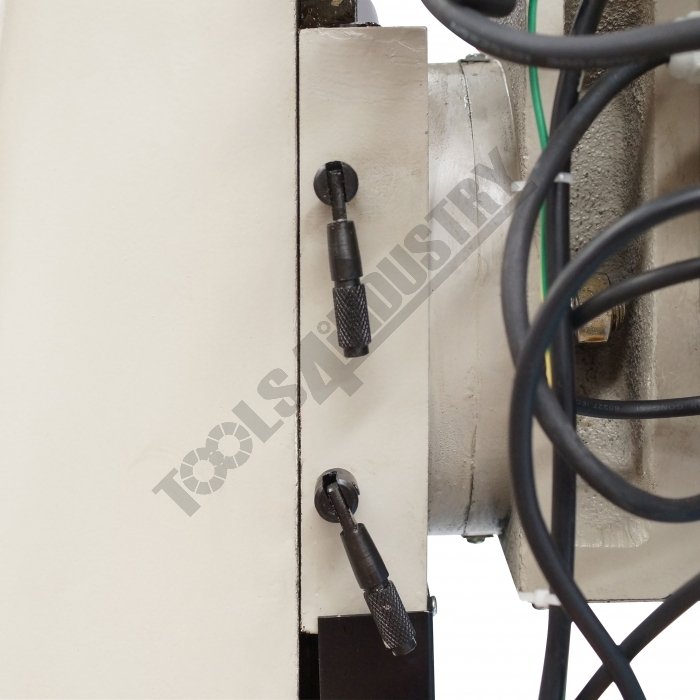

- Mill head tilts to ±90º from vertical with digital display

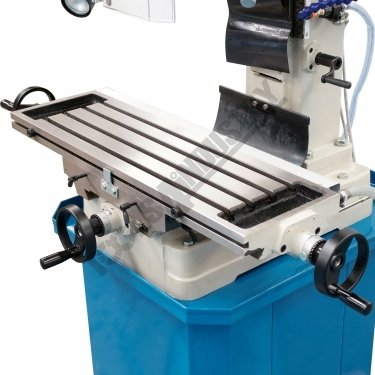

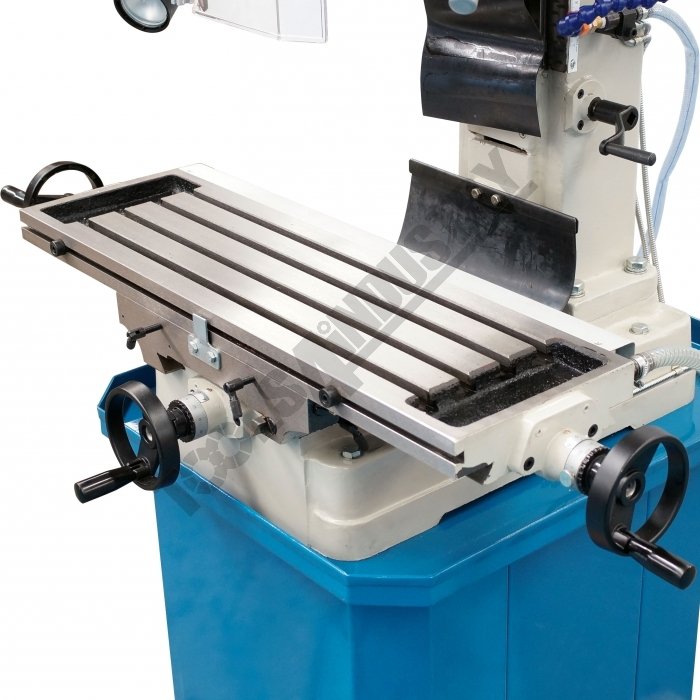

- Large 820 x 240mm ground work table with T-slots
- Adjustable leadscrew nuts eliminating backlash on both axis

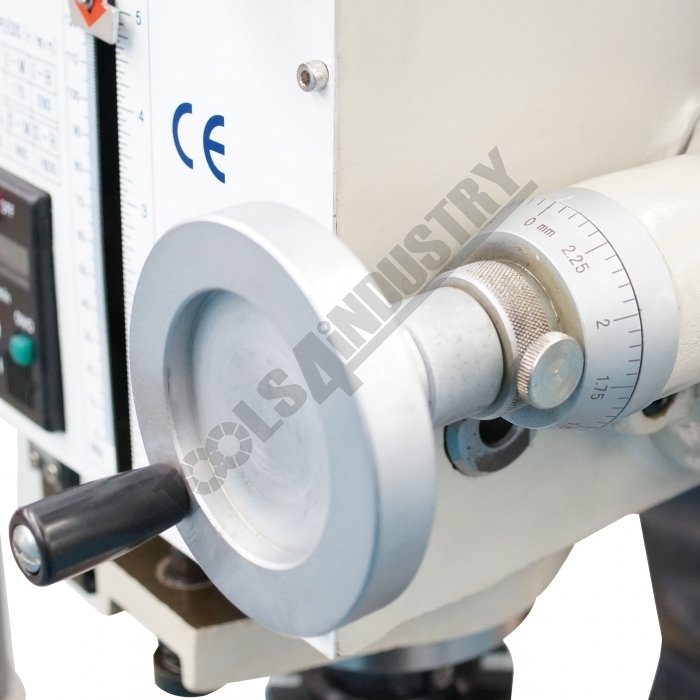

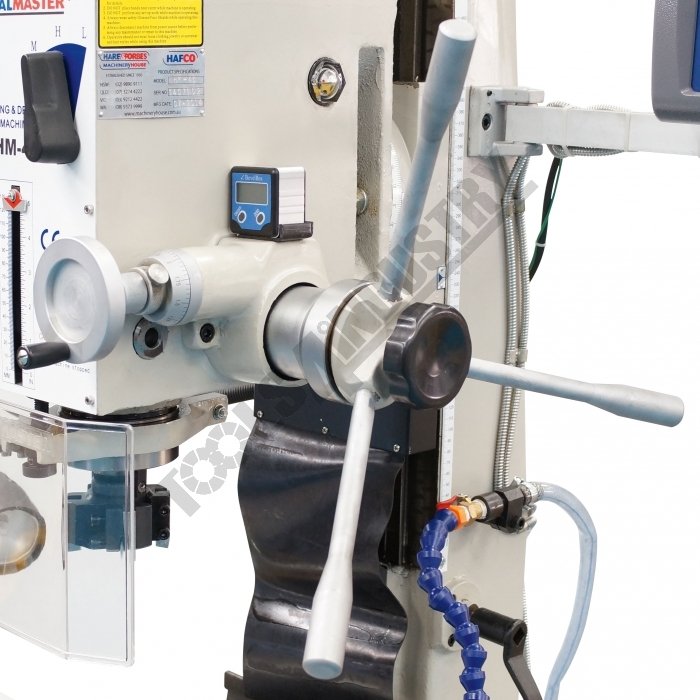

- Fine feed hand wheel operating quill feed

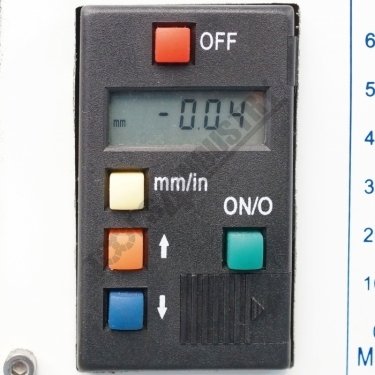

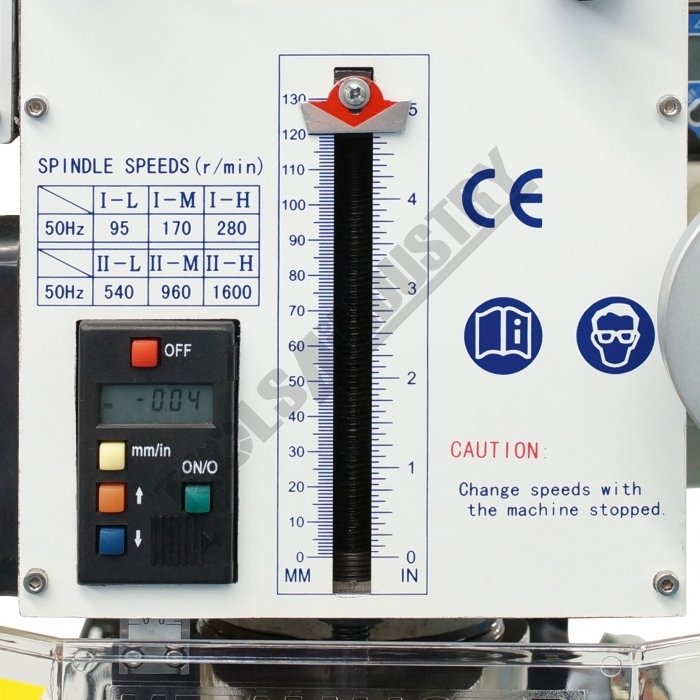

- Digital depth display with zero reset for quill (Includes LR44 battery)

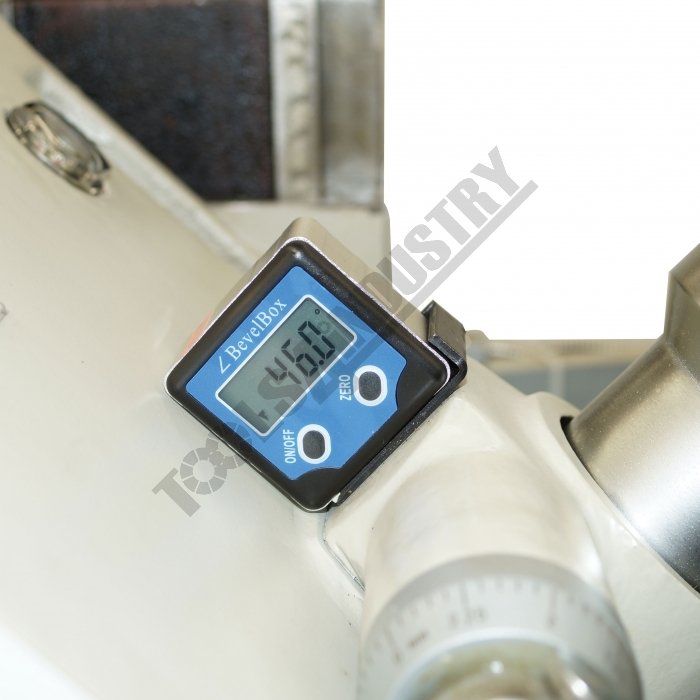

- Digital tilting head gauge
- Forward and reverse on/off switch
- 3MT spindle with 75mm diameter lockable quill

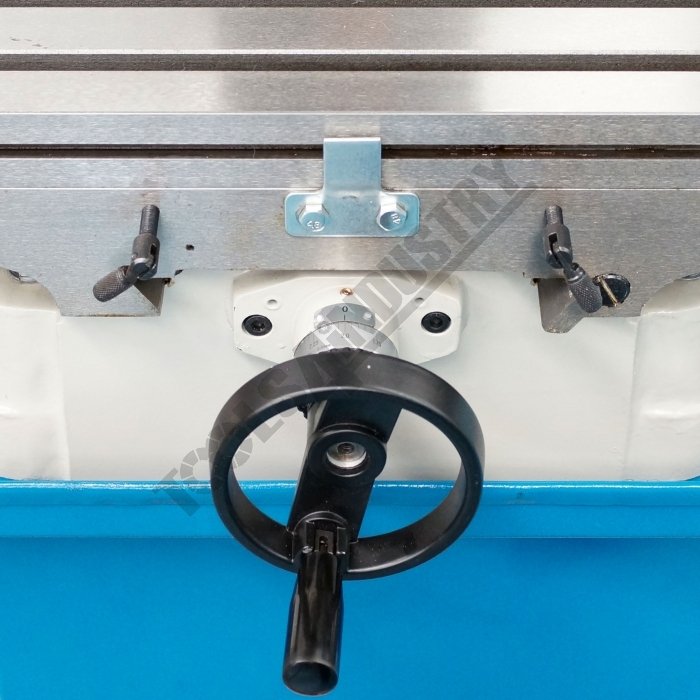

- Adjustable table and drill length stops

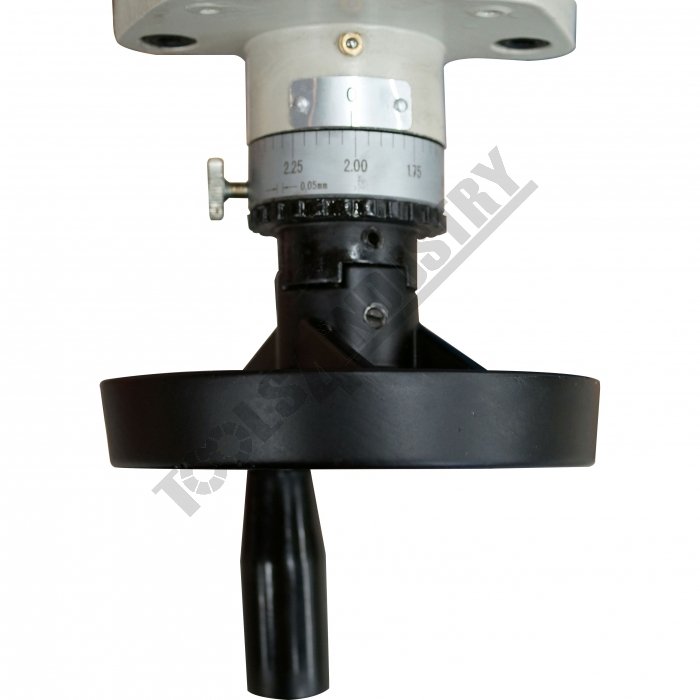

- Metric dial graduations @ 0.05mm for X & Y-Axis

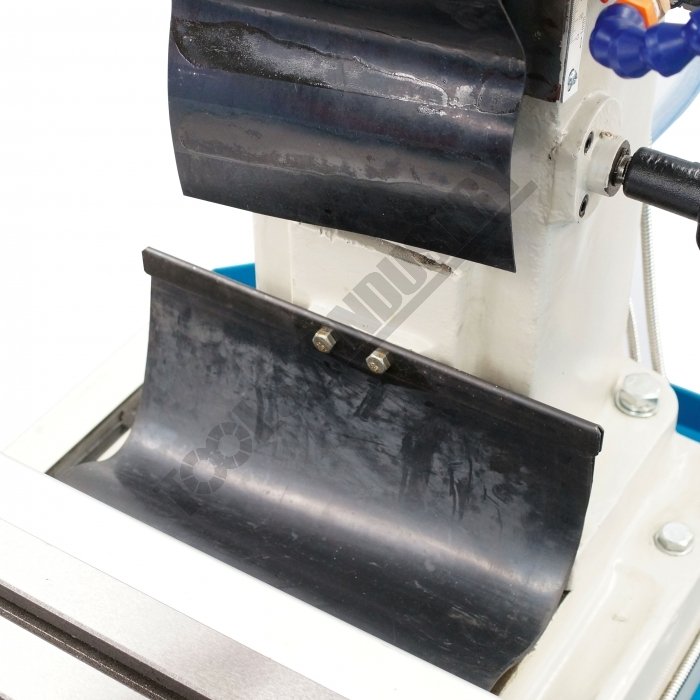

- Rear slide-way cover and slide clamps on all axis
- Table lock on both axis

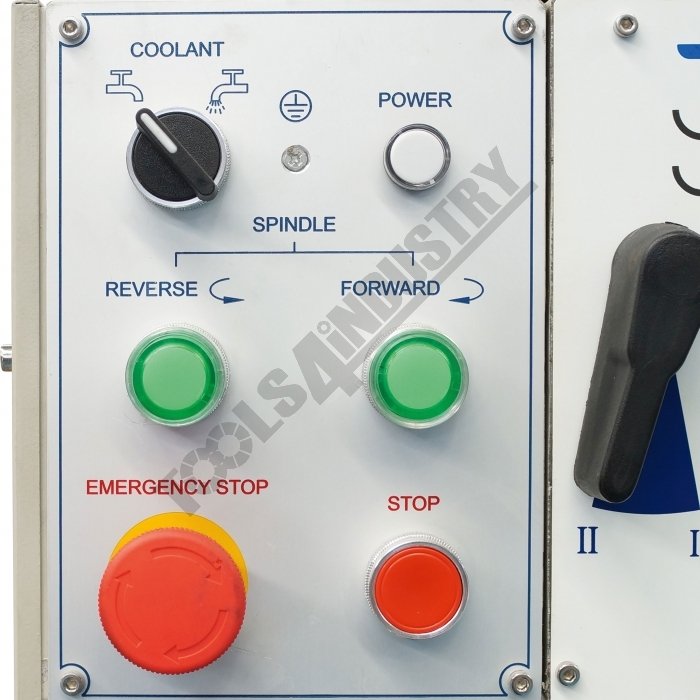

- Fixed control panel

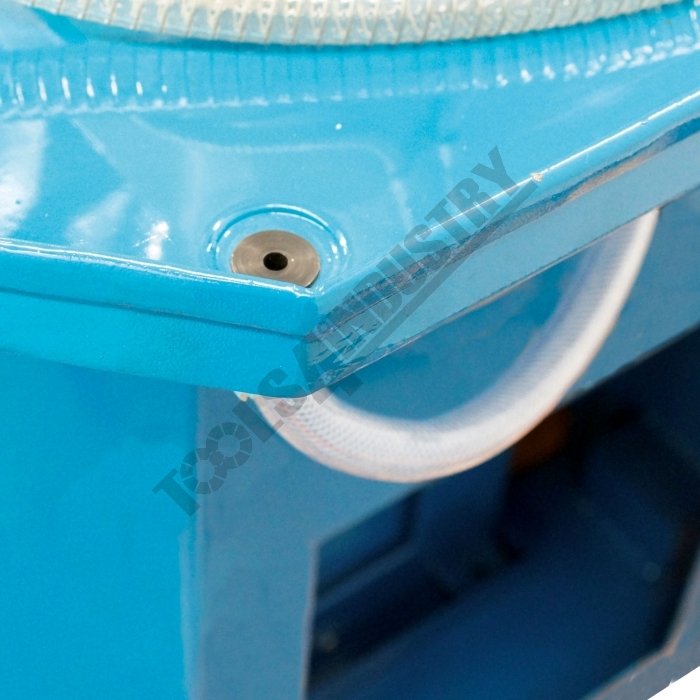

- Heavy duty fabricated stand with coolant tray

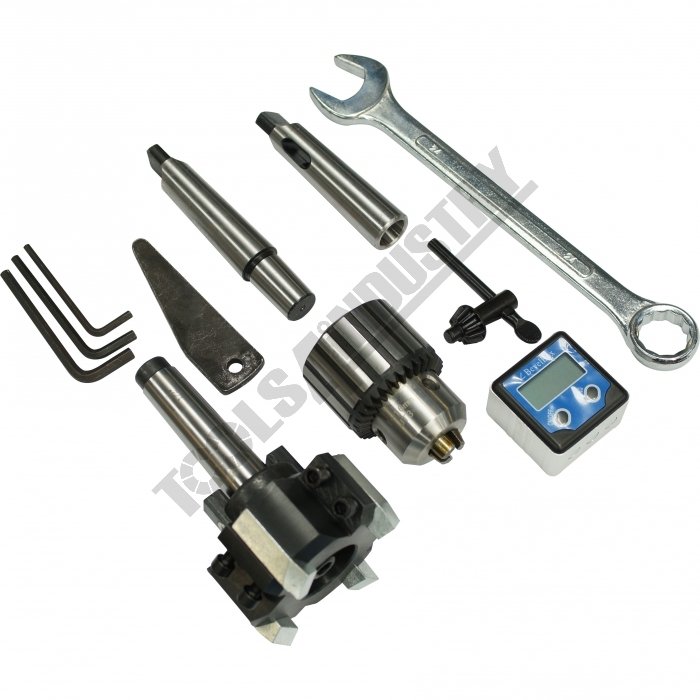

- Includes Stand, coolant system, swarf tray, drill chuck & arbor, face mill cutter & arbor & work light
- * Note: X & Y travels maybe reduced due to digital readout scales and safety stops
Includes
- 3-Axis digital readout counter fitted with 2-Axis X & Y scales only
- Heavy duty fabricated stand

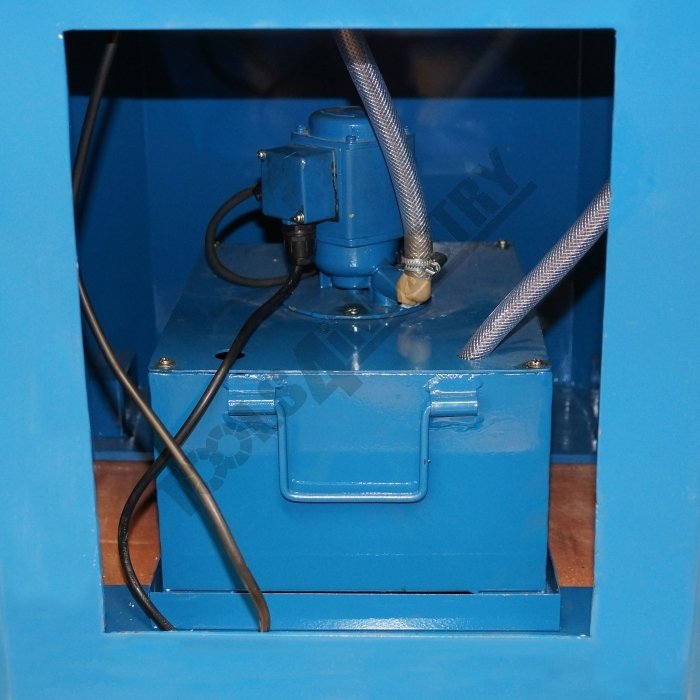

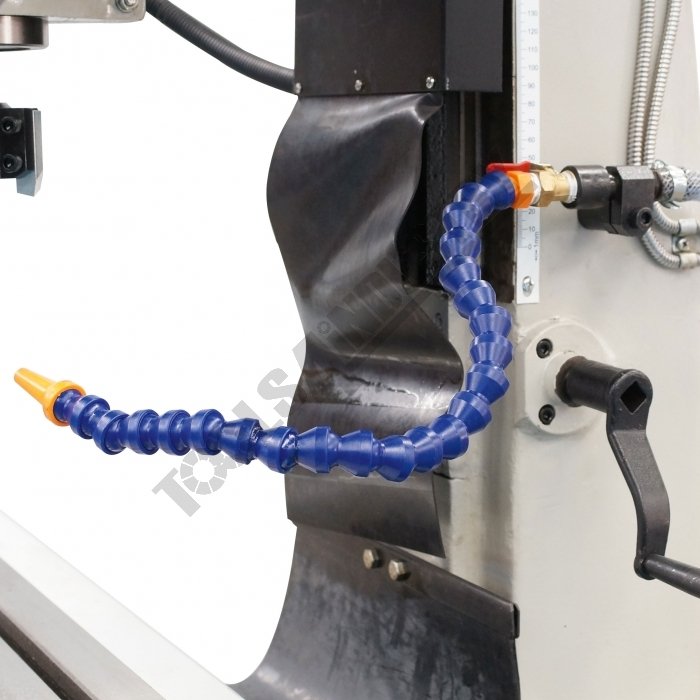

- Coolant system

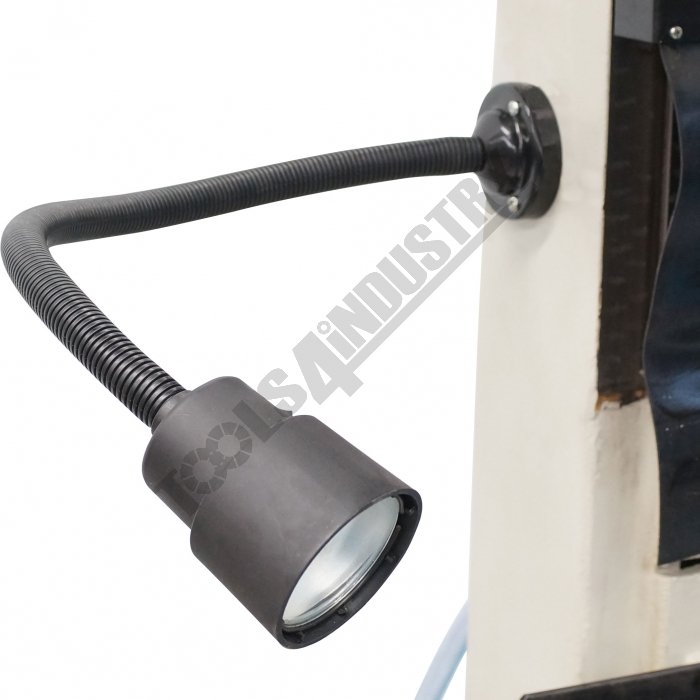

- Halogen light
- Digital depth display
- Digital tilting head gauge
- Drill chuck & arbor

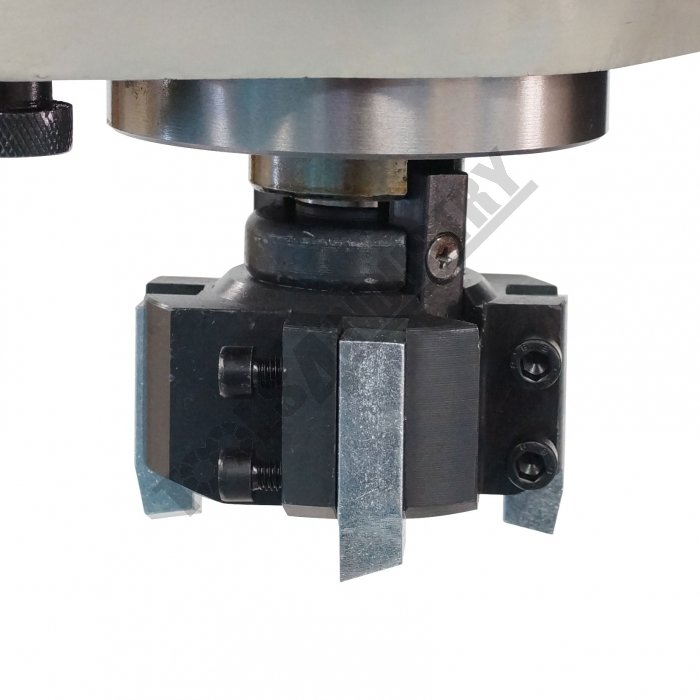

- Face cutter & arbor

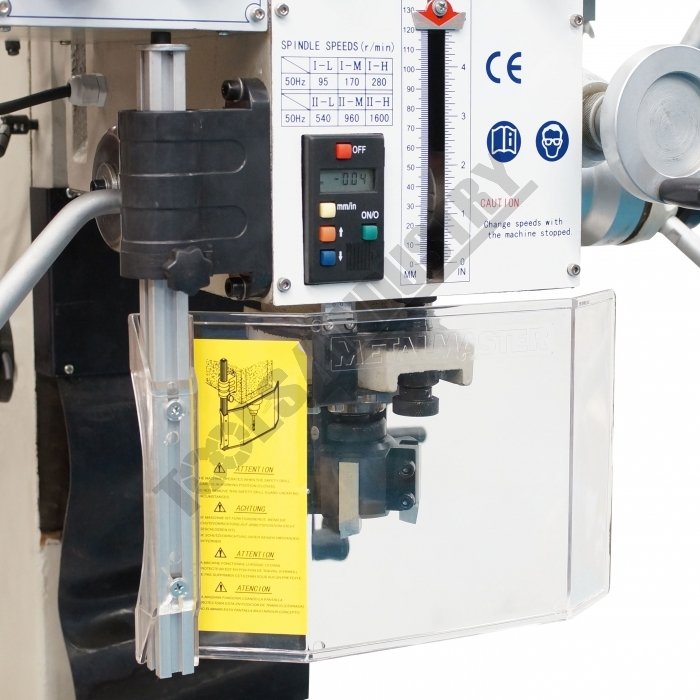

- Safety cutter guard
- Machine stand

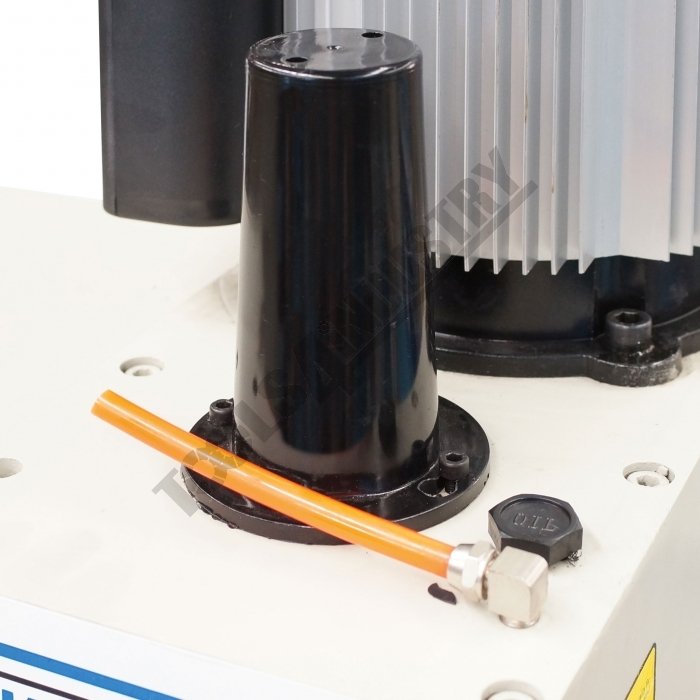

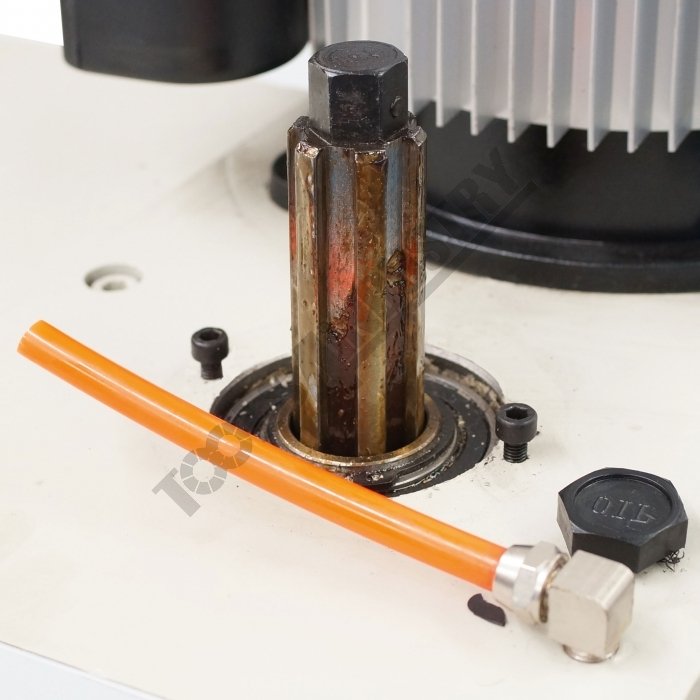

- 1/2" x 12TPI drawbar
Specifications
- Compare 51 Products
- ORDER CODE
- MODEL
- Digital Readout
- Type
- Table Sizemm
- Column Type
- Spindle Taper - Vertical
- Spindle Taper - Horizontal
- Longitudinal Travel (X-Axis)mm
- Cross Travel (Y-Axis)mm
- Vertical Travel (Z-Axis)mm
- Type of Slides
- Ram Travelmm
- Spindle to Tablemm
- Spindle to Base
- Spindle Travel / Diametermm
- Throat Depth (max.)mm
- Tilting Head (Left ~ Right)
- Tilting Head (Forward ~ Back)
- Drilling Capacitymm
- End Milling Capacitymm
- Face Milling Capacitymm
- Power Feed - Quillmm/rev
- Power Feed - Longitudinal (X-Axis)mm/min
- Power Feed - Cross (Y-Axis)mm/min
- Power Feed - Vertical (Z-Axis)mm/min
- Table T-Slot Sizeinch / mm
- Work Table Load Capacitykg
- Spindle Speeds VerticalNo./ rpm
- Spindle Speeds HorizontalNo./ rpm
- Spindle Speeds - Universal Head
- Motor Power - Vertical SpindlekW / hp
- Motor Power - Horizontal SpindlekW / hp
- Motor Power - Universal Head
- Voltage / AmperageV / amp
- Nett Weightkg
- M125D
- HM-47
- 3-Axis Counter, X, Y Scales
- Vertical
- 820 x 240
- Dovetail
- 3MT
- ~
- 540*
- 185*
- 410
- Dovetail
- ~
- 490
- ~
- 120 / 75
- 273
- ±90º
- Fixed
- 31.5
- 28
- 80
- ~
- ~
- ~
- ~
- 14
- 55
- 6 (95 - 1600)
- ~
- ~
- 1.5 / 2
- ~
- ~
- 240 / 10
- 407
- M123
- HM-46
- Optional
- Vertical
- 730 x 210
- Dovetail
- 3MT
- ~
- 475
- 195
- 450
- Dovetail
- ~
- 510
- ~
- 120 / 75
- 265
- ±90º
- Fixed
- 31.5
- 28
- 80
- ~
- Optional
- ~
- ~
- 14
- 55
- 6 (95 - 1600)
- ~
- ~
- 1.1 / 1.5
- ~
- ~
- 240 / 10
- 293
- D181A
- DMF-42
- Optional
- Vertical
- 585 x 190
- Ø115mm
- 3MT
- ~
- 370
- 175
- 780
- Dovetail
- ~
- 780
- 1300
- 120 / 75
- 250
- ±90º
- Fixed
- 31.5
- 28
- 80
- ~
- Optional
- ~
- ~
- 14
- 55
- 6 (95 - 1600)
- ~
- ~
- 1.1 / 1.5
- ~
- ~
- 240 / 10
- 350
- M629D
- BM-65VE
- 3-Axis Digital Readout
- Vertical
- 1500 x 300
- ~
- NT40
- ~
- 925
- 420
- 480
- Dovetail (X), Square (Y & Z)
- 485
- 530
- ~
- 155 / 105
- 735
- ±90º
- ±45º
- ~
- ~
- ~
- 0.04 / 0.08 / 0.13
- 20 - 2000
- 20 - 2000
- Rapid
- 5/8
- 450
- Variable (60 - 3600)
- ~
- ~
- 3.75 / 5
- ~
- ~
- 415
- 1750
- M161D
- HM-52
- 3-Axis Digital Readout
- Vertical & Horizontal
- 1000 x 240
- ~
- NT30
- NT30
- 600*
- 200*
- 340
- Dovetail
- 500
- 375
- ~
- 125 / 90
- 640
- ±90º
- Fixed
- 30
- 25
- 80
- Manual
- 20 - 2000
- Optional *
- Optional *
- 14
- 175
- 9 (220 - 2400)
- 9 (60 - 1350)
- ~
- 1.5 / 2
- 1.5 / 2
- ~
- 240 / 10
- 1050
- M151
- HM-10A
- Optional
- Vertical
- 110 x 245
- Dovetail
- 3MT
- ~
- ~
- ~
- 190
- Dovetail
- ~
- ~
- ~
- Fixed
- 160
- -25º to 45º
- Fixed
- 13
- 13
- 25
- ~
- ~
- ~
- ~
- ~
- ~
- Variable (100 - 2500)
- ~
- ~
- 0.35 / 0.5
- ~
- ~
- 240 / 10
- 42
- M153
- X3
- Optional
- Vertical
- 550 x 160
- Dovetail
- 3MT
- ~
- 400
- 150
- 350
- Dovetail
- ~
- 400
- ~
- 82 / 60
- 230
- Fixed
- Fixed
- 25
- 25
- 50
- ~
- Optional
- ~
- ~
- 12
- 35
- Variable (100 - 2000)
- ~
- ~
- 0.6 / 0.75
- ~
- ~
- 240 / 10
- 178
- M163D
- HM-52G
- 3-Axis Digital Readout
- Vertical & Horizontal
- 1000 x 240
- ~
- NT30
- NT30
- 600*
- 200*
- 340
- Dovetail
- 500
- 375
- ~
- 125 / 90
- 640
- ±90º
- Fixed
- 30
- 25
- 80
- Manual
- 20 - 2000
- Optional *
- Optional *
- 14
- 175
- 8 (115 - 1750)
- 9 (60 - 1350)
- ~
- 1.5 / 2
- 1.5 / 2
- ~
- 415
- 1050
- M155
- SUPER X3
- Optional
- Vertical
- 550 x 160
- Dovetail
- 3MT
- ~
- 400
- 150
- 350
- Dovetail
- ~
- 400
- ~
- 70 / 60
- 230
- 30º Left / 90º Right
- Fixed
- 25
- 25
- 50
- ~
- Optional
- ~
- ~
- 12
- 35
- Variable (100 - 1750)
- ~
- ~
- 1 / 1.3
- ~
- ~
- 240 / 10
- 195
- M126
- HM-48
- Optional
- Vertical
- 820 x 240
- Dovetail
- 3MT
- ~
- 540
- 185
- 410
- Dovetail
- ~
- 490
- ~
- 120 / 75
- 273
- ±90º
- Fixed
- 31.5
- 28
- 80
- ~
- Yes
- ~
- ~
- 14
- 55
- 6 (95 - 1600)
- ~
- ~
- 1.5 / 2
- ~
- ~
- 240 / 10
- 430
- M160
- HM-50
- Optional
- Vertical
- 1000 x 240
- ~
- NT30
- ~
- 600*
- 220*
- 340
- Dovetail
- 340
- 430
- ~
- 125 / 90
- 600
- ±90º
- Fixed
- 30
- 25
- 80
- Manual
- 20 - 2000
- Optional *
- Optional *
- 14
- 175
- 9 (220 - 2400)
- ~
- ~
- 1.5 / 2
- ~
- ~
- 240 / 10
- 850
- D181
- DMF-42
- Optional
- Vertical
- 585 x 190
- Ø115mm
- 3MT
- ~
- 370
- 175
- 780
- Dovetail
- ~
- 780
- 1300
- 120 / 75
- 250
- ±90º
- Fixed
- 31.5
- 28
- 80
- ~
- Optional
- ~
- ~
- 14
- 55
- 12 (95 - 3200)
- ~
- ~
- 1.1 / 1.5
- ~
- ~
- 415
- 350
- M621D
- BM-67HV
- 3-Axis Digital Readout
- Vertical & Horizontal
- 1320 x 320
- ~
- NT40
- NT40
- 1000
- 300
- 400
- Dovetail (X), Square (Y & Z)
- ~
- 580
- ~
- 125 / 105
- 780
- ±90º
- Fixed
- ~
- ~
- ~
- 0.045 / 0.086 / 0.142
- 20 - 360
- 20 - 360
- Rapid
- 14
- 500
- Variable (60 - 3600)
- 12 (40 - 1300)
- ~
- 3.75 / 5
- 3.75 / 5
- ~
- 415
- 2150
- M150A
- HM-10L (X2L)
- Optional
- Vertical
- 460 x 120
- Dovetail
- 3MT
- ~
- 300
- 130
- 180
- Dovetail
- ~
- 280
- ~
- Fixed
- 160
- ±45º
- Fixed
- 13
- 16
- 30
- ~
- ~
- ~
- ~
- 12
- 25
- Variable (100 - 2500)
- ~
- ~
- 0.35 / 0.5
- ~
- ~
- 240 / 10
- 78
- M604D
- BM-30
- 2-Axis Digital Readout
- Vertical
- 1270 x 254
- ~
- NT30
- ~
- 760
- 360
- 430
- Dovetail
- 520
- 505
- ~
- 127 / 86
- 740
- ±90º
- ±45º
- ~
- ~
- ~
- 0.015 / 0.04 / 0.08
- 20 - 2000
- Optional
- Optional
- 5/8
- 250
- 16 (80 - 5440)
- ~
- ~
- 2.2 / 3
- ~
- ~
- 415
- 1100
- M122
- HM-36
- Optional
- Vertical
- 730 x 210
- Ø115mm
- 3MT
- ~
- 475
- 195
- 450
- Dovetail
- ~
- 510
- ~
- 120 / 75
- 272
- ±90º
- Fixed
- 31.5
- 28
- 80
- ~
- Optional
- ~
- ~
- 14
- 55
- 6 (95 - 1600)
- ~
- ~
- 1.1 / 1.5
- ~
- ~
- 240 / 10
- 293
- M150
- HM-10
- Optional
- Vertical
- 385 x 93
- Dovetail
- 3MT
- ~
- 225
- 100
- 185
- Dovetail
- ~
- 280
- ~
- Fixed
- 160
- ±45º
- Fixed
- 13
- 16
- 30
- ~
- ~
- ~
- ~
- 12
- 25
- Variable (100 - 2500)
- ~
- ~
- 0.35 / 0.5
- ~
- ~
- 240 / 10
- 60
- M163S
- HM-52G
- Optional
- Vertical & Horizontal
- 1000 x 240
- ~
- NT30
- NT30
- 600*
- 200*
- 340
- Dovetail
- 500
- 375
- ~
- 125 / 90
- 640
- ±90º
- Fixed
- ~
- ~
- ~
- Manual
- 20 - 2000
- Optional
- Optional
- 14
- 175
- 8 (115 - 1750)
- 9 (60 - 1350)
- ~
- 1.5 / 2
- 1.5 / 2
- ~
- 415
- 1050
- M161
- HM-52
- Optional
- Vertical & Horizontal
- 1000 x 240
- ~
- NT30
- NT30
- 600
- 200
- 340
- Dovetail
- 500
- 375
- ~
- 125 / 90
- 640
- ±90º
- Fixed
- ~
- ~
- ~
- Manual
- 20 - 2000
- Optional *
- Optional *
- 14
- 175
- 9 (220 - 2400)
- 9 (60 - 1350)
- ~
- 1.5 / 2
- 1.5 / 2
- ~
- 240 / 10
- 1050
- M1635D
- HM-52GB
- 3-Axis Digital Readout
- Vertical & Horizontal
- 1000 x 240
- ~
- NT30
- NT30
- 600
- 200
- 340
- Dovetail
- 500
- 375
- ~
- 125 / 90
- 640
- ±90º
- Fixed
- ~
- ~
- ~
- Manual
- 20 - 2000
- Optional
- Optional
- 14
- 175
- 8 (115 - 1750)
- 9 (60 - 1350)
- ~
- 1.5 / 2
- 1.5 / 2
- ~
- 415
- 1050
- M637D
- BM-1500
- 3-Axis Digital Readout
- Universal Head
- 2100 x 500
- ~
- NT50
- NT50
- 1500
- 670
- 670
- Dovetail (X), Square (Y & Z)
- ~
- 670
- ~
- ~
- 610
- ±90º
- Fixed
- ~
- ~
- ~
- ~
- 20 - 1800
- 20 - 1800
- 10 - 900
- 20
- 2000
- 12 (35 - 1345)
- 12 (35 - 1345)
- ~
- 7.5 / 10
- 7.5 / 10
- ~
- 415
- 7300
- M647
- BF-20V
- Optional
- Vertical
- ~
- Dovetail
- 3MT
- ~
- ~
- ~
- 280
- Dovetail
- ~
- ~
- ~
- 50 / 60
- 185
- ±90º
- Fixed
- 16
- 20
- 63
- ~
- ~
- ~
- ~
- ~
- ~
- Variable (90 - 3000)
- ~
- ~
- 0.85 / 1.13
- ~
- ~
- 240 / 10
- 103
- M649
- BF-16V
- Optional
- Vertical
- 400 x 120
- Dovetail
- 3MT
- ~
- 220
- 160
- 210
- Dovetail
- ~
- 270
- ~
- 50 / 60
- 170
- ±90º
- Fixed
- 16
- 20
- 63
- ~
- ~
- ~
- ~
- 10
- 25
- Variable (100 - 3000)
- ~
- ~
- 0.5 / 0.66
- ~
- ~
- 240 / 10
- 78
- M650
- BF-20LV
- Optional
- Vertical
- 700 x 180
- Dovetail
- 3MT
- ~
- 480
- 175
- 280
- Dovetail
- ~
- 350
- ~
- 50 / 60
- 185
- ±90º
- Fixed
- 16
- 20
- 63
- ~
- ~
- ~
- ~
- 12
- 40
- Variable (90 - 3000)
- ~
- ~
- 0.85 / 1.13
- ~
- ~
- 240 / 10
- 162
- M121
- HM-32
- Optional
- Vertical
- 820 x 240
- Ø115mm
- 3MT
- ~
- 540
- 190
- 410
- Dovetail
- ~
- 455
- ~
- 130 / 75
- 202
- Fixed
- Fixed
- 31.5
- 22
- 80
- ~
- Optional
- ~
- ~
- 14
- 55
- 12 (100 - 2150)
- ~
- ~
- 1.5 / 2
- ~
- ~
- 240 / 10
- 295
- M137
- HM-32B
- Optional
- Vertical
- 820 x 240
- Ø115mm
- 3MT
- ~
- 540
- 235
- 310
- Dovetail
- ~
- 465
- ~
- 130 / 75
- 202
- Fixed
- Fixed
- 31.5
- 22
- 80
- ~
- Optional
- ~
- ~
- 14
- 55
- 12 (100 - 2080)
- ~
- ~
- 1.5 / 2
- ~
- ~
- 240 / 10
- 310
- M124
- HM-46
- Optional
- Vertical
- 730 x 210
- Dovetail
- 3MT
- ~
- 475
- 195
- 450
- Dovetail
- ~
- 510
- ~
- 120 / 75
- 265
- ±90º
- Fixed
- 31.5
- 28
- 80
- ~
- Optional
- ~
- ~
- 14
- 55
- 6 (95 - 1600)
- ~
- ~
- 1.1 / 1.5
- ~
- ~
- 415
- 318
- M652
- HM-28V
- Optional
- Vertical
- 730 x 210
- Dovetail
- 3MT
- ~
- 430
- 220
- 355
- Dovetail
- ~
- 465
- ~
- 70 / ~
- 210
- ±90º
- Fixed
- 20
- 28
- 70
- ~
- ~
- ~
- ~
- 14
- 55
- Variable (100 - 2500)
- ~
- ~
- 1.1 / 1.5
- ~
- ~
- 240 / 10
- 240
- M138
- HM-46B
- ~
- Vertical
- 730 x 210
- Dovetail
- 3MT
- ~
- 485
- 175
- 430
- Dovetail
- ~
- 485
- ~
- 120 / 75
- 265
- ±90º
- Fixed
- 31.5
- 28
- 80
- ~
- Optional
- ~
- ~
- 14
- 55
- 6 (95 - 1650)
- ~
- ~
- 1.5 / 2
- ~
- ~
- 240 / 10
- 380
- M138D
- HM-46B
- 3-Axis Counter, X, Y Scales
- Vertical
- 730 x 210
- Dovetail
- 3MT
- ~
- 485*
- 175*
- 430
- Dovetail
- ~
- 485
- ~
- 120 / 75
- 265
- ±90º
- Fixed
- 31.5
- 28
- 80
- ~
- Optional
- ~
- ~
- 14
- 55
- 6 (95 - 1650)
- ~
- ~
- 1.5 / 2
- ~
- ~
- 240 / 10
- 380
- M139D
- HM-46B
- 3-Axis Counter, X, Y Scales
- Vertical
- 730 x 210
- Dovetail
- 3MT
- ~
- 485*
- 175*
- 430
- Dovetail
- ~
- 485
- ~
- 120 / 75
- 265
- ±90º
- Fixed
- 31.5
- 28
- 80
- ~
- Optional
- ~
- ~
- 14
- 55
- 6 (95 - 1650)
- ~
- ~
- 1.5 / 2
- ~
- ~
- 415 /
- 380
- D185
- DMF-44
- Optional
- Vertical
- 730 x 210
- Ø125mm
- 3MT
- ~
- 480
- 200
- 850
- Dovetail
- ~
- 630
- ~
- 120 / 75
- 280
- ±90º
- Fixed
- 31.5
- 28
- 80
- ~
- Optional
- ~
- ~
- 14
- 55
- 6 (95 - 1650)
- ~
- ~
- 1.5 / 2
- ~
- ~
- 240 / 10
- 390
- M140D
- HM-47B
- 3-Axis Counter, X, Y Scales
- Vertical
- 800 x 240
- Dovetail
- 3MT
- ~
- 540*
- 205*
- 385
- Dovetail
- ~
- 485
- ~
- 120 / 75
- 265
- ±90º
- Fixed
- 31.5
- 28
- 80
- ~
- Optional
- ~
- ~
- 14
- 55
- 6 (95 - 1650)
- ~
- ~
- 1.5 / 2
- ~
- ~
- 240 / 10
- 430
- M141D
- HM-48B
- 3-Axis Digital Readout
- Vertical
- 1000 x 240
- Dovetail
- 3MT
- ~
- 670*
- 205*
- 380
- Dovetail
- ~
- 480
- ~
- 120 / 75
- 265
- ±90º
- Fixed
- 31.5
- 28
- 80
- ~
- Yes
- ~
- ~
- 14
- 55
- 6 (95 - 1650)
- ~
- ~
- 1.5 / 2
- ~
- ~
- 240 / 10
- 450
- M126D
- HM-48
- 3-Axis Digital Readout
- Vertical
- 820 x 240
- Dovetail
- 3MT
- ~
- 540*
- 185*
- 410
- Dovetail
- ~
- 490
- ~
- 120 / 75
- 273
- ±90º
- Fixed
- 31.5
- 28
- 80
- ~
- Yes
- ~
- ~
- 14
- 55
- 6 (95 - 1600)
- ~
- ~
- 1.5 / 2
- ~
- ~
- 240 / 10
- 430
- M577
- HM-51B
- 3-Axis Digital Readout
- Vertical
- 1000 x 240
- ~
- NT30
- ~
- 580*
- 190*
- 350
- Dovetail
- 350
- 390
- ~
- 125 / 90
- 550
- ±45º
- Fixed
- 30
- 25
- 80
- Manual
- 20 - 2000
- ~
- ~
- 14
- 175
- 9 (220 - 2400)
- ~
- ~
- 2.2 / 3
- ~
- ~
- 240 / 15
- 850
- M579
- HM-54GV
- 3-Axis Digital Readout
- Vertical & Horizontal
- 1000 x 240
- ~
- NT30
- NT30
- 600*
- 200*
- 340
- Dovetail
- 450
- 375
- ~
- 120 / 90
- 640
- ±45º
- Fixed
- 40
- 25
- 80
- Manual
- 20 - 2000
- ~
- ~
- 14
- 160
- Variable (100 - 2000)
- 9 (60 - 1350)
- ~
- 2.2 / 3
- 1.5 / 2
- ~
- 240 / 10
- 900
- M585D
- PBM-GVS250
- 3-Axis Digital Readout
- Vertical & Horizontal
- 1100 x 250
- ~
- NT40
- NT40
- 700
- 250
- 440
- ~
- 300
- 470
- ~
- 127 / 105
- 500
- ±90º
- ~
- ~
- ~
- ~
- 0.037 / 0.076 / 0.152
- 0.02 - 0.20
- Optional
- Rapid
- 5/8
- 300
- Variable (70 - 3500)
- 6 (40 - 980)
- ~
- 3.75 / 5
- 2.25 / 3
- ~
- 415
- 1350
- M593D
- BM-22AD
- 3-Axis Counter, X, Y Scales
- Vertical
- 1066 x 230
- ~
- NT30
- ~
- 595
- 300
- 360
- Dovetail
- 500
- ~
- ~
- 127 / 86
- 720
- ±90º
- ±45º
- ~
- ~
- ~
- 0.04 / 0.08 / 0.15
- 20 - 2000
- Optional
- Optional
- 16
- 250
- 8 (65 - 2330)
- ~
- ~
- 2.2 / 3
- ~
- ~
- 240 / 15
- 1100
- M603D
- BM-30A
- 3-Axis Counter, X, Y Scales
- Vertical
- 1270 x 254
- ~
- NT30
- ~
- 760
- 360
- 430
- Dovetail
- 520
- 505
- ~
- 127 / 86
- 740
- ±90º
- ±45º
- ~
- ~
- ~
- 0.015 / 0.04 / 0.08
- 20 - 2000
- Optional
- Optional
- 5/8
- 250
- 8 (80 - 2720)
- ~
- ~
- 2.2 / 3
- ~
- ~
- 240 / 20
- 1100
- M607D
- BM-40V
- 3-Axis Digital Readout
- Vertical
- 1370 x 254
- ~
- NT30
- ~
- 860
- 360
- 425
- Dovetail
- 508
- 505
- ~
- 127 / 86
- 735
- ±90º
- ±45º
- ~
- ~
- ~
- 0.015 / 0.04 / 0.08
- 20 - 2000
- Optional
- Optional
- 5/8
- 300
- Variable (70 - 3500)
- ~
- ~
- 2.2 / 3
- ~
- ~
- 415
- 1300
- M585D
- PBM-GVS250
- 3-Axis Digital Readout
- Vertical & Horizontal
- 1100 x 250
- ~
- NT40
- NT40
- 700
- 250
- 440
- ~
- 300
- 470
- ~
- 127 / 105
- 500
- ±90º
- ~
- ~
- ~
- ~
- 0.037 / 0.076 / 0.152
- 0.02 - 0.20
- Optional
- Rapid
- 5/8
- 300
- Variable (70 - 3500)
- 6 (40 - 980)
- ~
- 3.75 / 5
- 2.25 / 3
- ~
- 415
- 1350
- M586D
- BM-GEVS250
- 3-Axis Digital Readout
- Vertical & Horizontal
- 1100 x 250
- ~
- NT40
- NT40
- 700
- 250
- 440
- Dovetail (X, Y & Z)
- 300
- 470
- ~
- 127 / 105
- 500
- ±90º
- ~
- ~
- ~
- ~
- 0.037 / 0.076 / 0.152
- 0.02 - 0.20
- Optional
- Rapid
- 5/8
- 300
- Variable (60 - 3600)
- 6 (40 - 980)
- ~
- 3.75 / 5
- 2.25 / 3
- ~
- 415
- 1350
- M597D
- BM-53VE
- 3-Axis Digital Readout
- Vertical
- 1370 x 254
- ~
- NT40
- ~
- 890
- 400
- 415
- Dovetail (X), Square (Y & Z)
- 555
- 465
- ~
- 127 / 86
- 635
- ±90º
- ±45º
- ~
- ~
- ~
- 0.04 / 0.08 / 0.15
- 20 - 2000
- 20 - 2000
- Rapid
- 16
- 350
- Variable (50 - 3550)
- ~
- ~
- 3.75 / 5
- ~
- ~
- 415
- 1545
- M630D
- BM-70VE
- 3-Axis Digital Readout
- Vertical
- 1500 x 305
- ~
- NT40
- ~
- 1050
- 420
- 400
- Dovetail (X), Square (Y & Z)
- 485
- 460
- ~
- 155 / 105
- 750
- ±90º
- ±45º
- ~
- ~
- ~
- 0.04 / 0.08 / 0.13
- 30 - 3000
- 30 - 3000
- Rapid
- 5/8
- 500
- Inverter (70 - 4200)
- ~
- ~
- 3.75 / 5
- ~
- ~
- 415
- 1800
- M632D
- BM-90VE
- 3-Axis Digital Readout
- Vertical
- 1470 x 370
- ~
- NT40
- ~
- 1120
- 520
- 360
- Dovetail (X), Square (Y & Z)
- 500
- 500
- ~
- 140 / 110
- 685
- ±90º
- Fixed
- ~
- ~
- ~
- 0.035 / 0.07 / 0.14
- 30 - 3000
- 30 - 3000
- Rapid
- 18
- 600
- Inverter (60 - 3600)
- ~
- ~
- 3.75 / 5
- ~
- ~
- 415
- 2600
- M633D
- BM-90HV
- 3-Axis Digital Readout
- Vertical & Horizontal
- 1470 x 370
- ~
- NT40
- NT40
- 1120
- 520
- 440
- Dovetail (X), Square (Y & Z)
- 600
- 505
- ~
- 140 / 110
- 785
- ±90º
- Fixed
- ~
- ~
- ~
- 0.035 / 0.07 / 0.14
- 30 - 3000
- 30 - 3000
- Rapid
- 18
- 600
- Inverter (60 - 3600)
- 9 (65 - 1500)
- ~
- 3.75 / 5
- 3.75 / 5
- ~
- 415
- 2725
- M638D
- BM-1600
- 3-Axis Digital Readout
- Universal Head
- 1600 x 360
- Dovetail
- NT50
- NT50
- 1310
- 300
- 410
- Dovetail (X), Square (Y & Z)
- 45 - 745
- 150 - 560
- ~
- ~
- ~
- 360º
- Fixed
- ~
- ~
- ~
- ~
- 30 - 750
- 20 - 500
- 15 - 375
- 18
- 400
- 12 / 60 - 1750
- 12 / 60 - 1800
- 27 (30 - 2050)
- 4 / 5.5
- 5.5 / 7.5
- ~
- 415
- 4500
- M639D
- BM-1600
- 3-Axis Digital Readout
- Universal Head
- 1600 x 500
- Dovetail
- NT50
- NT50
- 1200
- 700
- 500
- Dovetail (X), Square (Y & Z)
- 45 - 745
- 50 - 550
- ~
- ~
- ~
- 360º
- Fixed
- ~
- ~
- ~
- ~
- 10 - 1000
- 10 - 1000
- 5 - 500
- 18
- 1800
- ~
- ~
- 27 (30 - 2050)
- ~
- ~
- 7.5 / 10
- 415
- 4500
- M640D
- BM-2000
- 3-Axis Digital Readout
- Universal Head
- 2000 x 500
- Dovetail
- NT50
- NT50
- 1400
- 700
- 570
- Dovetail (X), Square (Y & Z)
- 45 - 745
- 50 - 550
- ~
- ~
- ~
- 360º
- Fixed
- ~
- ~
- ~
- ~
- 10 - 1000
- 10 - 1000
- 5 - 500
- 18
- 1800
- ~
- ~
- 27 (30 - 2050)
- ~
- ~
- 7.5 / 10
- 415
- 4700
- M646
- BF-16AV
- Optional
- Vertical
- ~
- Dovetail
- 3MT
- ~
- ~
- ~
- 210
- Dovetail
- ~
- ~
- ~
- 50 / 60
- 170
- ±90º
- Fixed
- 16
- 20
- 63
- ~
- ~
- ~
- ~
- ~
- ~
- Variable (100 - 3000)
- ~
- ~
- 0.5 / 0.66
- ~
- ~
- 240 / 10
- 67
| ORDER CODE | HM-47 |
|---|---|
| MODEL | 3-Axis Counter, X, Y Scales |
| Digital Readout | Vertical |
| Type | 820 x 240 |
| Table Sizemm | Dovetail |
| Column Type | 3MT |
| Spindle Taper - Vertical | ~ |
| Spindle Taper - Horizontal | 540* |
| Longitudinal Travel (X-Axis)mm | 185* |
| Cross Travel (Y-Axis)mm | 410 |
| Vertical Travel (Z-Axis)mm | Dovetail |
| Type of Slides | ~ |
| Ram Travelmm | 490 |
| Spindle to Tablemm | ~ |
| Spindle to Base | 120 / 75 |
| Spindle Travel / Diametermm | 273 |
| Throat Depth (max.)mm | ±90º |
| Tilting Head (Left ~ Right) | Fixed |
| Tilting Head (Forward ~ Back) | 31.5 |
| Drilling Capacitymm | 28 |
| End Milling Capacitymm | 80 |
| Face Milling Capacitymm | ~ |
| Power Feed - Quillmm/rev | ~ |
| Power Feed - Longitudinal (X-Axis)mm/min | ~ |
| Power Feed - Cross (Y-Axis)mm/min | ~ |
| Power Feed - Vertical (Z-Axis)mm/min | 14 |
| Table T-Slot Sizeinch / mm | 55 |
| Work Table Load Capacitykg | 6 (95 - 1600) |
| Spindle Speeds VerticalNo./ rpm | ~ |
| Spindle Speeds HorizontalNo./ rpm | ~ |
| Spindle Speeds - Universal Head | 1.5 / 2 |
| Motor Power - Vertical SpindlekW / hp | ~ |
| Motor Power - Horizontal SpindlekW / hp | ~ |
| Motor Power - Universal Head | 240 / 10 |
| Voltage / AmperageV / amp | 407 |
| Nett Weightkg |
