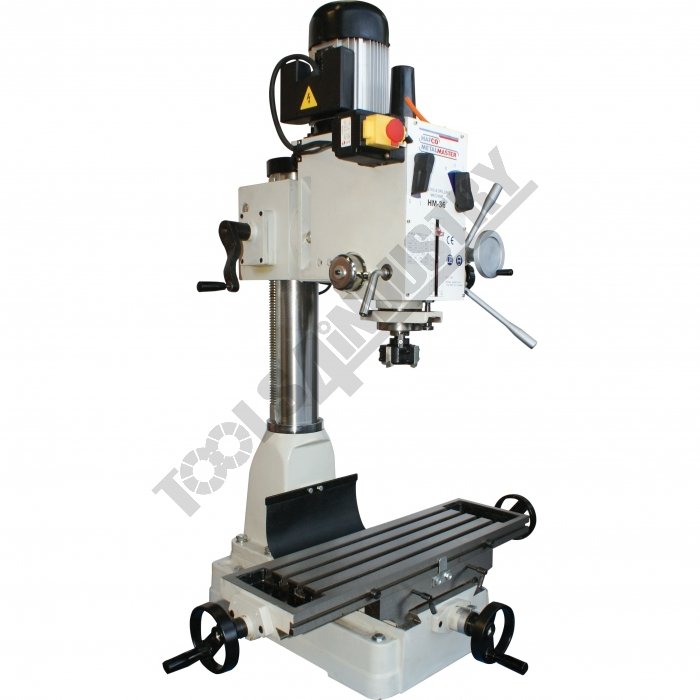

Mill Drill - Geared & Tilting Head HM-36 Table Travel: (X) - 475mm (Y) - 195mm (Z) - 450mm

Description

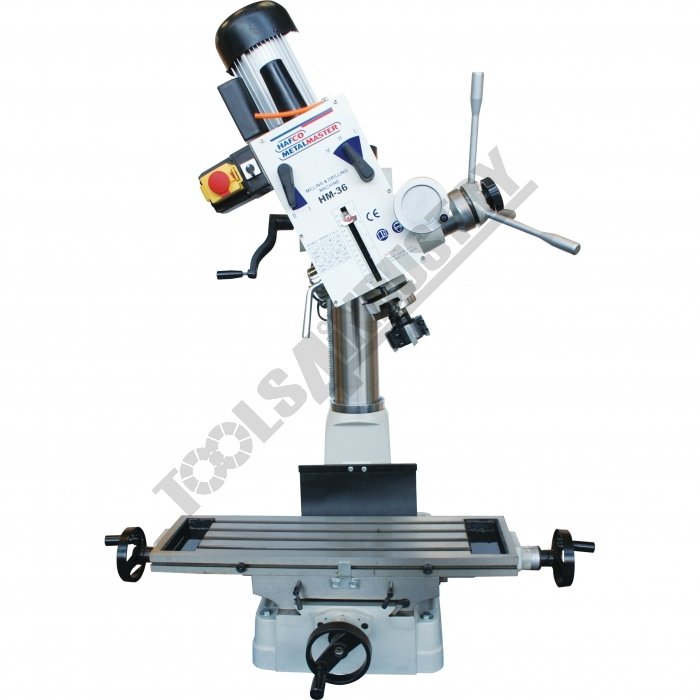

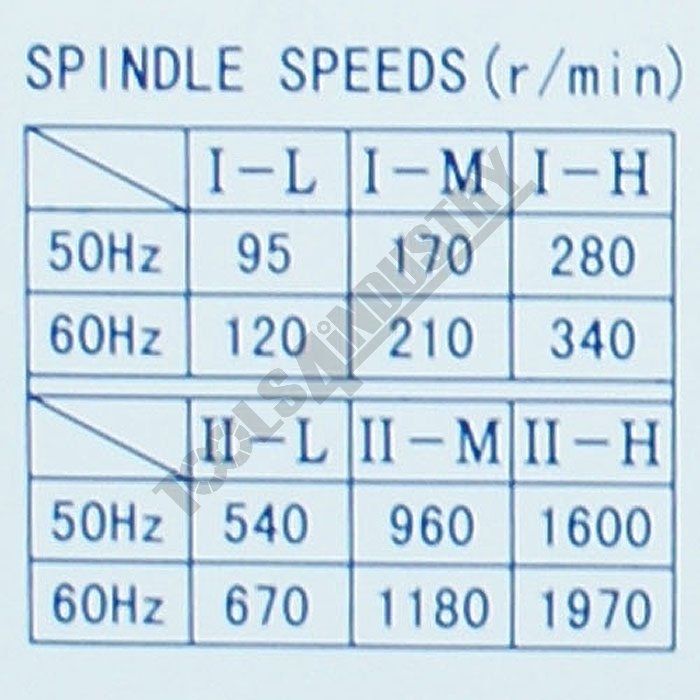

The HM-36 milling machines is similar in overall size to the popular RF31 but with the additional benefit of a 6-speed 95-1600rpm, gear driven head which can be tilted up to 90º either side of the vertical. This feature allows the head to be positioned in a variety of positions, allowing a whole range of milling, slotting, grooving, drilling and boring operations to be carried out.

The usual handle-driven down feed is available for precision drilling and there is a fine manual down-feed control for precise vertical milling.

The motor is controlled by a standard forward and reverse on/off switch.

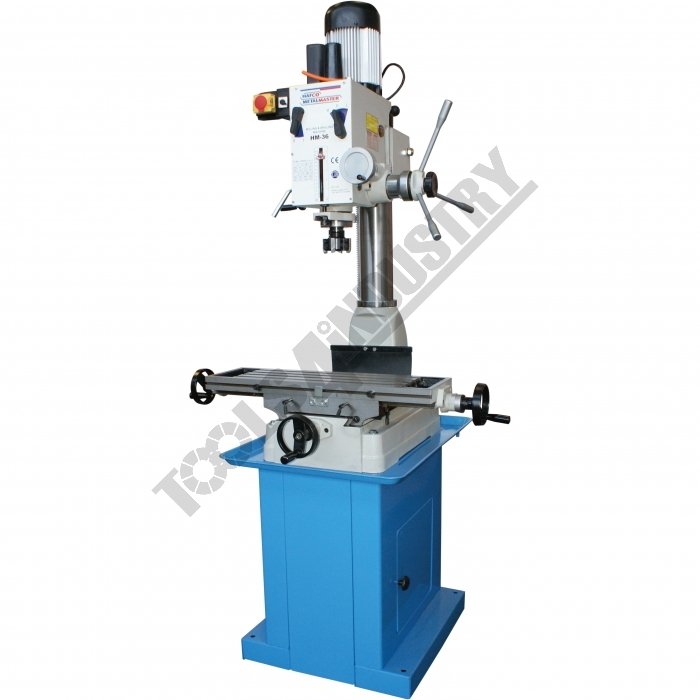

There is a heavy duty steel stand available as an extra, strongly recommended bearing in mind the weight of the machine.

Also available is a optional power feed attachment which fits to the left hand end of the table and provides a smooth, variable speed longitudinal drive.

Features

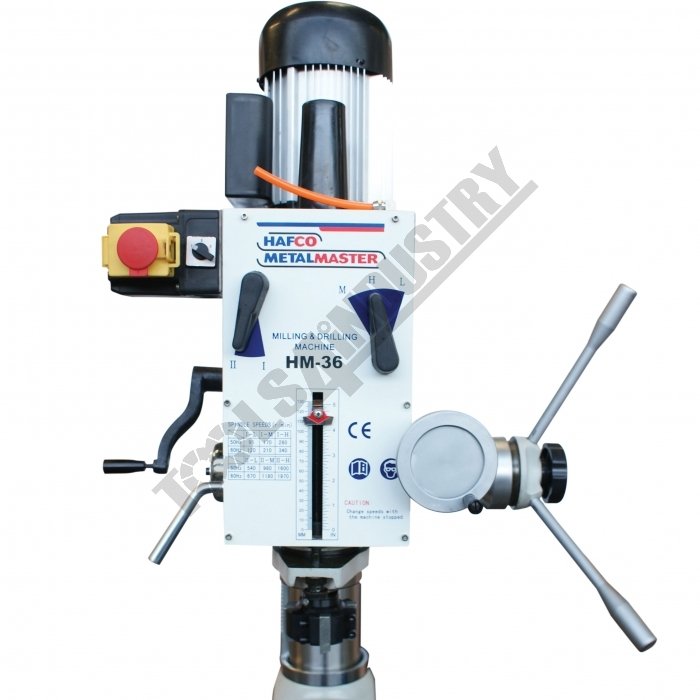

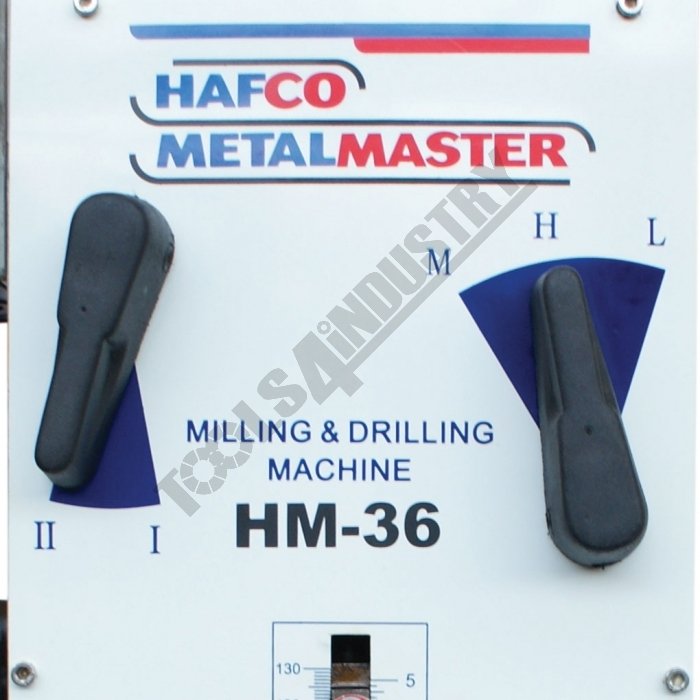

• Gear driven head 6 speeds

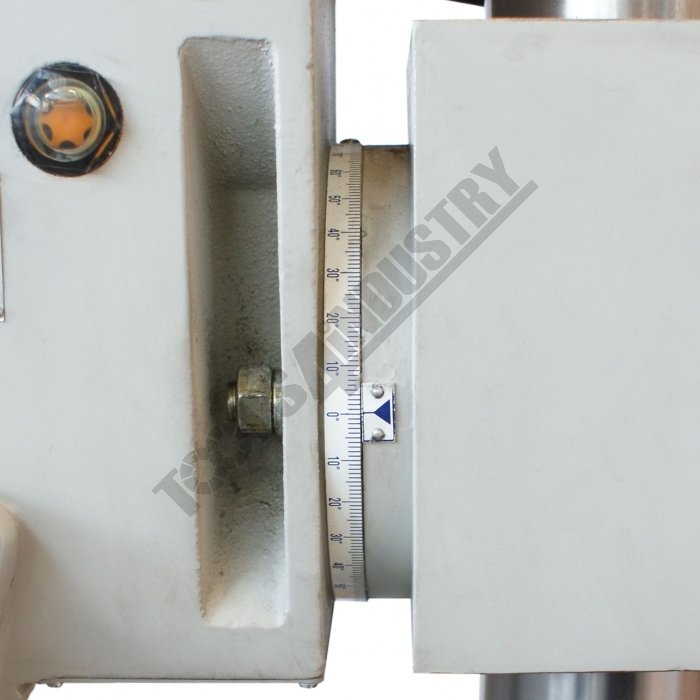

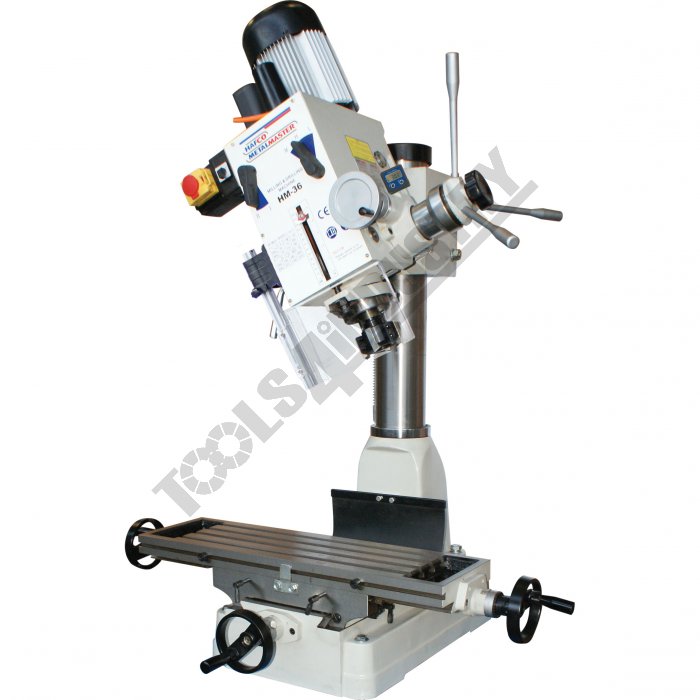

• Tilting head to ±90º from vertical
• Milling head rotates 360º on column

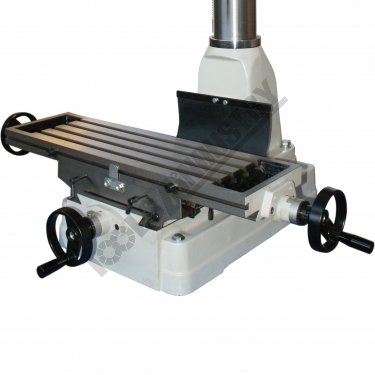

• Extra large 730 x 210mm ground work table with T-slots
• Adjustable leadscrew nuts eliminating backlash on both axis

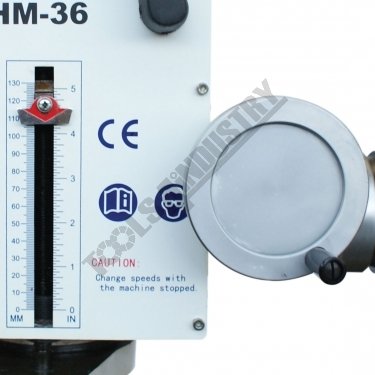

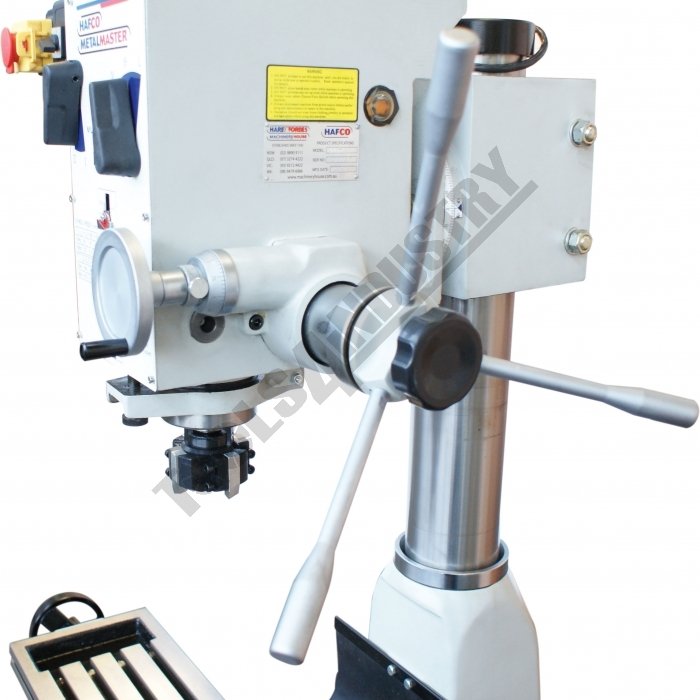

• Fine feed hand wheel operating quill feed

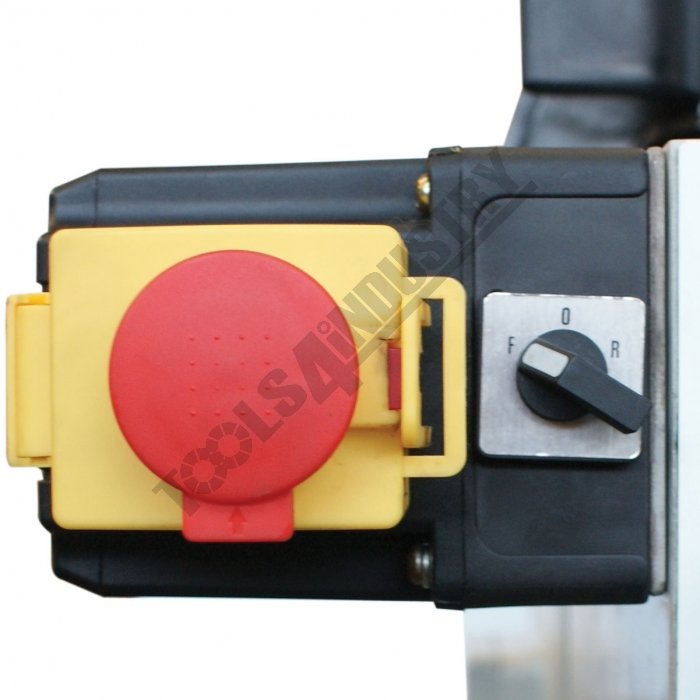

• Forward and reverse on/off switch
• 3MT spindle with 75mm diameter quill
• Adjustable table and drill length stops

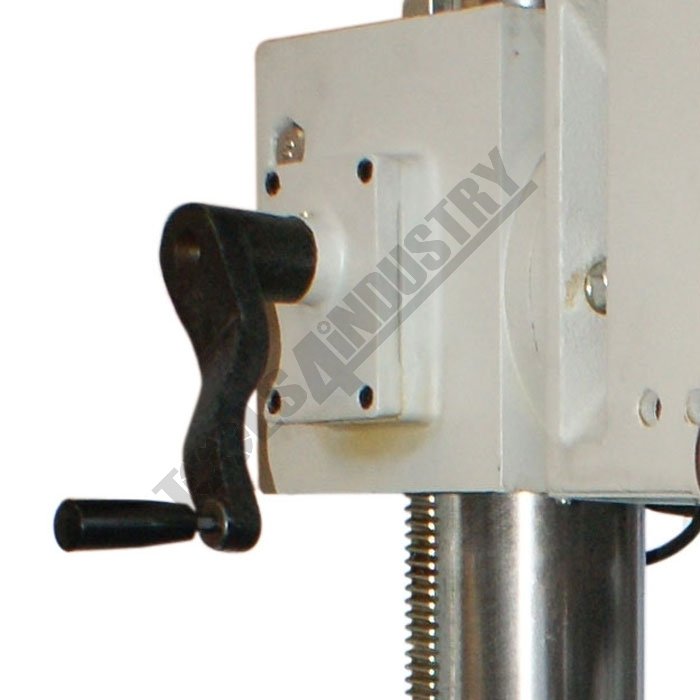

• Rack and pinion wind-up head
• Rear slide-way cover and slide clamps on all axis

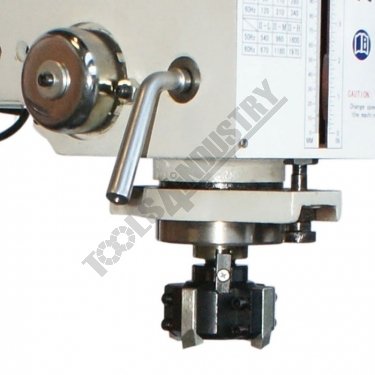

• Spindle lock for quill
• Table lock on both axis

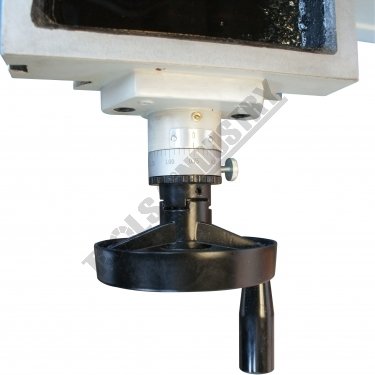

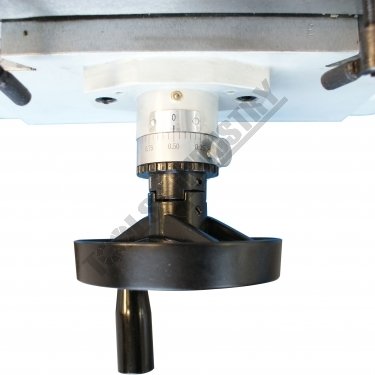

• Metric dial graduations @ 0.05mm for X & Y axis

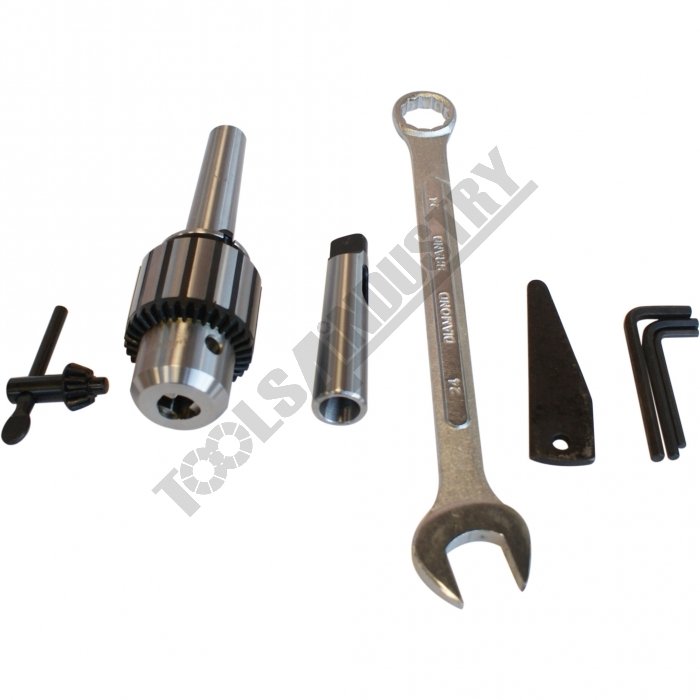

Includes

• Drill chuck
• 3MT arbor
• 3MT-2MT drill sleeve

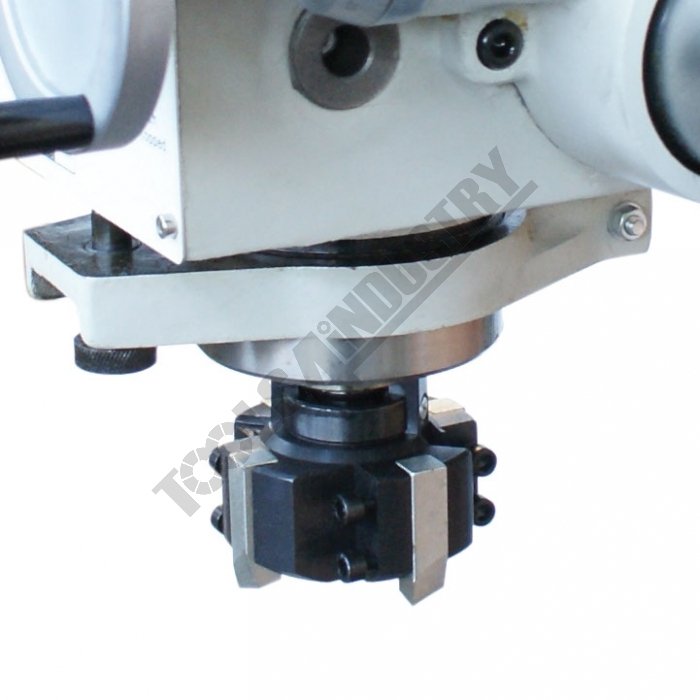

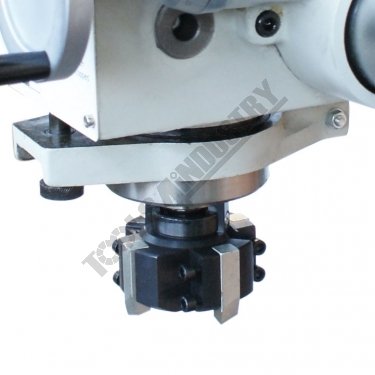

• Face cutter & arbor
• Safety cutter guard
