This Product Is No Longer Available
| Code | D5206 |
|---|---|
| Model | Suits XH-2, XH-3 |
| Capacity | Mill Basic Kit for 2-Axis or 3-Axis |
| Weight (kg) | 1.5 |
| Weight (m3) | 0.004 |
| Weight (Freight) | 1.5 |
| Dimensions (cm) | 41 x 10 x 9 |
Product Brochure
This Product Is No Longer Available
Sino Digital Readout Mill Mounting Bracket Kit Suits XH-2, XH-3 Mill Basic Kit for 2-Axis or 3-Axis
Description
Mill Bracket Mounting kit suits SINO XH-2 2-Axis or XH-3 3-Axis Digital Readout UnitsFeatures
- Components carefully selected to assist in mounting Sino 2-Axis or 3-Axis DRO onto Milling machines

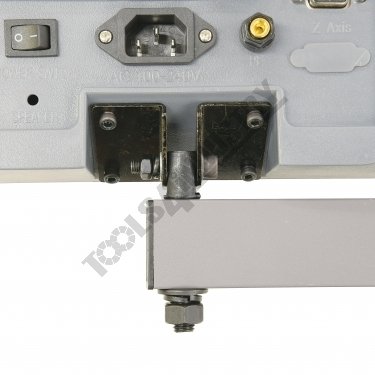

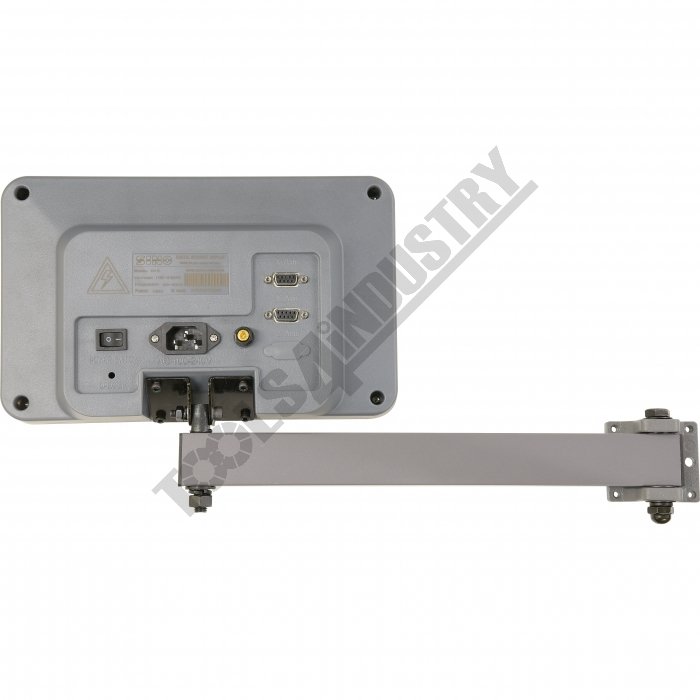

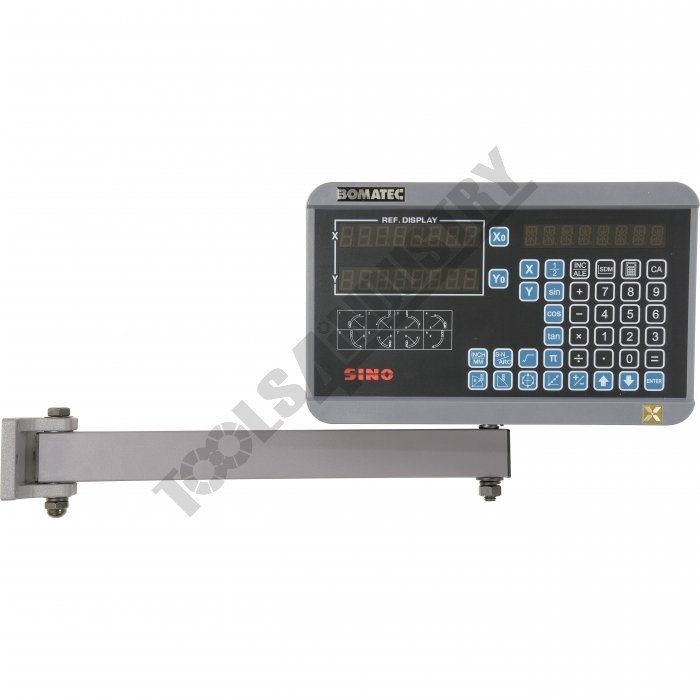

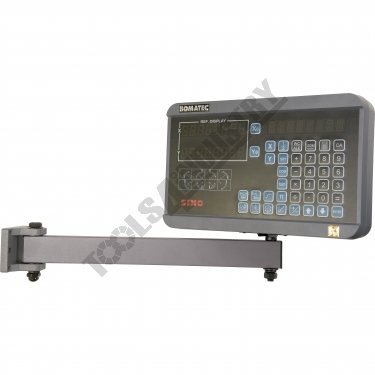

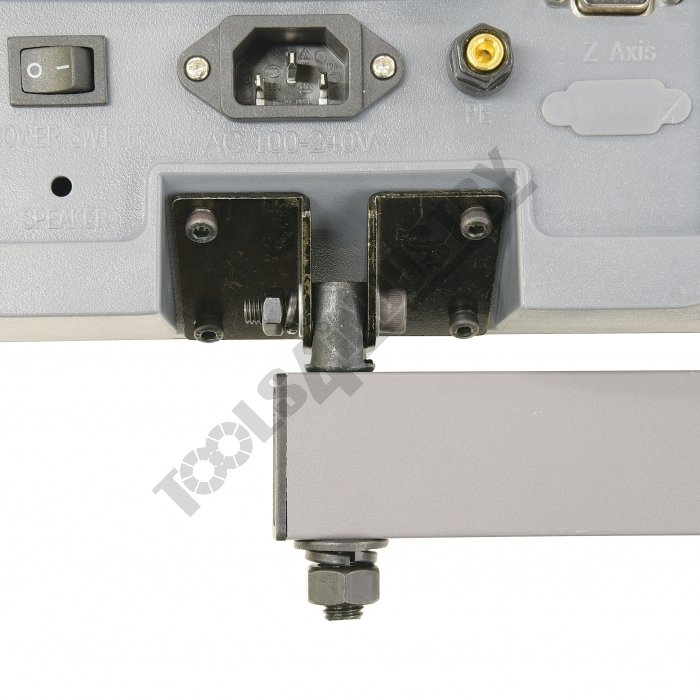

- Milling Machine display arm with swivel bracket
- Cast aluminium brackets slotted and tapped
- Please Note: Modification to brackets or reproducing of additional brackets or spacers maybe required to suit your particular machine

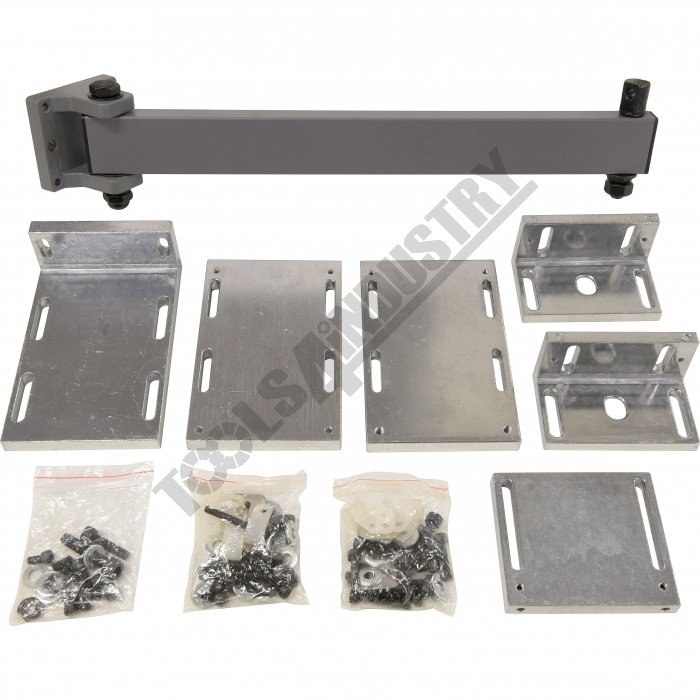

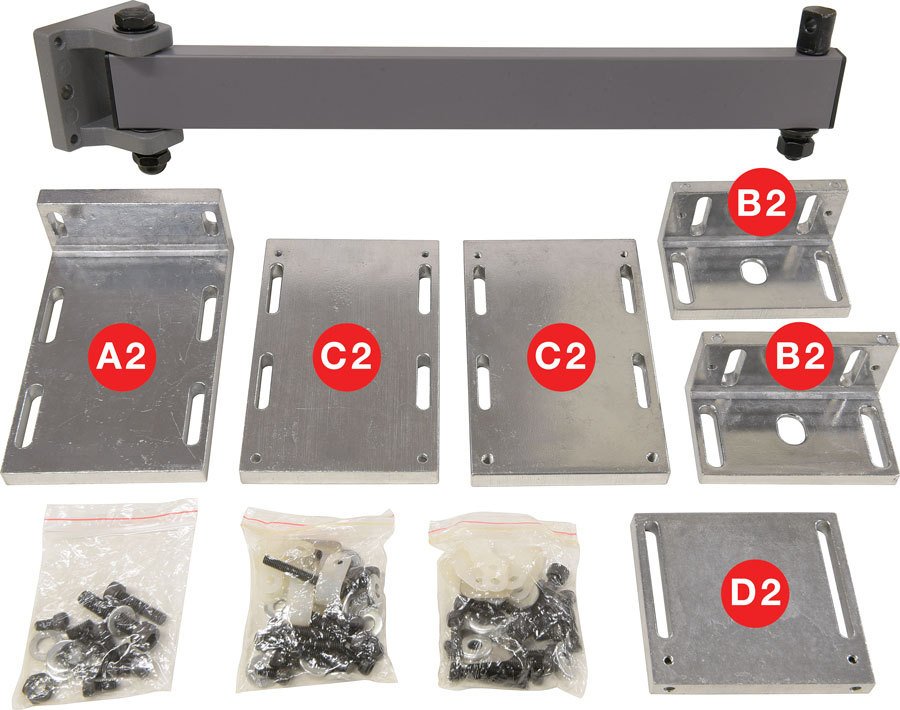

Includes
- Milling Machine display arm with swivel bracket
- 1 x Angle ‘A2’ Bracket Slotted and Tapped (40x130x10mm x 80mm wide)
- 2 x Angle ‘B2’ Bracket Slotted and Tapped (40x50x8mm x 80mm wide)
- 2 x Flat ‘C2’ Bracket Slotted and Tapped (80x130x10mm)
- 1 x Flat ‘D2’ Bracket Slotted and Tapped (70x80x10mm)
- Screws and washers
Specifications
- Compare 13 Products
- ORDER CODE
- Suits
- Mount Type
- Cable LengthMetre
- Plugs
- D5206
- 2 or 3-Axis DRO XH-2/3
- Mill Basic Kit - 2 or 3-Axis
- ~
- ~
- D770
- Mill DRO
- "Z" Axis mounting
- ~
- ~
- D772
- Lathe or Mill DRO
- Scale Bracket Kit
- ~
- ~
- D710
- DRO Scales
- Extension Cable
- 5
- DSub 9
- D709
- DRO Scales
- Extension Cable
- 3
- DSub 9
- D711
- DRO Scales
- Extension Cable
- 0.15
- DSub 9 Male
DIN7 Female
- D712
- DRO Scales
- Extension Cable
- 0.15
- DIN7 Male to
DSub9 Female
- D776
- Mill DRO
- DRO mounting arm
- ~
- ~
- D775
- 3 or 2 Axis DRO
- Bracket Housing
- ~
- ~
- D714E
- 2 Axis Mill
- Basic Mill Kit
- ~
- ~
- D714M
- 3 or 2 Axis Mill DRO
- Basic Mill Kit
- ~
- ~
- D714L
- 2 Axis Lathe
- Basic Lathe Kit
- ~
- ~
- D5204
- 2-Axis Digital Readout XH-2
- Lathe Basic Kit for 2-Axis
- ~
- ~
| ORDER CODE | 2 or 3-Axis DRO XH-2/3 |
|---|---|
| Suits | Mill Basic Kit - 2 or 3-Axis |
| Mount Type | ~ |
| Cable LengthMetre | ~ |
| Plugs |
