This Product Is No Longer Available
| Code | C821 |
|---|---|
| Capacity | Collet Range Ø1 - Ø7mm |
| Weight (kg) | 0.12 |
| Weight (m3) | 0.001 |
| Weight (Freight) | 0.333 |
| Dimensions (cm) | 14 x 12 x 3 |
Product Brochure
This Product Is No Longer Available

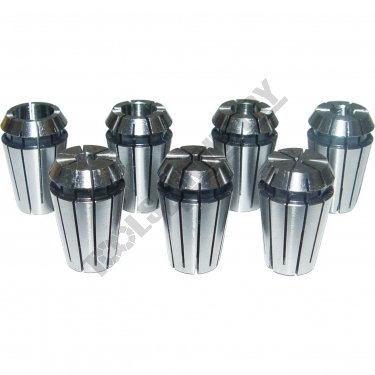

ER11 Collet Set - 7 Piece Collet Range Ø1 - Ø7mm
Description
Note: Sets do not include spanner
Specifications
- Compare 14 Products
- ORDER CODE
- Type
- Pieces in SetNo.
- Collet Range
- C821
- ER11
- 7
- 1, 2, 3, 4, 5, 6, 7mm
- C982A
- 5C
- 7
- 1/4", 5/16", 3/8"
1/2", 5/8", 3/4", 1"
- C982
- 5C
- 7
- 6, 8, 10, 12, 16, 20, 25mm
- C850
- ER20
- 12
- 2-1, 3-2, 4-3, 5-4
6-5, 7-6, 8-7, 9-8
10-9, 11-10, 12-11
13-12mm
- C860
- ER25
- 15
- 2-1, 3-2, 4-3, 5-4
6-5, 7-6, 8-7, 9-8
10-9, 11-10, 12-11
13-12, 14-13, 15-14
16-15mm
- C921
- ER32
- 6
- 6-5, 8-7, 10-9, 12-11
16-15, 20-19mm
- C922
- ER32
- 18
- 3-2, 4-3, 5-4, 6-5
7-6, 8-7, 9-8, 10-9
11-10, 12-11, 13-12
14-13, 15-14, 16-15
17-16, 18-17, 19-18
20-19mm
- C957
- ER40
- 7
- 6-5, 8-7, 10-9, 12-11
16-15, 20-19, 25-24mm
- C958
- ER40
- 23
- 4-3, 5-4, 6-5, 7-6
8-7, 9-8, 10-9, 11-10
12-11, 13-12, 14-13
15-14, 16-15, 17-16
18-17, 19-18, 20-19
21-20, 22-21, 23-22
24-23, 25-24, 26-25mm
- C984
- 5C
- 24
- 3, 4, 5, 6, 7, 8, 9, 10, 11
12, 13, 14, 15, 16
17, 18, 19, 20, 21
22, 23, 24, 25, 26mm
- C985
- 5C
- 17
- 1/16, 1/8, 3/16, 1/4, 5/16
3/8, 7/16, 1/2, 9/16
5/8, 11/16, 3/4, 13/16
7/8, 15/16, 1, 1-1/16"
- C9225
- ER32
- 18
- 3-2, 4-3, 5-4, 6-5
7-6, 8-7, 9-8, 10-9
11-10, 12-11, 13-12
14-13, 15-14, 16-15
17-16, 18-17, 19-18
20-19mm
- C862
- ER25 (Sealed)
- 10
- 4, 5, 6, 9, 10, 12
13, 14, 15, 16mm
- C831
- ER16
- 10
- 1-0.5, 2-1, 3-2, 4-3
5-4, 6-5, 7-6, 8-7
9-8, 10-9mm
| ORDER CODE | ER11 |
|---|---|
| Type | 7 |
| Pieces in SetNo. | 1, 2, 3, 4, 5, 6, 7mm |
| Collet Range |
