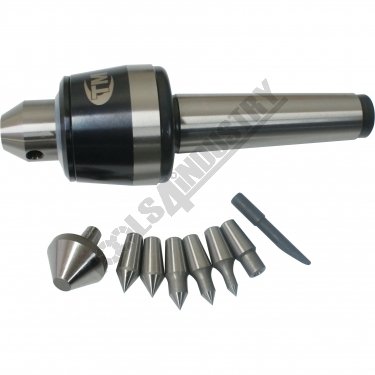

4MT Live Centre Set - Interchangeable Centring Tips

Description

Toolmaster high speed live centre set with interchangeable centres.
The body uses at the front a double row ball bearings and a thrust bearing with the main shaft supported at the other end with a needle roller bearing

Features

• Complete with 7 interchangeable points for various operations
• Supplied in plastic blow-mould case
• Body manufactured from SC45C tool steel hardened to HRC-60 and precision ground
• Maximum speed 3000rpm
• Concentric 0.0005mm

Includes

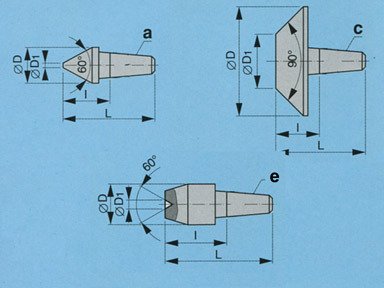

• 2 x A Type D=12.5mm L=32mm I=16mm
• 1 x A Type D=9.8mm L=38.6mm I=24mm
• 1 x A Type D=8mm L=38.6mm I=20mm
• 1 x A Type D=6mm L=38.6mm I=20mm
• 1 x C Type D=32mm D1=10mm L=40mm I=22mm
• 1 x E Type D=7.5mm L=32mm I=12mm
