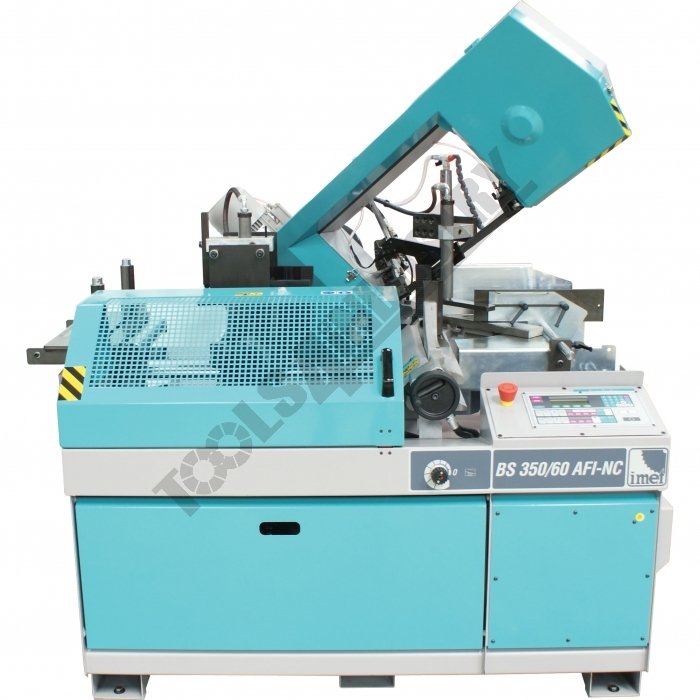

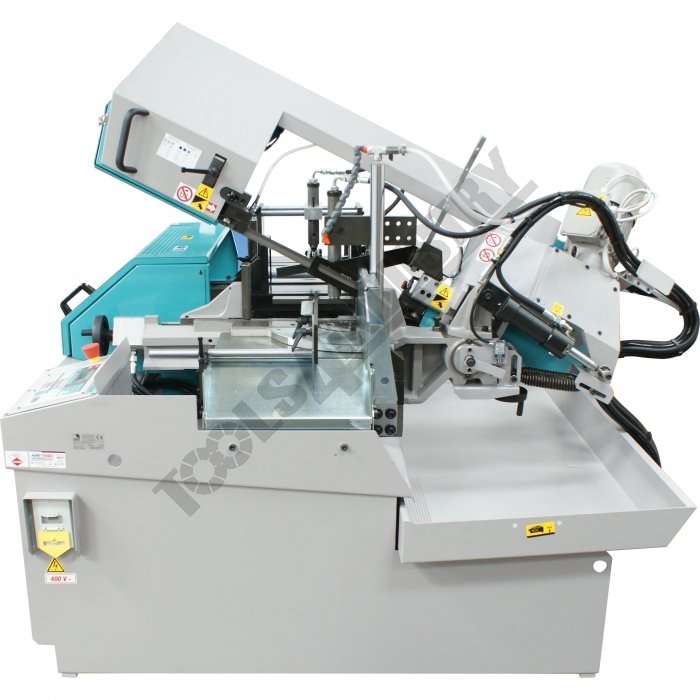

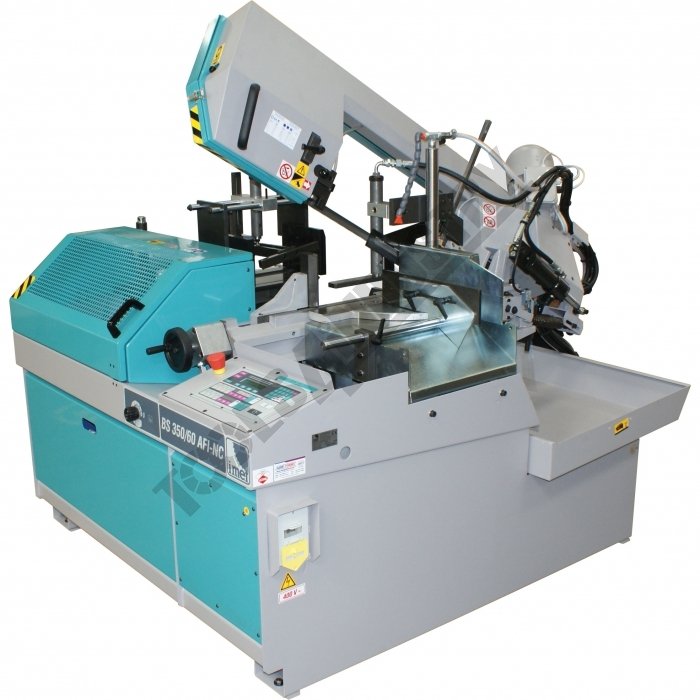

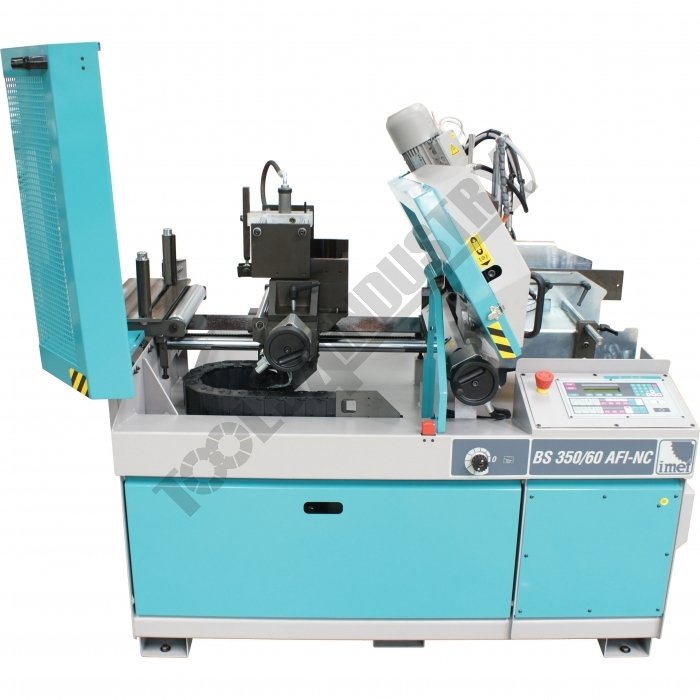

Automatic Hitch Feed Metal Cutting Band Saw BS350/60 AFI-NC

Description

Features

• CNC automatic band saw, hydraulically driven enables 99 different cutting lengths and number of cuts can be memorised, with the possibility to repeat them more than once

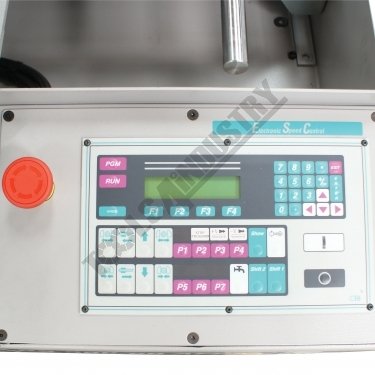

• CNC controls with programming of all operations; machine status shown on display, including blade speed, piece counter; working anomalies shown, too; setting of the cutting lengths (from 4 - 9999mm) by means of the keyboard on the control panel with repetition hitch feeder strokes

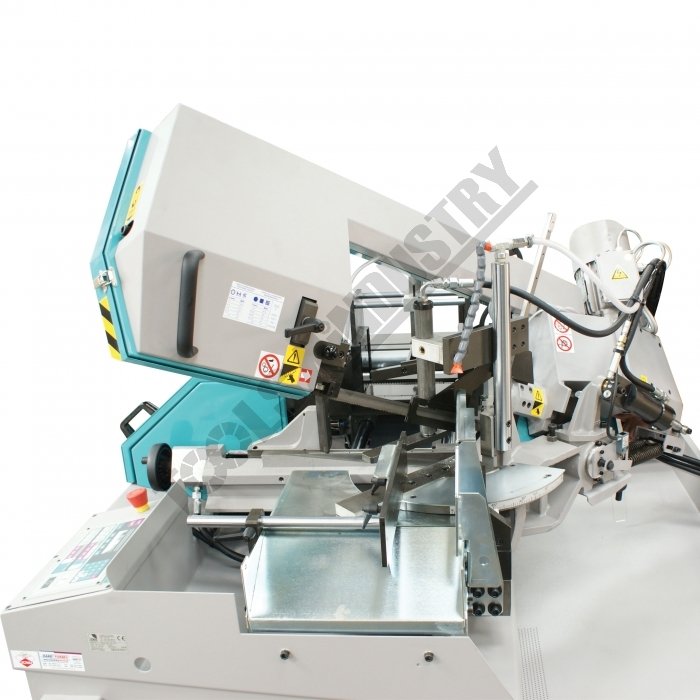

• Mitre cutting from 0° to 45° right in automatic cycle and from 0° to 60° right in semi-automatic cycle
• Automatic Kerf Compensation: = Blade Cut Thickness for multiple indexing: This function allows and calculates the blade cut thickness into the programmed cut length so you achieve desired length required (factory pre-set)
• Hydraulic fixed vice, anti-burr hydraulic vertical vice on the unloading side
• Adjustment of the blade tension from the front side of the saw frame, checked by an end-stroke
• Electronic inverter control for variable speed from 18-100m/min

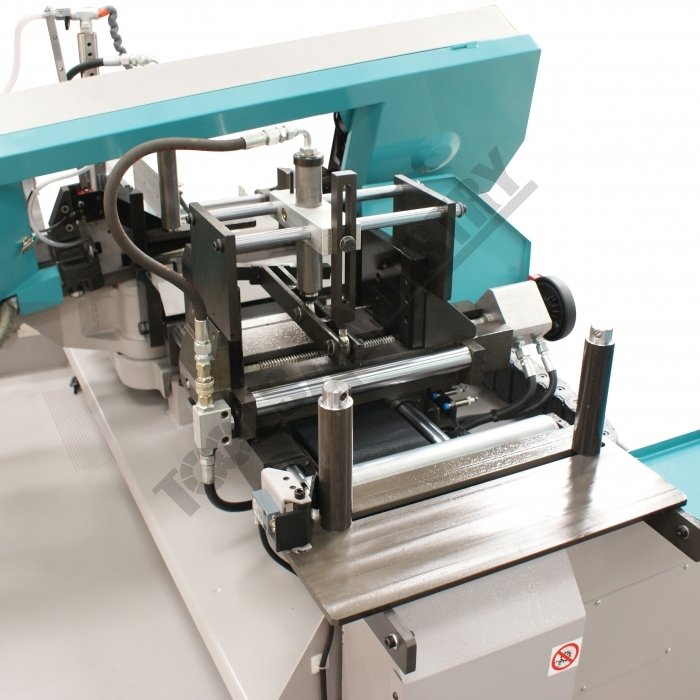

• Bundle cutting clamps ( Nesting Fixture ) allows 300 x 120mm or 120 x 20mm capacity

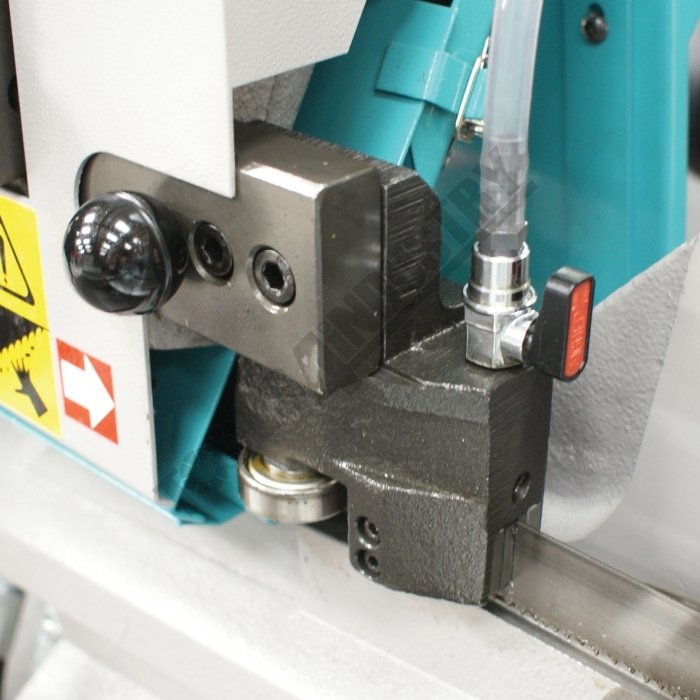

• Blade tension 2300 kg/cm, blade guides with hard metal pads will enable a longer blade life providing the correct cutting parameters are set

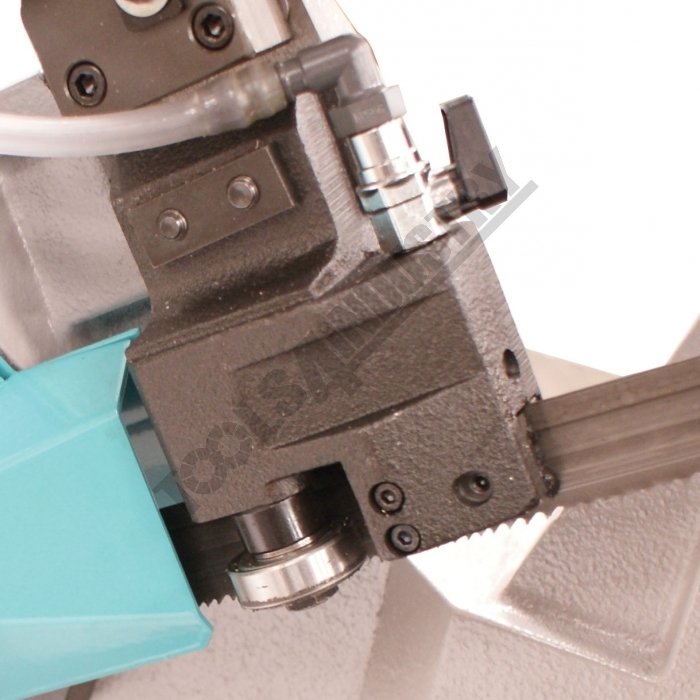

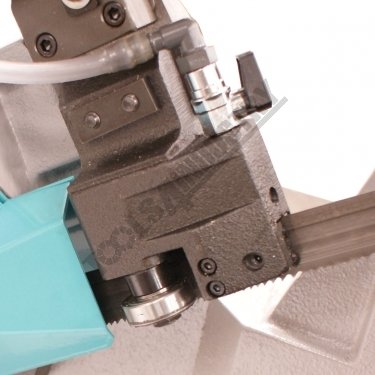

• Hardened chromium-plated and tempered metal blade guides & additional bearing for blade alignment

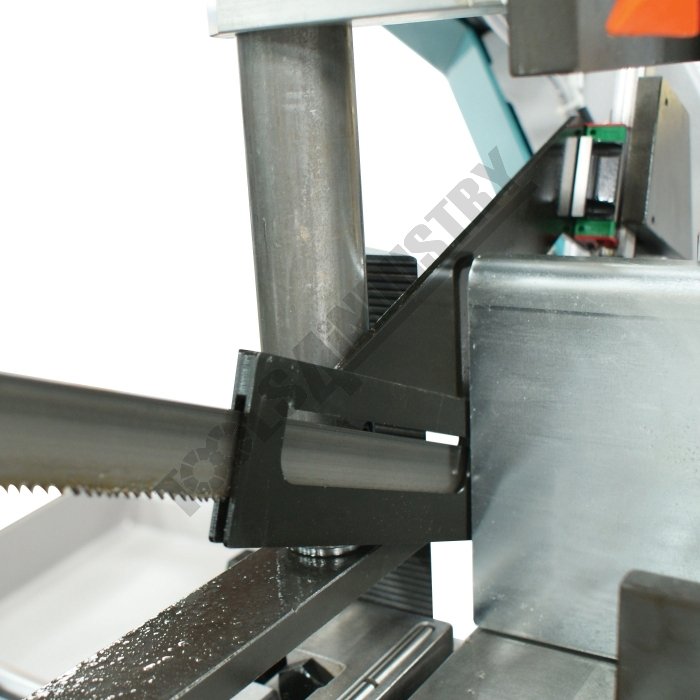

• Mechanical device (position sensor) that allows the saw frame to lower quickly toward the material and automatically switch to cutting feed rate for increasing production
• Feeder with 350 mm opening, maximum stroke 515 mm, minimum stroke 4 mm (minimum scrap 80 mm); incremental feeding with automatic calculation of the blade thickness.
• Connection for loading table with two vertical rollers, unloading slide, connection for unloading table with guide for cutting pieces.

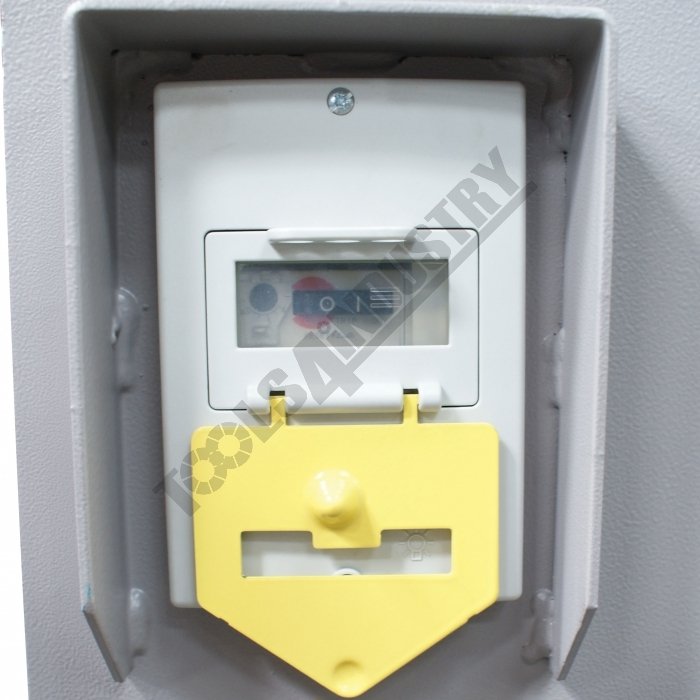

• Main switch with minimum tension coil, emergency button, thermal and magnetic motor protection

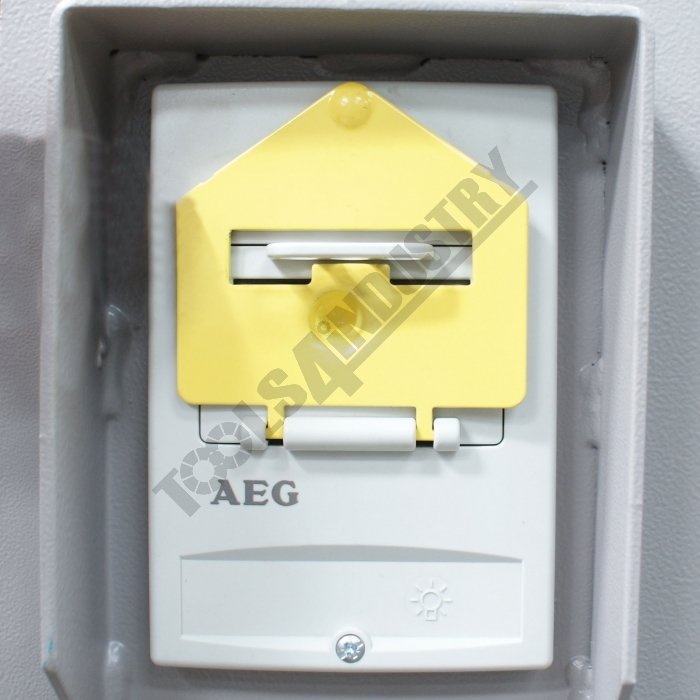

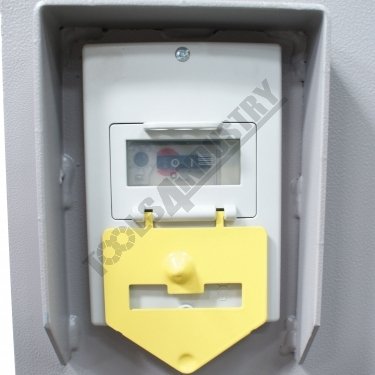

• Low voltage (24V), main switch with interlocking attachment and minimum tension coil
• Automatic diagnostics circuit displaying error messages to immediately located obstruction

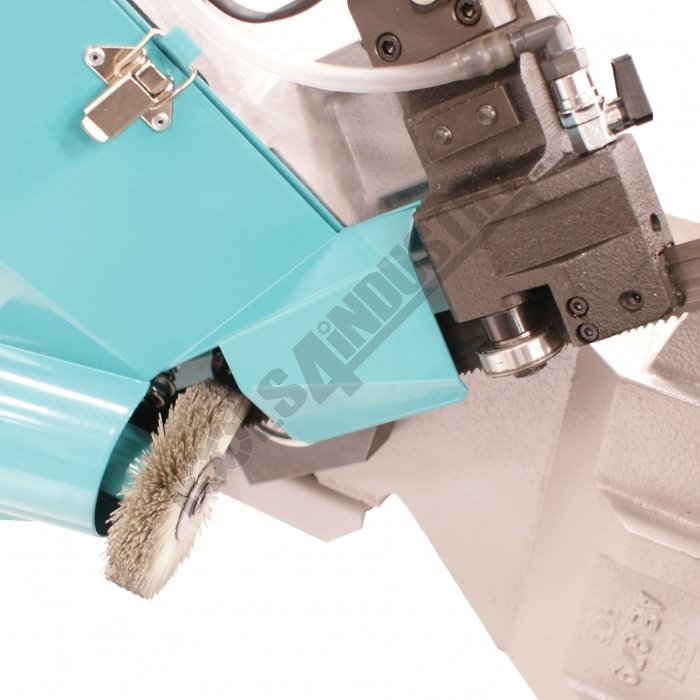

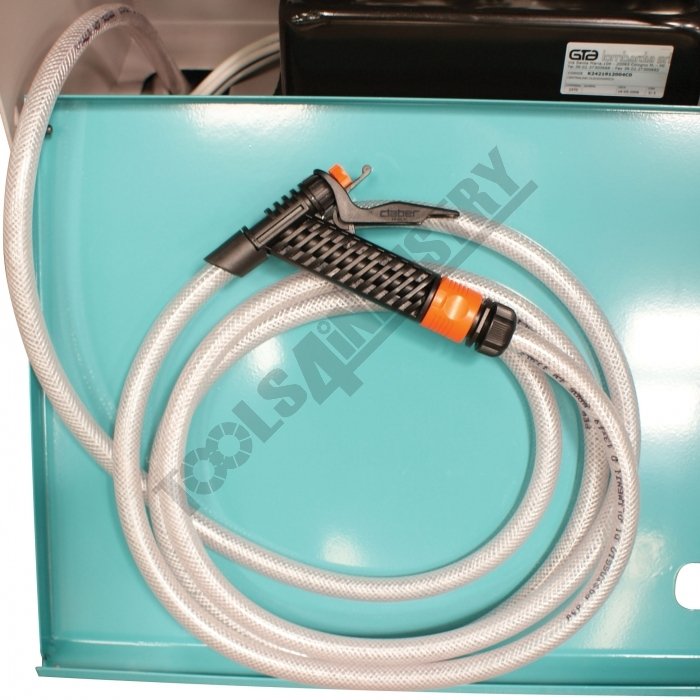

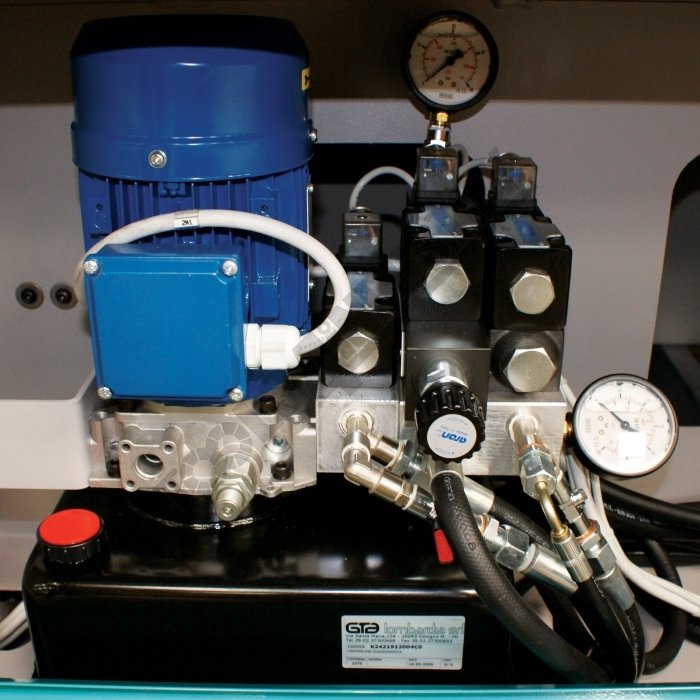

• Removable chip collector tank, coolant tank with electro-pump, washing gun for cleaning, hydraulic unit with oil; blade-cleaning brush, bi-metal blade
• Tools and user's manual
• In compliance with CEE Safety and Electromagnetic Compatibility standards(EMC)
• Electrics according to the EN60204-1, EN55011, EN50082-2 EN50082-2 standards

Includes

• Coolant Unit
• Blade Cleaning Brush
• 1 x Blade
• Hydraulic Feed
