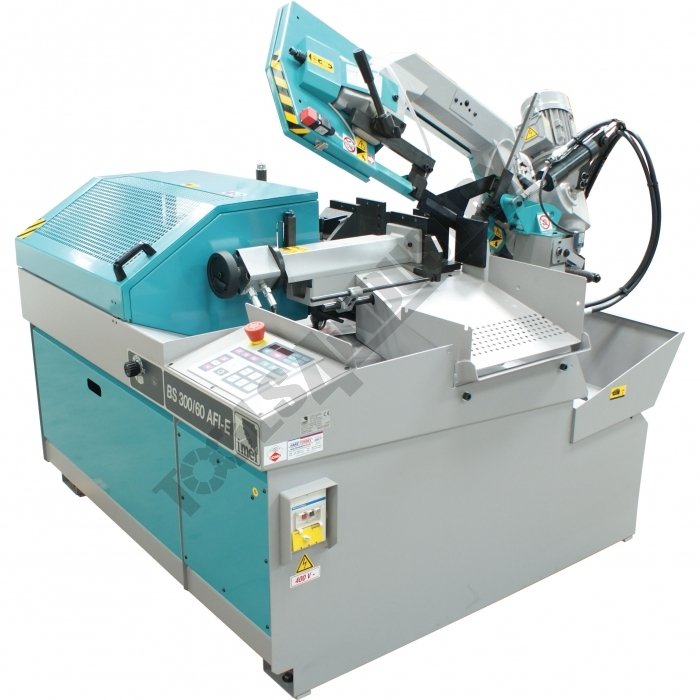

Automatic Hitch Feed Metal Cutting Band Saw BS-300/60 AFI-E

Description

Features

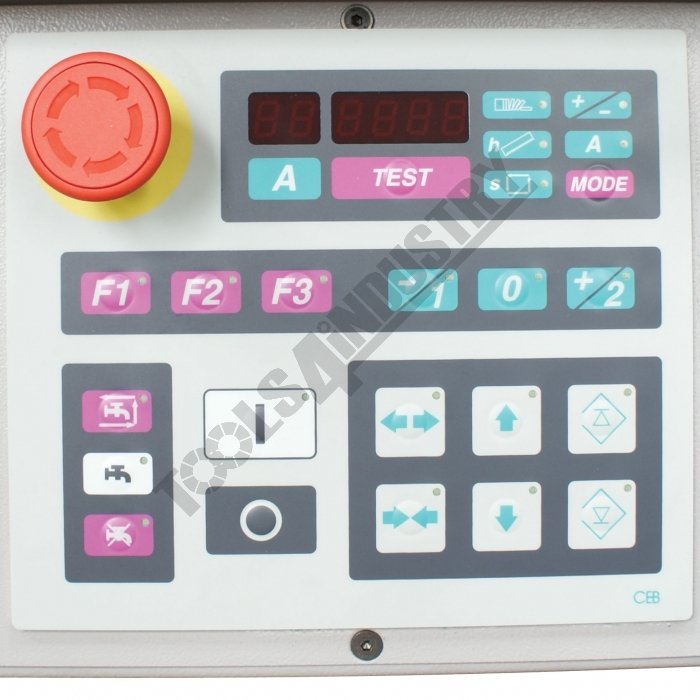

• Electronic automatic band saw, hydraulically driven PLC driver with programming of all operations by means of the keyboard; machine status shown on display, including blade life and speed, piece counter, cycle time and motor absorption
• Mitre cutting from 0° to 45° right in automatic cycle and from 0° to 60° right in semi-automatic cycle
• Easy stop at 0°; graduated plate to identify different angles
• Hydraulic vice, jaws height 130mm
• Adjustment of the blade tension from the front side of the saw frame, checked by an end-stroke

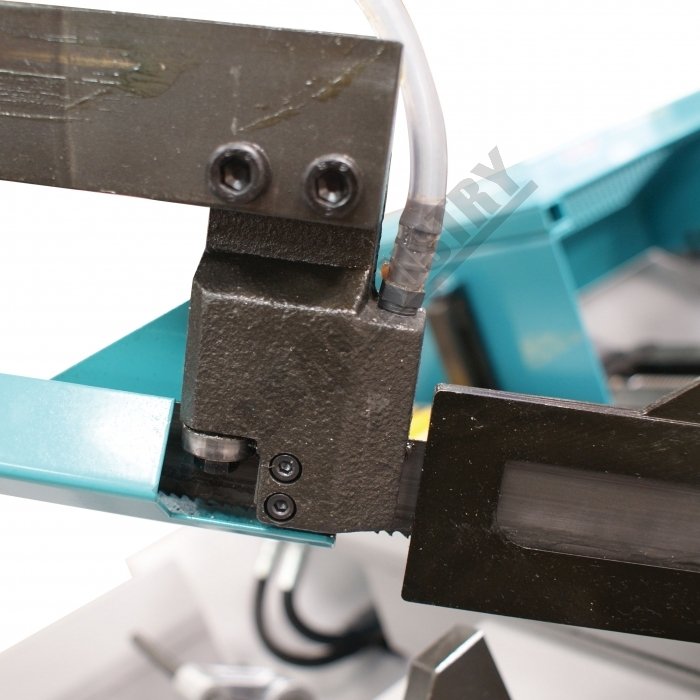

• Blade tension 1700 kg/cm, blade guides with hard metal pads will enable a longer blade life providing the correct cutting parameters are set
• Bundle cutting clamps (Nesting Fixture) are included

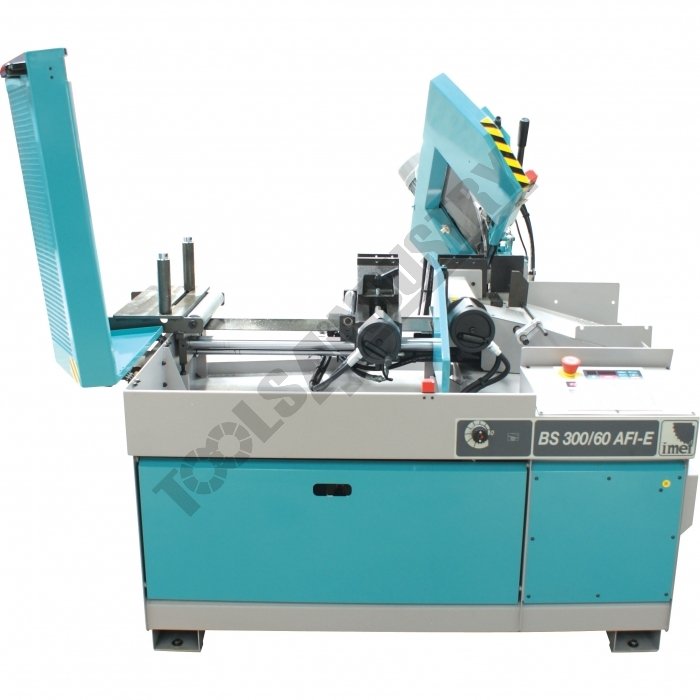

• New blade guard which allows an easy and quick replacement of the blade
• Cutting cycle: after setting the cutting length and the number of cuts, a trim cut is performed, and then the bar is cut till the end of the program

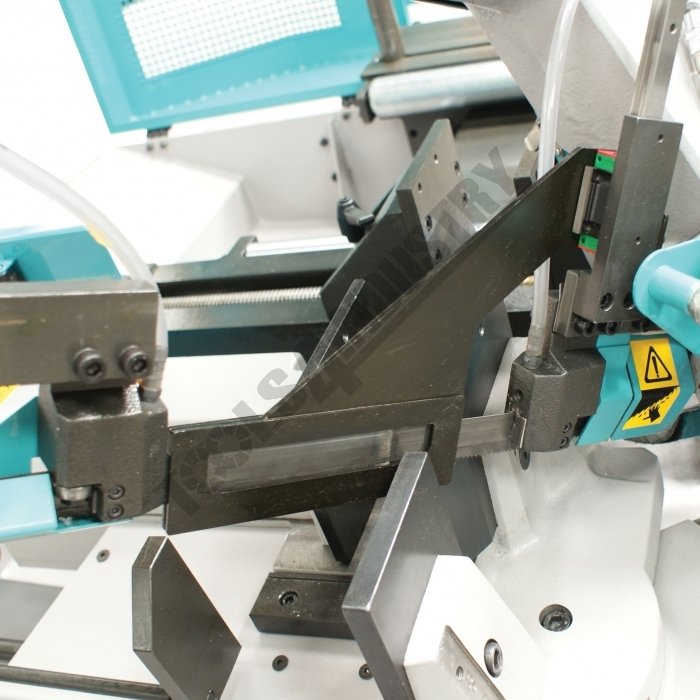

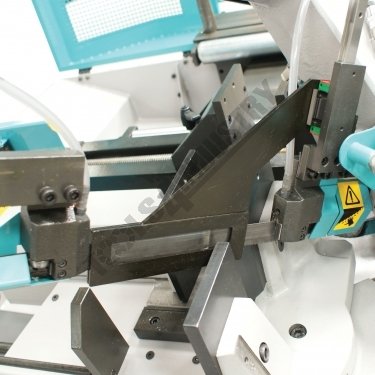

• Mechanical device (position sensor) that allows the saw frame to lower quickly toward the material and detect automatically the start-cut point

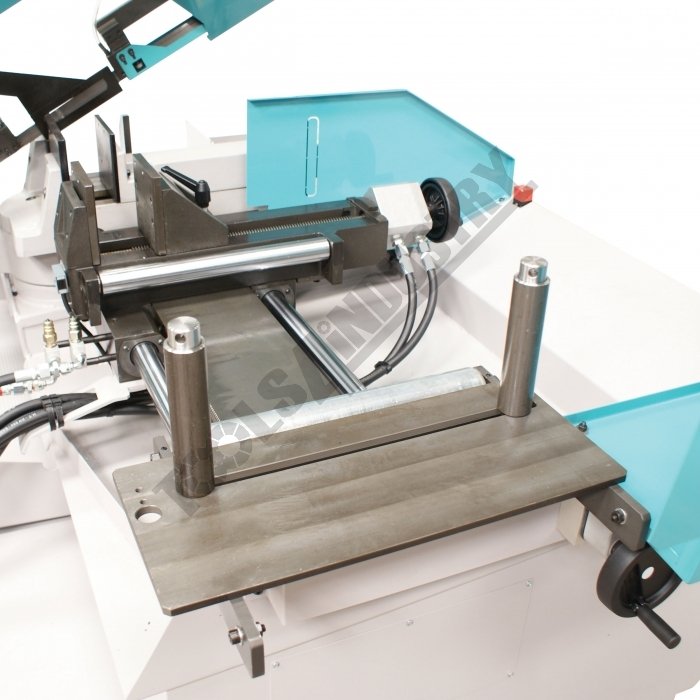

• Feeder with 300mm opening, maximum stroke 515 mm, minimal stroke 2,5 mm, minimal scrap 210 mm, selection of the number of cuts (1-9999) and feeder strokes (1-29) by means of the keyboard

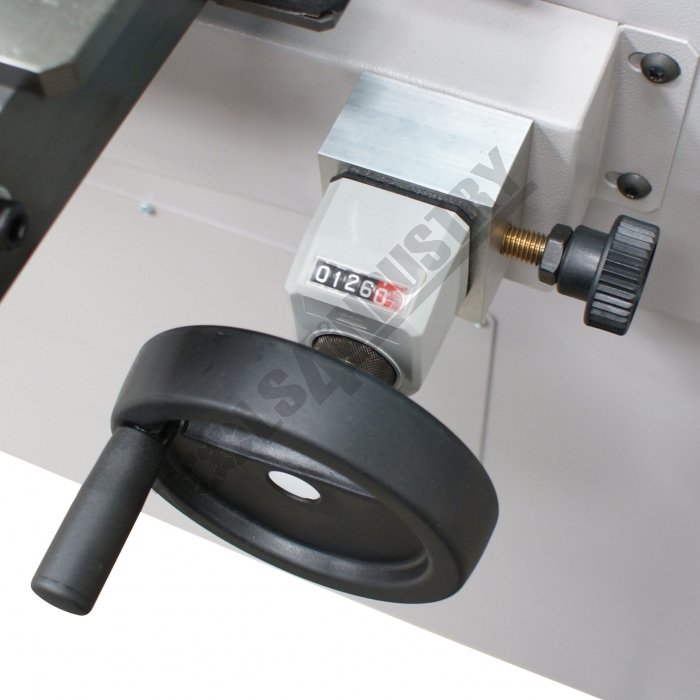

• Manual selection of the cutting length with digital reading and decimal accuracy
• Connection for loading table, unloading slide, connection for unloading table

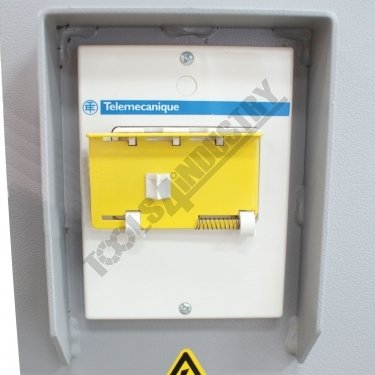

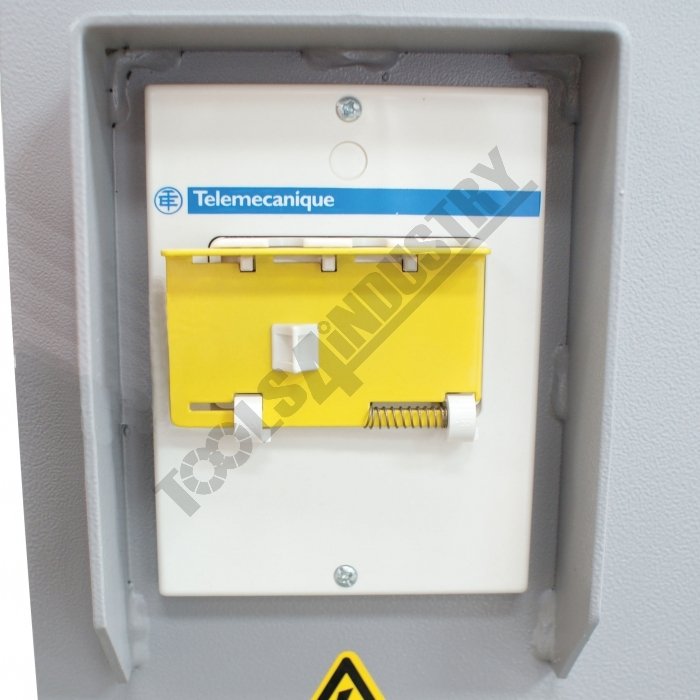

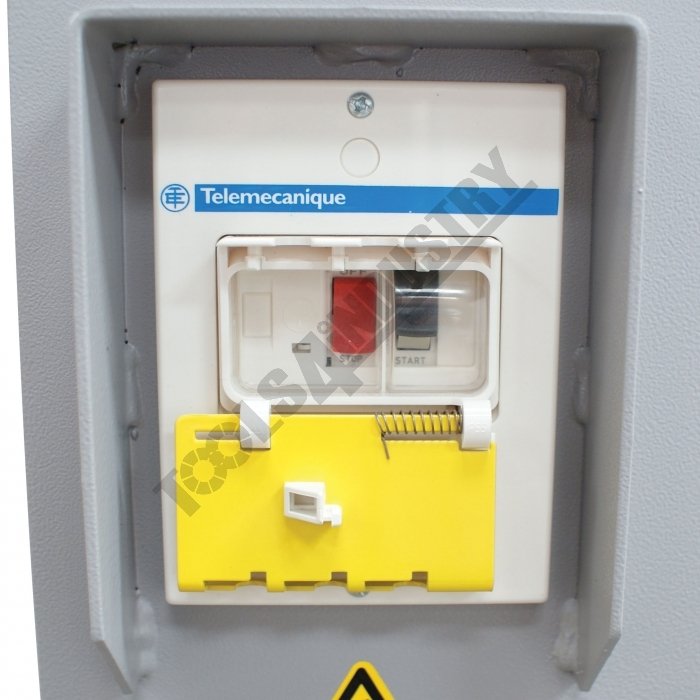

• Main switch with minimum tension coil, emergency button, thermal and magnetic motor protection

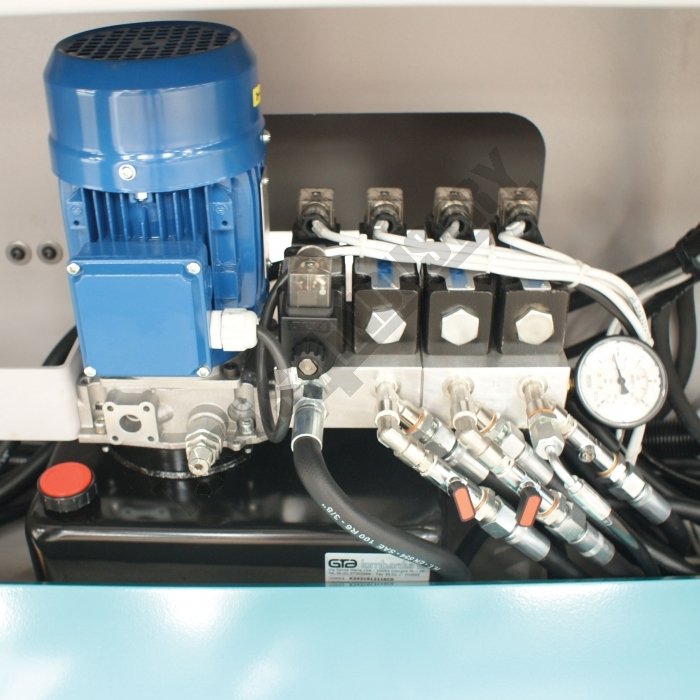

• Removable chip collector tank, coolant tank with electro-pump, hydraulic unit with oil

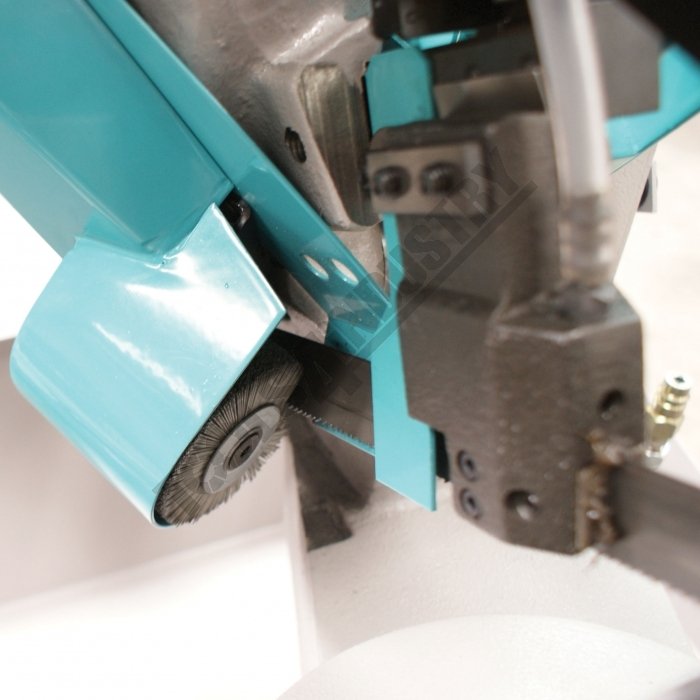

• Blade-cleaning brush, bi-metal blade
• Tools and user's book
• In compliance with CEE safety and electromagnetic compatibility standards (EMC)
• Electrics according to the standards EN60204-1, EN55011, EN50082-2

Includes

• Bundle cutting clamps (B102)
• Coolant unit
• Blade cleaning brush
• 1 x Blade
• Hydraulic feed
