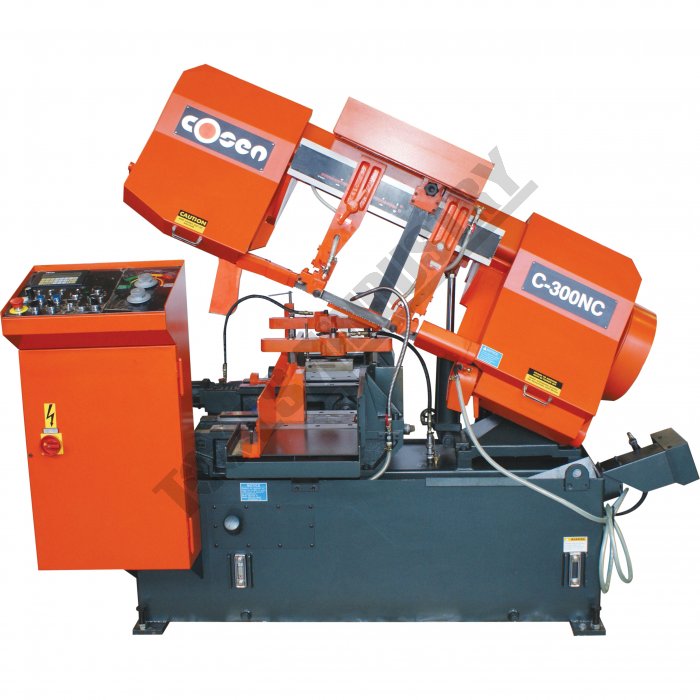

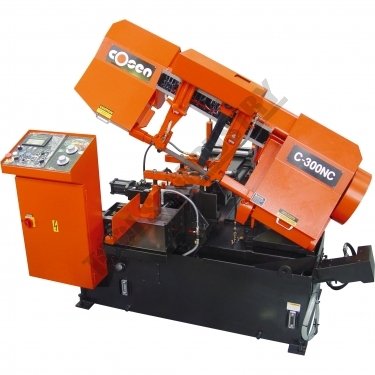

Automatic Hitch Feed Metal Cutting Band Saw C-300NC

Description

Manufactured in Taiwan

Automatic, hitch feed operation

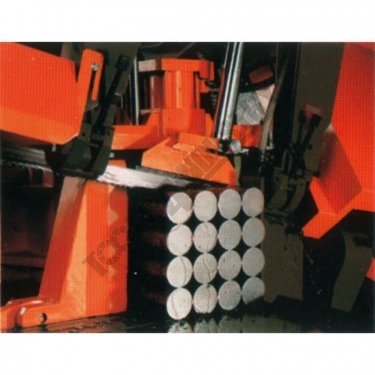

Bundle cutting with nesting fixture

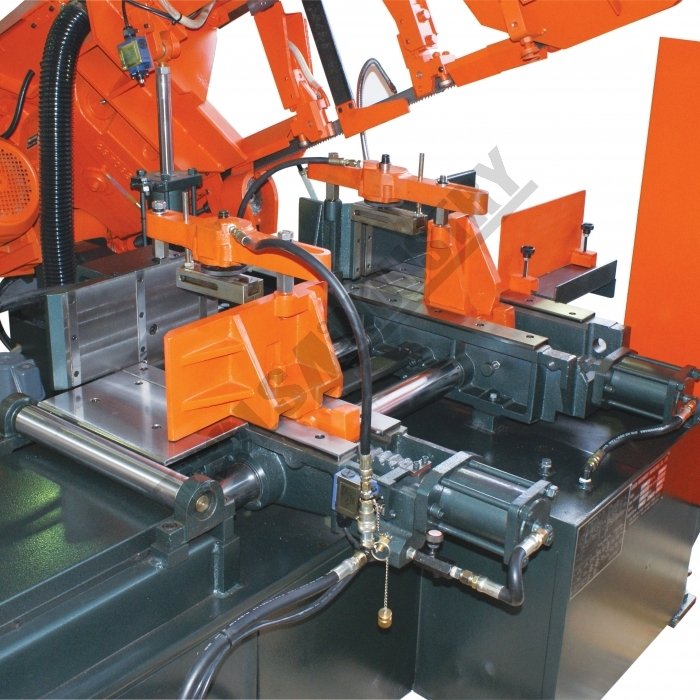

Smart NC-20 (SNC-20) control programmable to 20 different job quantities and lengths complete with hydraulic vice clamping and hitch feed system
Functions:
1. Automatic kerf compensation:= blade thickness for multiple indexing: this function allows and calculates the blade thickness into the programmed cut length so you achieve desired length required ( factory pre-set )
2. "Save-a-blade": to prevent blade tooth deformities, this function retracts the material back approx 3mm away from the blade preventing the blade teeth rubbing on the material on the return after completion of cut
3. Automatic shut-off for finished jobs or out of stock
4. Simplified self diagnostics error code display

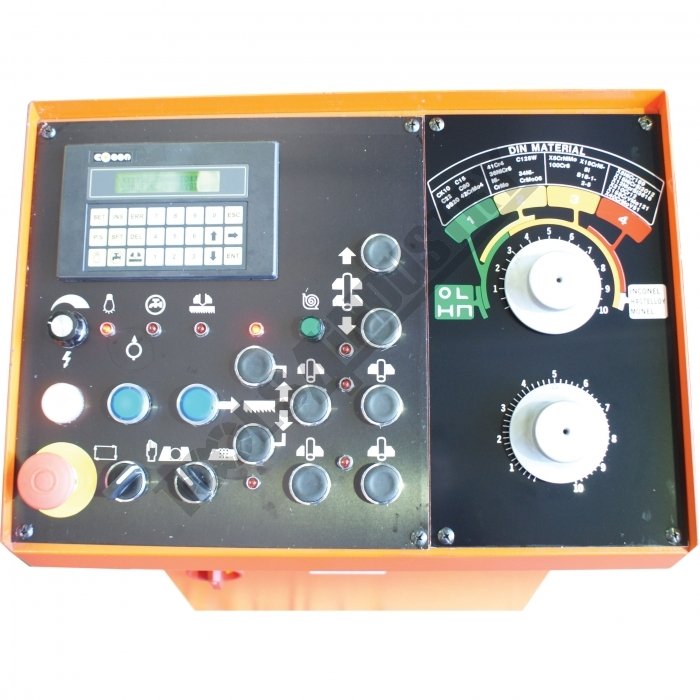

5. LCD screen with keypad displaying the following blade speed, blade life & feed vice position display

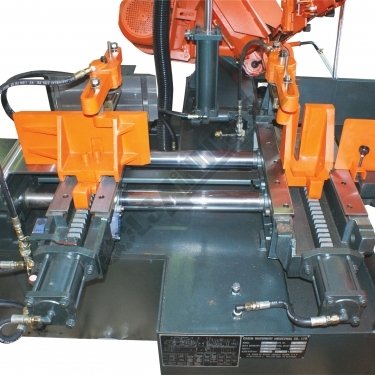

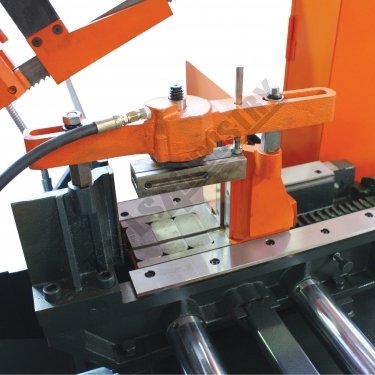

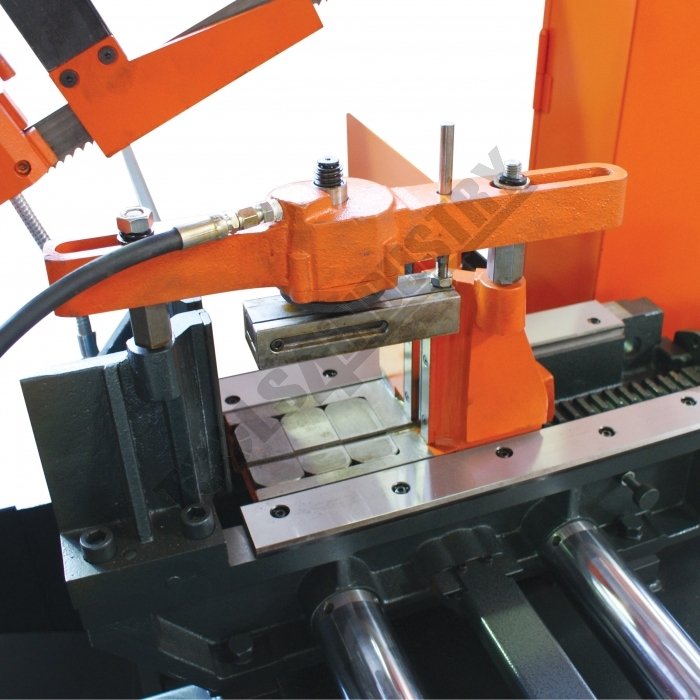

bundle and single cutting mode switch includes bundle cutting clamps (nesting fixture)

Features

• Idle wheel motion proximity switches shuts off machine if blade breaks or slips

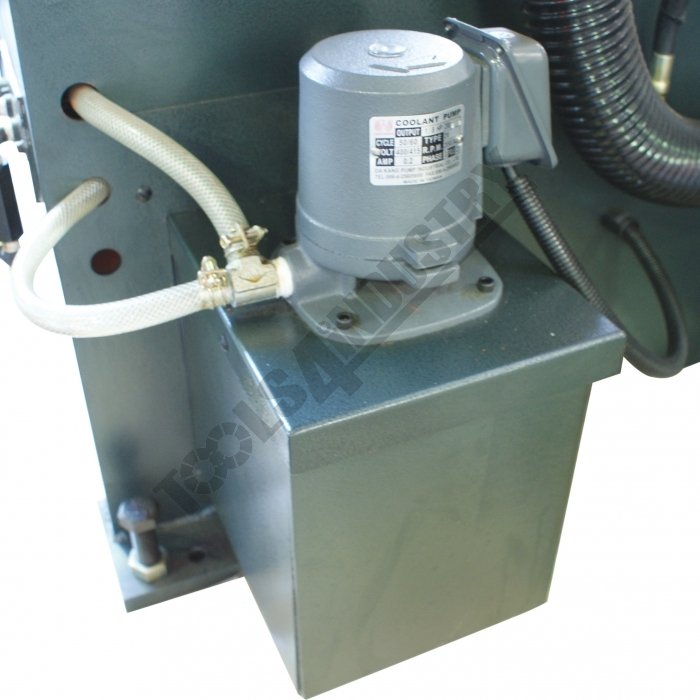

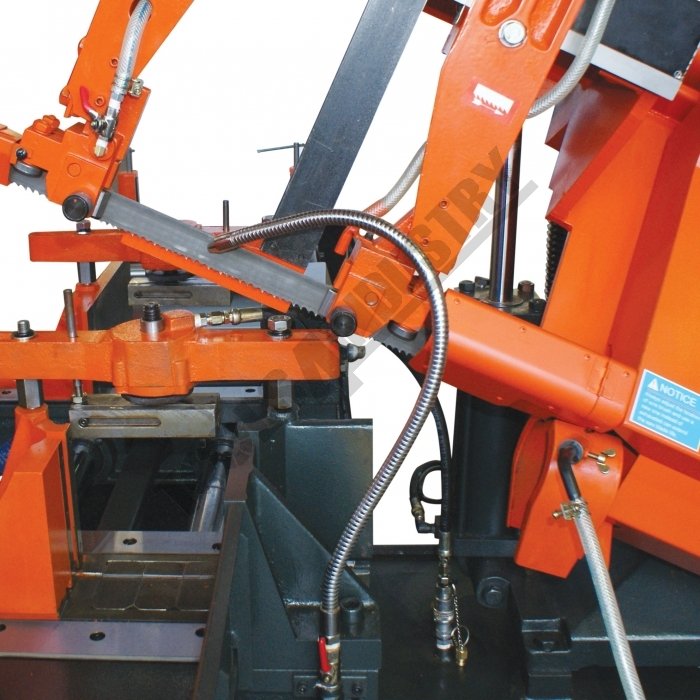

• Coolant system incorporating a wash down hose with trigger gun
• Back-tilted saw frame for longer blade life
• Inverter controlled infinitely variable blade speed 20-100mpm
• Precision feed pressure & feed rate dual valve system for optimal performance in any material

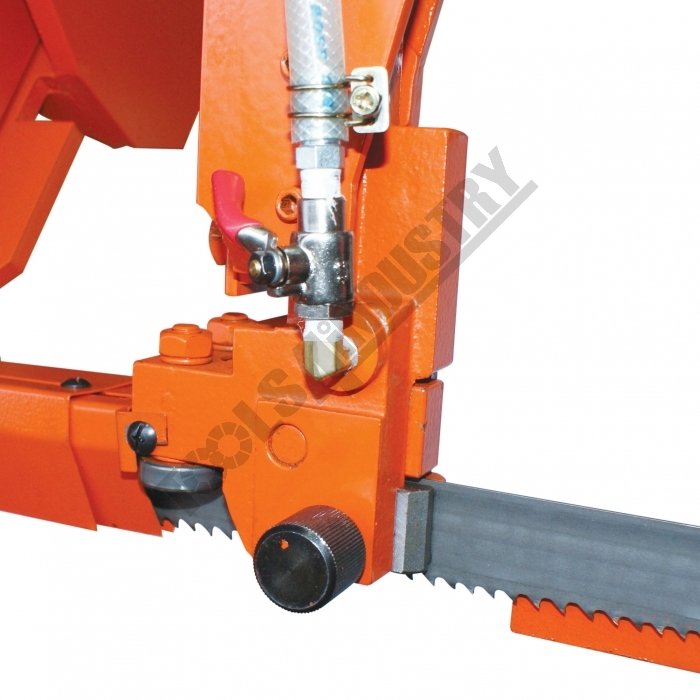

• Carbide and ball bearing blade guides provides superior accuracy and reduce friction for longer blade life
• Bundle and single cutting mode switch

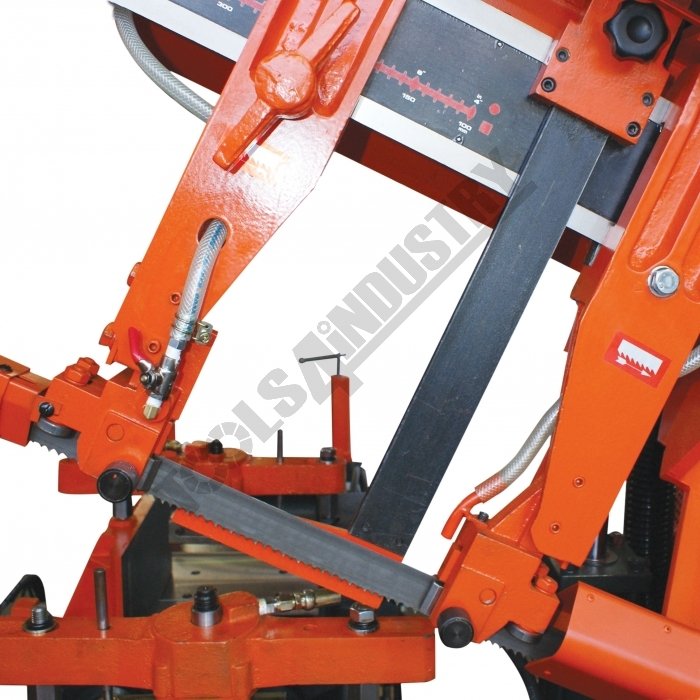

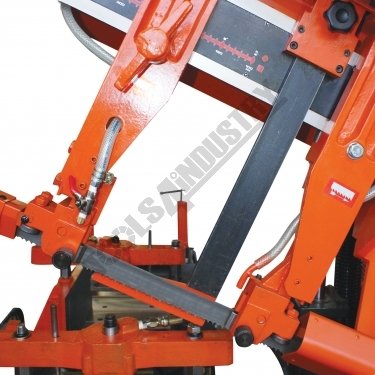

• Automatic (work height) material sensor with rapid approach

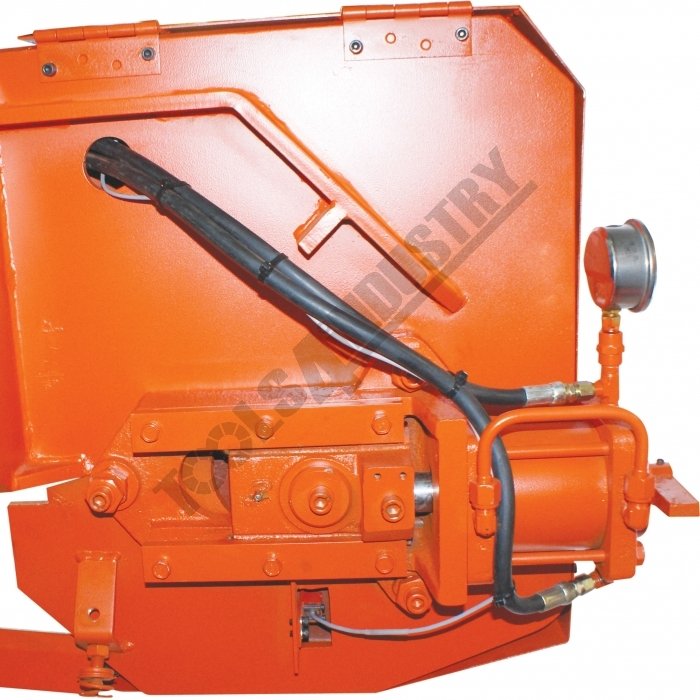

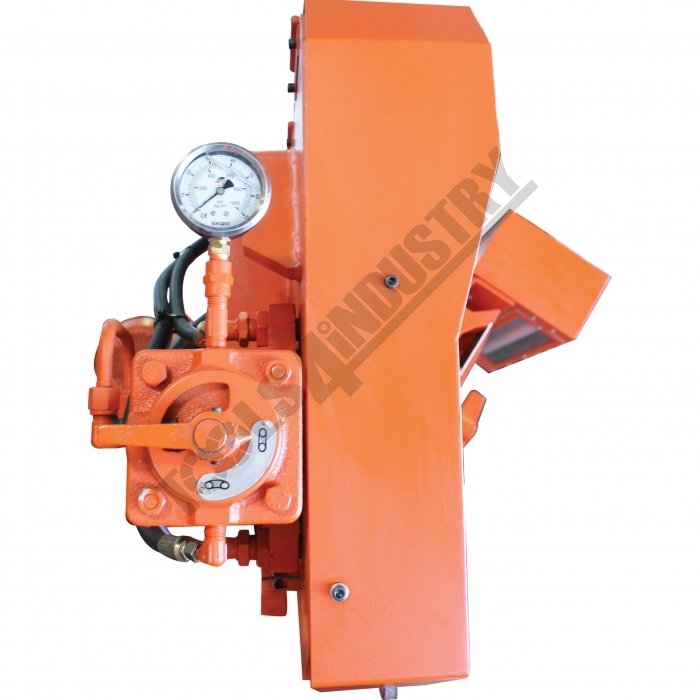

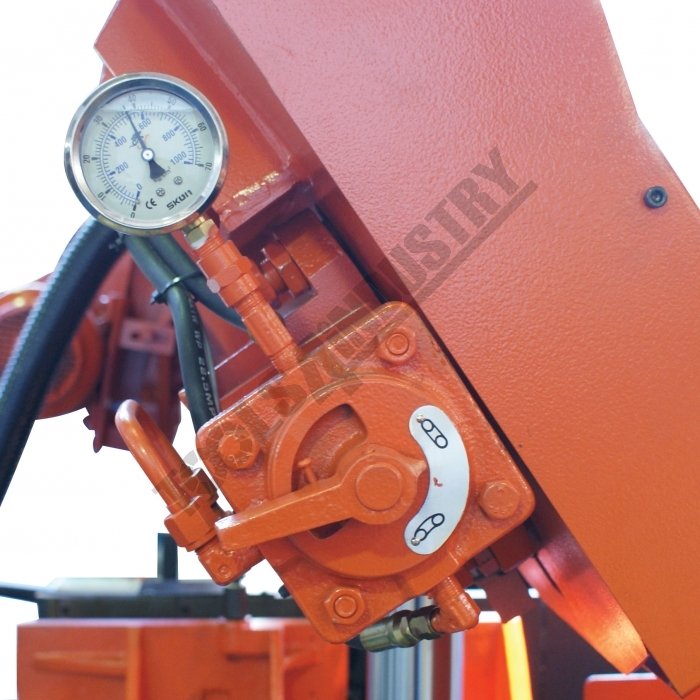

• Automatic hydraulic blade tensioning system

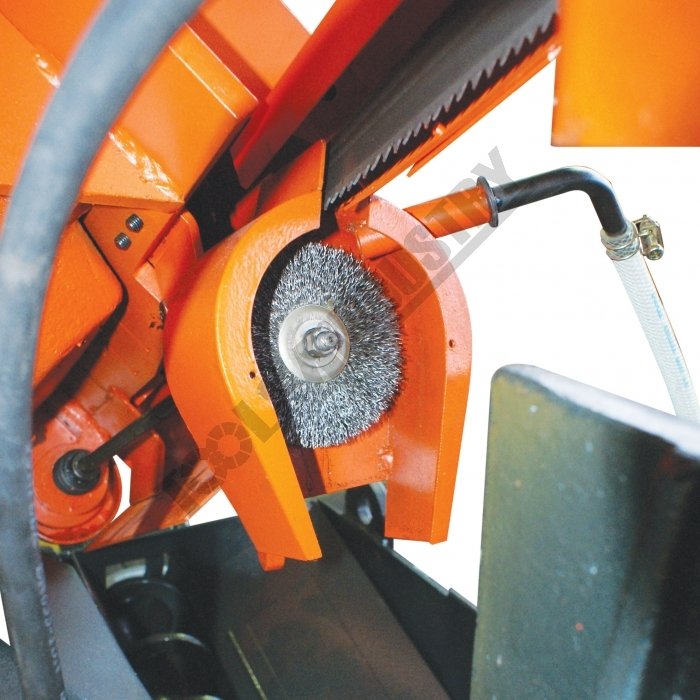

• Synchronised power driven blade cleaning brush removes swarf from blade

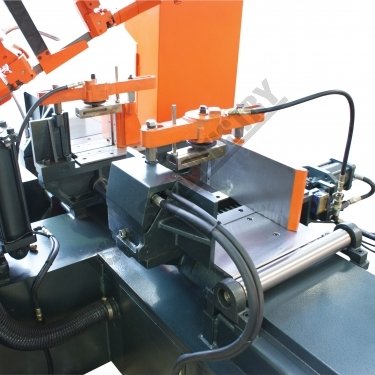

• Dual vice clamping providing burr free cut
• Electrical and hydraulic safety interlock prevents machine starting vices securely clamped
• Double retracting vice jaws ( feeding vice only ) reduces friction from jaws rubbing on material during the feeding process
• Quick action hydraulic vice provides quicker set-up of jobs

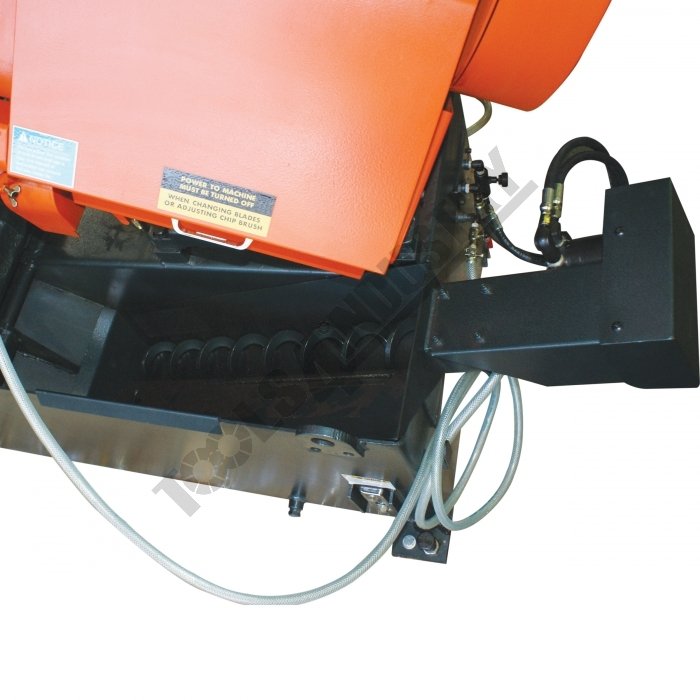

• Hydraulic swarf conveyor directs excess waste to side of machine
• Vibration dampener system provides smoother cutting
