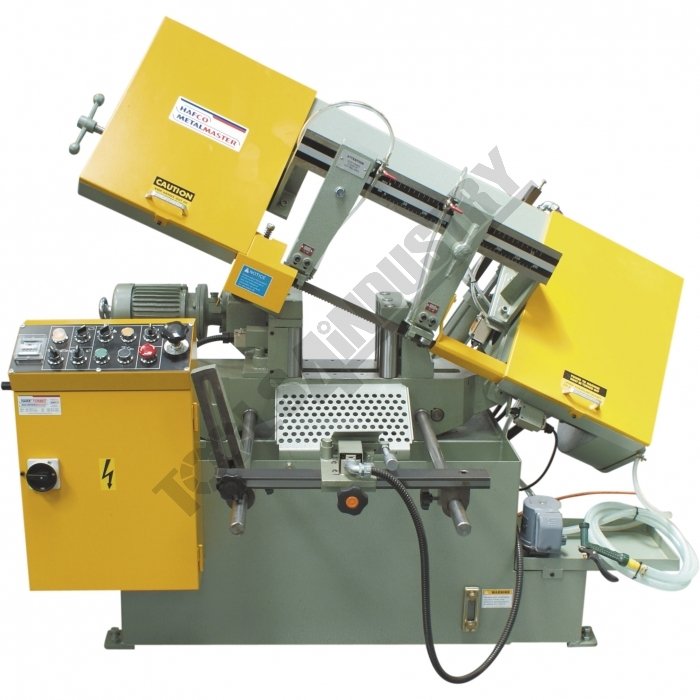

Fully Automatic Metal Cutting Band Saw BS-10AF

Description

Manufactured in Taiwan

The BS-10AF heavy duty fully automatic metal cutting band saw has many features on offer with a 4 blade speed system, hydraulic feed control a cutting capacity of up to 250mm diameter or 250 x 230mm in steel at 90º and two ball bearings per side with carbide blade guides for optimal control and accuracy. There is a choice of blade speeds via an adjustable dial system so that the cutting speed can be changed to suit a wide range of materials, whilst the built-in coolant system ensures maximum cutting efficiency and longer blade life. Both blade control arms are adjustable, allowing them to be positioned as close to the cut as possible. This means reliability and accurate cuts!

The cutting operation works automatically with the weight of the head providing the cutting force and a limit switch shutting the machine down when the cut is complete in manual mode, When automatic mode is selected machine will shut down after cut quantity is reached. The weight of the head is counterbalanced by an adjustable hydraulic damper to control the feed rate, an excellent machine choice for maintenance shops, steel fabrications, and engineering workshops. . If you're looking for this size range of machine, you'll have a tough time finding a better metal-cutting band saw with these features and at this price, It represents excellent value.

Features

• 250 x 230mm (W x H) rectangular capacity

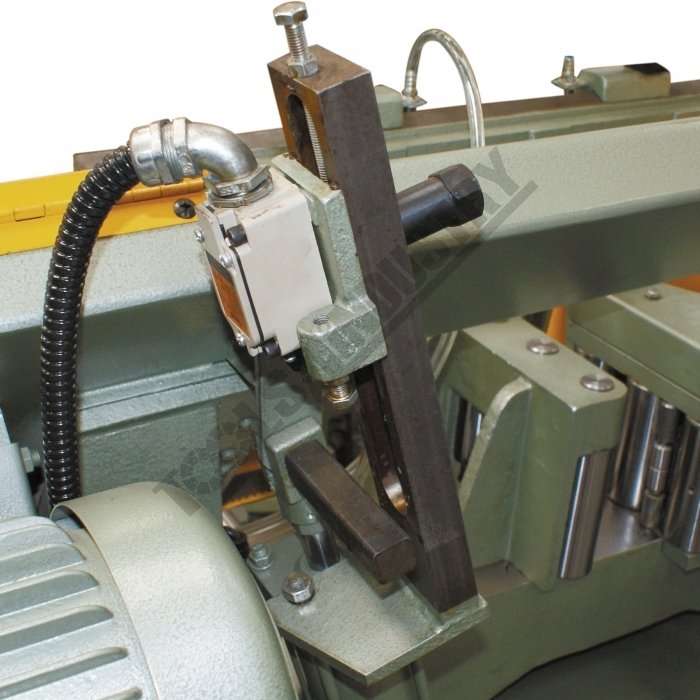

• Full-automatic operation, machine returns to adjustable open height position after finishing the cutting process
• Hydraulic operated system raising and lowering the cutting beam
• Adjustable hydraulic feed cutting rate for multiple applications
• Programmable cut counter with automatic shut down once cut quantity has been reached
• Blade breakage sensor fitted that automatically shuts machine off
• Dovetail slide guides on arms to ensure accuracy

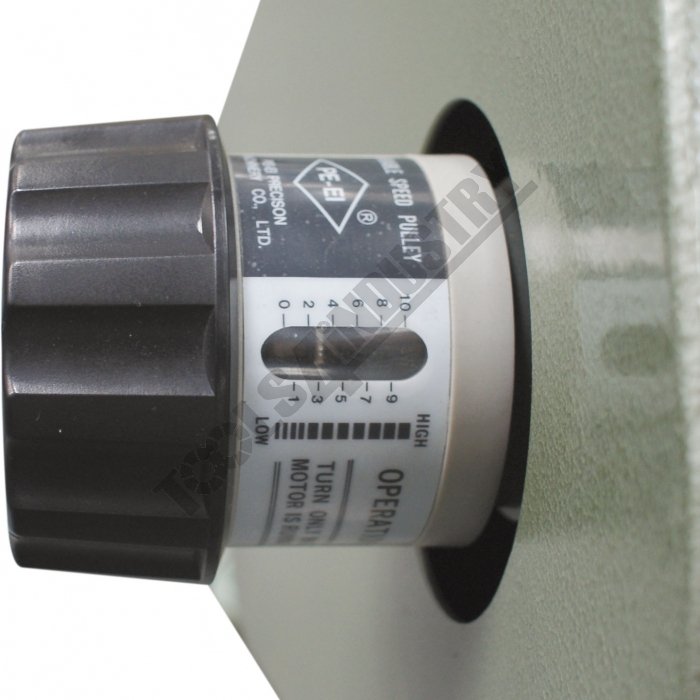

• Infinitely-adjustable blade speed control
• Designed for accurate 90º multiple job cutting

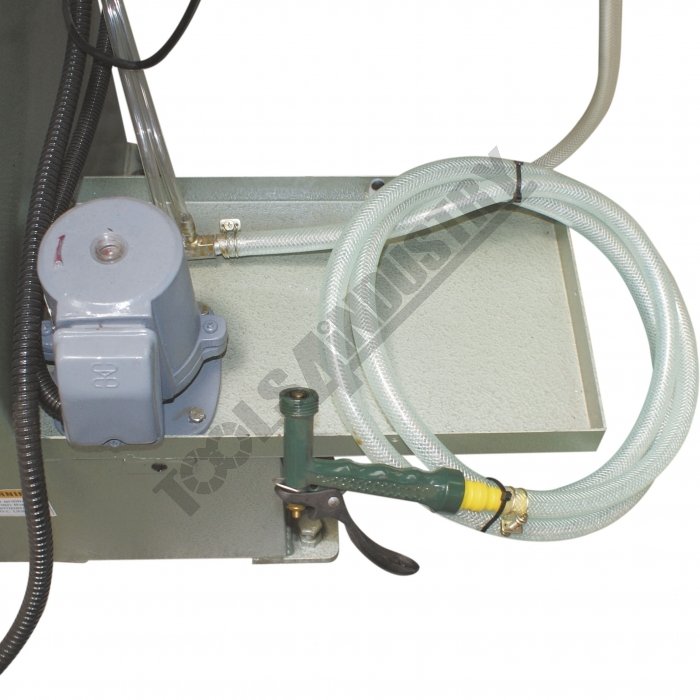

• Built-in coolant system for maximum cutting efficiency
• Limit switch stops machine when cut is complete

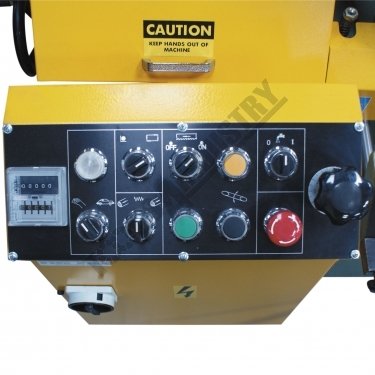

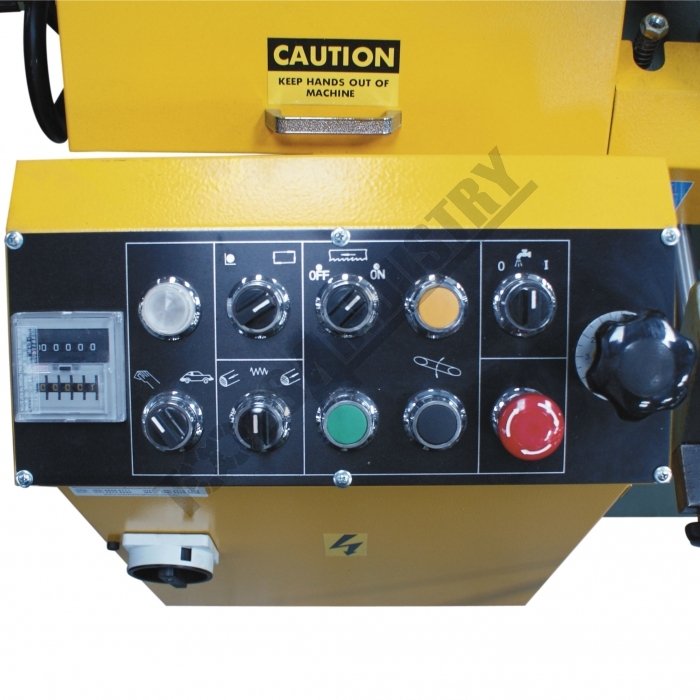

• Electric control panel mounted on base for quick operation

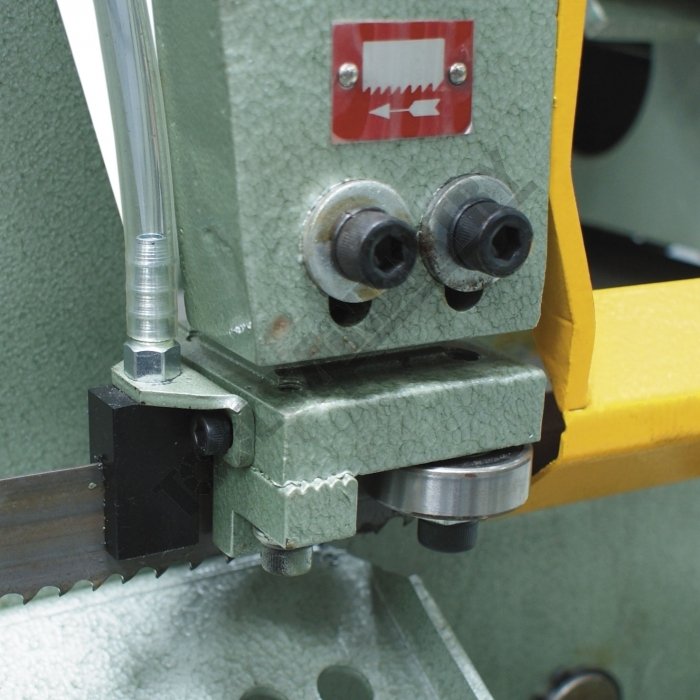

• Combination roller bearing & Carbide blade guides
• Heavy duty cast Iron blade wheels
• Cast Iron frame with heavy duty fabricated base

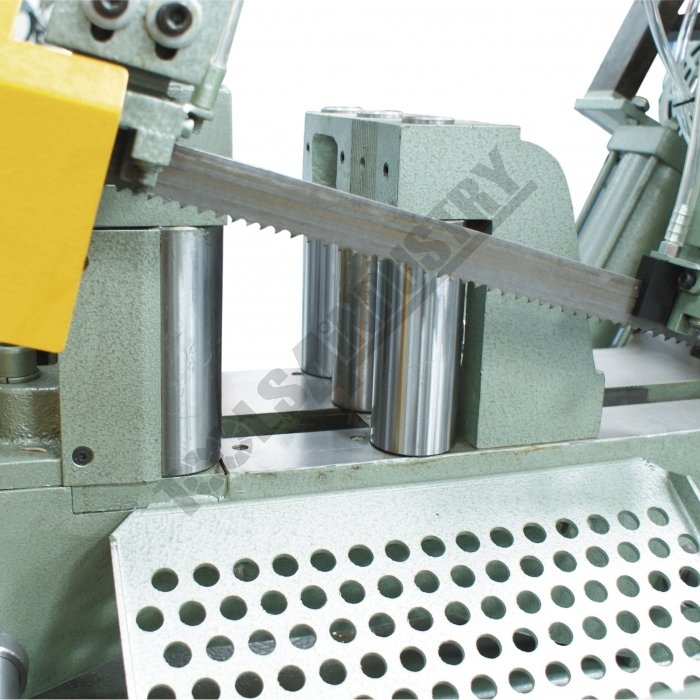

• Adjustable blade roller guides provides accurate cutting

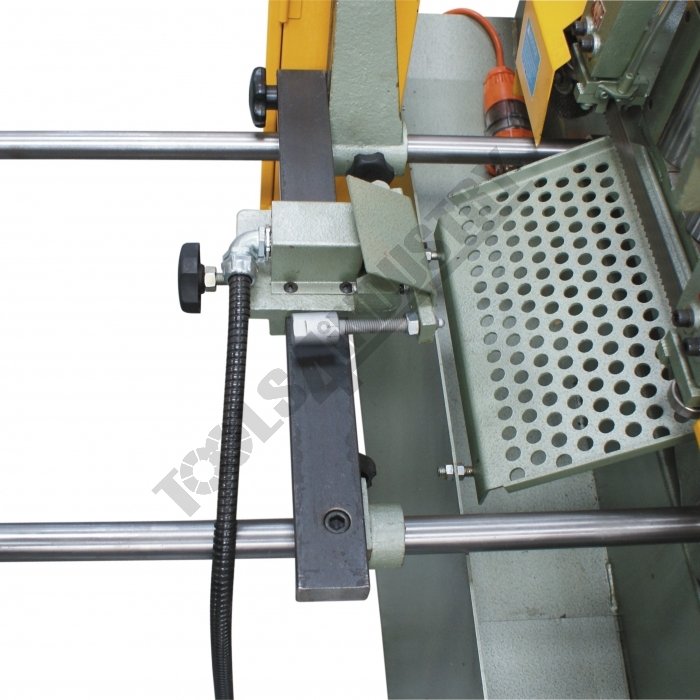

• Adjustable length stop with a micro switch for repetition cutting
• Wire wheel brush to clean swarf from blade

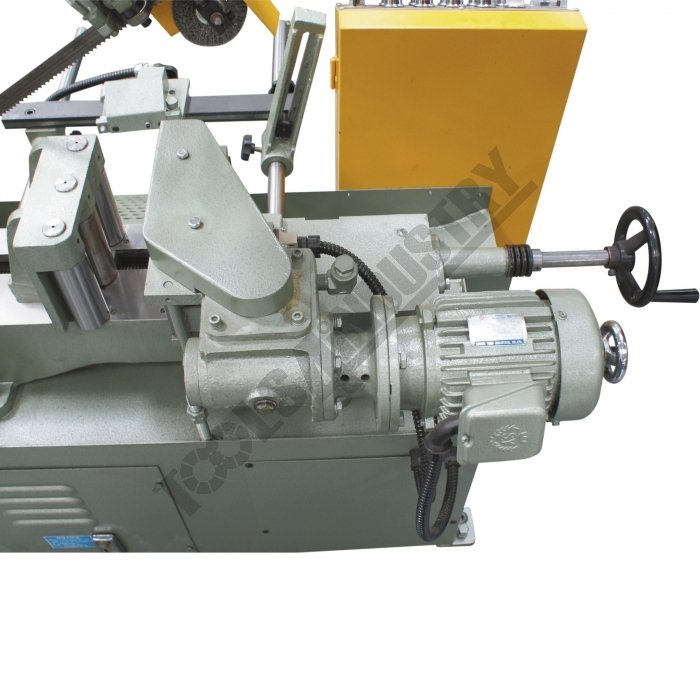

• Heavy-duty gearbox drive

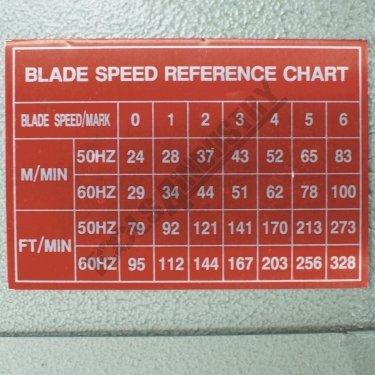

• Variable speed drive system changes blade speed from 24-83mpm
• 1.5kW / 2hp 415V motor
