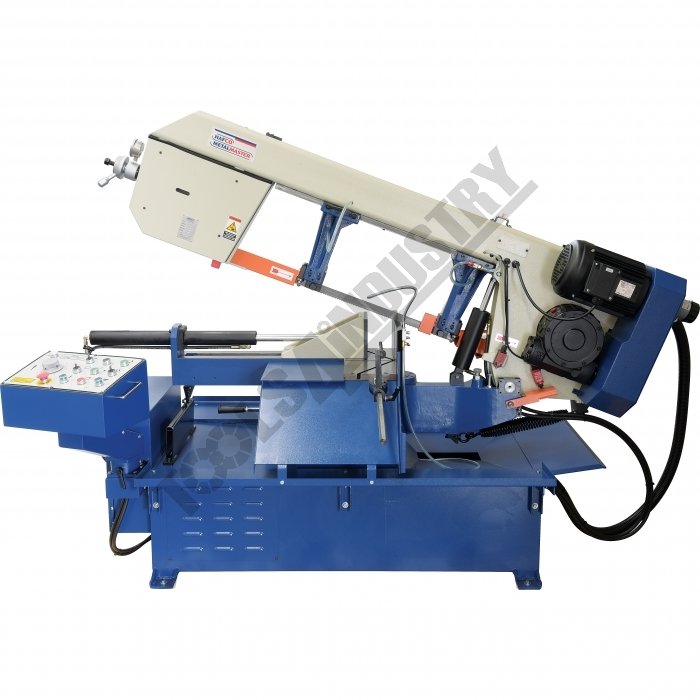

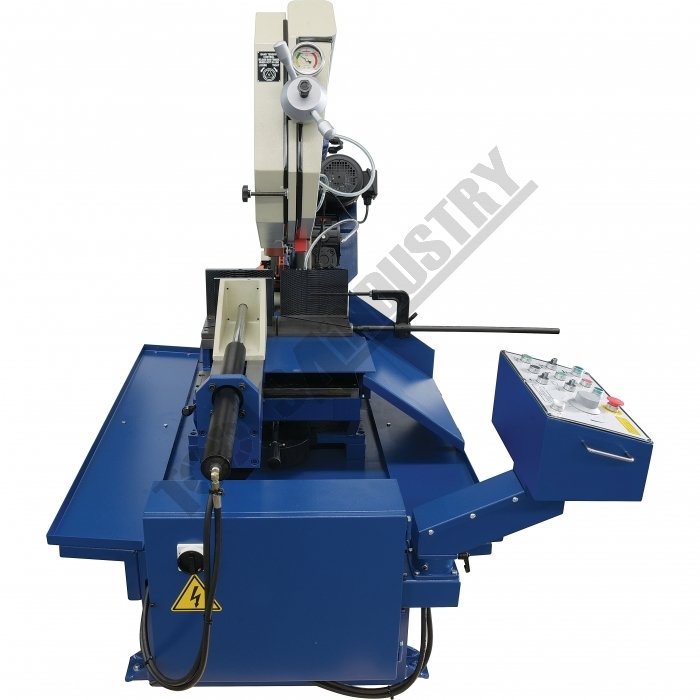

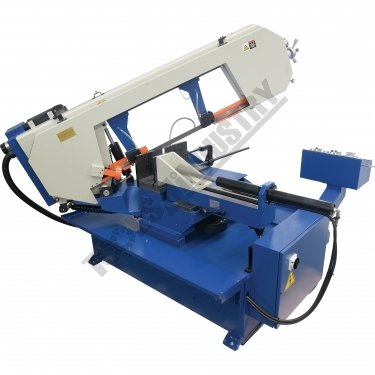

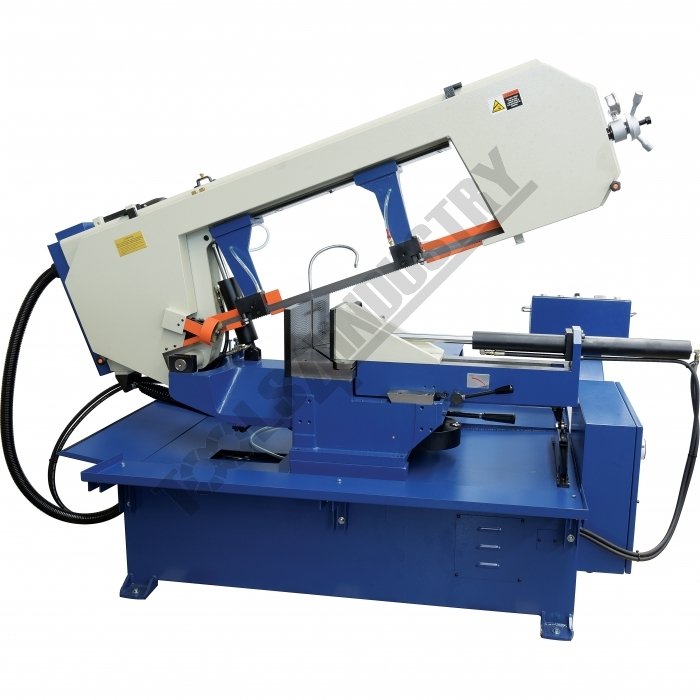

Semi - Automatic Swivel Head-Dual Mitre Metal Cutting Band Saw BS-321AS Variable Cutting Speeds, Dual Mitre Cuts Up To 60º, Hydraulic Vice Clamping & Includes Hydraulic Downfeed Control

Description

Manufactured in Taiwan

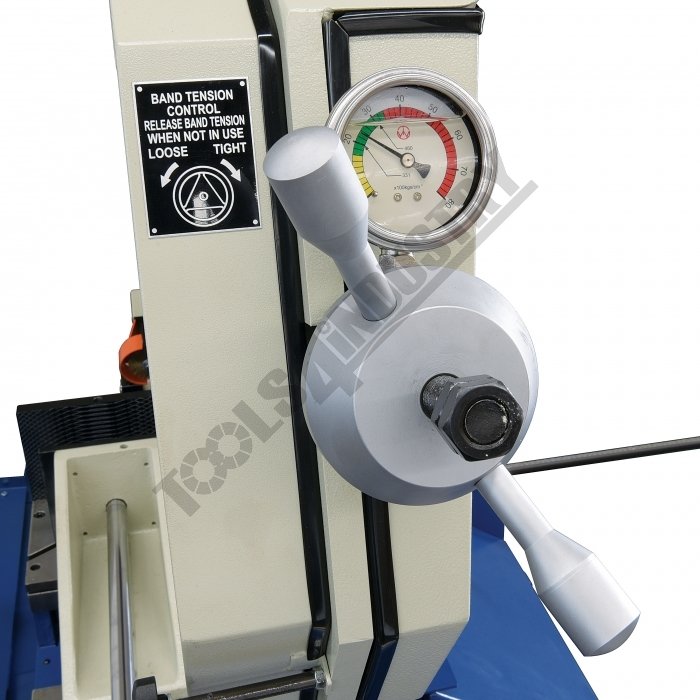

The BS-321AS is a metal cutting dual mitre swivel head, semi-automatic band saw capable of cutting a large 510 x 260mm rectangle material and is a great semi-automatic band saw for cutting at 90 degrees. This saw can also cut up to 331mm round material and with a quick release mechanism that allows the operator to change the mitre angle in seconds. This gear driven metal cutting band saw we offer has a variable speed, dual mitre cutting head, and a hydraulic controlled descent device for perfect feeds and longer blade life. The vice uses a full stroke hydraulic clamping system and after the cut is complete the blade stops and the head lifts to the start position ready for the next piece to be cut. This Hafco MetalMaster band saws is constructed of a heavy cast iron saw head and base and the blades are guided via a tungsten carbide insert offering rigidity and accuracy. This band saw has a powerful coolant system and a blade tensioning device that shuts down the machine if the blade breaks.

The BS-321AS metal band saw has a hydraulic descent control device for the down feed for larger production runs that increases blade life and reduces operator fatigue. This series of band saw requires 415V, three phase. The BS-321AS semi automatic horizontal band saw has a dual mitre saw head that can cut from 0º to 60º degrees. This series of horizontal band saws come standard with a variable speed drive allowing the operator to fine tune the blade speed from 26 - 80 M/min. The BS-321AS metal cutting saw series requires a 34mm wide saw blade by 1.1mm band thickness, making this series a very precise mitre saw. These band saws offer more cutting capacity in a variable speed mitre saw than any other saw on the market, for the investment representing quality band saws at an exceptional value.

Features

• 510 x 260mm (W x H) rectangular capacity

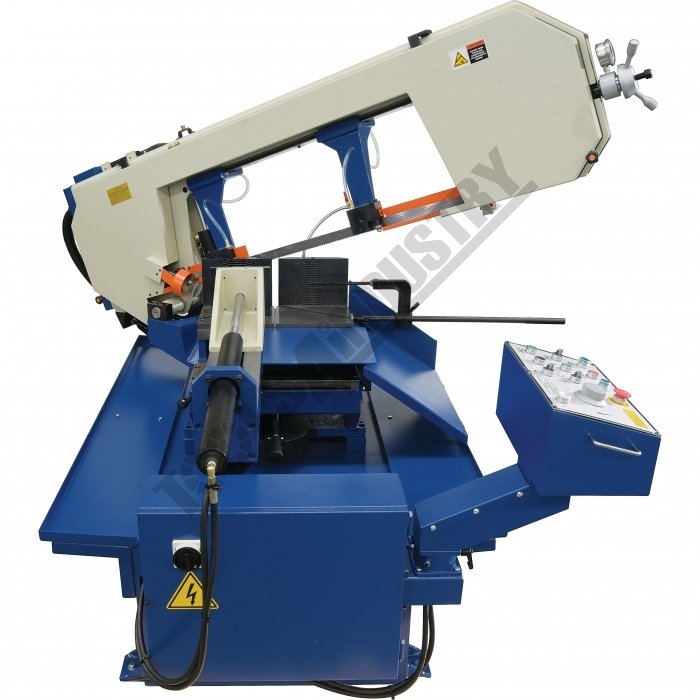

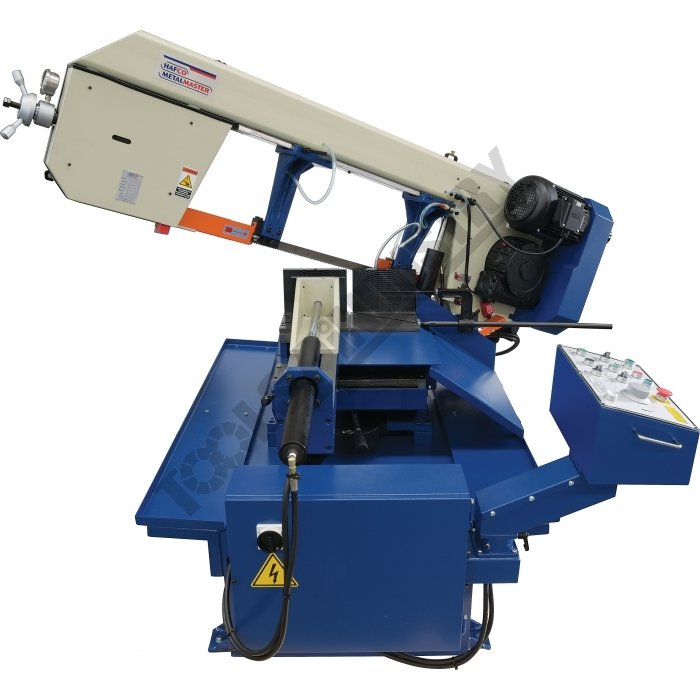

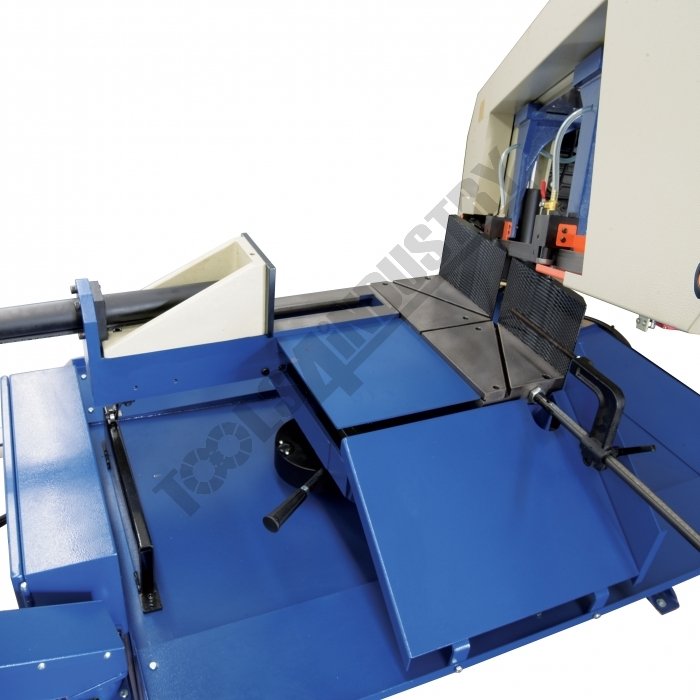

• Swivel head dual mitre up to 60º left & right for easy angle cutting without moving material
• Semi-automatic operation, machine returns to open height position after finishing the cutting process

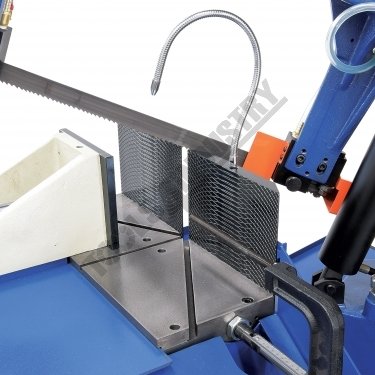

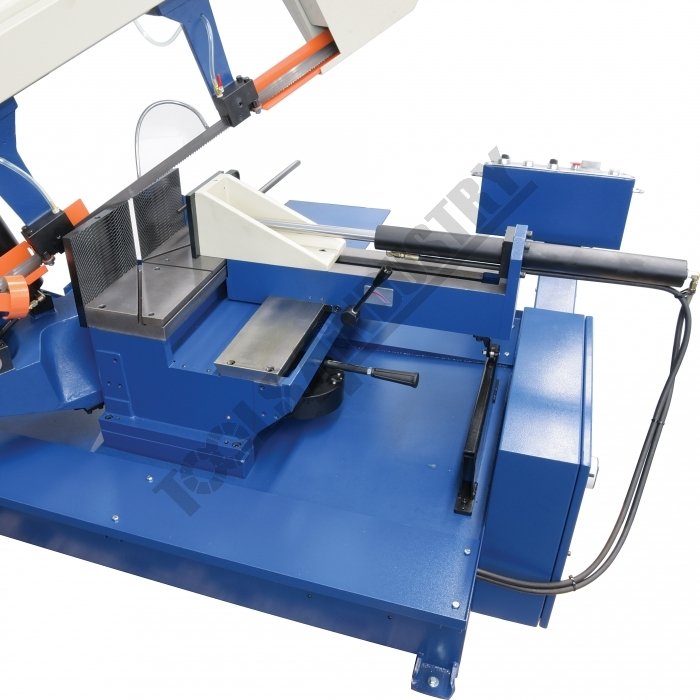

• Automatic 2 speed full stroke hydraulic clamping vice
• Hydraulic operated system raising and lowering the cutting beam
• Adjustable hydraulic feed cutting rate for multiple applications
• Blade breakage sensor fitted that automatically shuts machine off

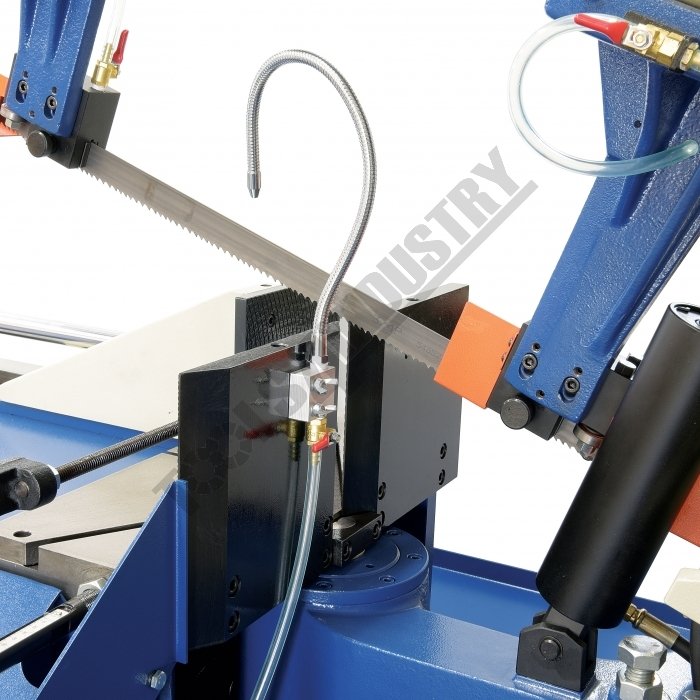

• Built-in coolant system for maximum cutting efficiency

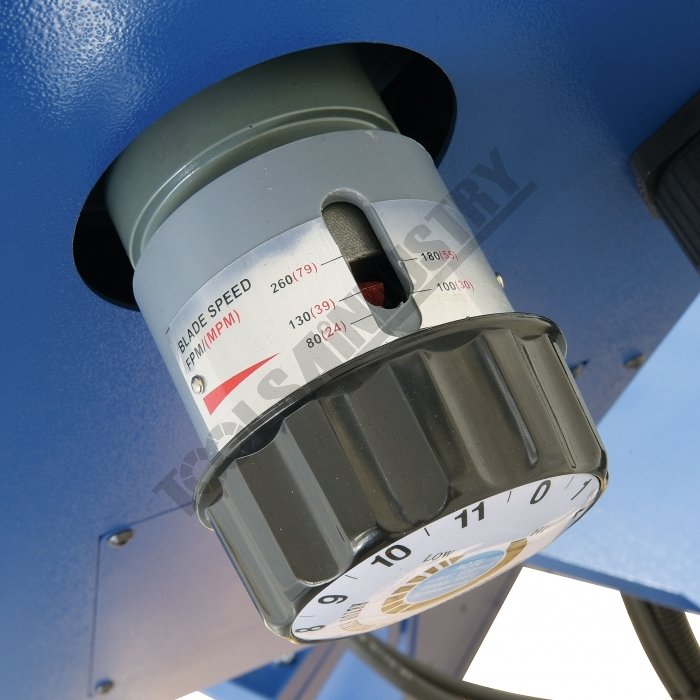

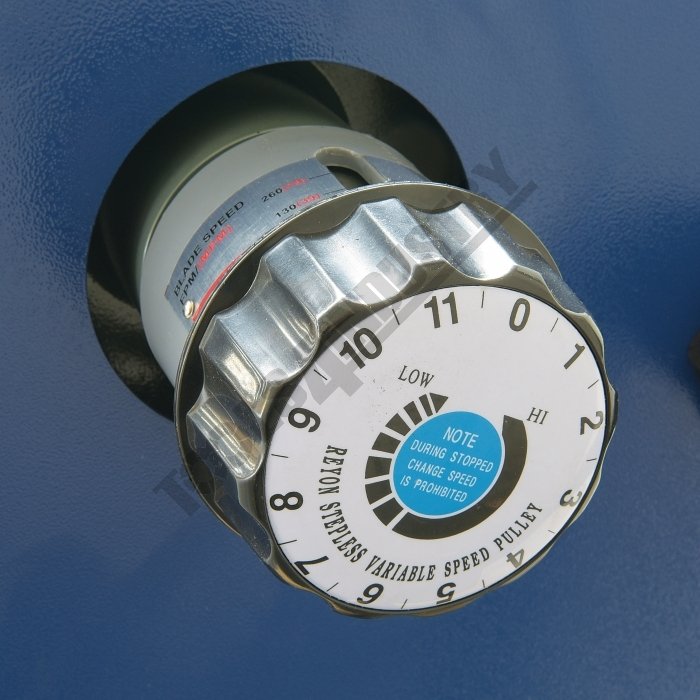

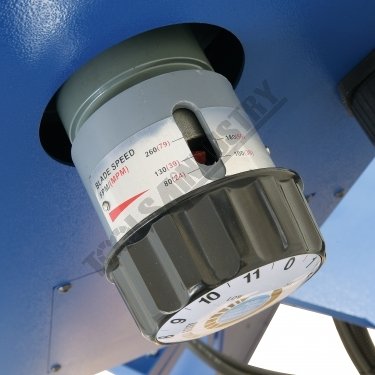

• Adjustable variable blade speed system enabling 26-80mpm cutting speeds

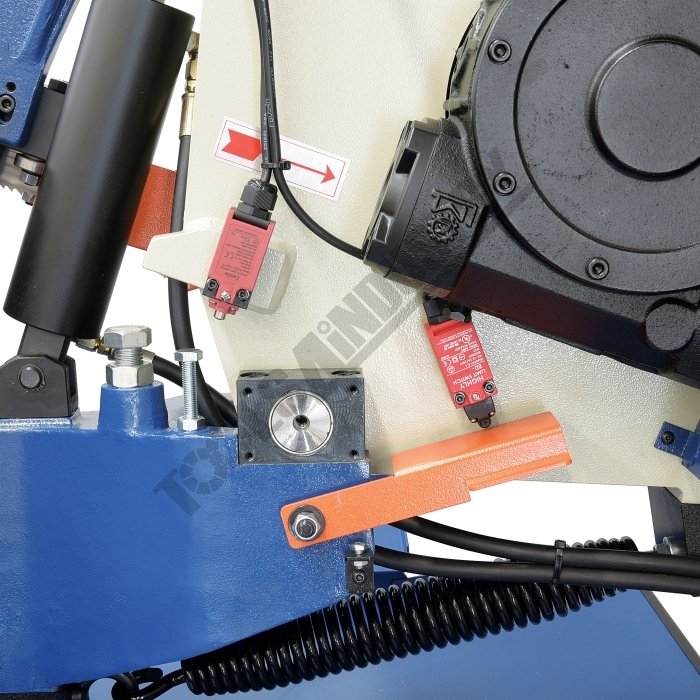

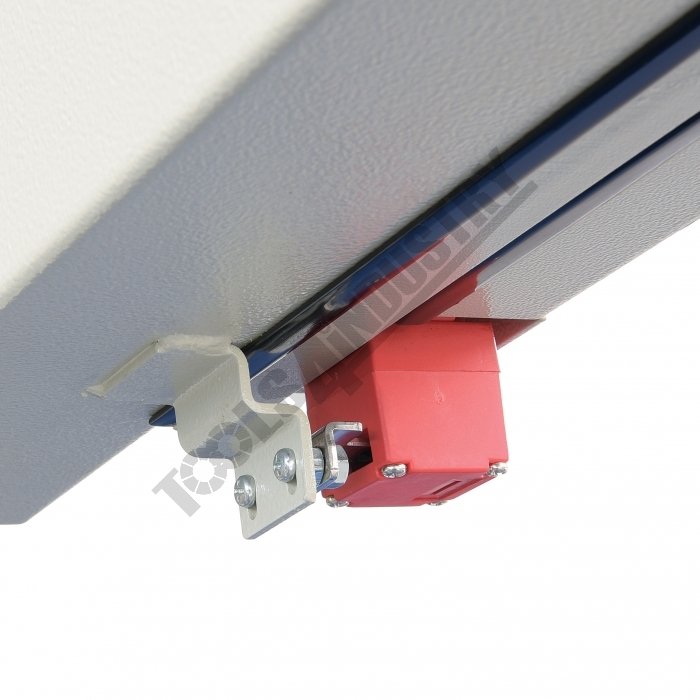

• Limit switch stops machine and raises cutting beam when cut is complete

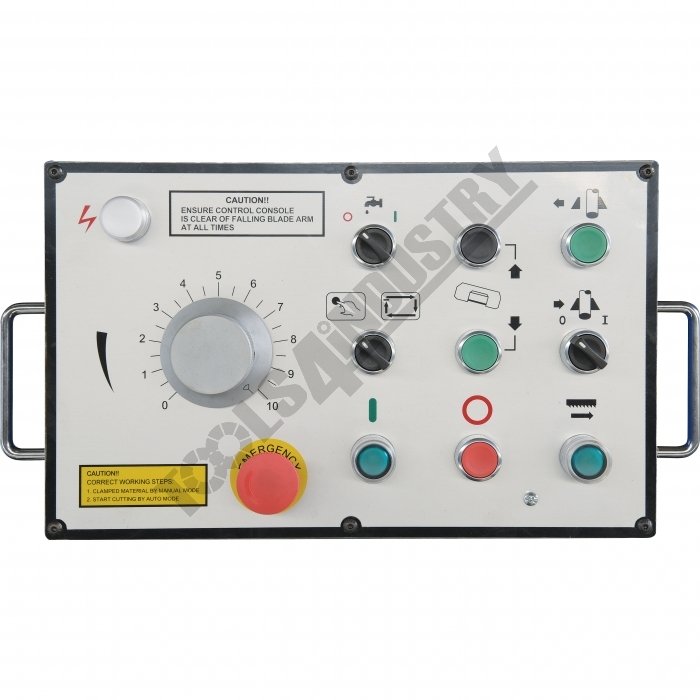

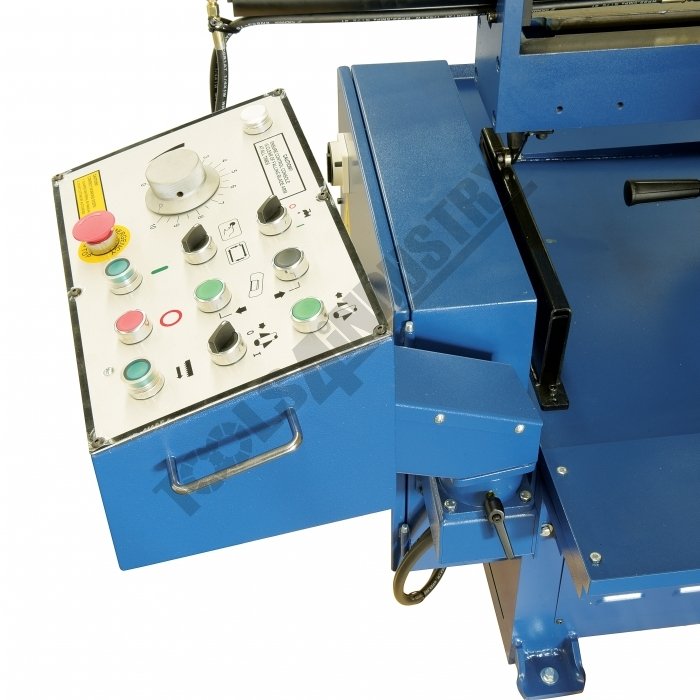

• Swivelling electric control panel mounted on base for quick operation

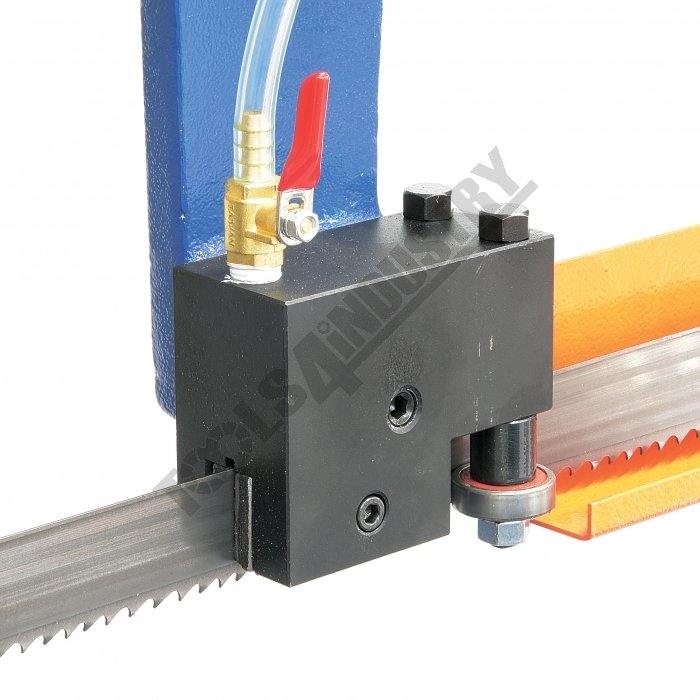

• Combination roller bearing & carbide blade guides
• Heavy duty cast Iron blade wheels

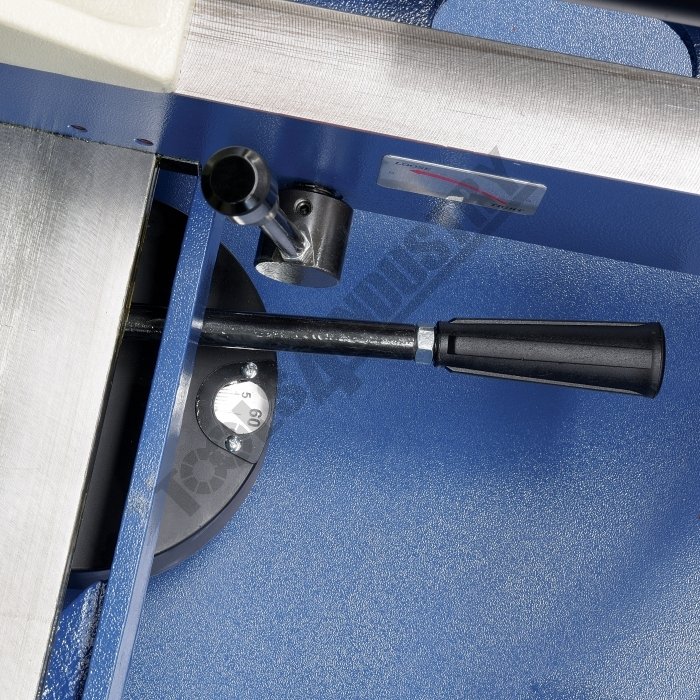

• Large mitre scale - easy to read
• Fabricated metal frame with heavy duty base
• Adjustable blade roller guides provides accurate cutting

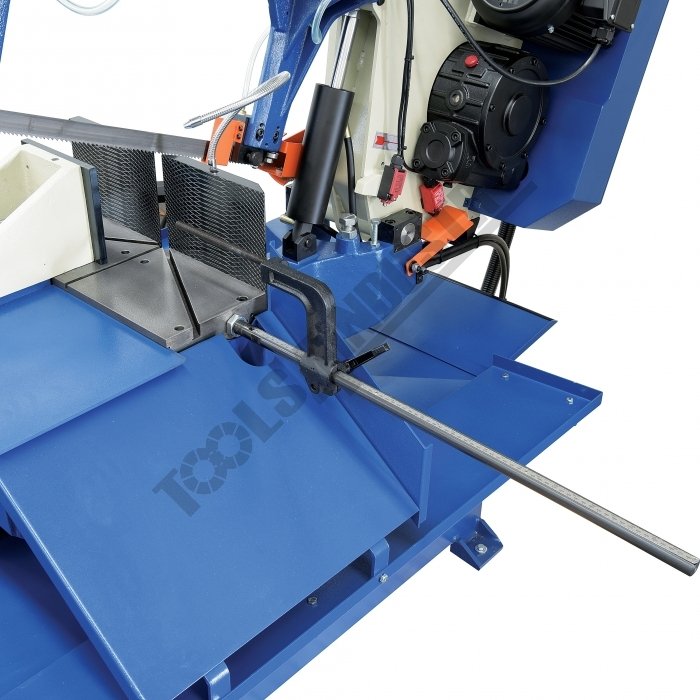

• Adjustable length stop for repetition cutting

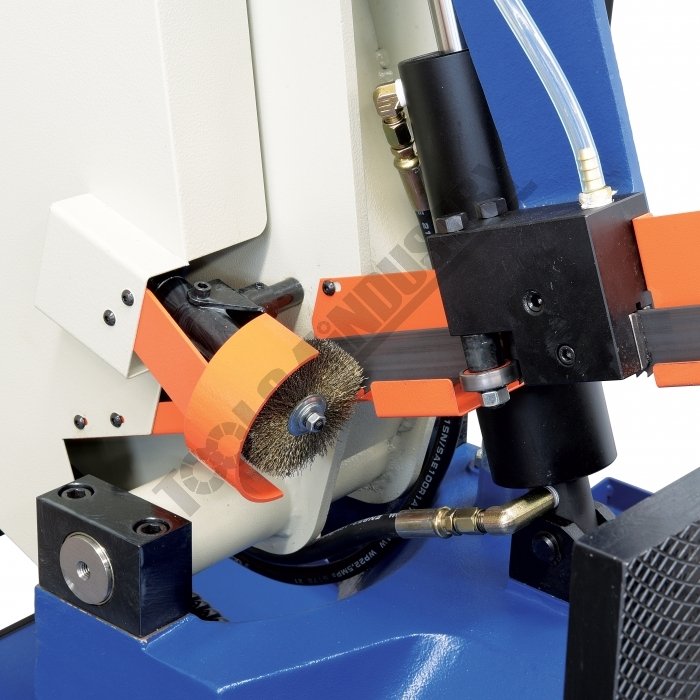

• Wire wheel brush to clean swarf from blade

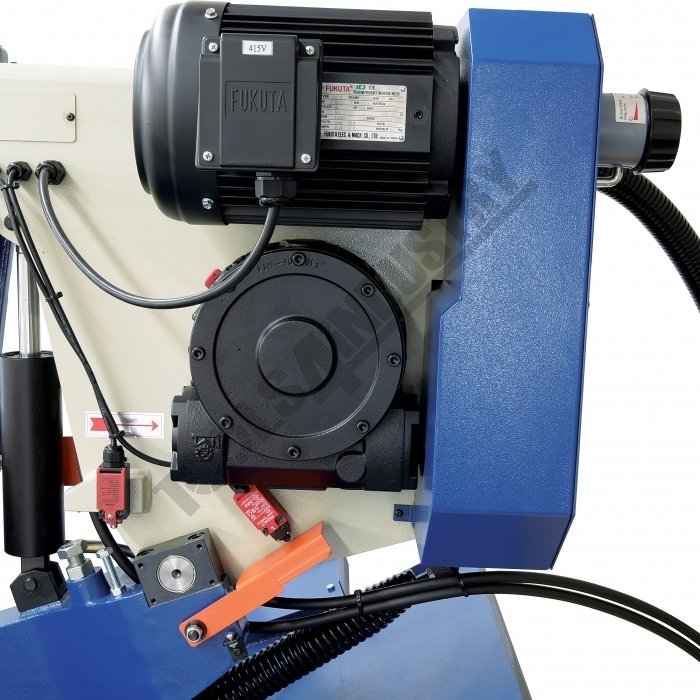

• Industrial-duty gearbox driven by a 2.25kW / 3hp 415V motor
• Includes pendant control panel
