This Product Is No Longer Available

Code	B019
Model	BS-10S
Weight (kg)	0
Weight (m³)	0.000
Weight (Freight)	0.000
Dimensions (cm)

Product Brochure Instruction Manual [5 MB] Parts List [2 MB] Blade Selection Chart [382 KB] Trouble Shooting Guide [330 KB]

This Product Is No Longer Available

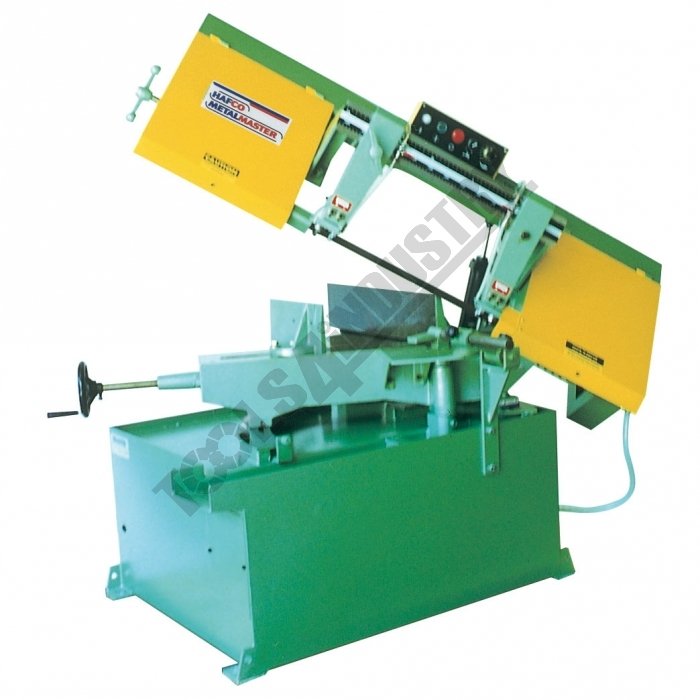

Swivel Head Metal Cutting Band Saw BS-10S

Features

400 x 230mm (W x H) rectangular capacity
Swivel head for easy angle cutting without moving material saving on valuable floor space
Adjustable hydraulic feed cutting rate for multiple applications
Mitre cuts to 45º using swivel head via a single locking nut
Built-in coolant system for maximum cutting efficiency
Adjustable 4-speed pulley drive system enabling 25-40-51-75mpm cutting speeds
Limit switch stops machine when cut is complete
Electric control panel mounted on base for quick operation
Combination roller bearing & Carbide blade guides
Robust heavy duty cast Iron blade wheels
Large mitre scale - easy to read
Cast iron frame with heavy duty fabricated base
Adjustable blade roller guides provides accurate cutting
Adjustable length stop for repetition cutting
Wire wheel brush to clean swarf from blade
Heavy-duty gearbox drive
1.5kW / 2hp 415V motor

Specifications

Compare 50 Products
ORDER CODE
MODEL
Operation Type
Round @ 90ºmm
Round @ 45ºmm
Round @ 60ºmm
Square @ 90ºmm
Square @ 45ºmm
Square @ 60ºmm
Rectangle (W x H) @ 90ºmm
Rectangle (W x H) @ 45ºmm
Rectangle (W x H) @ 60ºmm
Coolant System
Table Working Heightmm
Cutting Head Beam Type
Cutting Head Beam Return
Cutting Head Down Feed Control
Vice Clamping Fixture
Bundle Cutting Fixture
Blade Steps / SpeedsM/Min
Blade Size (L x W x T)mm
Motor PowerkW / hp
Voltage / AmperageV / amp
Nett Weightkg

B019
BS-10S
Swivel Head
250
215
~
250
250
~
400 x 230
250 x 215
~
Yes
~
Manual
Manual Return
Adjustable Hydraulic
Manual
~
25-40-51-75
3352 x 27 x 0.9
1.5 / 2
415
490

B100
BS-300/60 AFI-E
Swivel Head
Automatic Hitch Feed
255
210
135
230
190
110
300 x 180
200 x 160
130 x 100
Yes
880
Fully-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
Automatic-Hydraulic
Yes
Variable 18-100
2765 x 27 x 0.9
1.5 / 2
415
634

B036
BS-10AF
Fixed Head
Automatic Roller Feed
250
~
~
230
~
~
250 x 230
~
~
Yes
600
Fully-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
Manual
~
Variable 24-83
3352 x 27 x 0.9
1.5 / 2
415
640

B031
BS-13LS
Swivel Head
330
330
~
320
320
~
510 x 210
320 x 320
~
Yes
650
Semi-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
Manual
~
Variable 30-123
3810 x 27 x 0.9
2.25 / 3
415
460

B106
BS-350/60 AFI-NC
Swivel Head
Automatic Hitch Feed
305
250
175
250
230
155
350 x 200
230 x 200
170 x 100
Yes
880
Fully-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
Automatic-Hydraulic
Yes
Variable 18-100
3370 x 27 x 0.9
1.8k/ 2.5
415
890

B002
BS-4A
Fixed Head
100
75
~
100
75
~
150 x 100
75 x 100
~
~
620
Manual
Manual Return
Adjustable Spring Type
Manual
~
20-29-50
1645 x 12.7 x 0.65
0.375 / 0.5
240 / 10
65

B002
BS-4A
Fixed Head
100
75
~
100
75
~
150 x 100
75 x 100
~
~
620
Manual
Manual Return
Adjustable Spring Type
Manual
~
20-29-50
1645 x 12.7 x 0.65
0.375 / 0.5
240 / 10
65

B004
BS-5V
Swivel Head
125
80
50
125
80
50
130 x 125
80 x 80
50 x 50
~
110
Manual Return
Spring Assist Return
Manual
Manual
~
Variable 30-80
1440 x 12.7 x 0.65
1 / 1.3
240 / 10
23

B005
BS-6V
Swivel Head
170
125
75
170
125
70
170 x 170
125 x 125
75 x 70
~
137
Manual Return
Spring Assist Return
Manual
Manual
~
Variable 30-80
2035 x 19 x 0.8
1.65 / 2.2
240 / 10
38

B003
BS-5S
Swivel Head
110
80
~
110
75
~
180 x 110
110 x 72
~
~
680
Manual
Manual Return
Fixed Spring Type
Manual
~
20-29-50
1727 x 12.7 x 0.65
0.375 / 0.5
240 / 10
70

B006
BS-7L
Fixed Head
178
127
~
178
115
~
305 x 178
120 x 115
~
Yes
550
Manual
Manual Return
Adjustable Hydraulic
Manual
~
22-34-49-64
2362 x 19 x 0.8
0.75 / 1
240 / 10
153

B007
BS-7
Fixed Head
180
110
~
180
110
~
300 x 180
110 x 180
~
Yes
550
Manual
Manual Return
Adjustable Hydraulic
Manual
~
34, 41, 59, 98
2362 x 19 x 0.8
0.75 / 1
240 / 10
166

B008
BS-8DS
Swivel Head
205
143
~
205
~
~
215 x 205
143 x 115
~
Yes
~
Manual
Manual Return
Adjustable Hydraulic
Manual - Quick Action
~
24-41-61-82
2360 x 19 x 0.9
1.1 / 1.5
240
190

B008A
BS-7DS
Swivel Head - Dual Mitre
178
127
~
178
85
~
215 x 178
140 x 85
~
Yes
850
Manual
Manual Return
Adjustable Hydraulic
Manual - Quick Action
~
24-41-61-82
2362 x 19 x 0.8
0.75 / 1
240 / 10
165

B014
BS-912
Fixed Head
230
150
~
230
127
~
305 x 178
150 x 127
~
Yes
640
Manual
Manual Return
Adjustable Hydraulic
Manual
~
26-50-73-96
2654 x 27 x 0.9
0.75 / 1
240 / 10
185

B015
BS-916A
Fixed Head
228
180
~
228
150
~
350 x 228
240 x 180
~
Yes
675
Manual
Manual Return
Adjustable Hydraulic
Manual
~
29-50-73-96
2908 x 27 x 0.9
1.1 / 1.5
240 / 15
290

B021
BS-10LS
Swivel Head
250
235
~
250
235
~
468 x 250
250 x 240
~
Yes
570
Manual
Manual Return
Adjustable Hydraulic
Manual
~
Variable 18-102
3090 x 27 x 0.9
1.5 / 2
415
380

B062V
EB-260V
Swivel Head
225
150
100
180
140
100
225 x 180
140 x 140
100 x 100
Yes
950
Manual
Manual Return
Adjustable Hydraulic
Manual - Quick Action
~
Variable 20-90
2480 x 27 x 0.9
1.5 / 2
240 / 10
200

B064V
EB-285DSV
Swivel Head - Dual Mitre
235
190
120
225
185
120
265 x 200
180 x 200
115 x 120
Yes
990
Manual
Manual Return
Adjustable Hydraulic
Manual - Quick Action
~
Variable 20-90
2645 x 27 x 0.9
1.5 / 2
240 / 10
260

B063V
EB-280DSV
Swivel Head - Dual Mitre
225
160
100
180
160
100
245 x 180
160 x 160
100 x 100
Yes
965
Manual
Manual Return
Adjustable Hydraulic
Manual - Quick Action
~
Variable 20-90
2480 x 27 x 0.9
1.5 / 2
240 / 10
315

B067
EB-320DS
Swivel Head - Dual Mitre
255
220
125
205
200
125
310 x 205
205 x 200
125 x 125
Yes
950
Manual
Manual Return
Adjustable Hydraulic
Manual - Quick Action
~
35-70
2750 x 27 x 0.9
1.5 / 2
415
371

B075
EB-330DSC
Swivel Head - Dual Mitre
260
240
160
230
210
130
295 x 230
225 x 210
160 x 130
Yes
950
Manual
Manual Return
Adjustable Hydraulic
Manual - Quick Action
~
36, 72
2965 x 27 x 0.9
1.2 / 1.6
415
404

B072
EB-351DSA
Swivel Head - Dual Mitre
Semi - Automatic
270
230
135
260
210
150
345 x 205
230 x 150
135 x 135
Yes
950
Semi-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
Automatic-Hydraulic
~
36-72
2925 x 27 x 0.9
1.87 / 2.5
415
650

B029
BS-10AS
Swivel Head
Semi - Automatic
250
250
~
230
175
~
400 x 230
205 x 155
~
Yes
650
Semi-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
Manual
~
24-38-53-81
3352 x 27 x 0.9
1.5 / 2
415
610

B030
BS-13DS
Swivel Head - Dual Mitre
Semi - Automatic
330
330
204
330
280
160
458 x 235
310 x 170
204 x 80
Yes
840
Semi-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
Automatic-Hydraulic
~
Variable 19-102
3810 x 27 x 0.9
1.5 / 2
415
600

B034A
BS-321AS
Swivel Head - Dual Mitre
Semi - Automatic
331
315
215
320
315
195
510 x 260
315 x 315
315 x 195
Yes
800
Semi-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
Automatic-Hydraulic
~
Variable 26-80
4180 x 34 x 1.1
2.25 / 3
415
1000

B090
C-320NC
Fixed (Double Column)
Automatic - Hitch Feed
320
~
~
320
~
~
380 x 320
~
~
Yes
790
Fully-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
Automatic-Hydraulic
Yes
Variable 20-100
4240 x 34 x 1.1
3.75 / 5
415
1850

B028
BS-10S
Swivel Head
250
250
~
230
150
~
400 x 230
230 x 150
~
Yes
650
Manual
Manual Return
Adjustable Hydraulic
Manual
~
24-38-53-81
3352 x 27 x 0.9
1.5 / 2
415
600

B037
BS-12AF
Fixed Head
Semi - Automatic
300
~
~
260
~
~
330 x 200
~
~
Yes
610
Fully-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
~
~
Variable 14-73
3820 x 27 x 0.9
2.2 / 3
415
900

B009
BS-5
Fixed Head
115
80
~
115
80
~
150 x 115
100 x 80
~
~
620
Manual
Manual Return
Adjustable Spring Type
Manual
~
20-29-50
1645 x 12.7 x 0.65
0.25 / 1/3
240 / 10
65

B018
BS-250
Fixed Head
250
190
~
250
190
~
415 x 250
250 x 190
~
Yes
600
Manual
Manual Return
Adjustable Hydraulic
Manual
~
21-34-43-60
3302 x 27 x 0.9
1.5 / 2
415
360

B063
EB-280DS
Swivel Head - Dual Mitre
225
160
100
180
160
100
245 x 180
160 x 160
100 x 100
Yes
965
Manual
Manual Return
Adjustable Hydraulic
Manual - Quick Action
~
45-90
2480 x 27 x 0.9
1.1 / 1.5
415
280

B040
AH-250H
Fixed Head
Automatic Hitch Feed
250
~
~
250
~
~
280 x 250
~
~
Yes
650
Fully-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
Automatic-Hydraulic
Yes
Variable 20-100
3505 x 34 x 1.1
2.25 / 3
415
1600

B067D
EB-320DSV
Swivel Head - Dual Mitre
255
195
115
200
180
115
255 x 200
190 x 130
115 x 115
Yes
950
Manual
Manual Return
Adjustable Hydraulic
Manual - Quick Action
~
20-75
2750 x 27 x 0.9
1.5 / 2
415
380

B034
BS-320AS
Swivel Head - Dual Mitre
Semi - Automatic
331
315
215
320
315
195
510 x 260
315 x 315
315 x 195
Yes
800
Semi-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
Automatic-Hydraulic
~
Variable 26-80
4180 x 34 x 1.1
2.25 / 3
415
1000

B042
C-300NC
Fixed Head
Automatic Hitch Feed
300
~
~
300
~
~
340 x 300
~
~
Yes
600
Fully-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
Automatic-Hydraulic
Yes
Variable 20-100
3820 x 34 x 1.1
3.75 / 5
415
2000

B008G
BS-7GRD
Swivel Head
178
127
~
178
85
~
215 x 178
140 x 85
~
Yes
850
Manual
Manual Return
Adjustable Hydraulic
Manual
~
34-50-65
2362 x 19 x 0.8
0.75 / 1
240
165

B033
BS-13HS
Swivel Head
Semi - Automatic
330
300
~
330
300
~
530 x 225
415 x 300
~
Yes
780
Semi-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
Automatic-Hydraulic
~
Variable 20-80
4100 x 34 x 1.1
2.25 / 3
415
750

B062
EB-260A (240V)
Swivel Head
225
150
100
180
160
100
225 x 180
140 x 140
100 x 100
Yes
950
Manual
Manual Return
Adjustable Hydraulic
Manual - Quick Action
~
90
2480 x 27 x 0.9
1.1 / 1.5
240
216

B035
BS-460AS
Swivel Head - Dual Mitre
Semi - Automatic
460
460
330
460
460
330
600 x 440
460 x 360
330 x 230
Yes
880
Semi-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
Automatic-Hydraulic
~
Variable 26-80
5330 x 41 x 1.3
3.75 / 5
415
1560

K003
EB-320DSV Package Deal
Swivel Head - Dual Mitre
255
195
115
230
195
115
315 x 230
195 x 230
115 x 160
Yes
950
Manual
Manual Return
Adjustable Hydraulic
Manual - Quick Action
~
20-75
2750 x 27 x 0.9
1.5 / 2
415
380

K002
EB-320DS Package Deal
Swivel Head - Dual Mitre
255
220
125
205
200
125
310 x 205
205 x 200
125 x 125
Yes
950
Manual
Manual Return
Adjustable Hydraulic
Manual - Quick Action
~
35-70
2750 x 27 x 0.9
1.5 / 2
415
360

B070
EB-350DSA
Swivel Head - Dual Mitre
270
240 Right / 210 Left
160
260
220 Right / 180 Left
150
350 x 220
240x160 Right / 180 Left
~
Yes
~
Semi-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
Manual - Quick Action
~
68-34
3160 x 27 x 0.9
1.5 / 2
415
530

B068
EB-350DS
Swivel Head - Dual Mitre
270mmx
240 Right / 210 Left
160
260
220 Right / 180 Left
150
350 x 220
240x160 Right / 180 Left
~
Yes
~
Manual
Manual Return
Adjustable Hydraulic
Manual - Quick Action
~
68-34
3160 x 27 x 0.9
1.5 / 2
415
410

B064
EB-270DS
Swivel Head
225
150 Right / 110 Left
90
220
140 Right / 110 Left
90
260 x 100
200 x 140 (110x160 Left)
90 x 90
Yes
~
Manual
Manual Return
Adjustable Hydraulic
Manual - Quick Action
~
36-72
2480 x 27 x 0.9
1.1 / 1.5
415
330

B066
EB-270DSA
Swivel Head
225
150
90
220
140
90
260 x 100
200x140 R / 110x160 L
90
Yes
~
Manual
Manual Return
Adjustable Hydraulic
Manual - Quick Action
~
36-72
2460 x 25 x 0.9
1.5 / 2
415
280

B032
BS-13AS
Swivel Head
Semi - Automatic
330
290
~
280
265
~
460 x 280
265 x 265
~
Yes
~
Semi-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
Manual
~
Variable 26-76
3810 x 27 x 0.9
1.5 / 2
415
640

B023
BS-10
Fixed
250
~
~
230
~
~
400 x 230
~
~
Yes
~
Manual
Manual Return
Adjustable Hydraulic
Manual
~
19-31-48-78
3352 x 27 x 0.9
1.5 / 2
415
430

ORDER CODE	BS-10S
MODEL	Swivel Head
Operation Type	250
Round @ 90ºmm	215
Round @ 45ºmm	~
Round @ 60ºmm	250
Square @ 90ºmm	250
Square @ 45ºmm	~
Square @ 60ºmm	400 x 230
Rectangle (W x H) @ 90ºmm	250 x 215
Rectangle (W x H) @ 45ºmm	~
Rectangle (W x H) @ 60ºmm	Yes
Coolant System	~
Table Working Heightmm	Manual
Cutting Head Beam Type	Manual Return
Cutting Head Beam Return	Adjustable Hydraulic
Cutting Head Down Feed Control	Manual
Vice Clamping Fixture	~
Bundle Cutting Fixture	25-40-51-75
Blade Steps / SpeedsM/Min	3352 x 27 x 0.9
Blade Size (L x W x T)mm	1.5 / 2
Motor PowerkW / hp	415
Voltage / AmperageV / amp	490
Nett Weightkg
