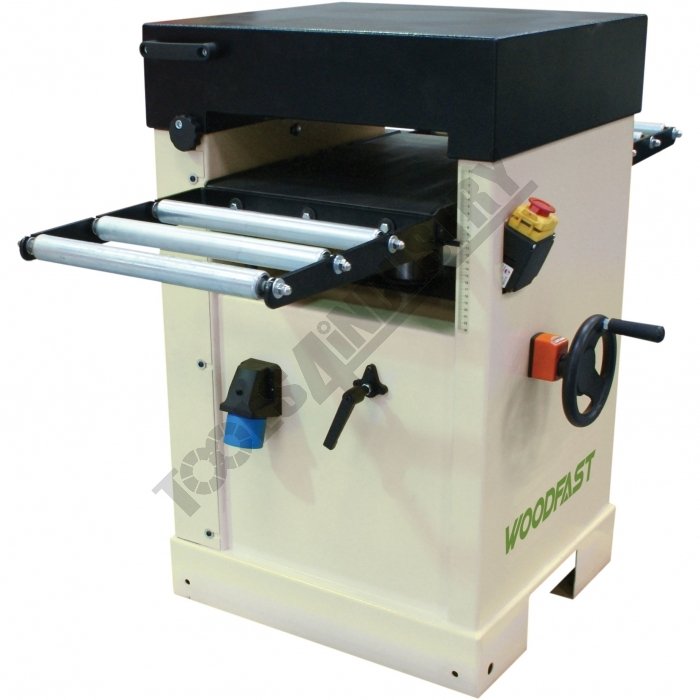

Thicknesser - HSS Blades TH410 407 x 225mm (W x H) Material Capacity

Description

407mm wide x 225mm high timber capacity

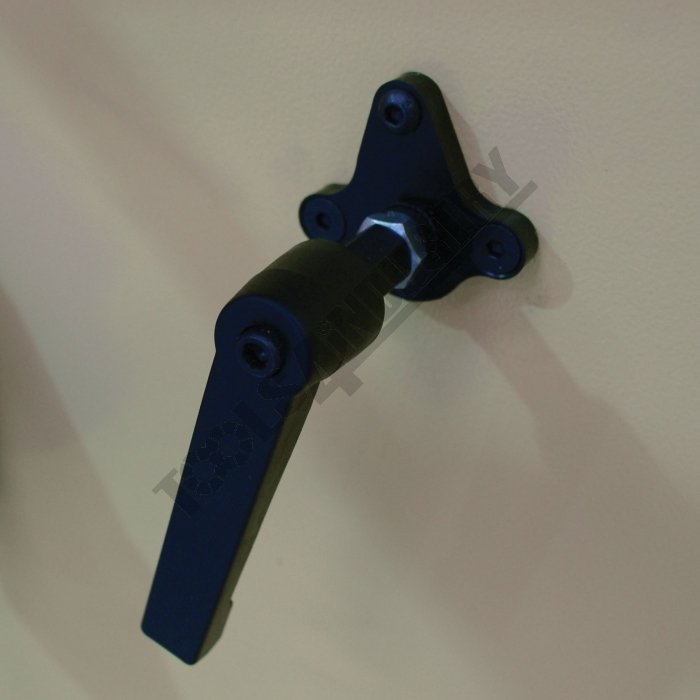

This is a newly designed Thicknesser with a very useful capacity of 407 x 225mm but able to take work pieces down to 6mm thick and only 200mm long all in a compact design. Woodfast have manufactured this machine with and adequate powered by a 2.25kW / 3hp industrial quality motor able to produce a very high quality finish due to the speed of the knife block and the variable speed feed rate system enabling 5-7m/min feed speeds. The large cast iron thicknessing table features a central column with a locking mechanism to prevent any movement. This is a very valuable machine to have in any workshop.

Features

• Large 407 x 225mm capacity
• Ideal for schools or TAFE with enclosed sides around cutter head for additional safety
• Heavy-duty 2.25kW / 3hp 240V motor

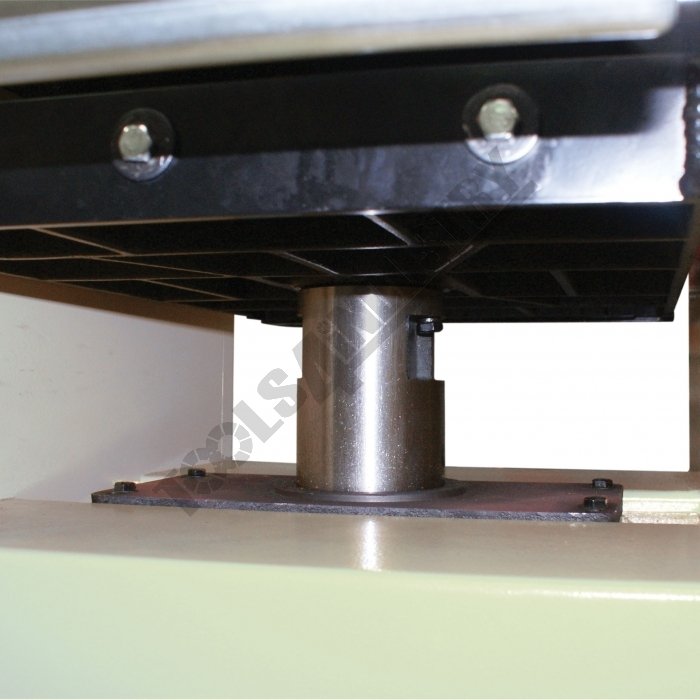

• Central column support for table

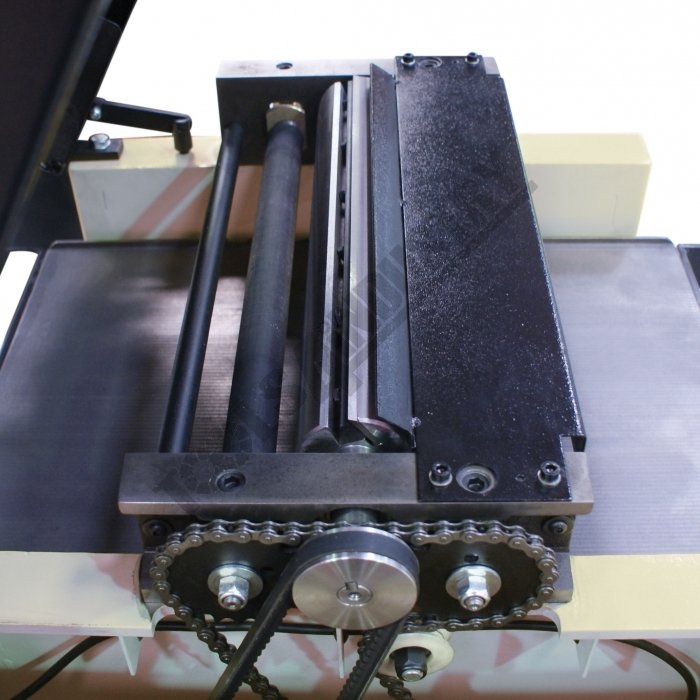

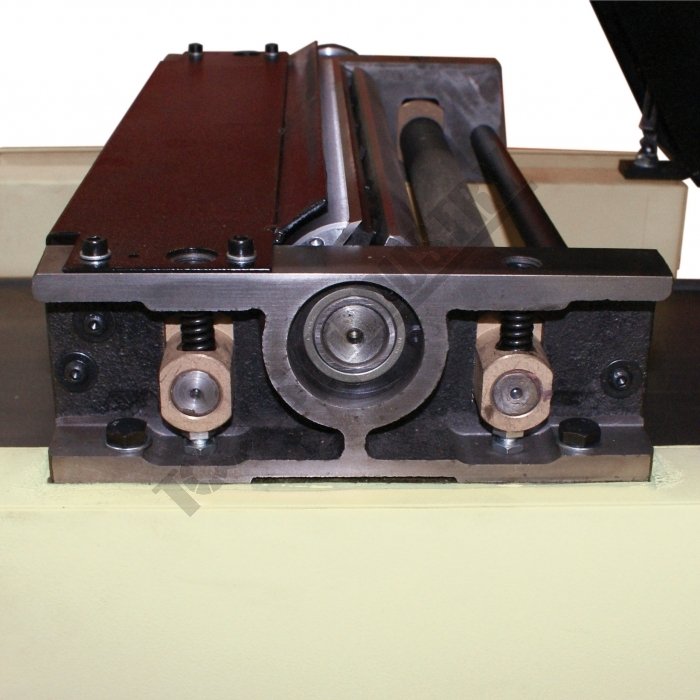

• 3 HSS blades Ø70mm cutter block system, 5300rpm
• Heavy duty cast iron table 600 x 415mm

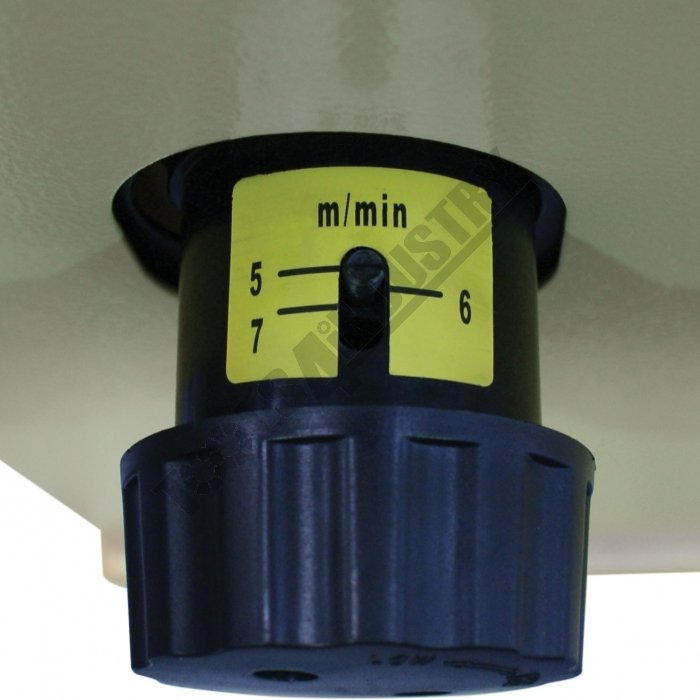

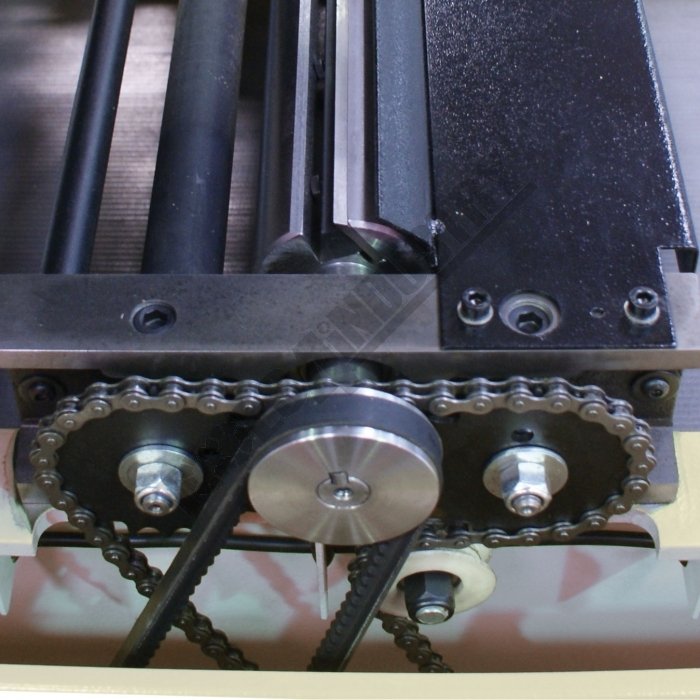

• Great innovation variable feed speed system between 5 - 7m/min
• Sound-proofing incorporated to reduce noise

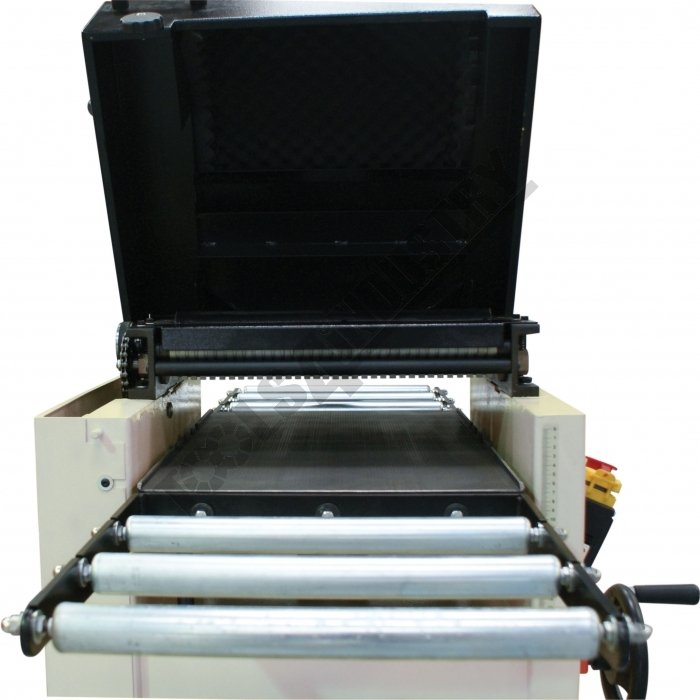

• In-feed & out-feed support arms with 3 material rollers

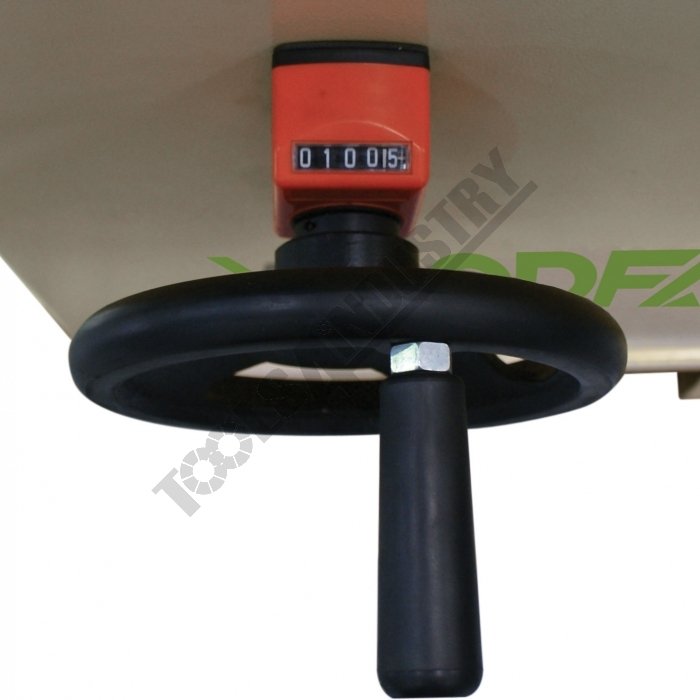

• 4mm maximum depth of cut via hand wheel with digit height counter

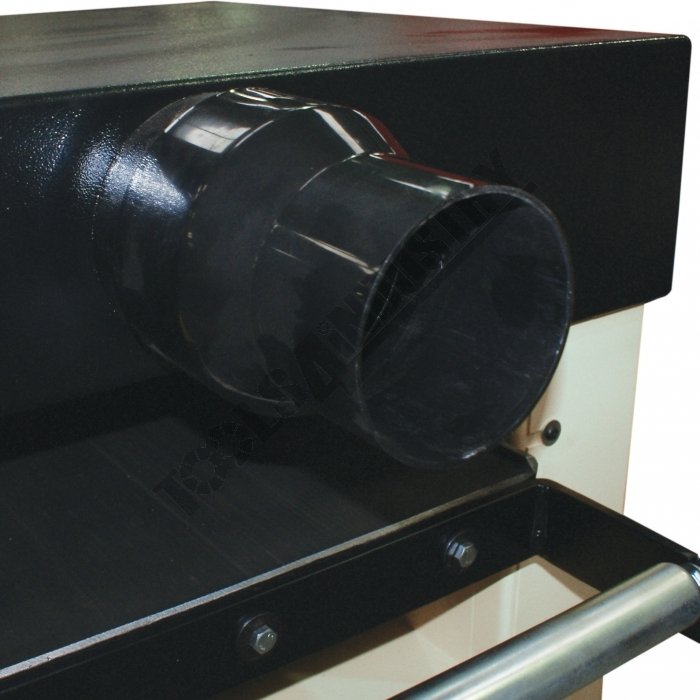

• Integral extraction hood with a 120mm dust extraction outlet

Includes

• 100mm dust chute
• Digit readout height gauge
