Wood Working > Thicknessers & Accessories > Thicknesser

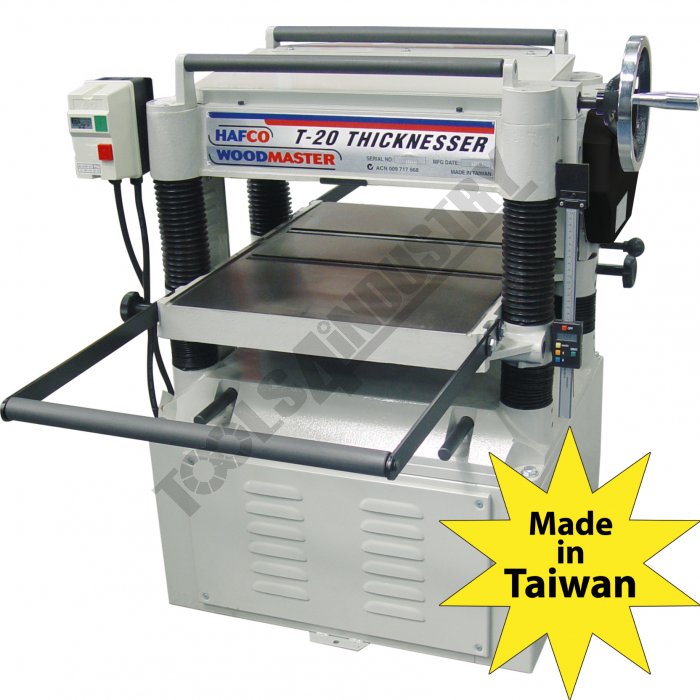

W415 Thicknesser T-20
Thicknesser

2 Speed Feed GearboxDigital Height ReadoutMagnetic Safety SwitchRobust 4 Post Design
Code:W415
Model:T-20
Capacity:508mm
Weight (Nett):420 Kg
Weight (Cubic):0.777 m3
Weight (Freight):420 Kg
Dimensions:75 x 95 x 109
In Stock:Yes
Instruction Sheets
Parts Sheet [1.13 MB]

Thicknesser

Features
- Suits professional workshop
- Heavy cast iron machine
- 4 knife cutter head with quick action blade change & adjustment
- Cutting speed 5000 rpm

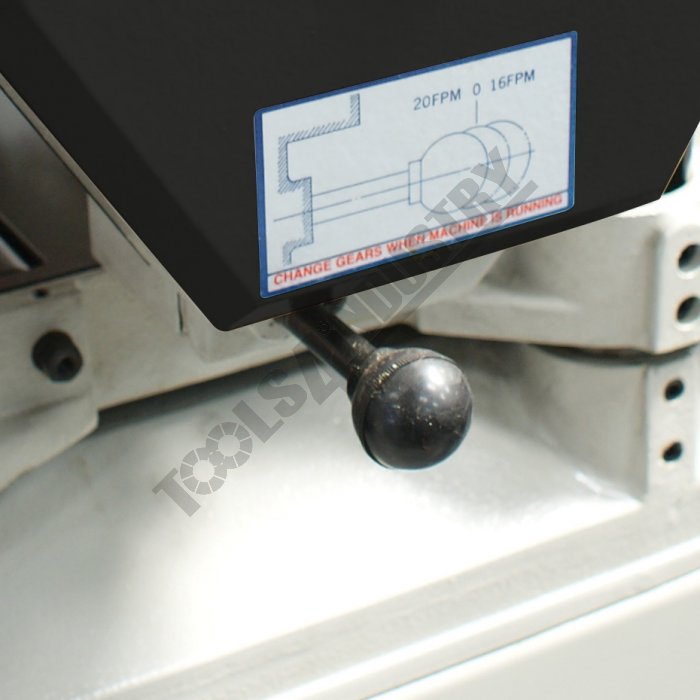

- 2 speed feed rollers with pressure adjustment
- 125mm dust chute

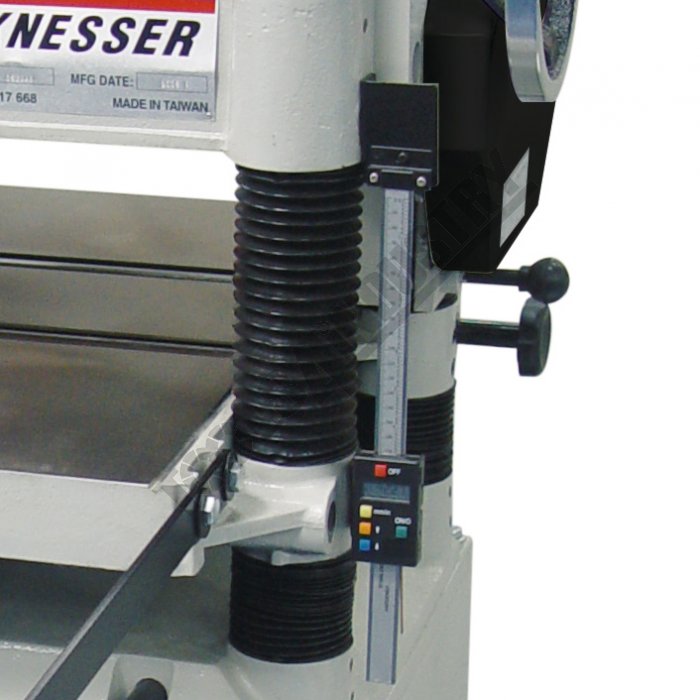

- Digital height gauge

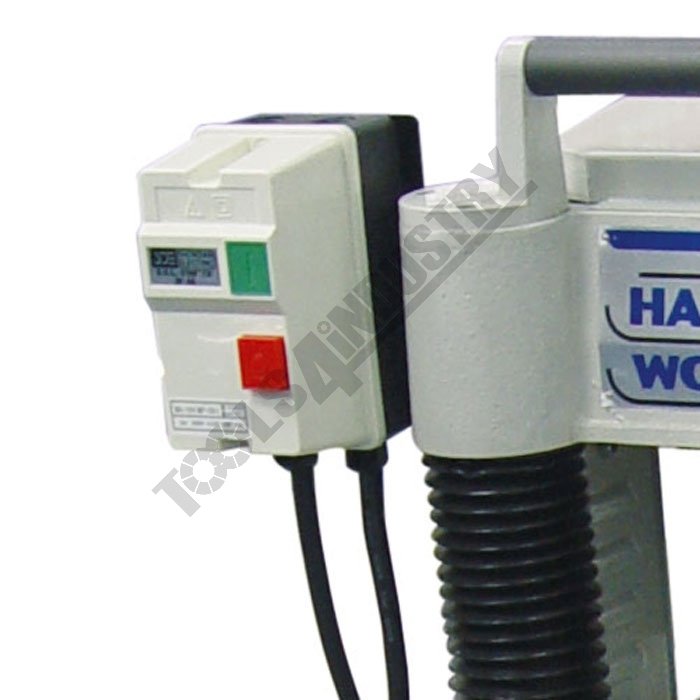

- Industrial contactor switch with overload protection
- Anti kick back fingers
- Table locking handles lock both left & right

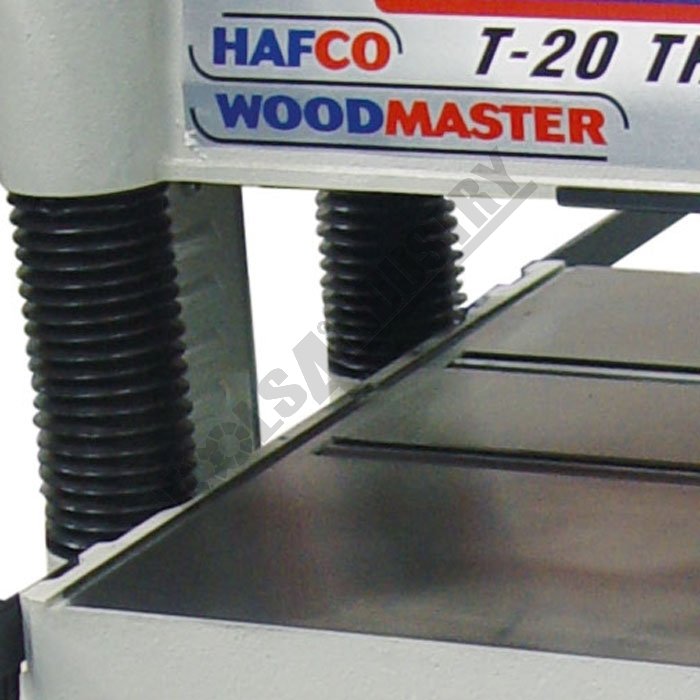

- Heavy duty four post design with protective concertina covers
- Same model sold for over 20 years
- Quality Taiwanese Manufacture

Array
(
    [3] => K040
    [2] => W414
    [6] => W415
    [5] => W415A
    [4] => W680
    [0] => W800
    [1] => W805
    [7] => W834
    [9] => W835
    [8] => W842
)

All Sorts: Array
(
    [0] => K040
    [1] => W414
    [2] => W415
    [3] => W415A
    [4] => W680
    [5] => W800
    [6] => W805
    [7] => W834
    [8] => W835
    [9] => W842
)

All Codes +  All Sorts: Array
(
    [K040] => K040
    [W414] => W414
    [W415] => W415
    [W415A] => W415A
    [W680] => W680
    [W800] => W800
    [W805] => W805
    [W834] => W834
    [W835] => W835
    [W842] => W842
)

Current: 3
Max: 7
Back: -1
Next: 1
First: W414
Second: W415
Third: W415A
Fourth: W680


CODEW414W415W415AW680
ModelT-380AT-20T-20TH-410
Width Capacity380mm508mm508mm407mm
Height Capacity150mm200mm200mm225mm
Motor Power1.5kw / 2hp3.75kW / 5hp2.25kW / 3hp2.25kW / 3hp
Voltage240V415V240V240V
Weight (Nett)220kg420kg420kg170kg


Recommended Accessories

WL005 - 510mm Thicknesser Blades Suits: T-20
W397 - DC-80 Dust Collector 2800 CFM
W331 - DC-90 Dust Collector 3200 CFM
W344 - DCK-2 Dust Accessory Kit (Wood Only)
W334 - Dust Collector Adaptor 100-63mm
W333 - Dust Collector Adaptor 100-125mm
W335 - Dust Collector Shut Off Valve 100mm
W336 - Dust Collector Elbow 100mm
W337 - Dust Collector 'Y' Fitting 100mm
W338 - Dust Collector Universal Dust Hood 100mm
W339 - Dust Collector Floor Sweeper Attachment 100mm
W340 - Dust Collector Steel Hose Clamp 100mm (4") Dia.
W341 - Dust Collector Steel Hose Clamp 125mm (5") Dia.
W398 - per/Metre Dust Hose (Wood Only) 100mm (4") Dia.
W398A - per/Metre Dust Hose (Wood Only) 125mm (5") Dia.
