This Product Is No Longer Available
| Code | W396 |
|---|---|
| Model | DC-60 |
| Weight (kg) | 52 |
| Weight (m3) | 0.192 |
| Weight (Freight) | 63.936 |
| Dimensions (cm) | 85 x 47 x 48 |

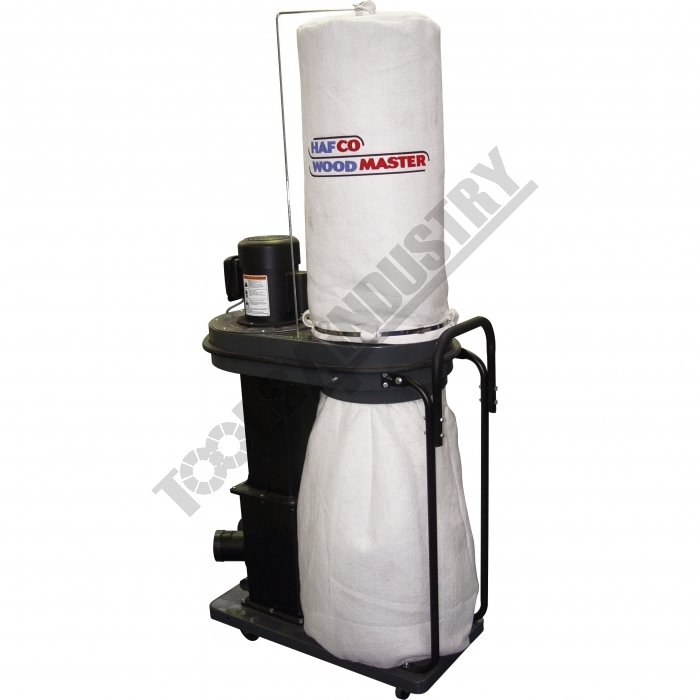

Dust Collector DC-60
Description
LPHV = Low Pressure High Volume SystemThe dust and shavings of LPHV extractors are sucked through the impeller fan blade and then the waste falls into the lower bag, the air being exhausted through the top filter bag, collecting some of the fine dust on the way. This type of extraction shifts huge volumes of air at low pressure and they are very efficient at removing bulk waste such from Planers, Thicknessers & Wood Lathes etc, hence some people call them chip collectors. The down fall with all LPHV dust collector systems is when you reduce the intake hose from 100mm to 32mm the air flow volume is affected dramatically.
Features
- 1.5kW (2HP) 240V motor
- 1200cfm air flow suction
- Floor sweeping attachment
- Portable on wheels
- 100mm(4") x twin inlets
- Quick-action clamps
- Quick-change drop in bottom bag
- 2 Micron Filter Bag
- MADE IN TAIWAN
Specifications
- Compare 20 Products
- ORDER CODE
- MODEL
- Type
- AirflowCFM
- LPHV - Low Pressure High VolumeYes / No
- HPLV - High Pressure Low VolumeYes / No
- Inlets / DiameterNo. / mm
- Outlets / DiameterNo. / mm
- Motor PowerkW / hp
- VoltageV / amp
- Floor Space (W x D x H)mm
- Nett Weightkg
- W396
- DC-60
- Dust Collector
- 1200
- Yes
- No
- 2 x Ø100
- ~
- 1.5 / 2
- 240 / 10
- ~
- 50
- W407
- DC-40
- Dust Collector
- 700
- Yes
- No
- 1 x Ø100
- ~
- 0.75 / 1
- 240 / 10
- ~
- 40
- W885
- HA-1000
- Dust Collector
- 109
- No
- Yes
- 1 x Ø100
- ~
- 1.1 / 1.5
- 240 / 10
- 350 x 350 x 650
- 14
- W332
- DC-2
- Dust Collector
- 500
- Yes
- No
- 1 x Ø100
- ~
- 0.75 / 1
- 240 / 10
- 750 x 400 x 1550
- 30
- W886
- HD12
- Dust Collector
- 680
- Yes
- No
- 1 x Ø100
- ~
- 0. 56 / 0.75
- 240 / 10
- 900 x 520 x 1570
- 24
- W316
- CDS-2/3
- Cyclone Dust Separator
- ~
- No
- No
- 2 x Ø100
- Ø152 ~ 25mm
- ~
- ~
- 650 x 560 x 1700
- 19
- W316
- CDS-2/3
- Cyclone Dust Separator
- ~
- No
- No
- 2 x Ø100
- Ø152 ~ 25mm
- ~
- ~
- 650 x 560 x 1700
- 19
- W394
- DC-3
- Dust Collector
- 1200
- Yes
- No
- 2 x Ø100
- ~
- 1.5 / 2
- 240 / 10
- 1000 x 700 x 1950
- 42
- W329
- DC-7
- Dust Collector
- 2300
- Yes
- No
- 3 x Ø100
- ~
- 2.25 / 3
- 240 / 10
- 1550 x 740 x 1930
- 51
- W397
- DC-80
- Dust Collector
- 2800
- Yes
- No
- 3 x Ø100
- ~
- 2.25 / 3
- 415
- 1600 x 800 x 2840
- 87
- W331
- DC-90
- Dust Collector
- 3200
- Yes
- No
- 3 x Ø100
- ~
- 3.75 / 5
- 415
- 1600 x 800 x 2840
- 109
- W318
- CD-2A
- Dust Collector &
Cyclone Separator - 1200
- Yes
- No
- 2 x Ø100
- ~
- 1.5 / 2
- 240 / 15
- 1200 x 800 x 1790
- 77
- W319
- CD-20
- Dust Collector &
Cyclone Separator - 910
- Yes
- No
- 3 x Ø100
- ~
- 1.5 / 2
- 240 / 10
- ~
- 130
- W320
- CD-30
- Dust Collector &
Cyclone Separator - 2204
- Yes
- No
- 3 x Ø100
- ~
- 2.2 / 3
- 240 / 15
- ~
- 152
- W3315
- DC-100
- Dust Collector
- 3860
- Yes
- No
- 4 x Ø100
- ~
- 3.75 / 5
- 415
- 2100 x 850 x 3500
- 148
- R875
- DX4000
- Dust Collector
- 224
- No
- Yes
- 1 x Ø100
- ~
- 1 / 1.3 (x 2)
- 240 / 15
- 580 x 580 x 640
- 20
- R872
- RSDE2
- Dust Collector
- 112
- No
- Yes
- 1 x Ø100
- ~
- 1 / 1.3
- 240 / 10
- 460 x 460 x 760
- 11
- R871
- RSDE1
- Dust Collector
- 112
- No
- Yes
- 1 x Ø100
- ~
- 1 / 1.3
- 240 / 10
- 460 x 460 x 620
- 11
- W317
- CD-2
- Dust Collector &
Cyclone Separator - 1050
- Yes
- No
- 2 x Ø100
- ~
- 1.5 / 2
- 240 / 15
- ~
- 77
- W3325
- DC-25
- Dust Collector
- 680
- Yes
- No
- 1 x Ø100
- ~
- 0.75 / 1
- 240 / 10
- ~
- 28
| ORDER CODE | DC-60 |
|---|---|
| MODEL | Dust Collector |
| Type | 1200 |
| AirflowCFM | Yes |
| LPHV - Low Pressure High VolumeYes / No | No |
| HPLV - High Pressure Low VolumeYes / No | 2 x Ø100 |
| Inlets / DiameterNo. / mm | ~ |
| Outlets / DiameterNo. / mm | 1.5 / 2 |
| Motor PowerkW / hp | 240 / 10 |
| VoltageV / amp | ~ |
| Floor Space (W x D x H)mm | 50 |
| Nett Weightkg |
