This Product Is No Longer Available
| Code | W346 |
|---|---|
| Model | M-24 |
| Capacity | 145mm timber width capacity |
| Weight (kg) | 113 |
| Weight (m3) | 0.211 |
| Weight (Freight) | 113 |
| Dimensions (cm) | 56 x 46 x 82 |

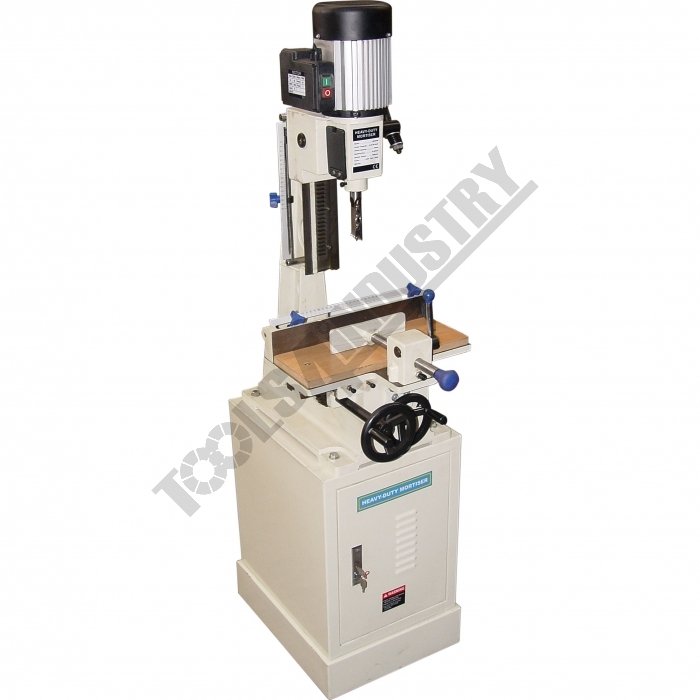

Chisel Morticer M-24 145mm timber width capacity
Description
Morticer Capacity:25mm chisel in softwood
19mm chisel in hardwood
Features
- 145mm timber width capacity
- 250mm vertical head stroke

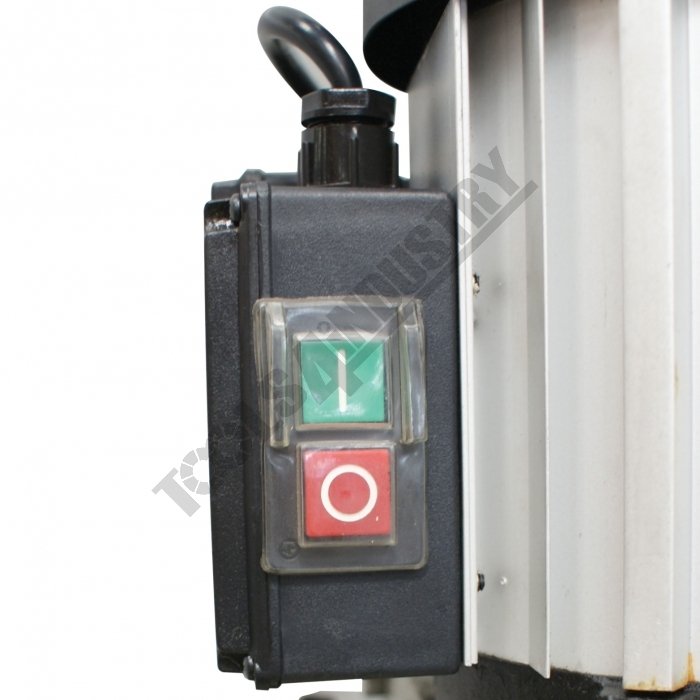

- Magnetic safety switch

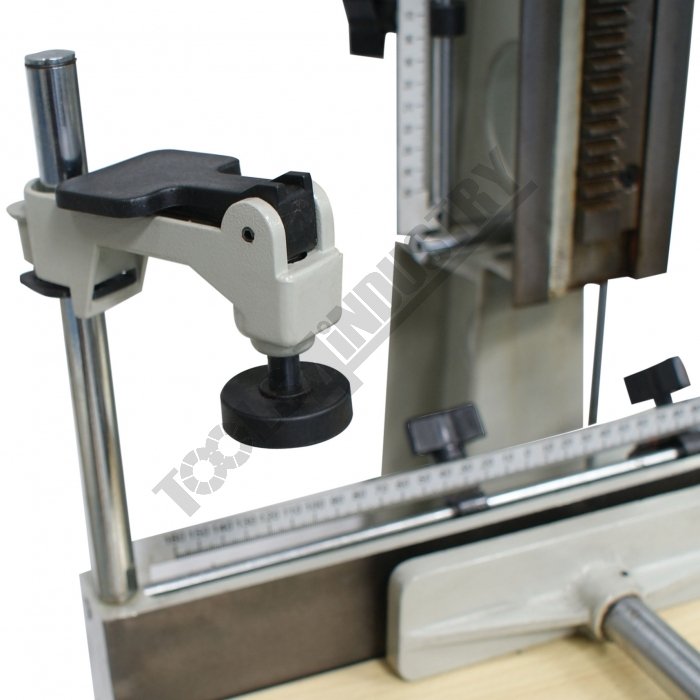

- Quick action material clamp
- 240 x 170mm table movement
- Heavy cast iron construction
- 0.75kW / 1hp 240V motor
- Overall height 1550mm
Includes
- 4 x Chisels: Ø1/4", Ø1/2", Ø5/8", Ø3/4"

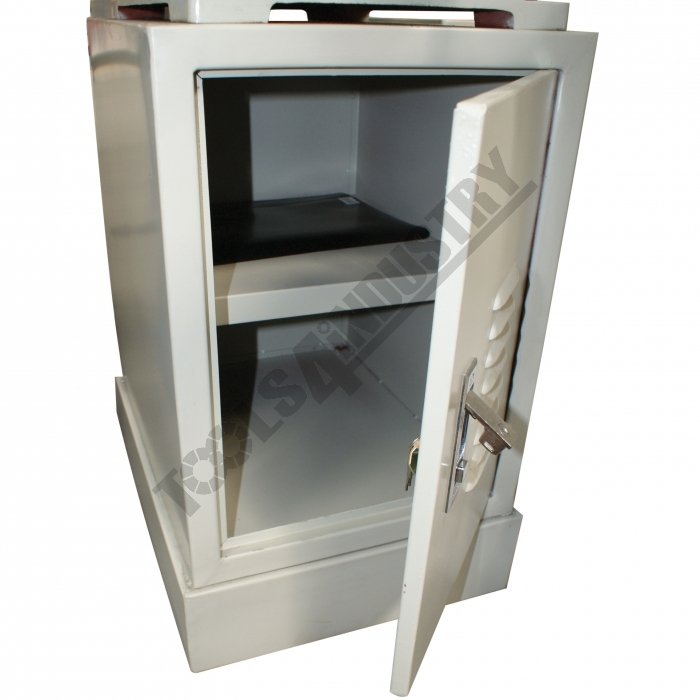

- Storage cabinet
Specifications
- Compare 5 Products
- ORDER CODE
- MODEL
- Timber Capacitymm
- Table Movementmm
- Vertical Head Strokemm
- Collar Reducing Bush (ID)mm
- Motor PowerkW / hp
- VoltageV
- Floor Space (W x D x H)mm
- Nett Weightkg
| ORDER CODE | M-24 |
|---|---|
| MODEL | 145 |
| Timber Capacitymm | 170 x 130 |
| Table Movementmm | 250 |
| Vertical Head Strokemm | ~ |
| Collar Reducing Bush (ID)mm | 0.75 / 1 |
| Motor PowerkW / hp | 240 |
| VoltageV | ~ |
| Floor Space (W x D x H)mm | 113 |
| Nett Weightkg |
