This Product Is No Longer Available
| Code | W322 |
|---|---|
| Model | DCM-200 |
| Capacity | 1200cfm |
| Weight (kg) | 82 |
| Weight (m3) | 0.422 |
| Weight (Freight) | 140.526 |
| Dimensions (cm) | 103 x 63 x 65 |

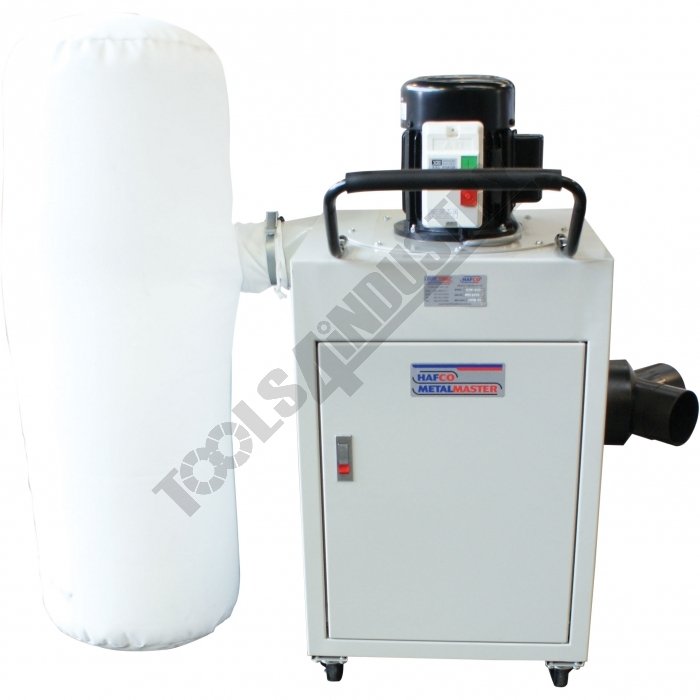

Metal - Wood Dust Collector DCM-200 1200cfm
Description

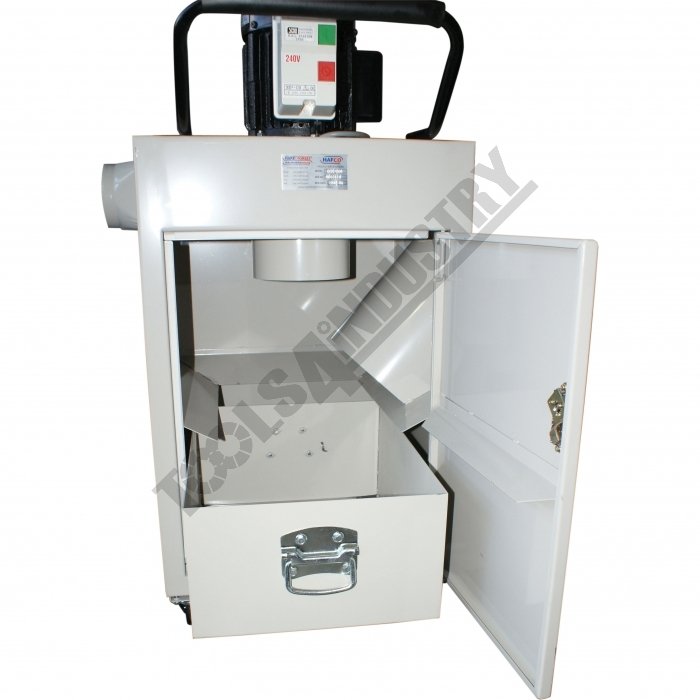

Manufactured in TaiwanThe DCM-200 unit can be use on different types of material, collecting metal or Wood dust/shavings, the heavy material falls directly into a removable metal collection tray while the finer product is trapped in filter bag.
Features
- 1200cfm
- Portable on wheels

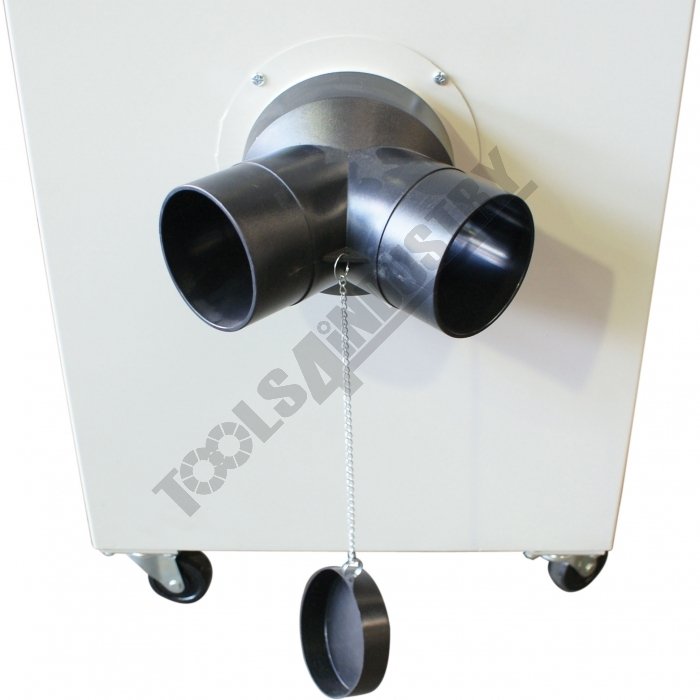

- Ø100mm dual inlets
- Quick-action clamp to remove filter bag
- Ideal for multiple extraction applications
- 1.5kW / 2hp 240V 15A motor
Specifications
- Compare 2 Products
- ORDER CODE
- MODEL
- AirflowCFM
- Type (Application)
- Filtration BagMicron
- Inlets / DiameterNo. / mm
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Floor Space (W x D x H)mm
- Nett Weightkg
| ORDER CODE | DCM-200 |
|---|---|
| MODEL | 1200 |
| AirflowCFM | Metal or Wood |
| Type (Application) | 30 |
| Filtration BagMicron | 2 x Ø100 |
| Inlets / DiameterNo. / mm | 1.5 / 2 |
| Motor PowerkW / hp | 240 / 15 |
| Voltage / AmperageV / amp | 1300 x 850 x 1180 |
| Floor Space (W x D x H)mm | 82 |
| Nett Weightkg |
