This Product Is No Longer Available

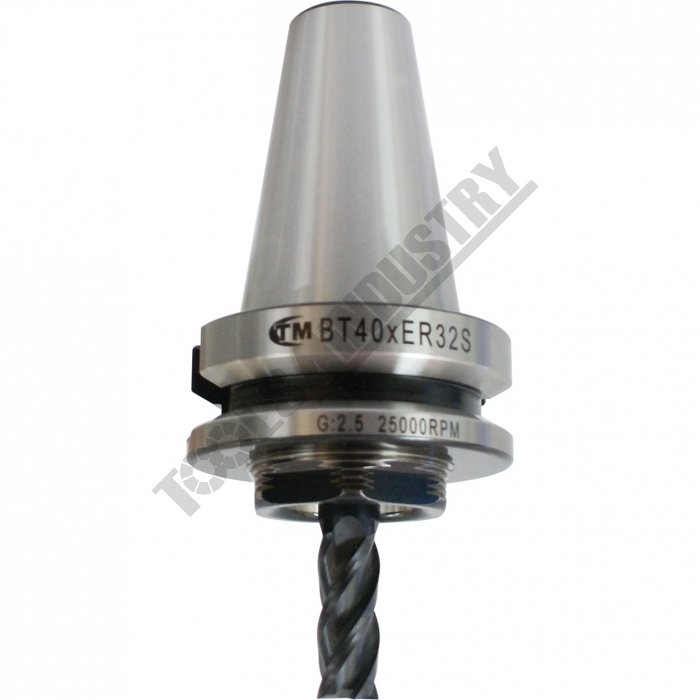

Shown with Optional Cutter

Shown with Optional Cutter

Code	T2205
Capacity	Ø2-Ø20mm Range
Weight (kg)	0.9
Weight (m³)	0.001
Weight (Freight)	0.9
Dimensions (cm)	13.5 x 7 x 7

TOOLMASTER

1 Year Warranty

Taiwan

Product Brochure

This Product Is No Longer Available

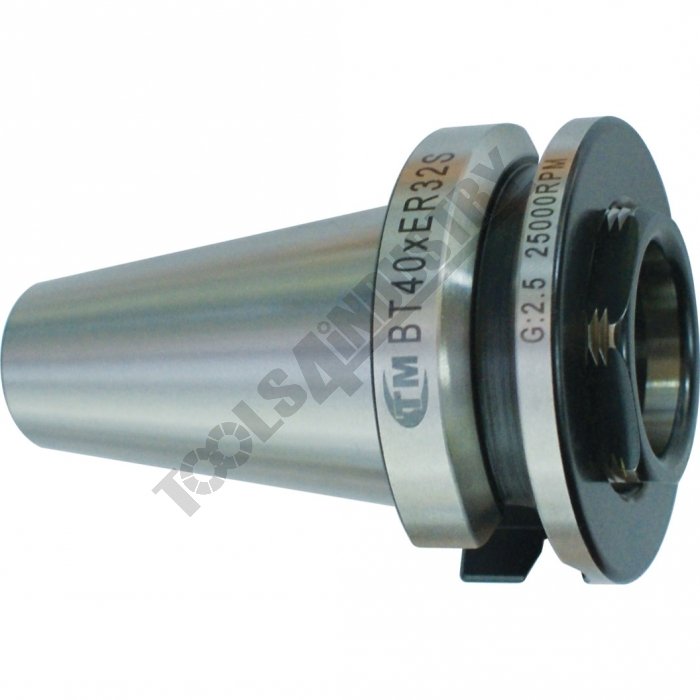

BT40 x ER32S Balanced Collet Chuck Ø2-Ø20mm Range

Description

All BT collet chucks meet the specifications of machine tool builders (DIN 2080 taper Shank Grade AT-3 - 85% taper contact)

Features

Precision ground
Manufactured to MAS403BT40 standard
M16 Pull Stud thread
36.4mm extension from the gauge line
Each chuck comes with inspection report
Replacement nuts available (C119)
Locking spanner not included

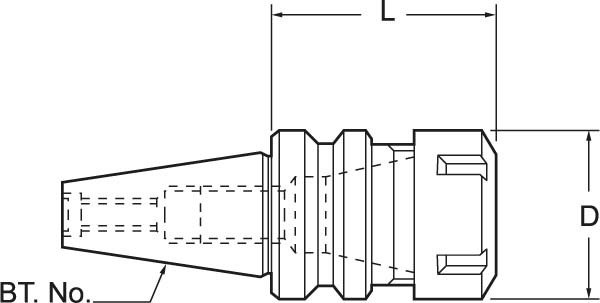

Specifications

Compare 16 Products
ORDER CODE
MODEL
Speed Ratingrpm
TaperBT
Capacitymm
Lmm
Dmm
Collet TypeER
Nett Weightkg

T2205
BT40 x ER32S
25,000
BT40
2 - 20
32.4
36
ER32
0.9

T332
BT30 x ER32-60
25,000
BT30
2 - 20
60
50
ER32
0.8

T203
BT40 x ER16-70
15,000
BT40
0.5 - 10
70
28
ER16
1.3

T204
BT40 x ER16-100
15,000
BT40
0.5 - 10
100
28
ER16
1.4

T208
BT40 x ER20-70
15,000
BT40
2 - 13
70
34
ER20
1.7

T209
BT40 x ER20-100
15,000
BT40
2 - 13
100
34
ER20
1.7

T214
BT40 x ER25-70
15,000
BT40
2 - 16
100
42
ER25
1.7

T215
BT40 x ER25-100
15,000
BT40
2 - 16
100
42
ER25
1.7

T220
BT40 x ER32-70
15,000
BT40
2 - 20
70
50
ER32
1.7

T224
BT40 x ER32-100
15,000
BT40
2 - 20
100
50
ER32
1.8

T226
BT40 x ER40-80
15,000
BT40
3 - 26
80
63
ER40
1.8

T228
BT40 x ER40-100
15,000
BT40
3 - 26
100
63
ER40
1.8

T448
BT50 x ER32-100
10,000
BT50
3 - 20
100
50
ER32
5.0

T450
BT50 x ER40-100
10,000
BT50
3 - 26
100
63
ER40
5.0

T331
BT30 x ER16-60
10,000
BT30
0.5 - 10
60
28
ER16
0.8

T2201
BT40 x ER32-70
15,000
BT40
2 - 20
70
50
ER32
1.7

ORDER CODE	BT40 x ER32S
MODEL	25,000
Speed Ratingrpm	BT40
TaperBT	2 - 20
Capacitymm	32.4
Lmm	36
Dmm	ER32
Collet TypeER	0.9
Nett Weightkg
